24V ws2818 LB1934 60leds 10mm width Digital Pixel LED Strips with dual signal for outdoor use

24V DC 12Vws2818 LB1934 60leds 10mm width Digital Pixel LED Strips with dual signalDescribe:Digital 12V DC24V LED StripItem: RL-STR-LB1934-5050RGB-60---12V/24VIC Type:LB1934/ws2818 optionalColor:Digital RGBLED Quantity: 60 leds per meterSize: 5000*10*2.5(mm)/ 8mm

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

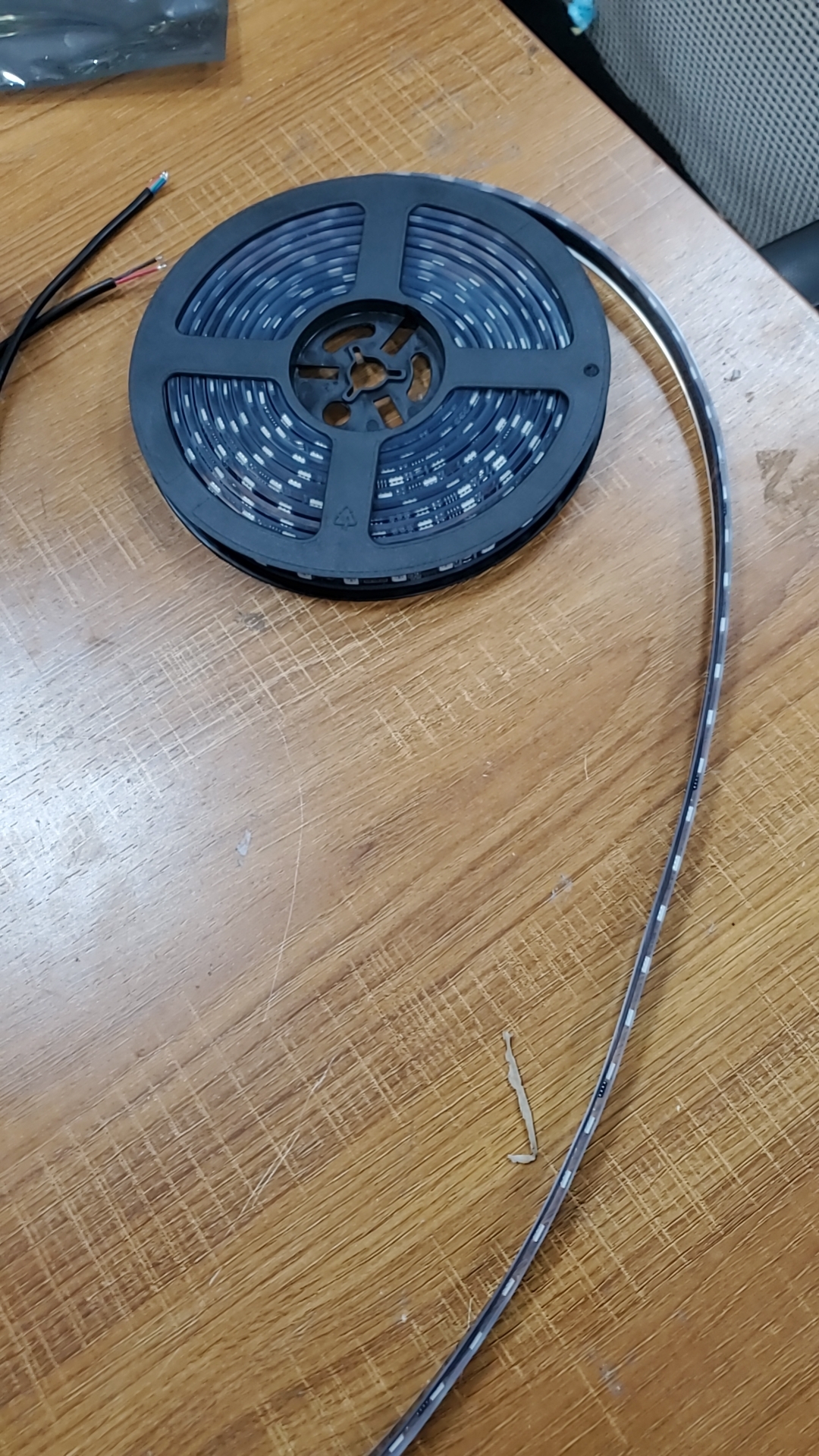

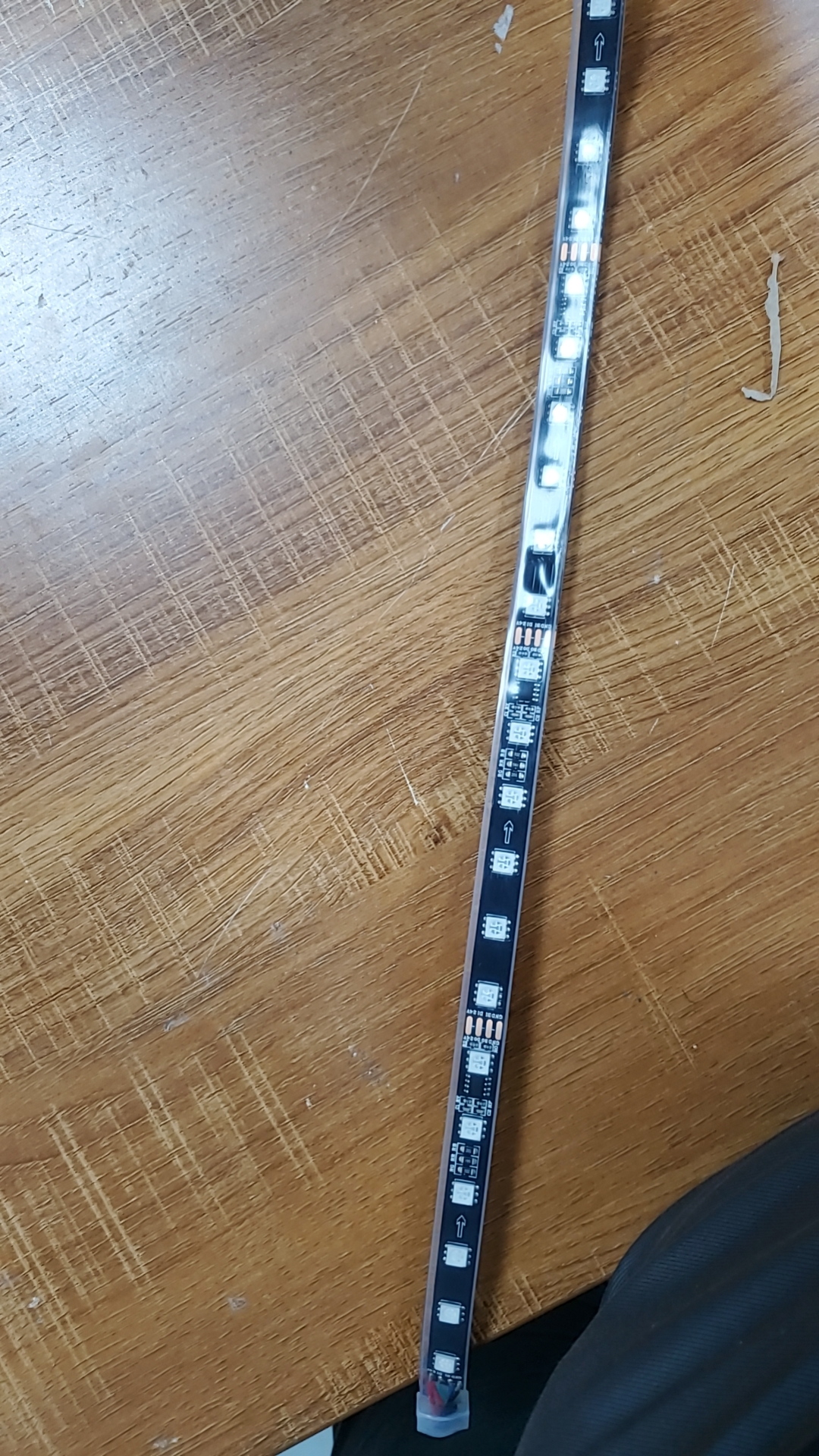

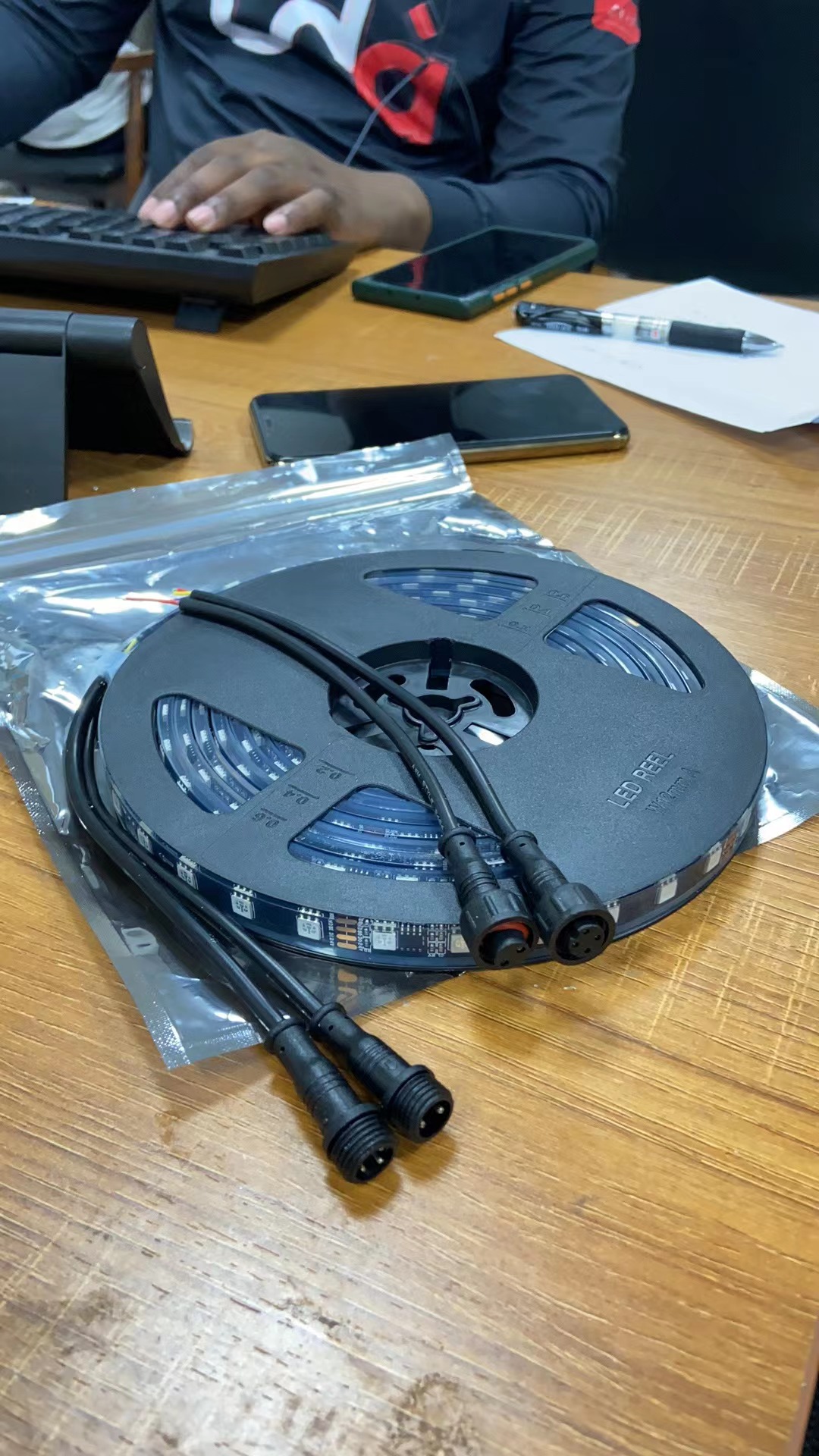

24V ws2818 LB1934 60leds 10mm width Digital Pixel LED Strips with dual signal for outdoor use

the wring of 1934 led strip with led controller

24V with Ip68 with red tape at the back

Describe:

Digital 12V DC24V LED Strip
Item: RL-STR-LB1934-5050RGB-60---12V/24V
IC Type:LB1934/ws2818 optional
Color:Digital RGB
LED Quantity: 60 leds per meter
Size: 5000*10*2.5(mm)/ 8mm optional
View angle:120°
Working Input Voltage: 12V Dc24v
Drive Mode:Constant Voltage
Pixels/M :10pixels with 24V ;20pixels with 12V

Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. Pure copper bracket and pure gold wire for 5050 RGB led chip

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. 60leds and 10pixels per meter with 24V ,One IC control six leds ,

60leds and 20pixels per meter with 12V ,One IC control three leds ,

7. 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky
