Dc12V 60Led 20pixels WS2811 UCS 1903 SM16703p RGB Digital LED Strip

Dc12V 60Led  20pixels WS2811 UCS 1903 SM16703 RGB white Digital LED Strip

Introduction

Led type: 5050 SMD RGB LED
IC type: UCS1903/ws2811/SM16703
PCB Width:10mm
Led lighting angle: 120°
LED Q'ty:  60led/m.

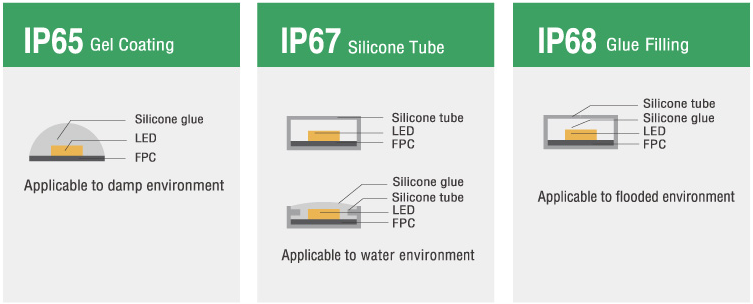

IP Rating IP20, IP65, IP67, IP68.

• IP20 Non-waterproof with 3M sticker on the back,

• IP65 waterproof is silicone gel or epoxy on the surface,

• IP67: silicone tube,(silicone sheathing ),

• IP68: silcone gel(or epoxy) inside silicone tube.

Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
3 LED 1 IC, individual controlled, can be made into high-density high-definition display;

Advantages:

1.PWM refresh rate: 1.2kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.12V and 24V optional ( 3leds one IC with 12V, 6leds with one IC with 24V)

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . ever 3 LEDcan be cut with 12V, ever 6 LEDcan be cut with 24V,

7. 60 leds per  meter . 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

30leds per meter optional

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

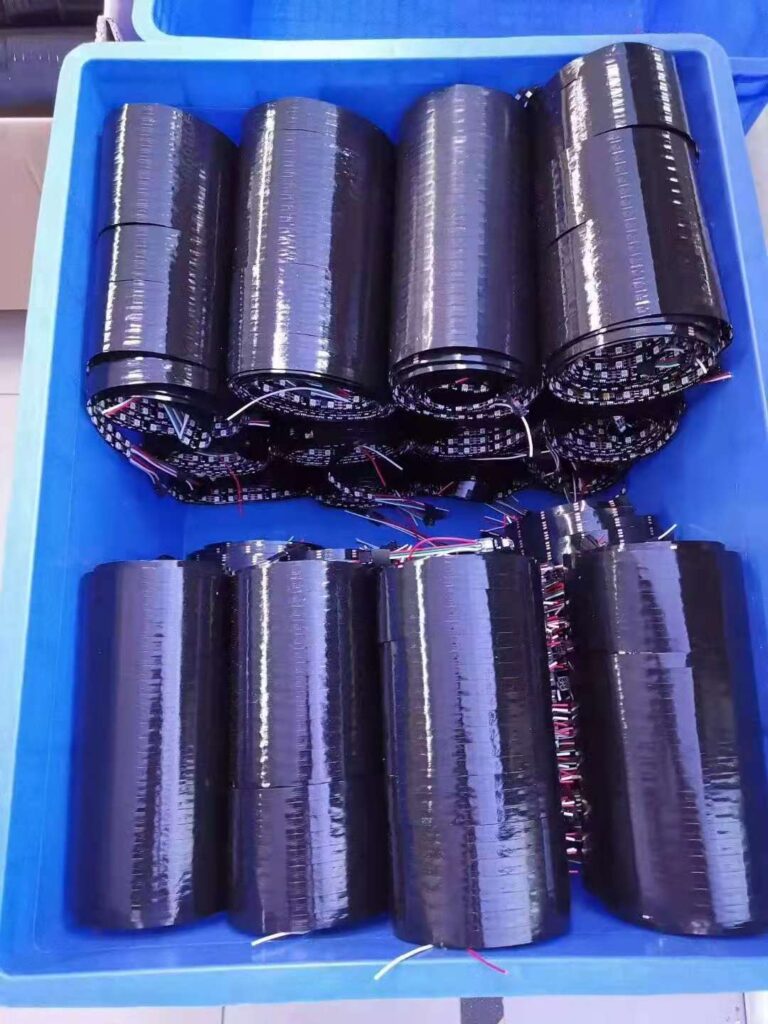

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Product details

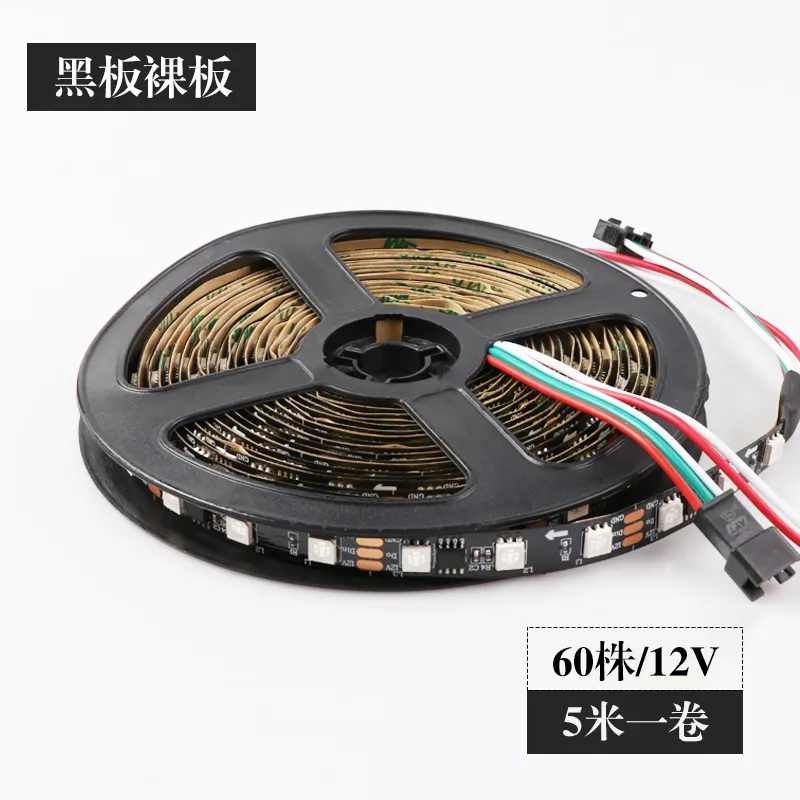

Nonwaterproof Ip20

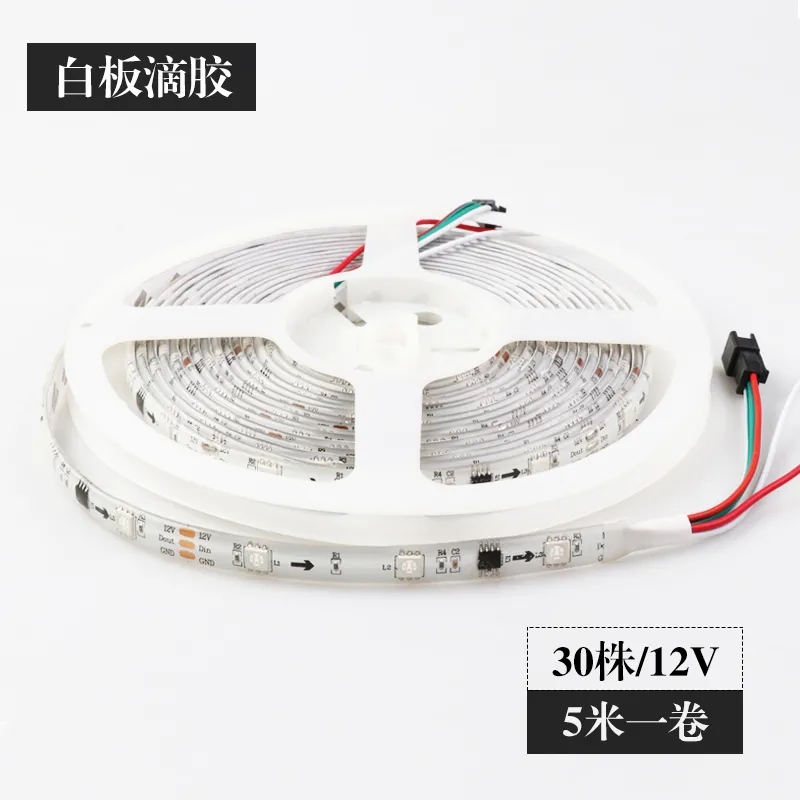

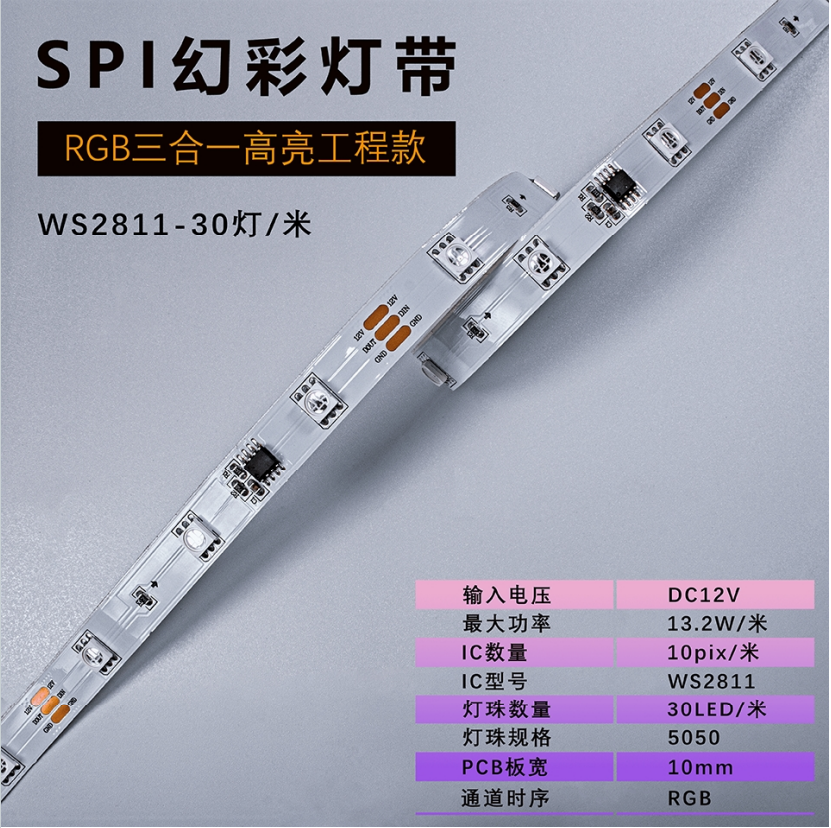

There is 30led per meter optional！

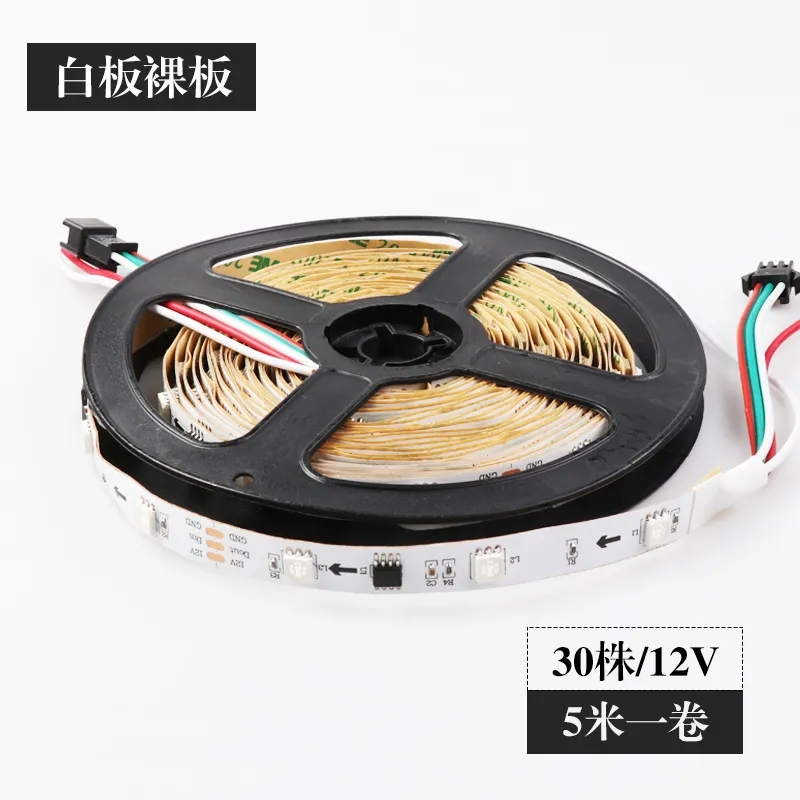

white color  optional

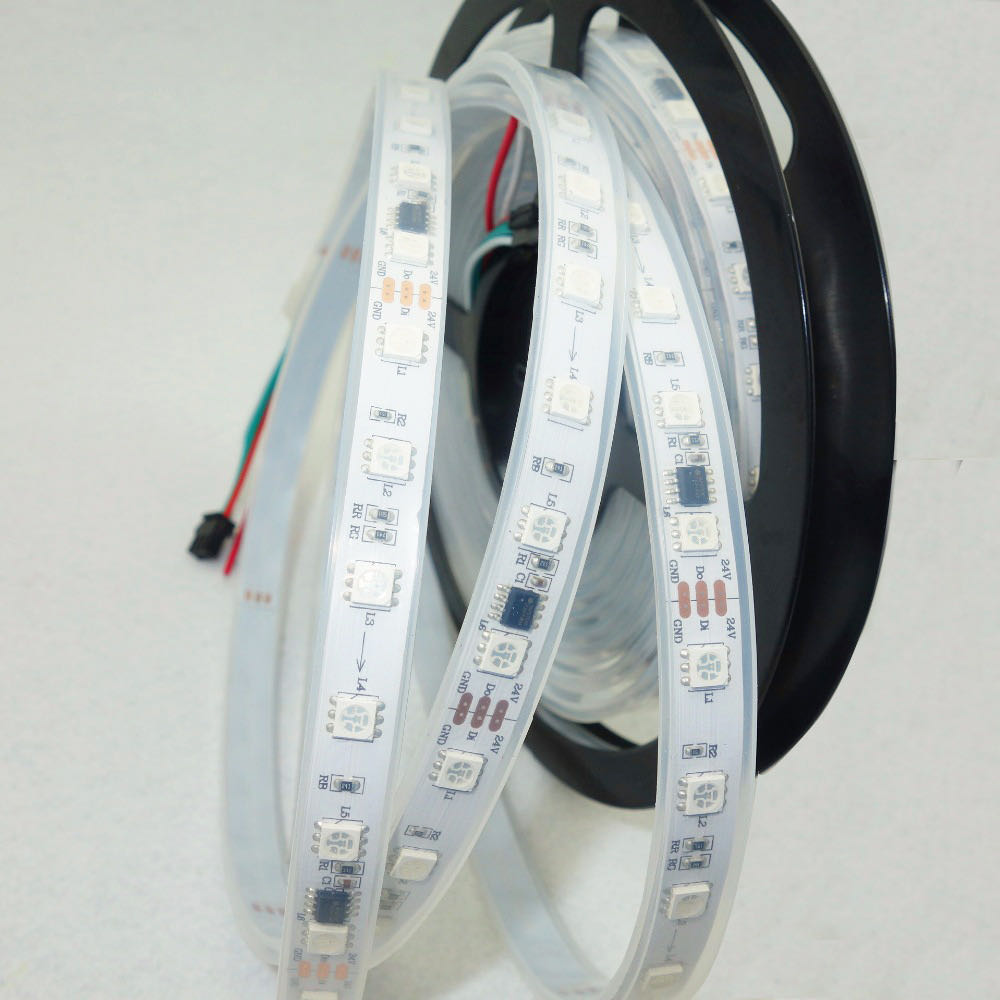

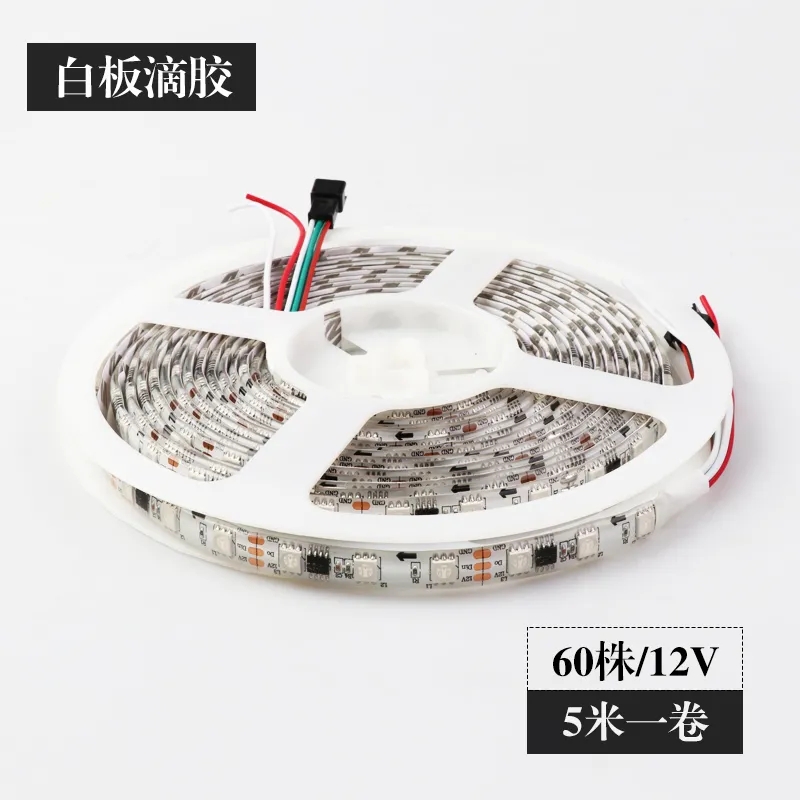

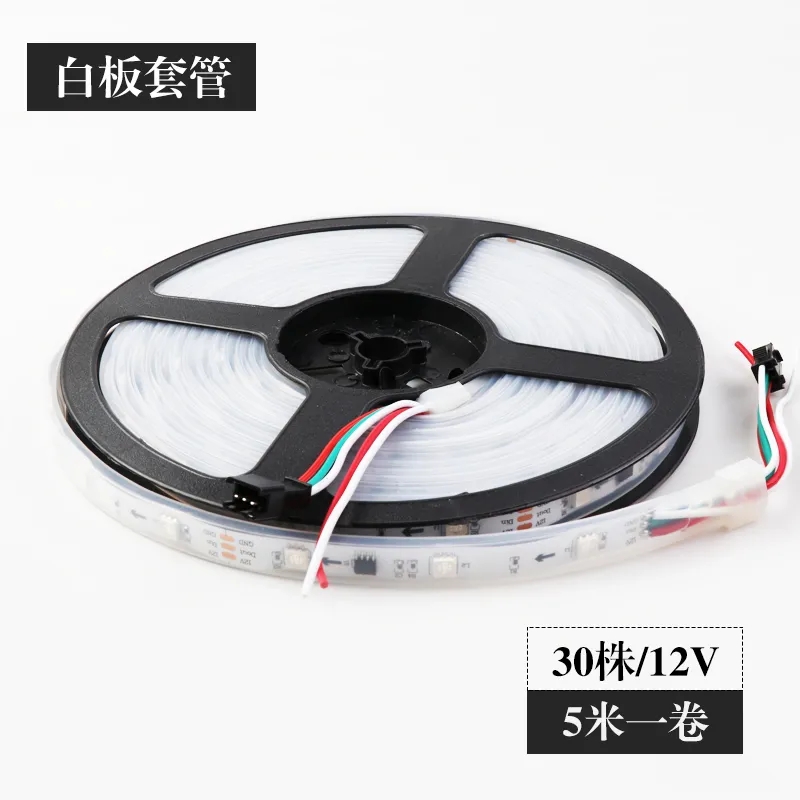

 waterproof Ip67

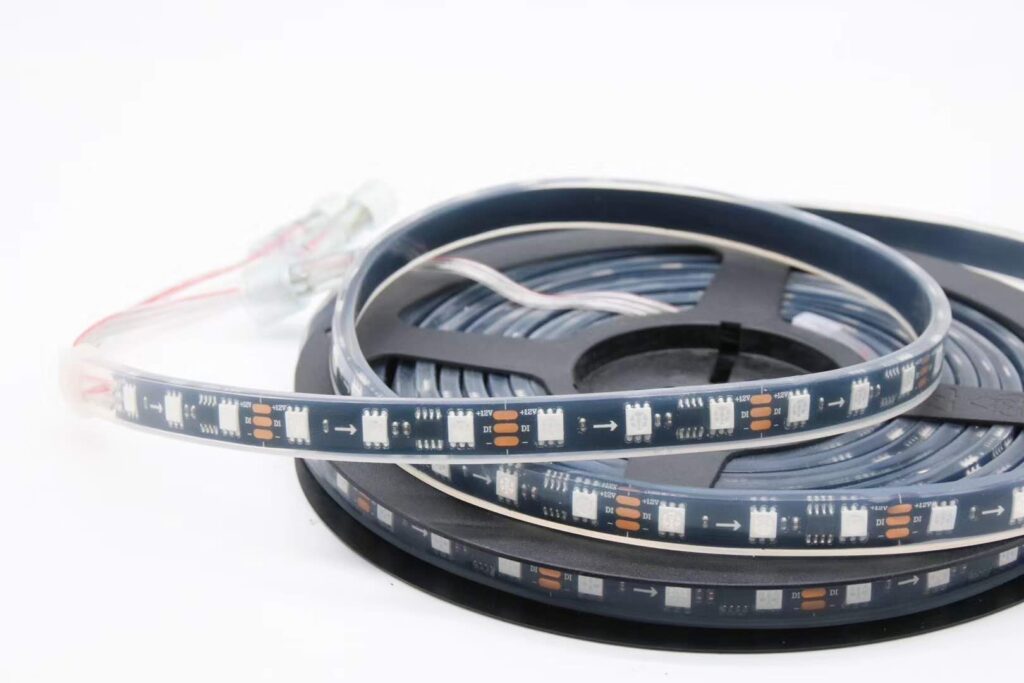

waterproof Ip68

Take noted of the sm16703p (same work ws2811)  it lights up white when power on , ( no signal input)

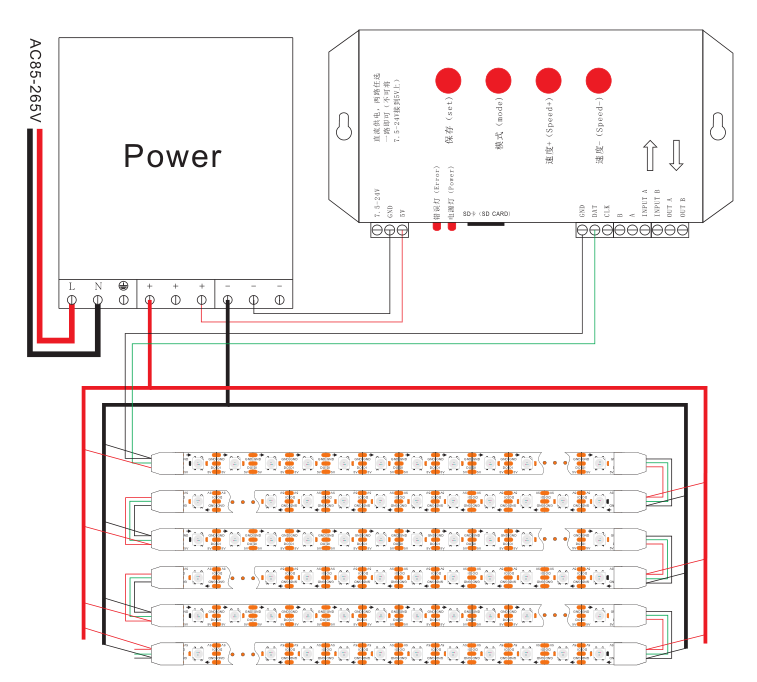

Connection chart
