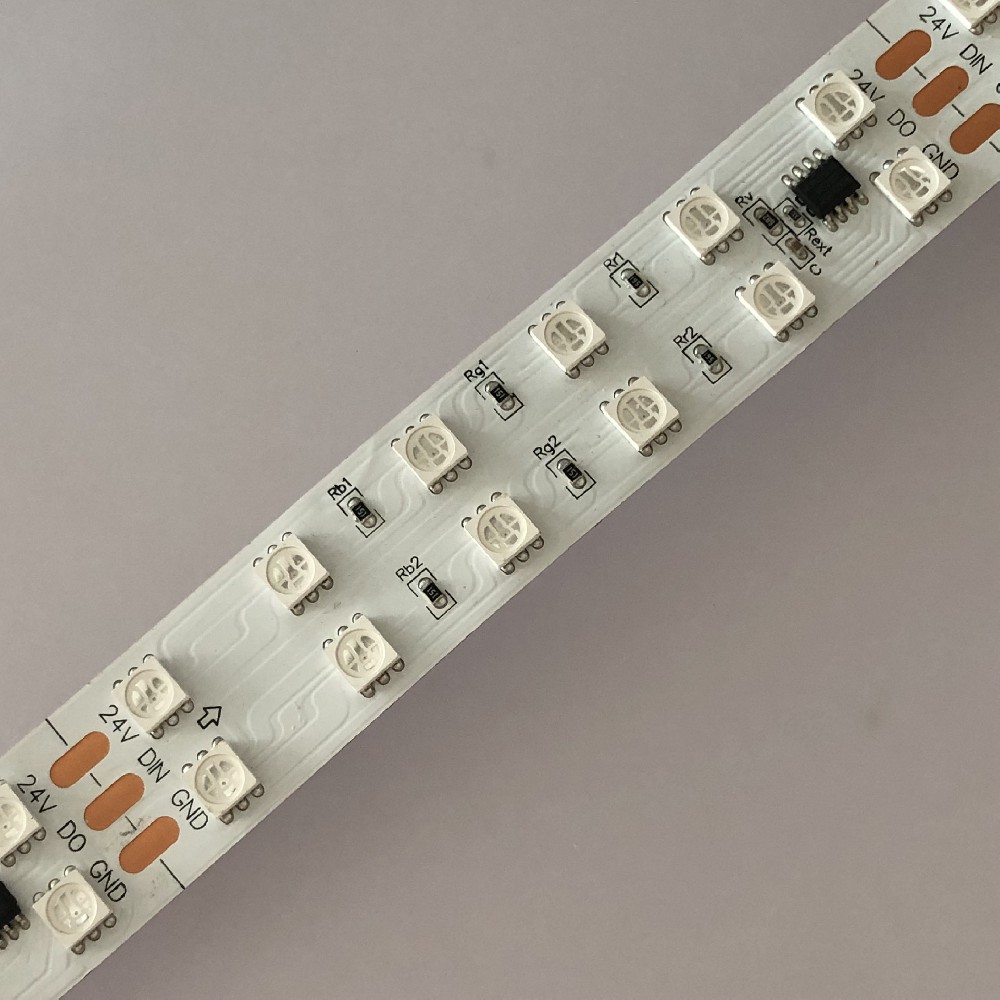

24V 120leds two rows ws2811 ucs2903 sm16703 10pixels 20mm width Digital Pixel LED Strip

24V 120leds two rows ws2811 ucs2903 sm16703 10pixels 20mm width Digital Pixel LED Strip

Describe:

• Digital 24V Double row  LED Strip

• Item: RL-STR-ucs2903-5050RGB-120--10P-24V

• IC Type:ws2811 ucs1903 sm16703

• Color:Digital RGB

• LED Quantity: 120 leds per meter

• Size: 5000*20*2.5(mm)

• View angle:120°

• Working Input Voltage: 24V  28W/m

• Drive Mode:Constant Voltage

• Pixels/M :10pixels

Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. Pure copper bracket and pure gold wire for 5050 RGB led chip

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. 120leds and 10pixels per meter ,One IC control six leds ,

7. 24V low voltage inputted , don’t over 24V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll  60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

waterproof Type

IP20 Non-waterproof with 3M sticker on the back, Size:5000*20*2.5mm

IP65 waterproof is silicone gel on the surface,Size:5000*20*3mm

IP67: silicone tube,Size:5000*22*4mm

IP68: silcone gel inside silicone tube.Size:5000*22*4mm

Product details

which is put inside the 50mm25mm led aluminium profile here

https://youtu.be/CiOtPOOFs4U
