Dc5V sk6812 ws2812B white 5050 pixel LED Strip 144pixels per meter

5v144pixelwhiteledstrip
Products Inquiry

Product Details

Dc5V  sk6812 ws2812B white  5050 pixel LED Strip 144pixels per meter


Advantages:

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.Red copper bracket and pure gold wire  RGBW led lamp,

4.High brightness LED lamp with high brightness

CCT for white optional from 2500K-12000K

5 hongqi brand 2OZ PFCB(35um cooper)with double cooper layer,

6. 2 sides membrane cover the PFCB. make sure the copper no drop from the pcb board ,

7. 144M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20



Basis specification

 Item namesk6812 digital  white pixel led strip
LED sourcewhite 5050 LED
PCB width12mm 2OZ copper thickness
Working voltageDC5V
Watts/M

20W/M(120LEDs/M)


Brightness(lm)20lm per LED
warranty2years
IP rateIP20, IP65, IP67, IP68.
Led lighting angl120°
 PWM Rate 800HZ

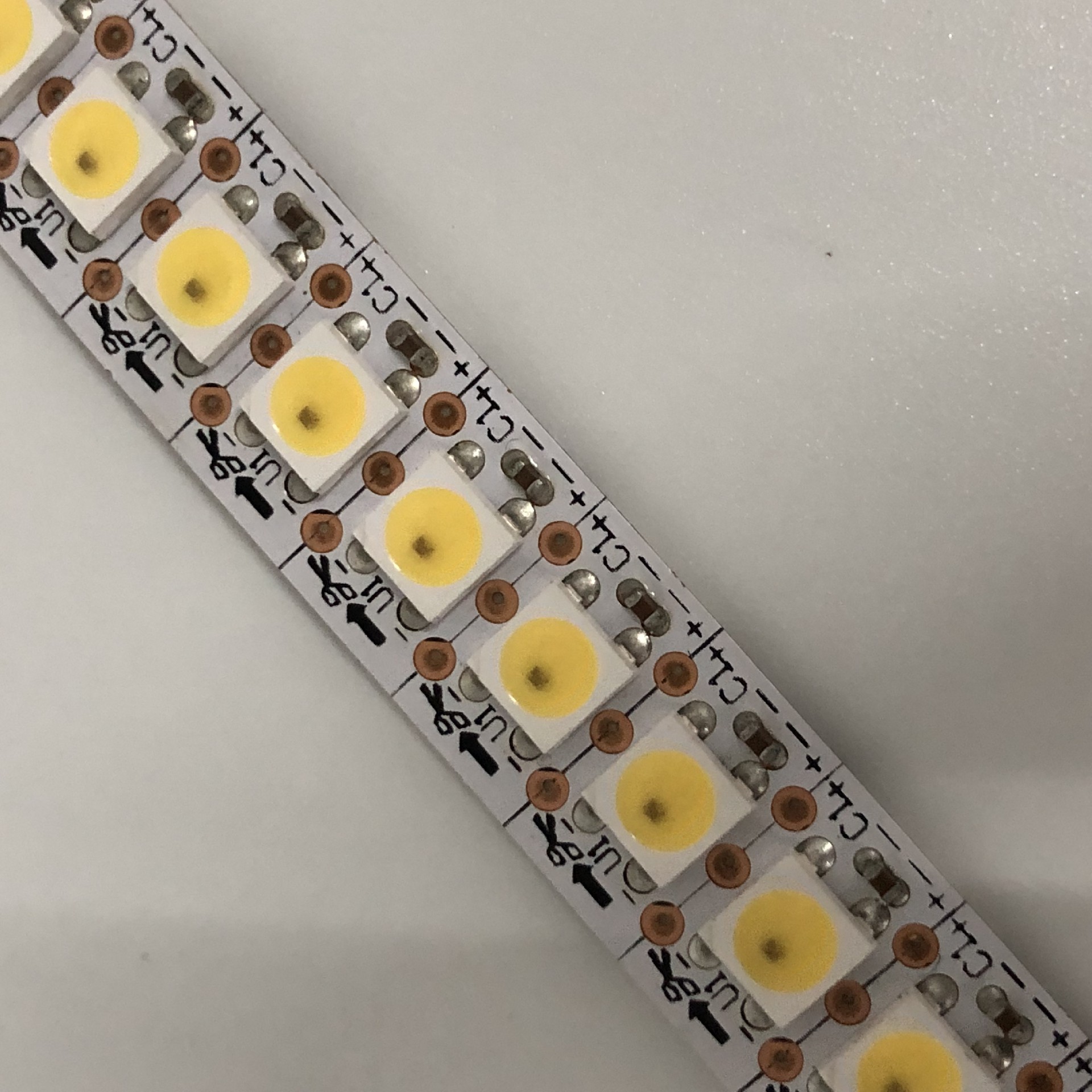

Picture details










The wiring

Other color  optional




There is other led quantity optional







below 60pixels is best seller --which we have a lot in stock

RL-STR-sk6812-5050RGB-60-5V.pdf
