Dc24V digital flowing running water 2835 Pixel LED Strip ws2811 20pixels/m 120leds/m 10mm and 8mm optional

Dc24V digital flowing running water  2835 Pixel LED Strip ws2811 8pixels/m 120leds/m

Describe:

• Item: RL-STR-ws2811-2835-8P-120-24V

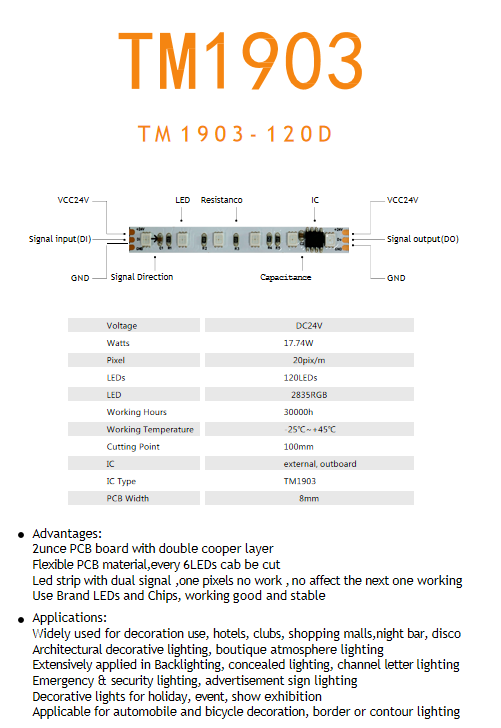

• IC Type:ws2811/tm1903

• Color:white (2000k--6500K optionl)

• LED  Type: smd 2835 led

• LED Quantity: 120 leds per meter

• Size: 5000*8*1.5(mm)

• View angle:120°

• Working Input Voltage: 24V 9.6W/meter

• Drive Mode:Constant Voltage

• Pixels/M :20pixels/M

• waterproof Type

  IP20 Non-waterproof with 3M sticker on the back, Size:5000*10*1.5mm

  IP65 waterproof is silicone gel on the surface,Size:5000*10*3mm

  IP67: silicone tube,Size:5000*12*2.5mm

  IP68: silcone gel inside silicone tube.Size:5000*12*2.5mm




 Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps,

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable ,

3. Pure copper bracket and pure gold wire for 2835 smd led ,

4.2unce PCB board with double cooper layer(hongqi brand 25um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6.120 pcs smd 2835 leds ,

7. 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Product details

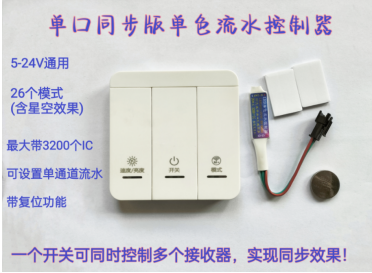

flow water   color led controller

Running water led controller

below is CCT dual white 2835 flex led strip with 120led  20pixels per meter

CCT chart for white
