Dc12V 3D 360 View SPI Vertical RGB led Tube
There is 30 32 48 60 72 pixels per meter optional ,
there is 15mm 20mm 25mm 30mm 40mm dimater optional too
Product Parameter:
P/N | LED Type | Diamter Size(mm) | Pixel | VCC | Power of each led | Protocol | MCD per LED | IP | |
RL-bar-ws2811-5050RGB-30/32/348/60/72-12V | 5050 smd RGB | D40/30/20/15/ | 30/32/48/60/72 | DC12V | 0.24Watt | SPI | R800/G2100/B480 | IP65 |
Features:
1.This SPI Control LED Tube designed by clear PC tube,
2.The whole tube had ws2811 IC chipet ,belong to SPI control,
3. supper bright RGB SMD RGB LED ,
4.Both side make it 360 viewing,
5.Each tube included 1pcs eye hook for installation,
6.Every LED tube attached a waterproof 4Pin connector (black color),
7.The length of connector 20cm,4Pin 20AWG copper wire in white PVC,(customs length available)
8.The Tube with female and male 4pin connector, can connect next LED Tube easily.
9.The diameter is tube is 30mm (we also offer 20mm 15mm 40mm diameter size),
10.Avaliable size : 50cm & 100 cm&150cm&200
Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge
Picture:
YouTube's Video

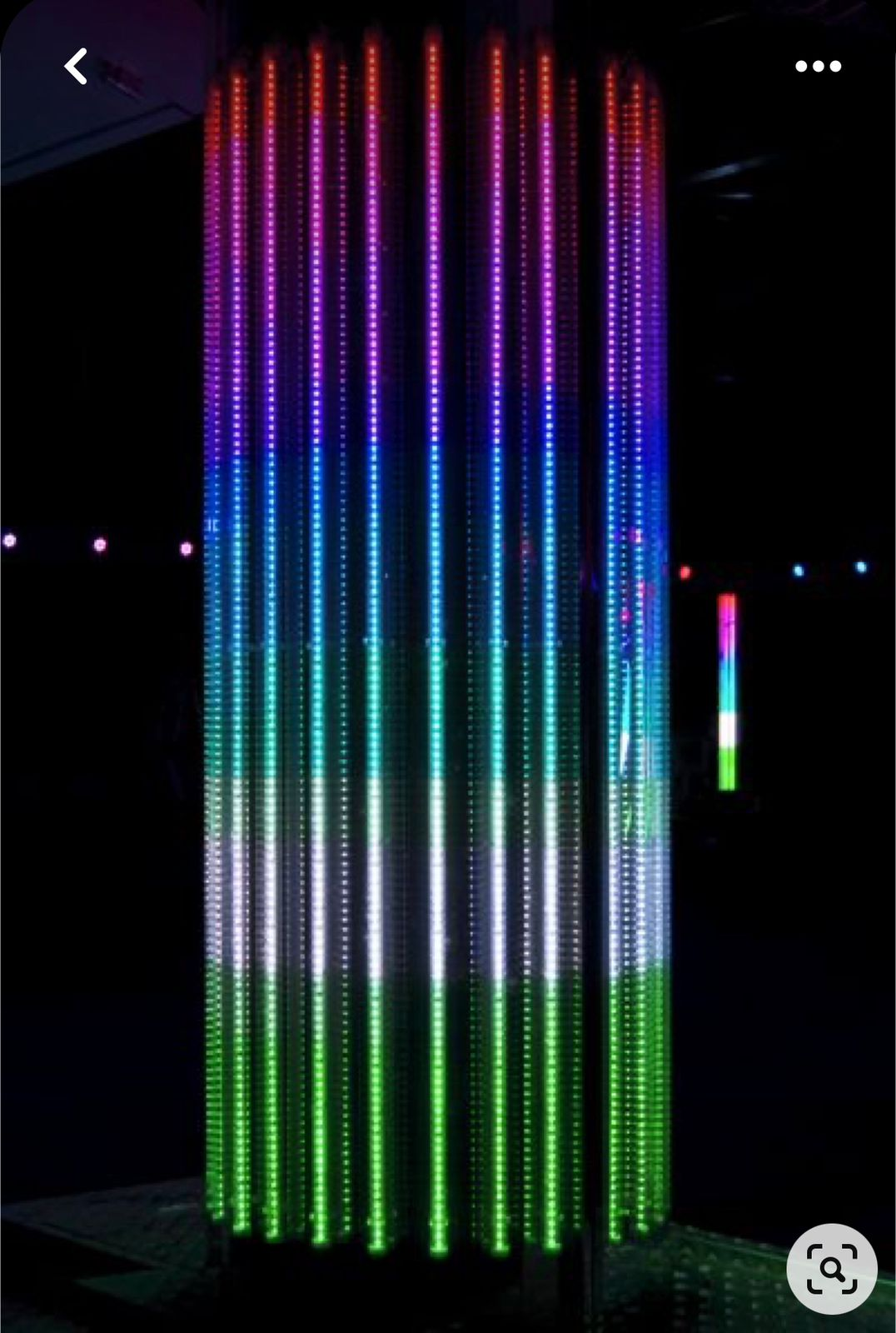

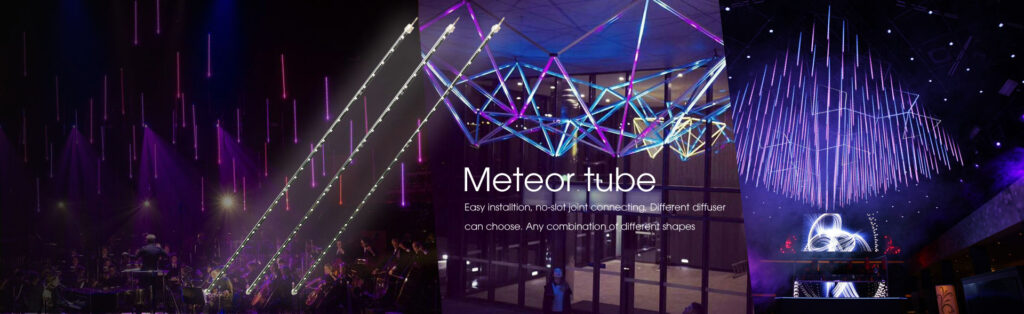

application
