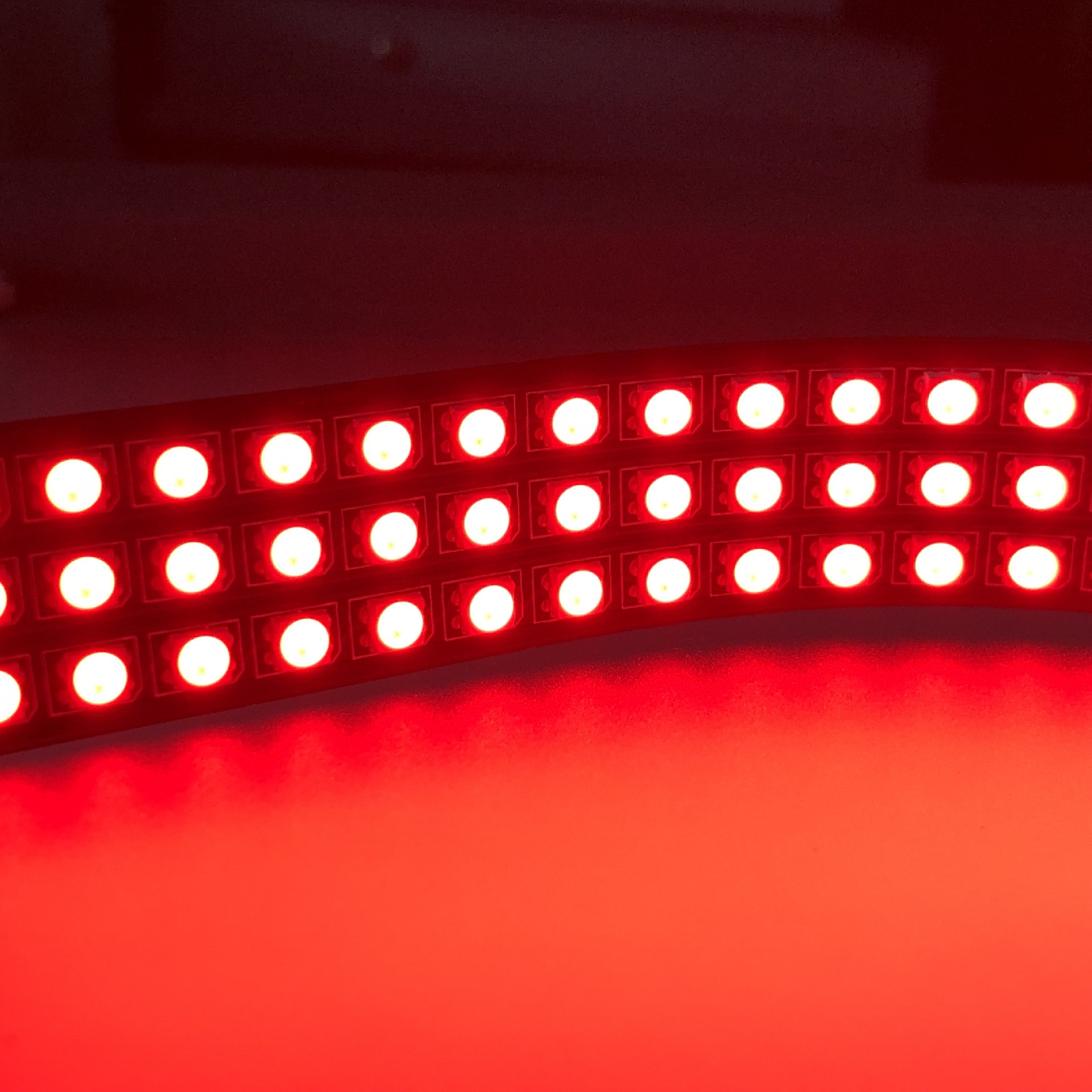

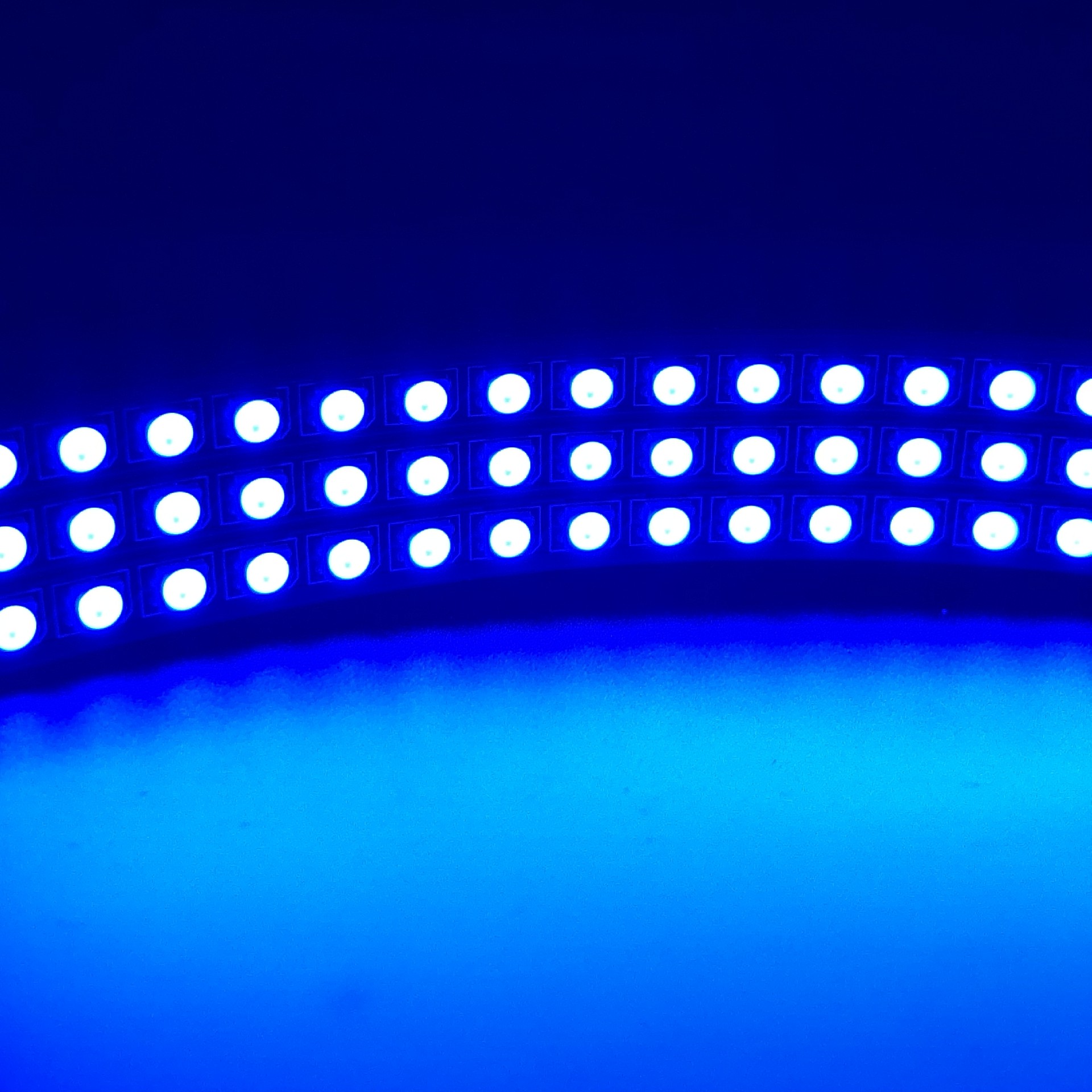

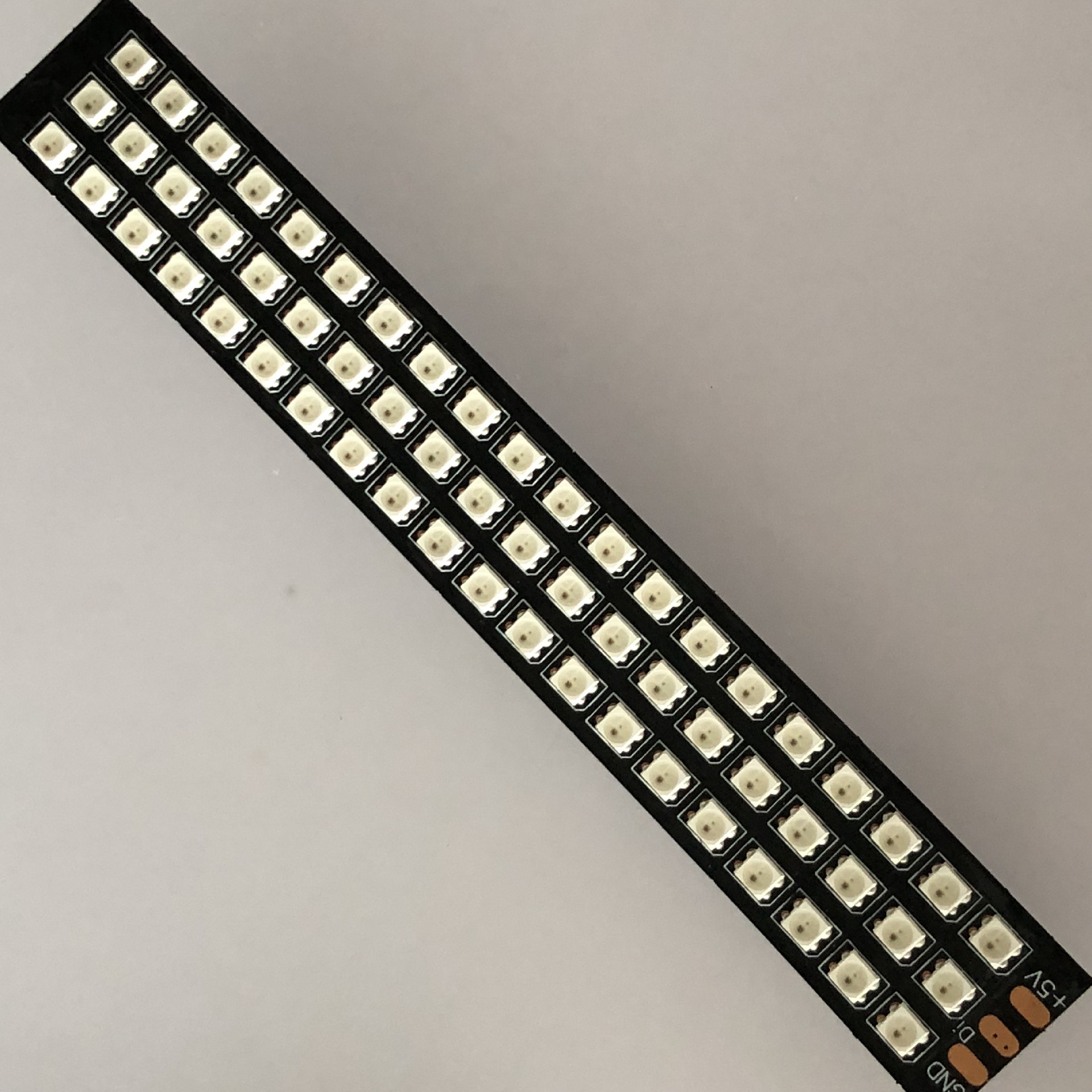

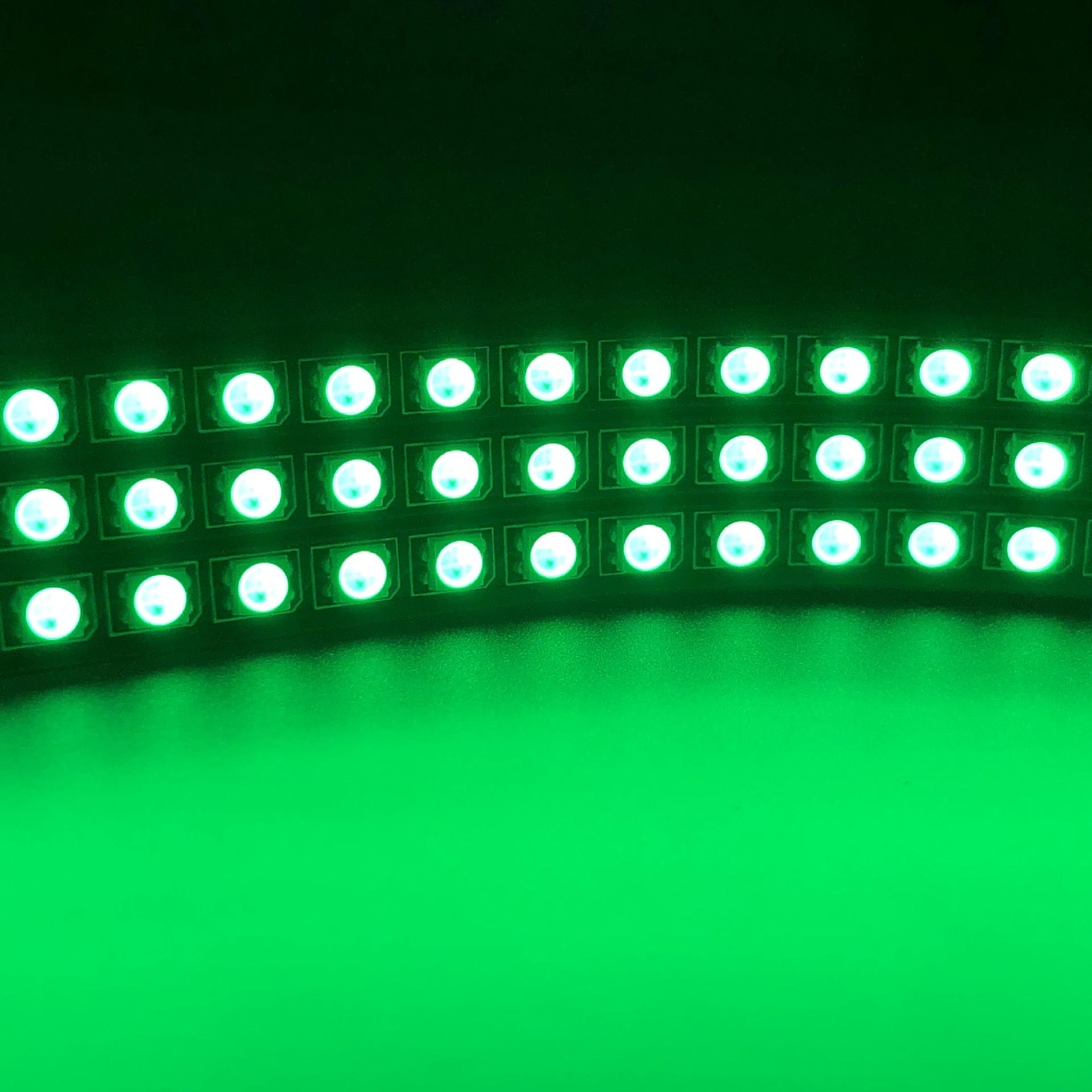

Digital full color sk6812 ws2812B 3535 rgb Individual control led pixel rgb led matrix display 3X10pixels
|LED qty||30pcs individually addressable sk6812 rgb 3535 LEDs|
|Lighting color||Multi-Color, digital RGB,Every LED individual Control|
|IP Rate||IP20 Non-waterproof|
|LED chip||Integrated sk6812|
|Current||8A on bright white|
|Dimension||? size, 2.5mm thickness|
|IP||Bendable, IP20, only for indoor use|
|Board color||Black for now|
|Sample code||Example code available for Arduino, AVR,mbed,etc|
|Controller||Support Arduino, T1000s, DMX512, Raspberry pi, Glediator ,etc|
1. These bendable digital led matrixs are an easy way to cadd complex lighting effects to a dispaly project.
Each sk6812 led has an integrated driver that allows you to control the color and brightness of each LED independently.
2. The combined LED/drive IC on these led digital matrix is the extremely compact sk6812 in a 5050-size LED pacakge, which enables higher LED densities.
3. In contrast to the WS2812B led matrix, sk6812 RGB led digital matrix uses a standard SPI signal (with s DAT and CLK signals combinated on one cable)
and has no specific timing requirements, making the sk6812 led martixs are much easier to control.
4. Arranged in an 16×16 sk6812 led matrix, each pixel is individually addressable
5. sk6812 LED matrixs uses a much higher PWM frequency for controlling each colro channel –20 KHz PWM rate ,
comared to 400 Hz on the WS2812B. As a result, the sk6812 led matrix transmission signal speed much faster than the ws2812b led matrixs.
In addition, the sk6812 LED matrixs proides a 8-bit brightness adjustment.
There is other pixel led digital matrix display as follow
Compare for 8*8, 16*16 and 8*32 sk6812 LED digital matrix display
|Product||sk6812 8*8 led matrix||sk6812 16*16 led matrix||sk6812 8*32 led matrix|
|Watt / matrix||15.4W||61.4W||61.4W|
|sk6812 LEDs density||64 LEDs per matrix||256 LEDs per matrix||256 LEDs per matrix|
|Emittong color||RGB digital||RGB digital||RGB digital|
|Bare board dimension||80 * 80 * 2.5mm||160 * 160 * 2.5mm||80 * 320 * 2.5mm|
|Standard packing||1pcs/ anti-static bag||1pcs/ anti-static bag||1pcs/ anti-static bag|
SPI signal :LED strip+ LED power supply +led controller
DMX control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino………(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series …. (waterproof /non-waterproof )
wire define: Red: Dc5V+ Blue: Data Green: Clock Black: GND
