Full color rgb 45mm amusement park rides 12 led point light 12v 24v outdoor waterproof fun lighting led

Specification of Full color point light:
(1) CP-IC4512 is a combination of a plastic (thermostability, cold-resistant, resistant to UV) shell and PCB board, also 3 spell line with blue, white, red color. Contain 12PCS SMD 5050 RGB LED and 1pcs UCS2903 IC.
(2) Full color point light With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline and colorful.
(3) Full color point light can carry out full-color running water, chasing and scanning effects and etc.
(4) Different installation methods may compose different dynamic effect of different color's character and design.
(5) Full color point light Widely used in amusement rides, hotel, disco and other entertainment place for indoor and outdoor decoration lighting.
(6) Full color point light has already passed the CE and RoHS certifications.

	Model Name	CP-IC4512
	IC Chip	UCS2903
	Led Chip	Epister smd5050 led chip
	Led Qty	12PCS
	Voltage	DC24V / DC12V
	Watt	2.88W
	Punching hole	20mm
	Warranty	2 Years
	Certification	CE ROHS

Full color point light description :

	Full color point light Details
	combination of a plastic . (thermostability,cold-resistant,resistant to UV) shell and PCB board, also 3 spell line with blue,red ,white color,contain 12 PCS waterproof 5050RGB SMD LED and 1 pcs UCS2903 IC inside Red=DC24V Blue=ground White=data . yellow =V- red= V+

Full color point light Details

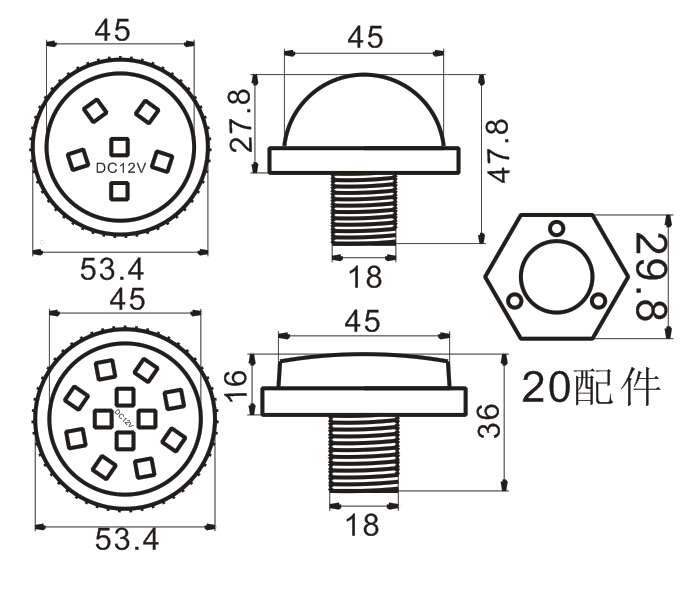

Front cap size approx 45mm   punching  hole size 20mm

	Full color point light Details
	have two type connector . waterproof  plug  & common plug  .two cover : Convex cover & flat cover

Full color point light Details
Work with Controller . Can make any effect you want . if you don't know make program , we can do that for you with free .

Download the detailed specification here please

RL-4512-ICRGB.docx
