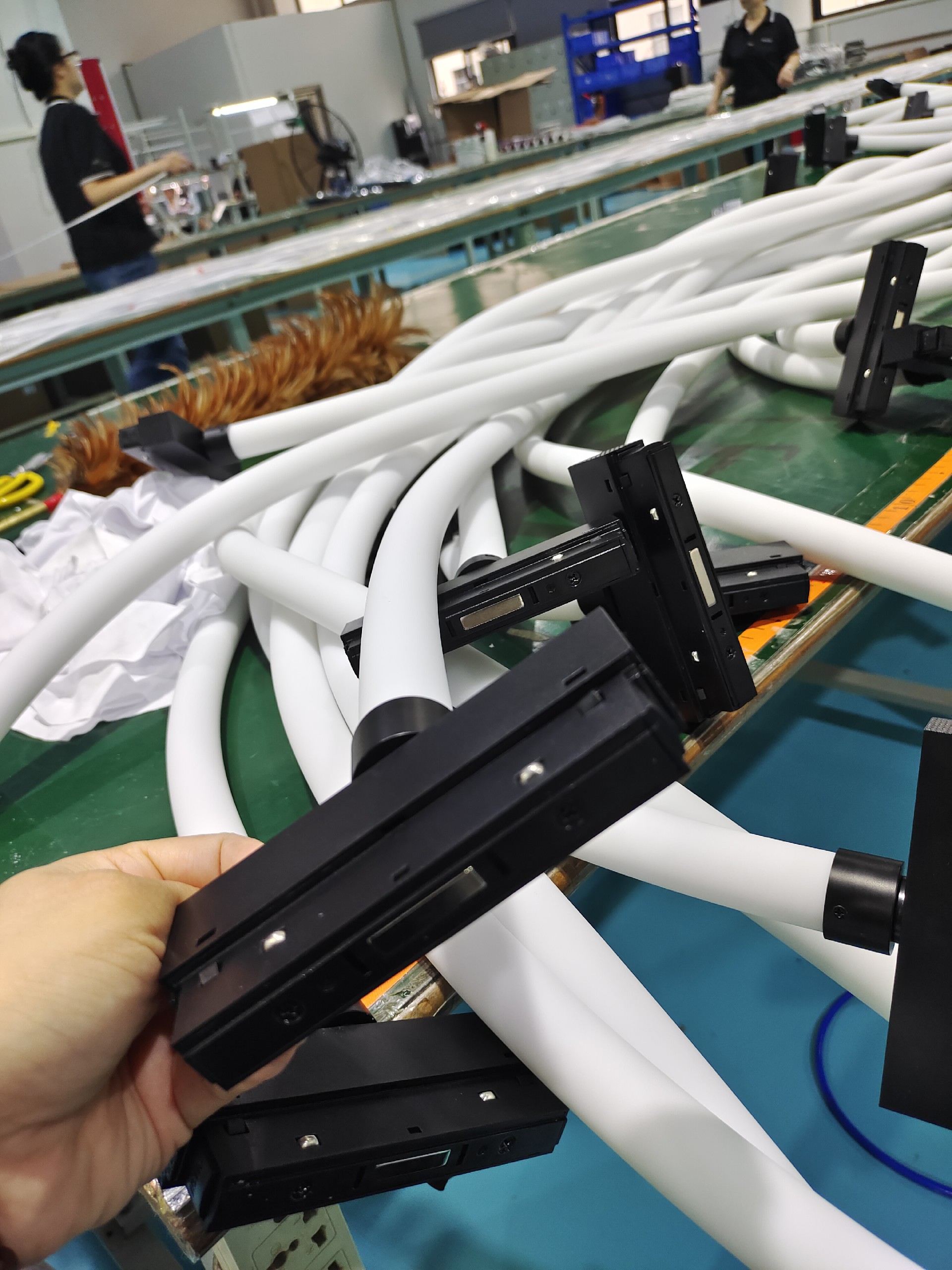

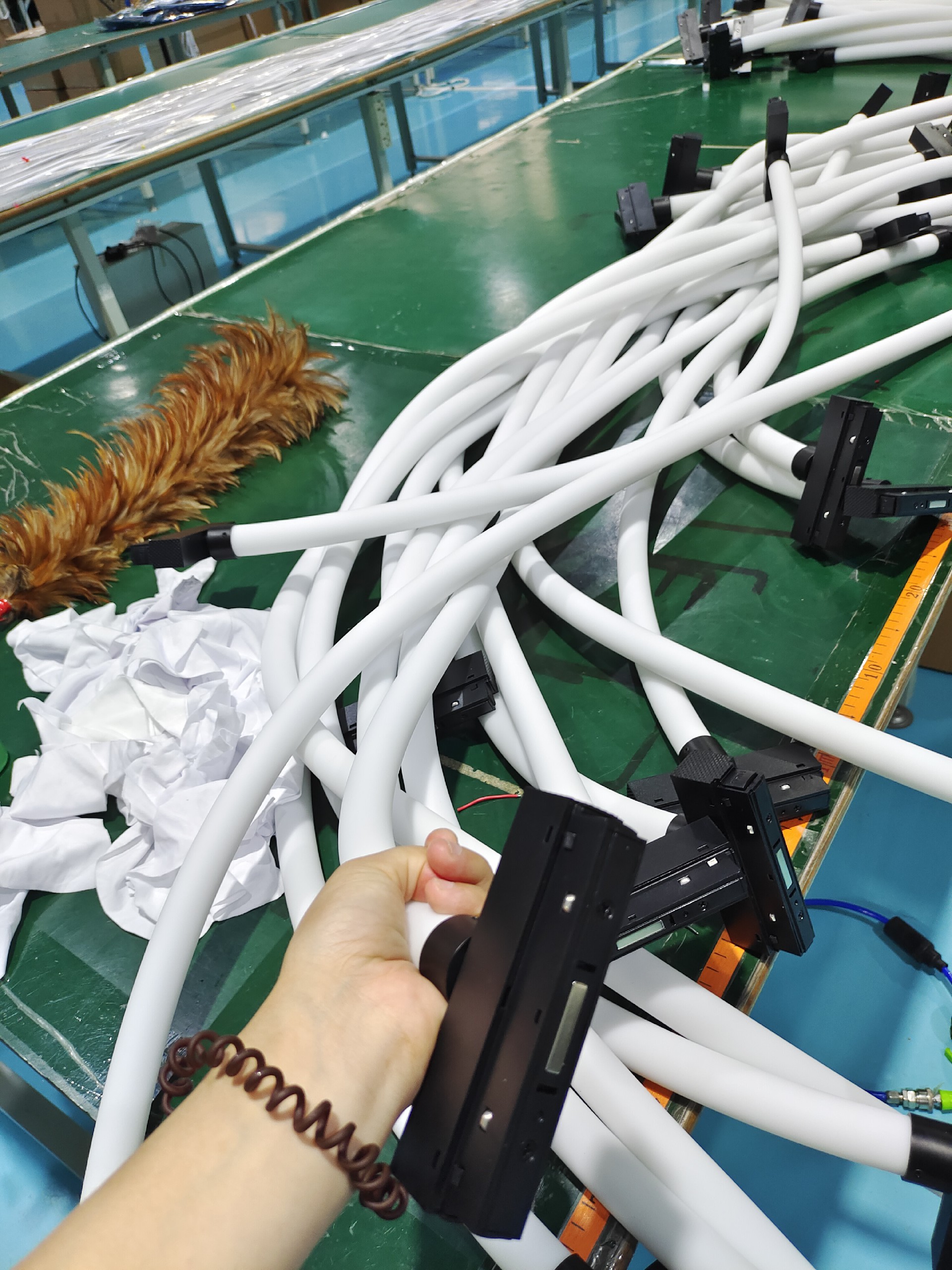

Customized Magnetic Track Neon led strip Light
Specification
| Catalog | 360viewing 22mm 25mm 30mm dimater Magnetic Track Neon led strip Light |
|---|---|
| Model | RL-STR-2835-120-20P-24v-D22 |
| LED Type | 2835 rgb |
| Warranty | 3 years |
| Working Voltage | DC24V |
| Power | 20W/M(max) |
| FPCB Width | 8mm |
| Lamp Chip Brand | sanan |
| LED Quantity | 120leds/M |
| Cutting Unit | every 6LED can be cut as a individual part |
| Brightness | 24Lm per led |
| Lamp Quality | Pure copper base and gold wire |
| CRI | >90 |

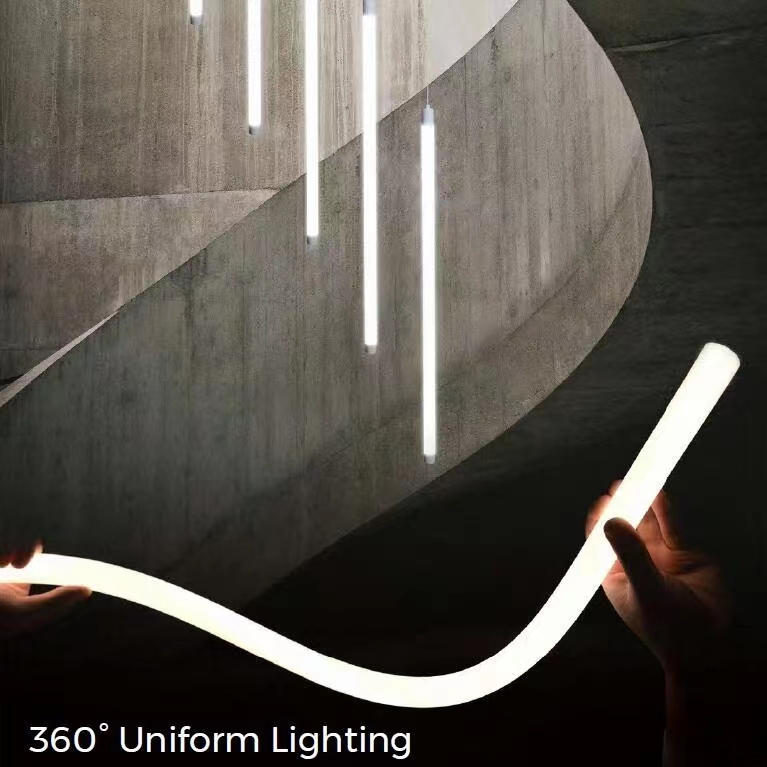

| 360 beam viewing | two led strip inside the 22mm dimater silicone tube ( back to back) |
| Color | white color and other color is optional |
| waterproof Grade | IP65 waterproof |
| Diamater | 22mm 25mm or 30mm |
below is the led strip --which we used

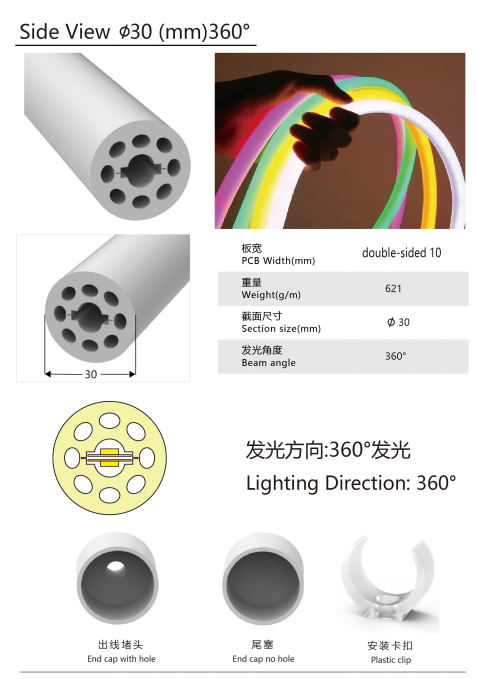

Below is the size -which we used
( we can make addressable digital type or other color )
details as follow ,

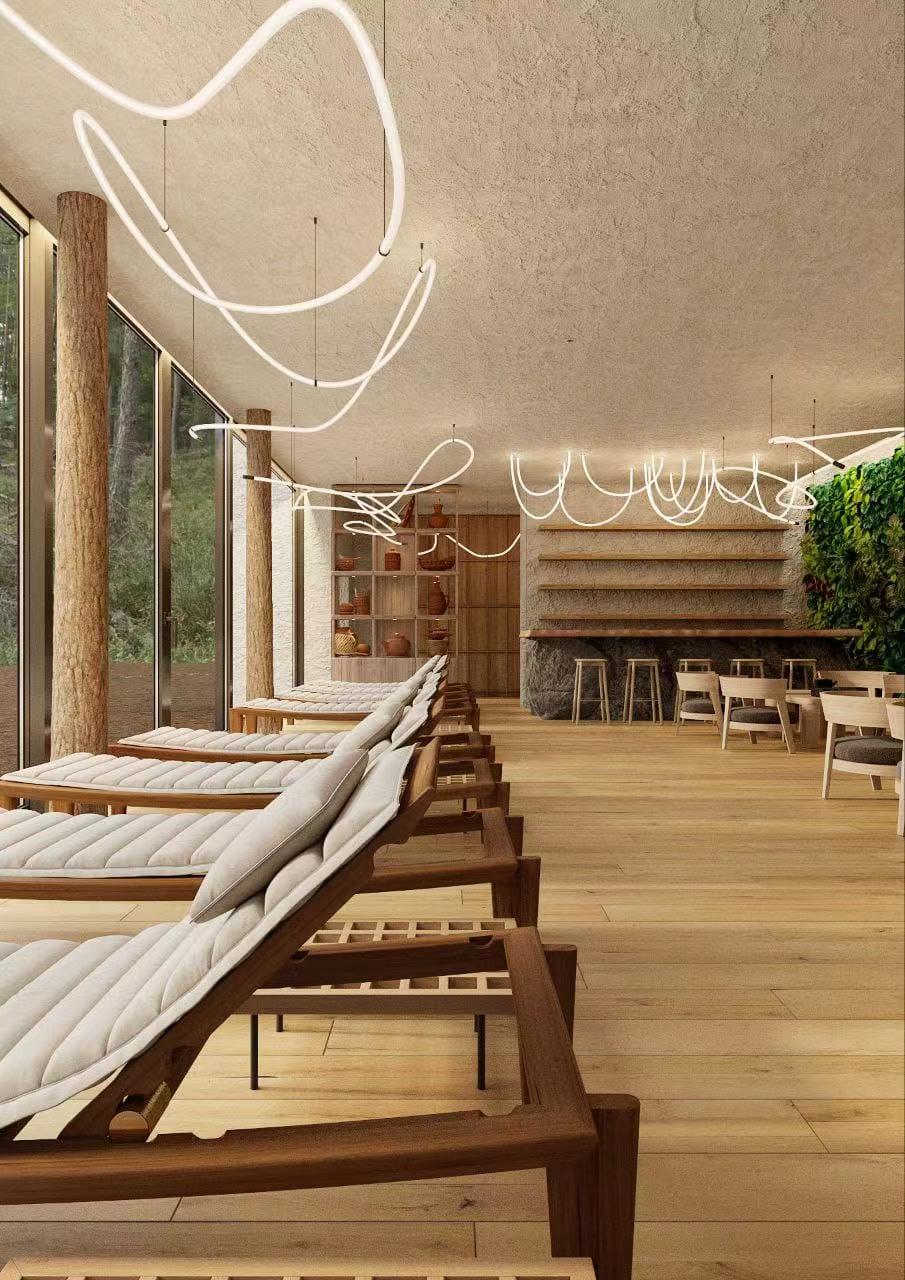

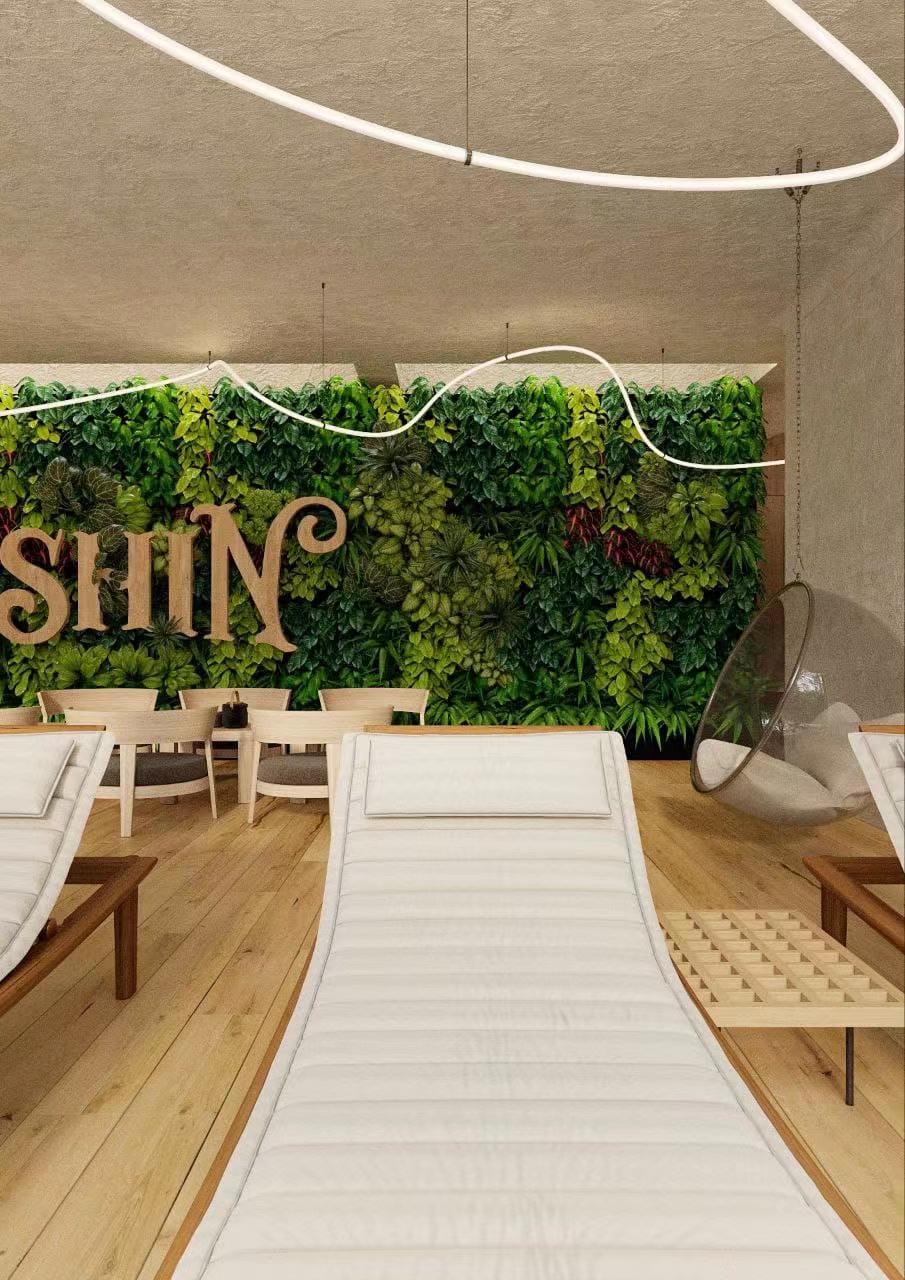

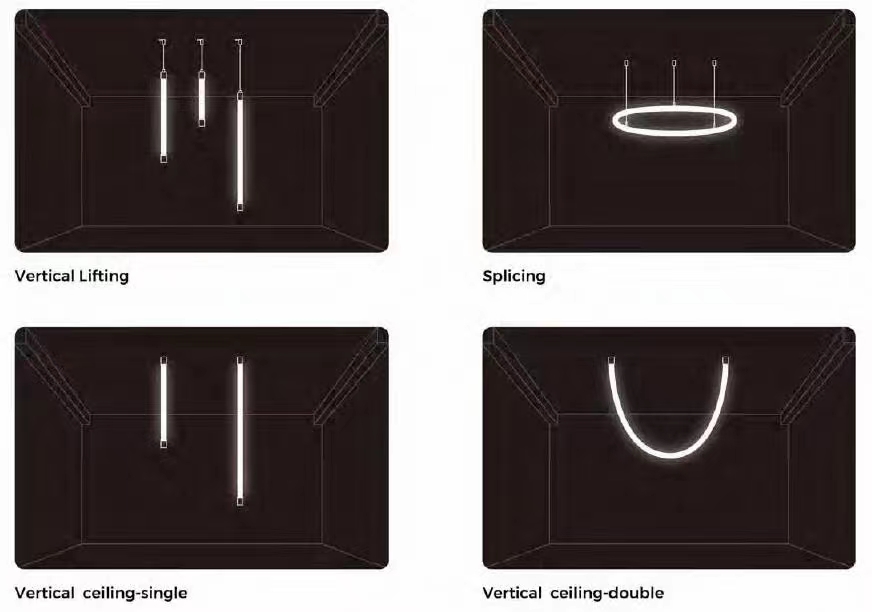

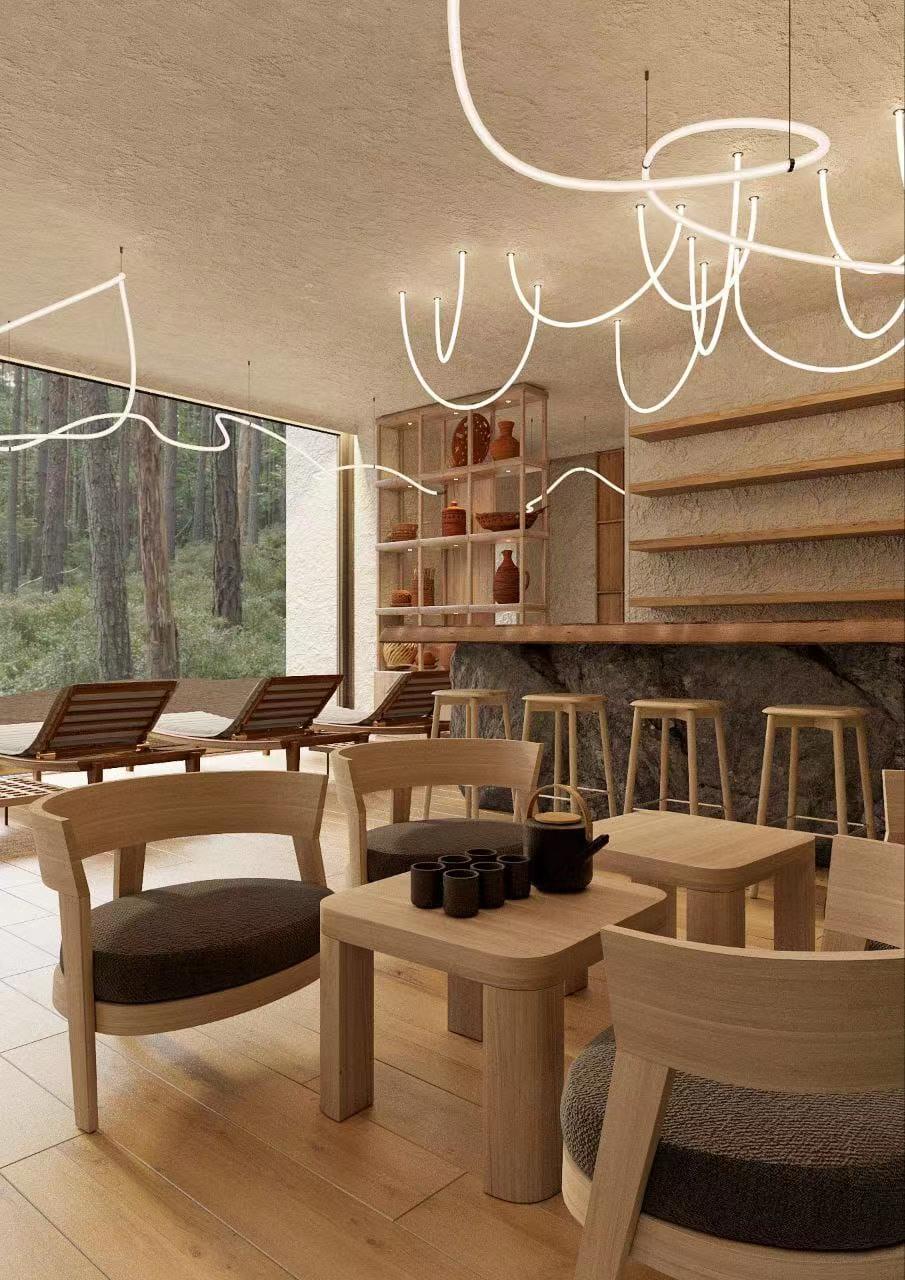

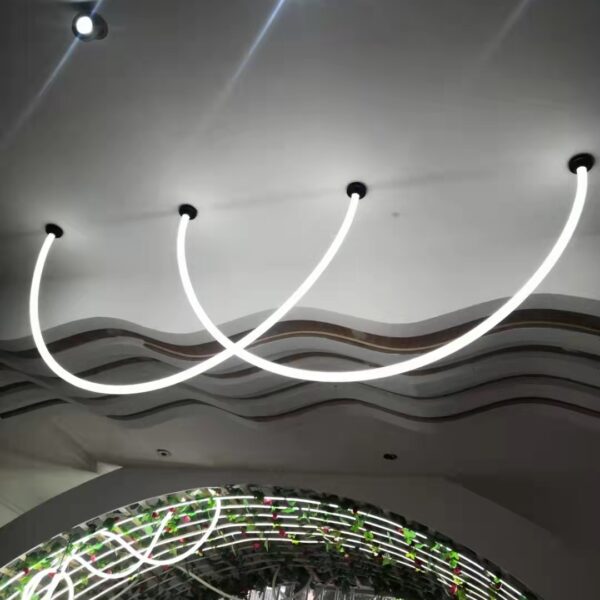

Application

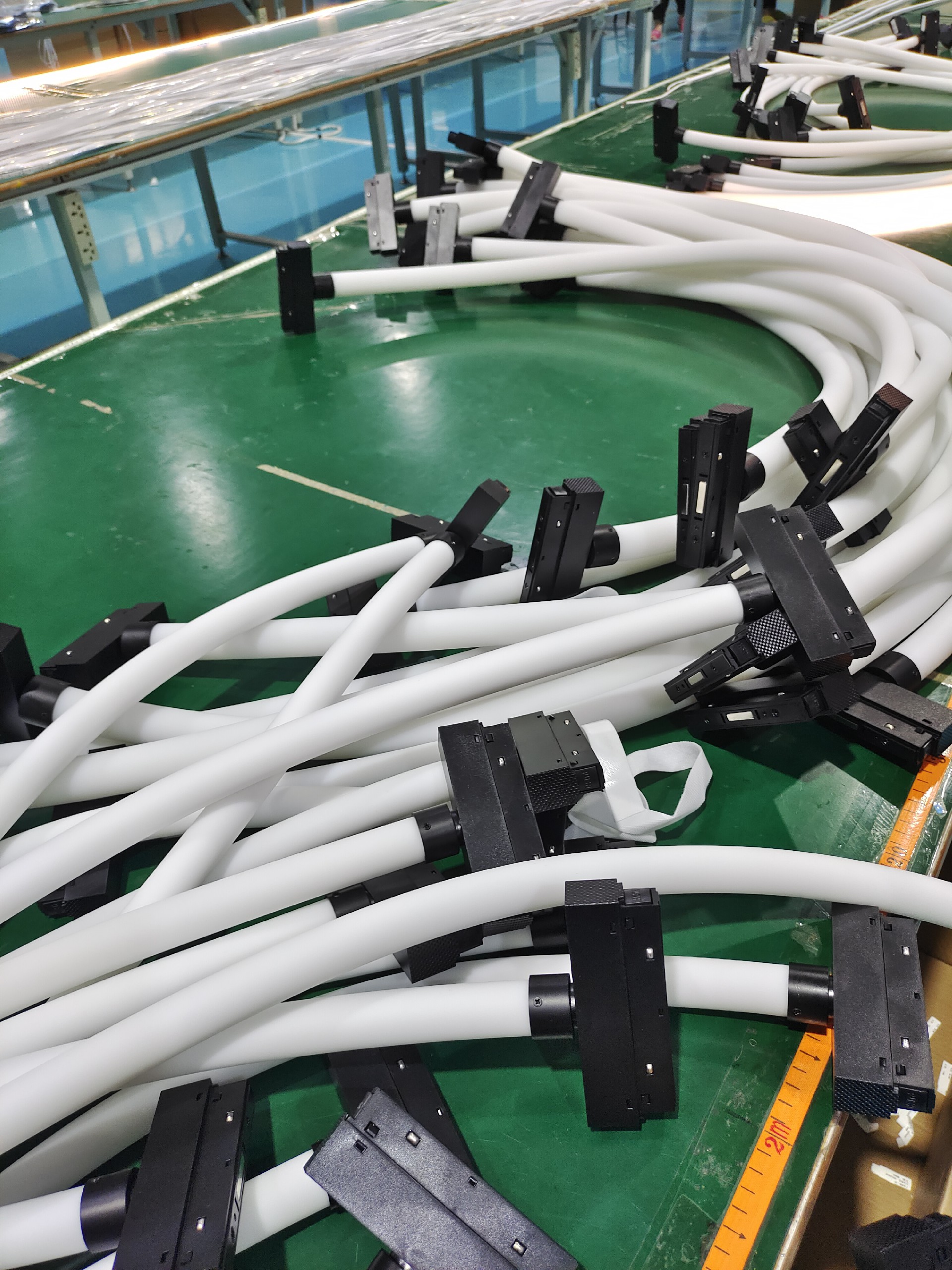

led accessores of the 22mm led tube --can make monochrome color or RGB color or others if you have order
22mm neon flex led tube accessories price list.xlsx
Advantage of silicone flex led tube
1. there is no dark area and No light spot for all type of flex silicone Neon LED tube series,

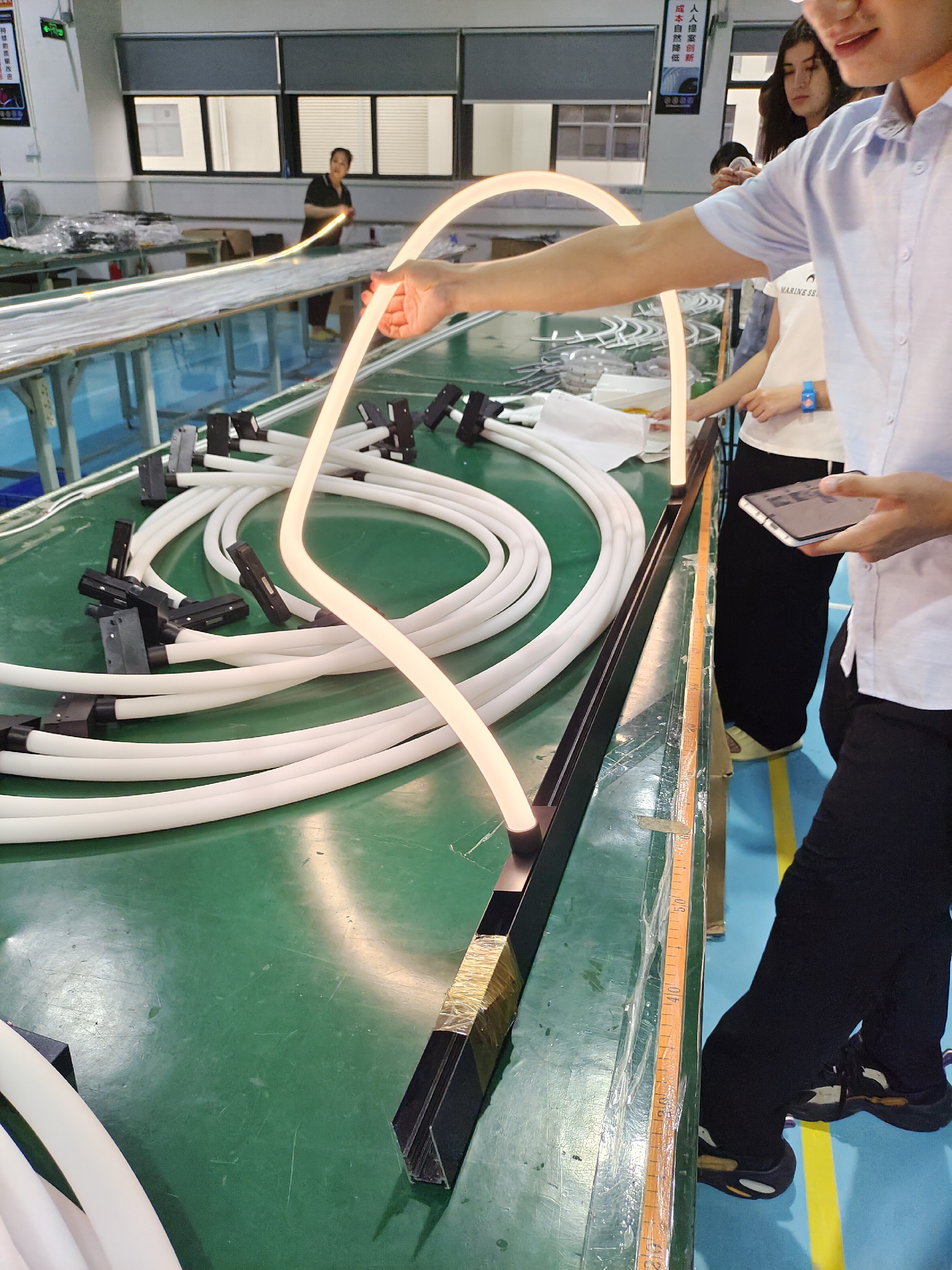

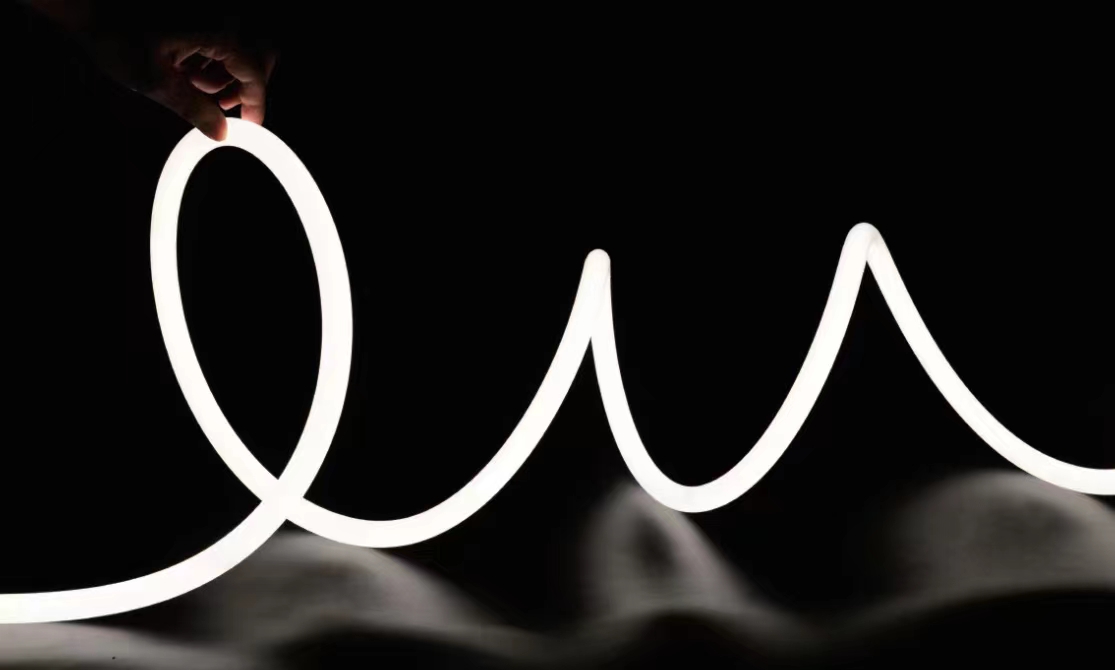

2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,
it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,
no color change outside within 3 years warranty
6. all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，
can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
