Dc24v dmx512 rgb full color led module for Indoor light box signage soft film ceiling

dmx512 rgb led module
Products Inquiry

Product Details


Dc24v dmx512 rgb full color led module for Indoor light box signage soft film ceiling

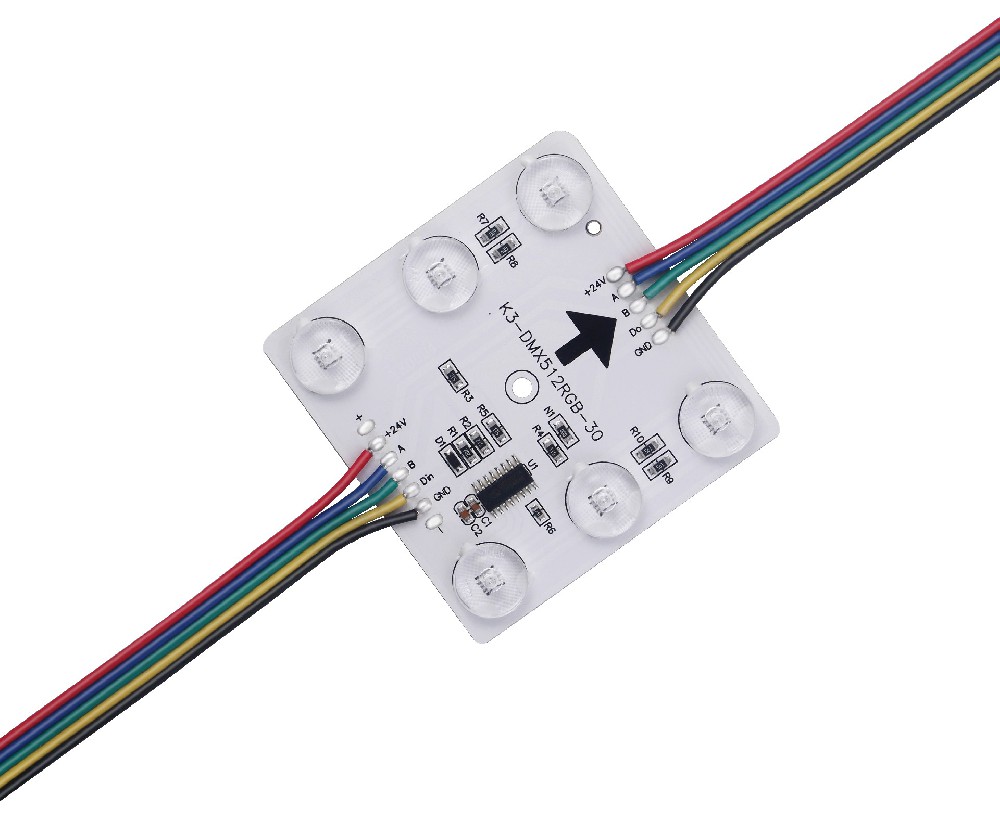

dmx512-rgbw (1).jpg

Product Parameter

Dc24v dmx512 rgb full color led module for Indoor light box signage soft film ceiling

    Item
    Voltage     DC24V
    LED Type    1.0W 3030 RGB/white led
    LED Qty/Module     6leds/module
    Size     L 70mm* W 70 mm
    LED Modules/String     20 modules/string
    Housing Body     aluminium
    Power     9 W/PCS 1.5X6=9W
    IP    nonwaterproof  IP 20
  color RGB+white addressable
  IC (control )    dmx512

Description

These module extremly for backlighting like Channel letters application.
Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by aluminium profile  and it's nonwaterproofIp20
Connectors on start and end of string it's IP20 (support customization).

Control IC included, supporting numerous color-change effects.
Controlled by SD controller,Arduino,DMX512,Artnet.
Rigid white PCB, 24V  low voltage input.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power

beam angle: 30 degree

Download the detailed datasheet here please


RL-dmx512-3030RGBW-6-24V.pdf

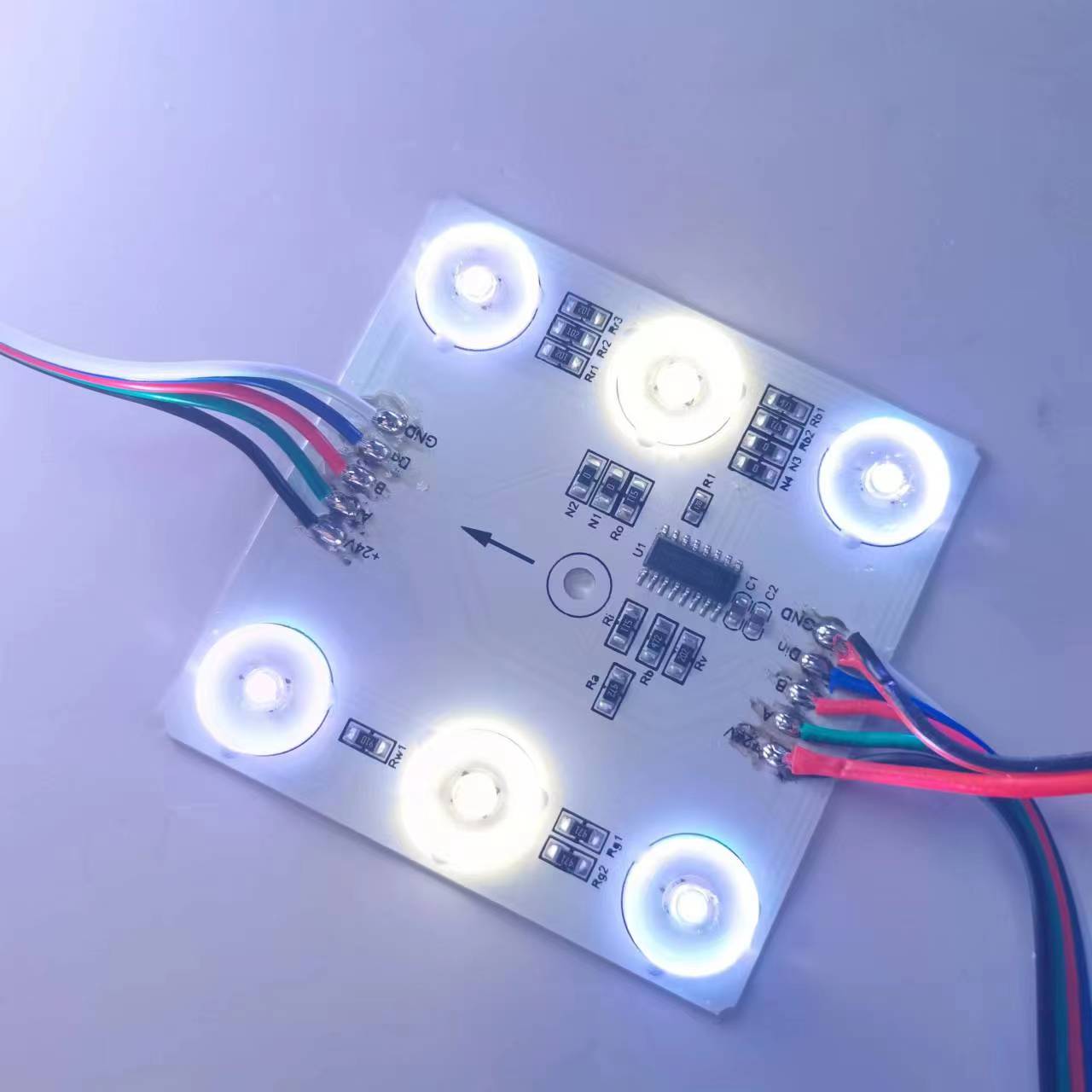

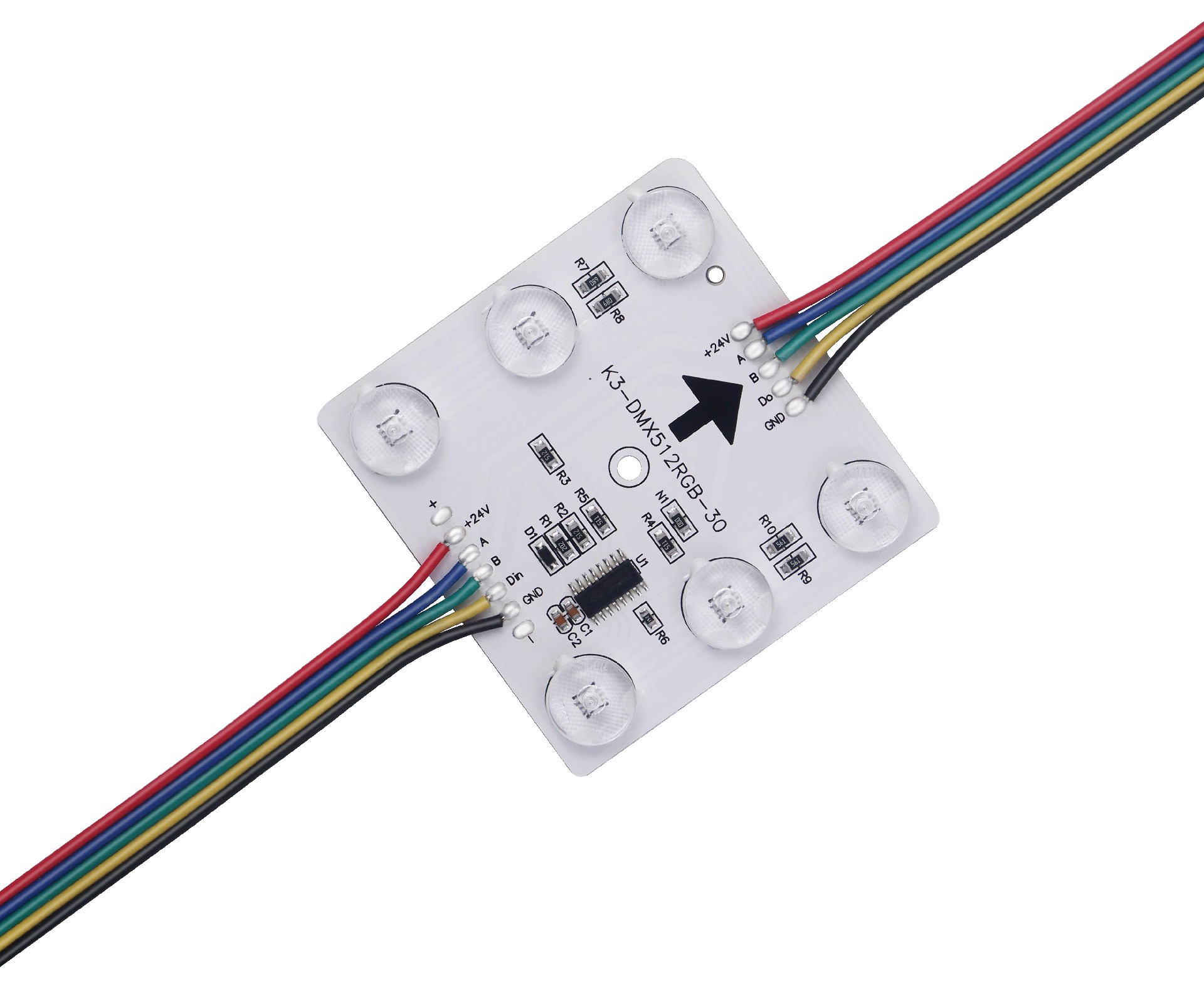

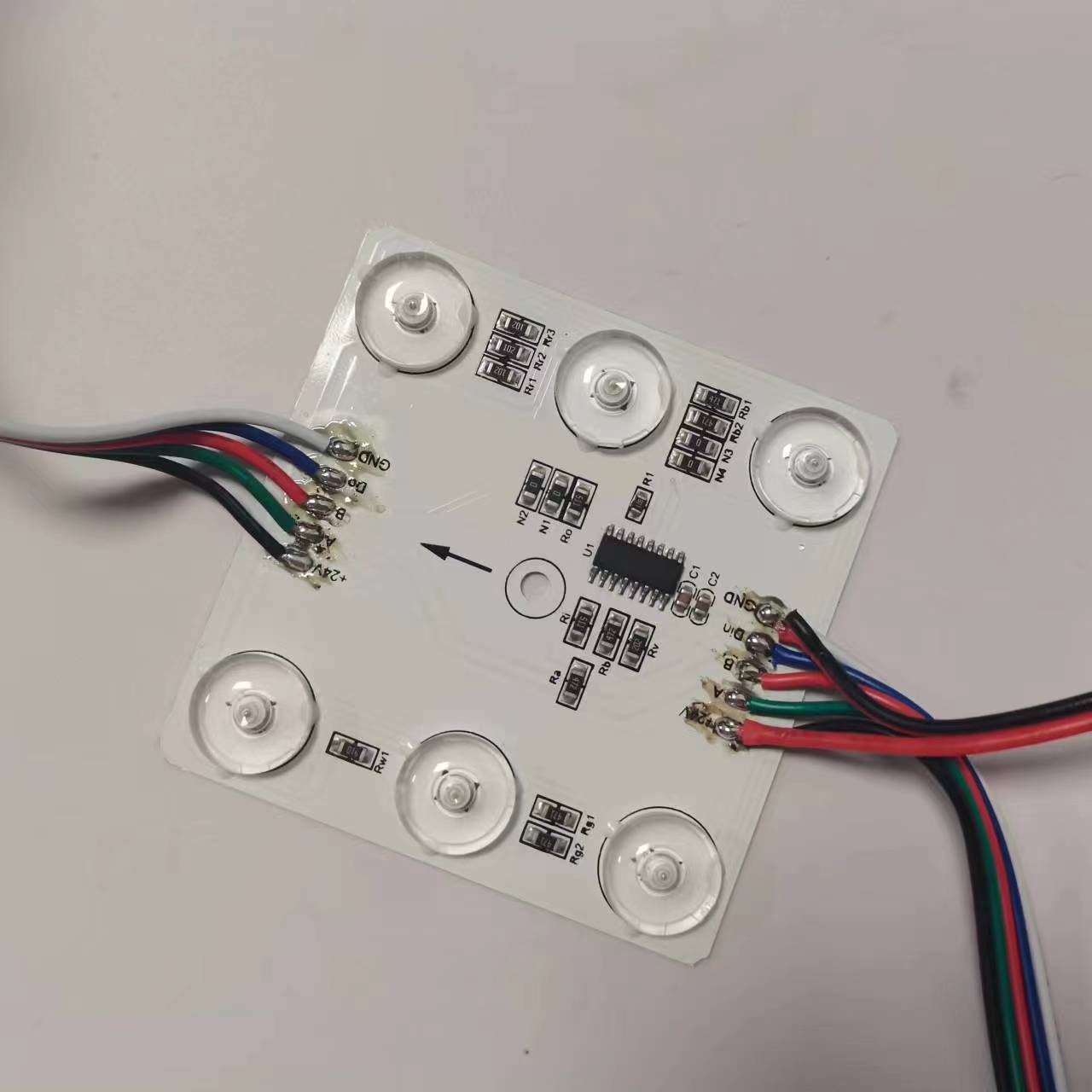

Picture details

24V Indoor light box signage soft film ceiling full color LED module

1934/2818 spi control optional





SPI-dual sigal

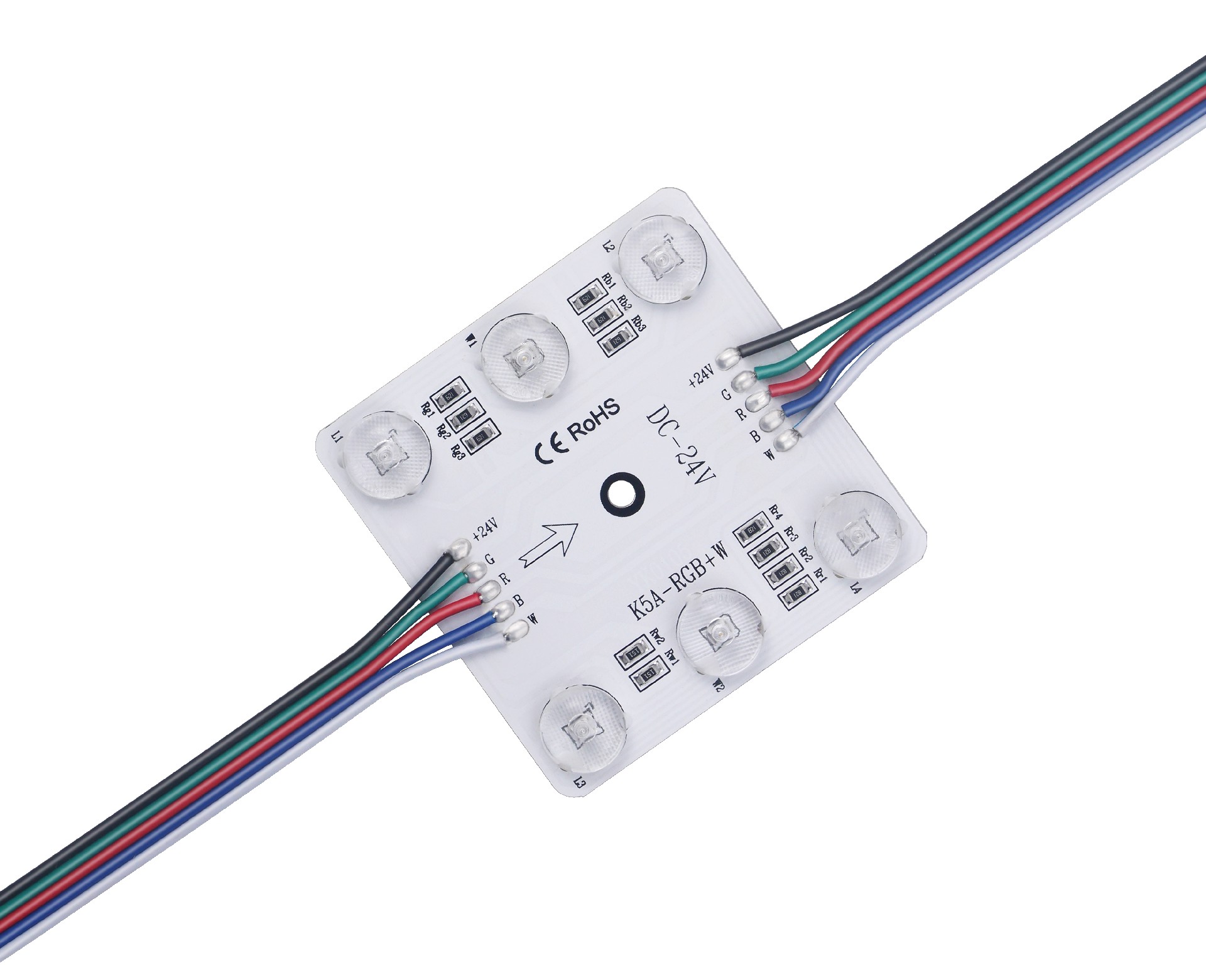

RGBW led box

SPI dmx and normal RGB optional


1916 Ic chipset


Application

Other type optional

There is RGBW  type optional-without dmx

rgbw led module with lens.jpg
