| Item |
RL-ws2811-5050RGB-3-12V |
| Voltage | DC12V |
| LED Type | ws2811 | UCS1903 optional |
| LED Qty/Module | 3leds/module |
| Size | L 75mm* W 15 mm |
| LED Modules/String | 100 modules/string |
| advantages | Ultrasonic process |
| Power | 0.72 W/PCS |
| IP | IP 65 |
| Lumen Per Module | R15/G30/B12 lm |
| connector | 3pin JST female and male connector |
Description
These module extremly for backlighting like Channel letters application.
Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by PVC injection coating and it's IP65 rated ,but the JST.
Connectors on start and end of string it's IP20 (support customization).
Control IC included, supporting numerous color-change effects.
Controlled by SD controller,Arduino,DMX512,Artnet.
Rigid white PCB, 12V low voltage input.
Every 1 Leds linear separable, custom-length available.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power

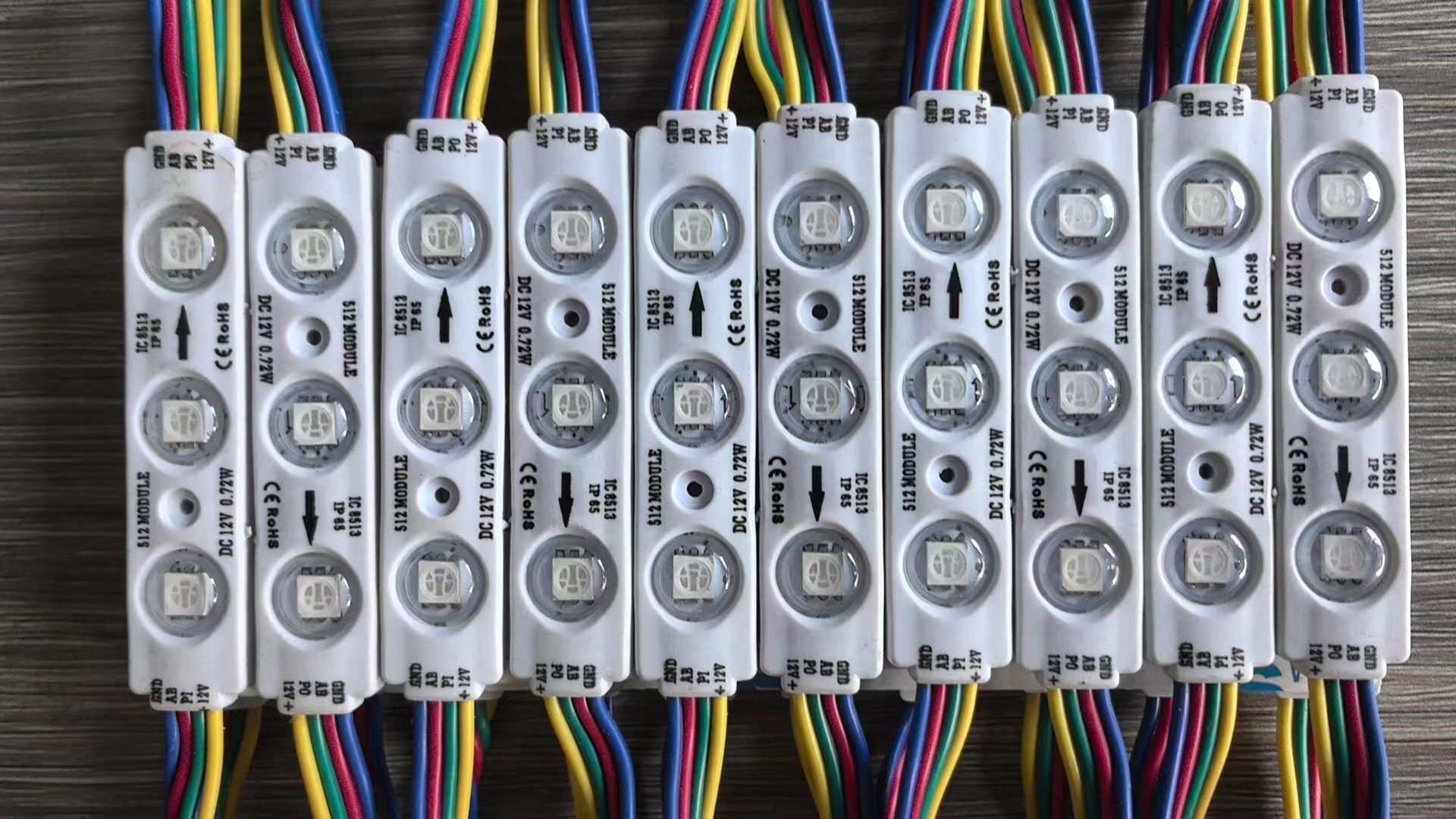

Picture details
There is detailed datesheet
dmx512 led module
RGBW+CCT 7515 led module optional
