DMX Console dmx 8086pixels display led controller H807SA support offline and online and artnet software -madrix -Resolume Arena

DMX Console dmx 8086pixels display led controller H 807SA support offline led build &online ledstudio and artnet software

H807SA is used alot , bec it support artnet software such as madrix ,resolume ,and suppport dmx512 console and can make synchronization within one interest when offline

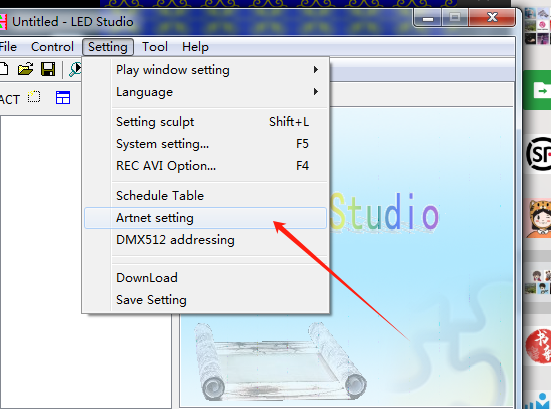

Below is the user manual of  artnet  H807SA work with online software ledstuido

19-H807SA work with ledstudio

https://www.rose-lighting.com/products/dmx-console-dmx-8086pixels-display-led-controller-h-807sa-support-offline-led-build-online-ledstudio-and-artnet-software/

807sa led controller with panel -detailed user tutorial

20-Madrix mapping & Multi-controllers 807

23-LedBuild Effects proggraming with h807sa

25-How to program lights effects with LEDStudio

26-H807SA Controller Features lntroduction Video

33how to use madrix to program with h807sa

How to capture the madrix effect with ledbuild and export the dat file to make offline with h807sa

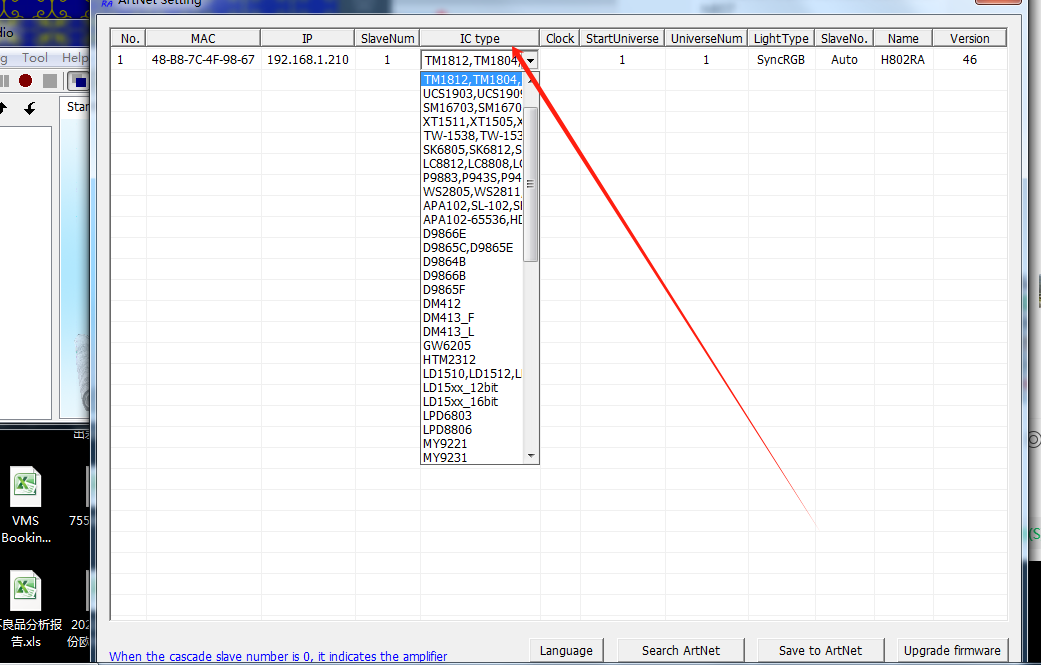

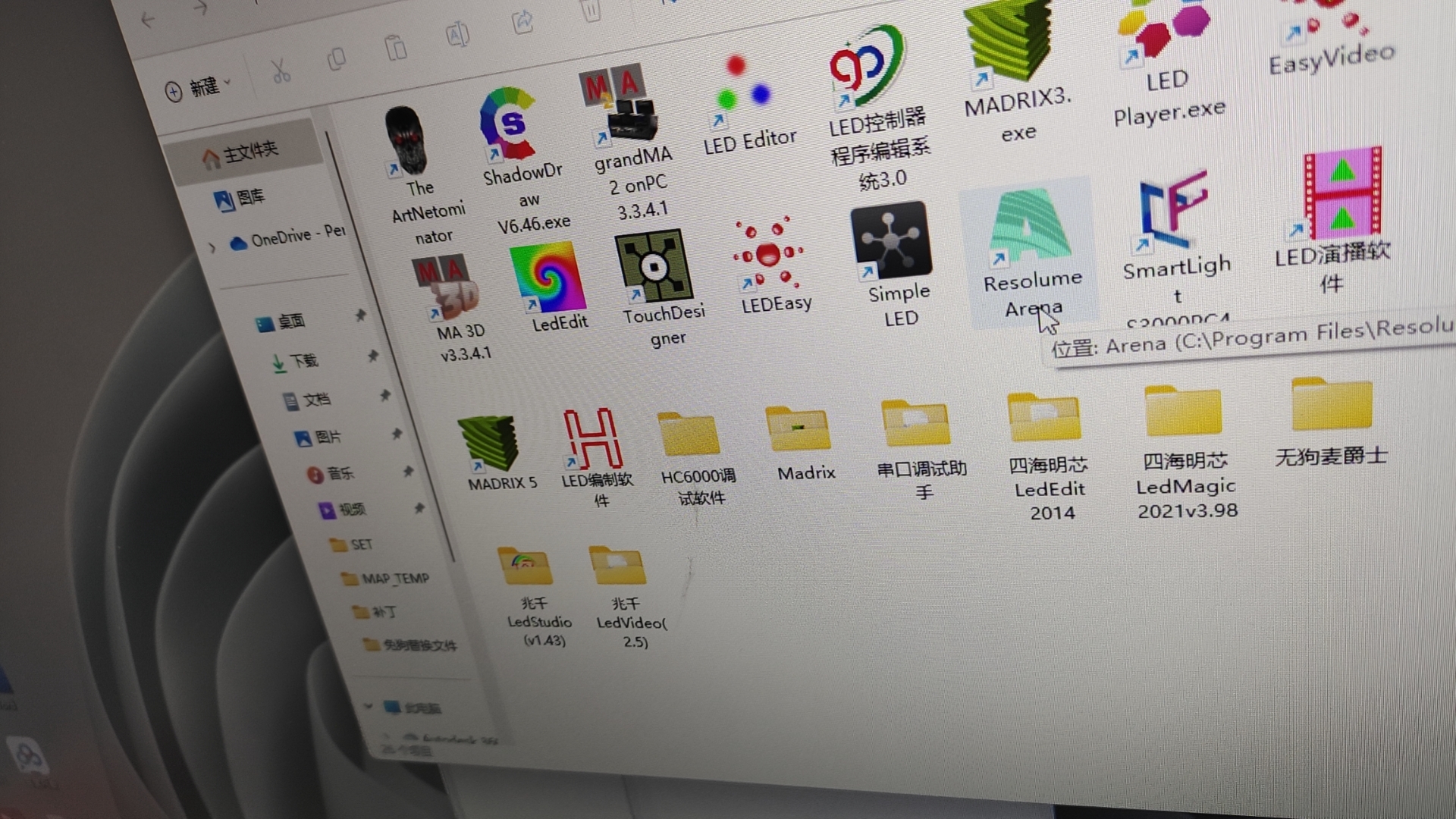

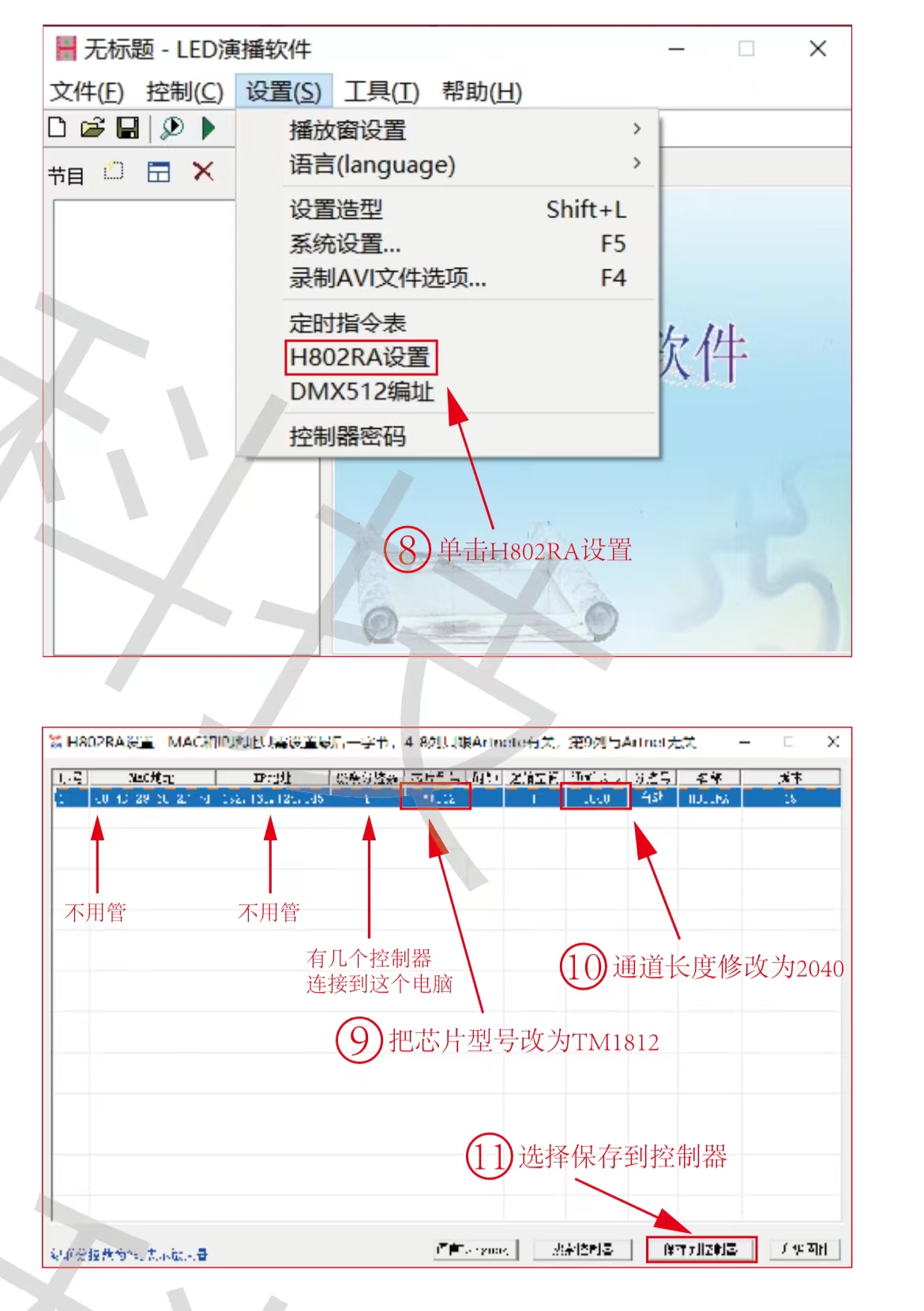

setting with H807 or h802 before work with artnet softwar(madrix or Resolume Arena ,ect)

https://drive.google.com/file/d/1aCSCOilBWX8UDHnkbPdDMsTWk2ormv-a/view?usp=sharing

H807sa led controller work with artnet mode with rgb lighting -can support 6 universe per port -work with madrix --but cannot compatible well with

Resume Arena--will make litle signal delayed or flicker

1. Introduction

H807SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights.
H807SA can be connected to DMX console. Customer can adjust it via DMX console with sd card ,

you can make any programs via offline software: LEDBuild—Installed on computer, program display effects of lights and transfer data to SD card

then to put in master controller to playback to led pixel lights. The software only support Windows OS, not support MAC.

it can support online software :ledstudio and arnet software:madrix ,resolume ,ect

Three buttons and LCD screen are convenient for operation. Can be synchronized with AC power supply and connected to DMX console.
H807SA can drive the following chips: LPD6807, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2807, WS2811, DZ2809, SM16716,  TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1807, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

Notice: the maximum pixel number that each port can control only means the output ability of controller, whether actual signal can transmit to the end or not depends on the performance of lamp, EMI of switch power supply and the total interference of engineering field.

2. Performance
(1).Eight output ports, controls maximum 8192 pixels, each port controls maximum 1024 pixels.
(2).SD card supports FAT32, FAT16 format; the maximum capacity is 64G bytes, stores up to 64 DAT files.

it is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights.

Under our own software LEDBuild, customers can realize many display effects, can play text, picture and video.

(3).Many controllers can be synchronized with AC power supply.
(4).Can connect to DMX console, replace file, and adjust speed and brightness and responses quickly.
(5).The buttons and LCD screen are convenient to set the parameters.
(6).Support encryption by limiting the number of power-on time.

3. Advanatges

1. Four output ports drive maximum 8192 pixels,each port controls maximum 1024 pixels.

2.Have DMX512 interface for DMX512 console change brightness,color, file,speed,

3.support DMX512 ic address edit

4.support artnet protocol,one port support 8 universe maximum

5. Inkbook wifi inside the led controller
Open the drawing software, start the drawing lighting wiring wireless. ect

4.Specification and Parameter:

5  Features:

1. Perfect compatible with DMX512(1990) international standard protocol, and can be connected to DMX console.
2. H807SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights. If you only use the 1st four output ports, each port can control 2048 pixels( #5 port has same data as #1 port, and #6port=#2port, #7port=#3port, #8port=#4ports). With our own software LEDBuild, customers can realize many display effects, can play text, picture and video.
3. More control functions: it can control various normal drive IC lights, and or various customized drive IC lights.
4. High speed photoelectric isolated signal input and output, to ensure the control system safety.
5. Control system realize RGB 65,536 grayscales each channel.
6. Project setting agility: realize adjust the brightness and speed separately.
7. Support SD card max to 32GB, and can play 64 files of DAT format max.
8. Playing speed is adjustable from 1 to 100 frames/s, and Brightness from 0 to 16.
9. Accord with EMC electromagnetism compatibility, good anti-jamming capacity.

offline  software is "LED Build Software". online software: ledstudio  and it support artnet software madrix and resolume ,,ect

dowmload  Software is "LED Build Software" and led studio and artnet software :madrix and resolume here please

Software and tutorial video download included too

https://www.rose-lighting.com/brief-introduction-for-online-and-offline-led-controller-and-software-for-our-pixel-led-strip/

http://www.rose-lighting.com/wp-content/uploads/sites/53/2022/10/807sa.rar

6. Package Include:

1pcs H807SA, 1pcs 1GB SD card.

7. Operation Interface

Press "Mode" to switch mode.

“DMX Address” is used to set DMX address allocated for controller. For example if address is 1, channel 1,2,3 are available on DMX console, if DMX address is 2, channel 4,5,6 are available on DMX console.

8 System Composition:

This led control system is composed of two parts:
1.  H807SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights. Under our own software LEDBuild, customers can realize many display effects, can play text, picture and video.

2. LEDBuild—Installed on computer, program display effects of lights and transfer data to SD card then to put in master controller to playback to led pixel lights. The software only support Windows OS, not support MAC.


SD Card FAT 8outports DMX512 Chips Address Support MADRIX jinxi System Console H807SA Artnet Protocol LED Slave Controller

11 Conjunction:

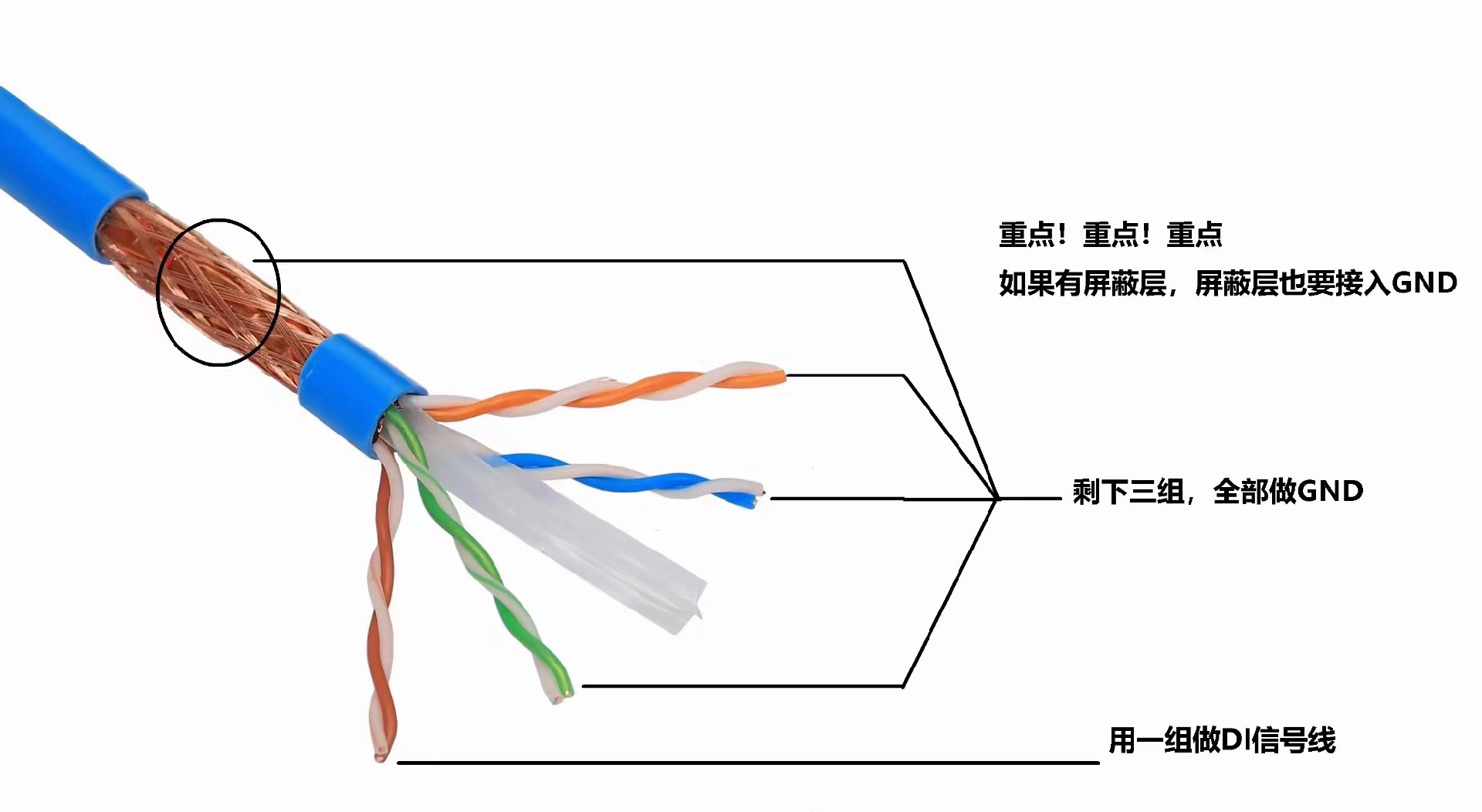

if there is distance from light to the controller ,advice to try TTL/dmx512 signal amplifier

TTL

https://www.rose-lighting.cn/list_33/ttlsignalamplifier.html

DMX

https://www.rose-lighting.cn/list_33/dmx512signalamplifier.html

most of all

Download the detailed manual user here please

H807SA-Data-Sheet1

(english version)

H807SA user manual

(chinese version)

How to set address with H807Sa

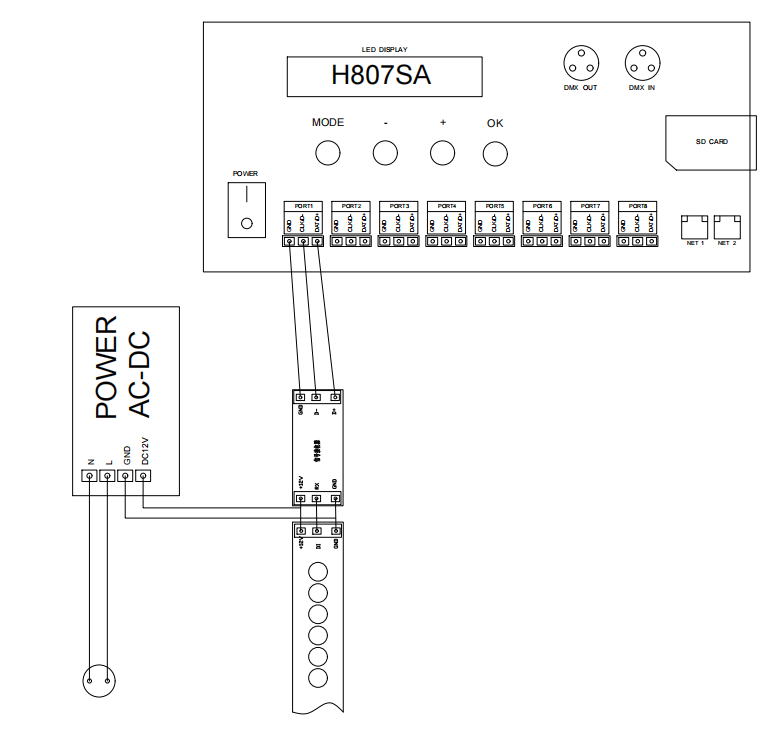

Below is the wiring chart of h807 with all kinds of spi led strip

wiring chart with spi led strip.pdf

below are some helpful user document for your  checking if you have problem with use with H807SA

http://www.rose-lighting.com/wp-content/uploads/sites/53/2023/01/H807SA-Data-Sheet1.pdf

https://www.rose-lighting.com/h807sa-user-manual-of-how-to-set-address-for-dmx512-lighting/

https://www.rose-lighting.com/how-to-setting-the-led-slave-h807sa-when-with-with-dvi-led-controlller/

https://www.rose-lighting.com/how-to-setting-when-h807s-work-with-dmx521-console/

https://www.rose-lighting.com/how-to-make-the-cascade-for-h807sa/

https://www.rose-lighting.com/brief-introduction-for-offline-and-onine-led-controller-h807sa/

https://www.rose-lighting.com/h807sa-how-to-track-points-with-multiple-synchronous/

https://www.rose-lighting.com/h807sa-art-net-functional-instruction/

http://www.rose-lighting.com/wp-content/uploads/sites/53/2022/10/LEDstuido-setting-with-807sa-when-drawing-pixels-online.docx

Download for more user video of how to usse h807sa and their software ledstudio and ledbuild

Hseriesledcontroller user tutorial.rar

if there is old version--can be update to new version

copy this file to SD card ,then press "menu " first , then power on ,the controller will upgrade by itself
