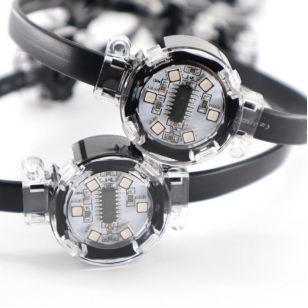

Waterproof Digital 35mm RGB Full Color LED Pixel led Lighting spi and dmx optional
below is SPI Type
Specification
Average Lifespan:50000h
Luminous Angle: 160
Voltage:24V
Fireproof Grade:V-0
Electrical Safety Class:3 Class
Production Tchnology:2ND Sealed
Control Method:Normally On,Serial/Parallel/ Control.
Luminous Size: 35mm
Led color:RGB

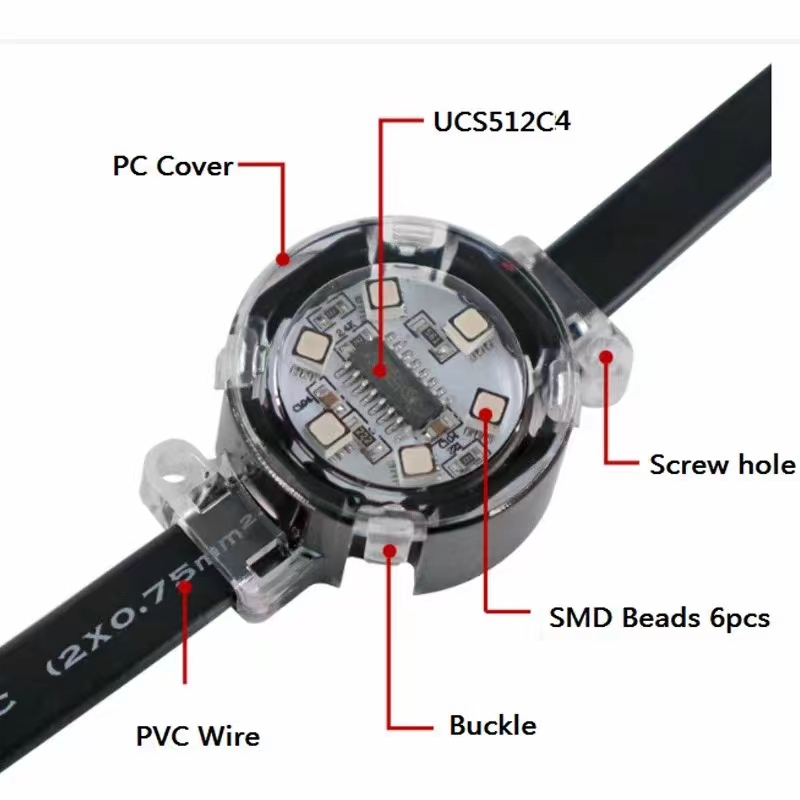

LED quantity/pcs 6pcs RGB smd 3535/5050 leds
Power:1.44W
Protect grade:IP67
Working temperaure:-45-60
Weight:852g/pcs
we can make 7led inside --white shell and black shell optional -
Installing by steel optional also .
There is 50mm size 45mm size and 30mm size optional
Installing method 1 - by steel
Installing method 2 - by punching hole on aluminium shell
Installed Method:
40MM UCS2903 UCS512C3 LED Pixel Poi Light Source installation method:
1, can be installed by 2.0 diameter steel wire with snap ,As pic 1 and 2;
2,Can used Aluminum profiles 40mm diameter of hole ,then fixed into the position of Profiles for 40mm led point light source ;
3,DMX Addressable led pixel ip68 40mm can be fixed with screws and snap ,Then fixed into the wall ;
4,Directly fixed by glue on the bottom of 40mm led pixel lights ;
DMX High qualiy led pixel module light string 40mm waterproof IP68 RGB LED Point light source Application :
1. Ferris Wheel, Merry-Go-Round, Pirate Ship, Pendulum, Bumper Car, Rotor etc amusement rides, castles, carnival, funfair ground, attractions lighting.
2. Logo, signage, exposed luminous characters, channel letters, advertisement billboard.
3.Stage, nightclub, pub, KTV entertainment, Bars, Discos, building decorative lighting, bridge edge decoration Building contour,large shopping malls outside wall, Hotel, square street,
outdoor AD signs, Logo and other places.
4. Display screen, painted screen, led light project, light engineer etc.
