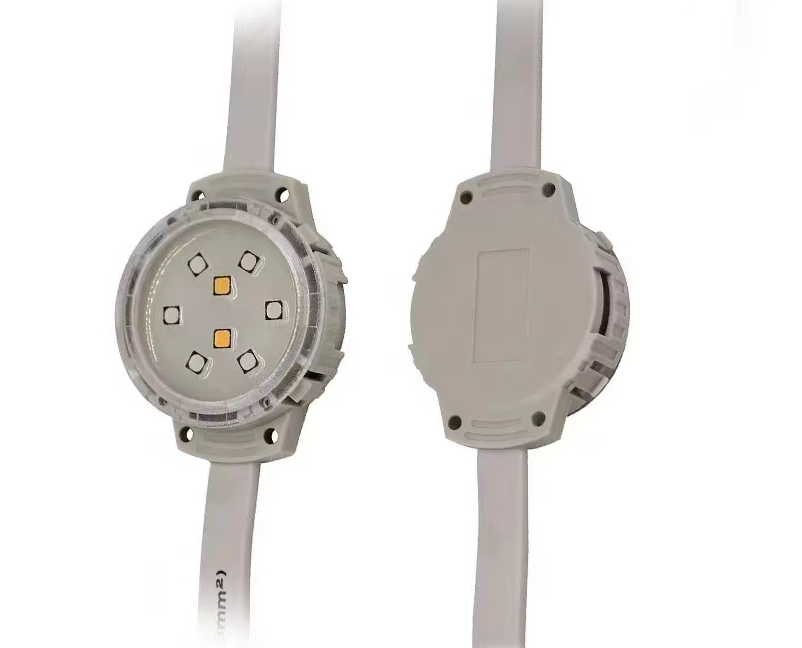

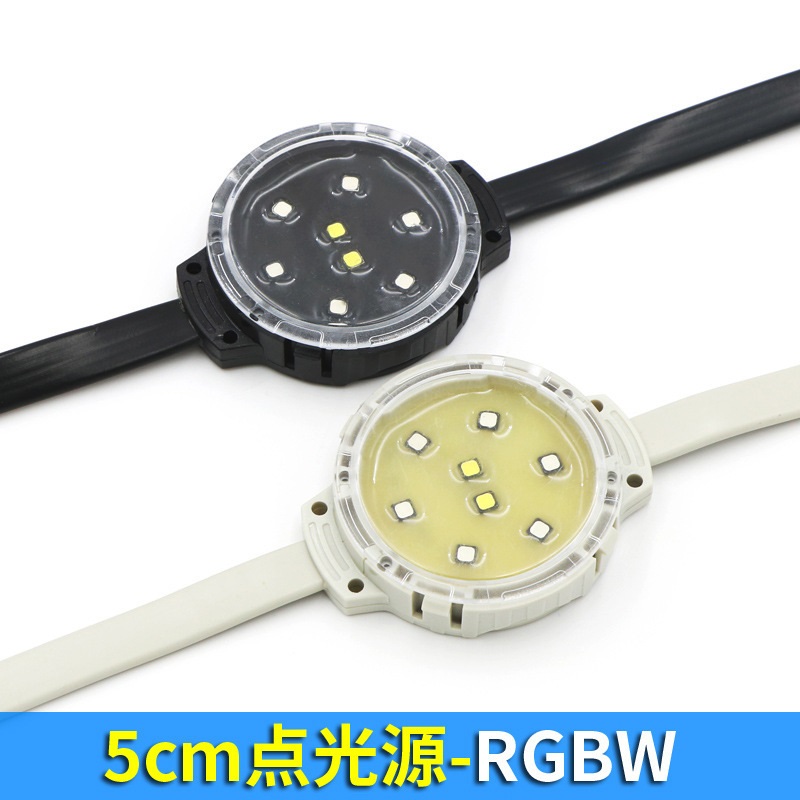

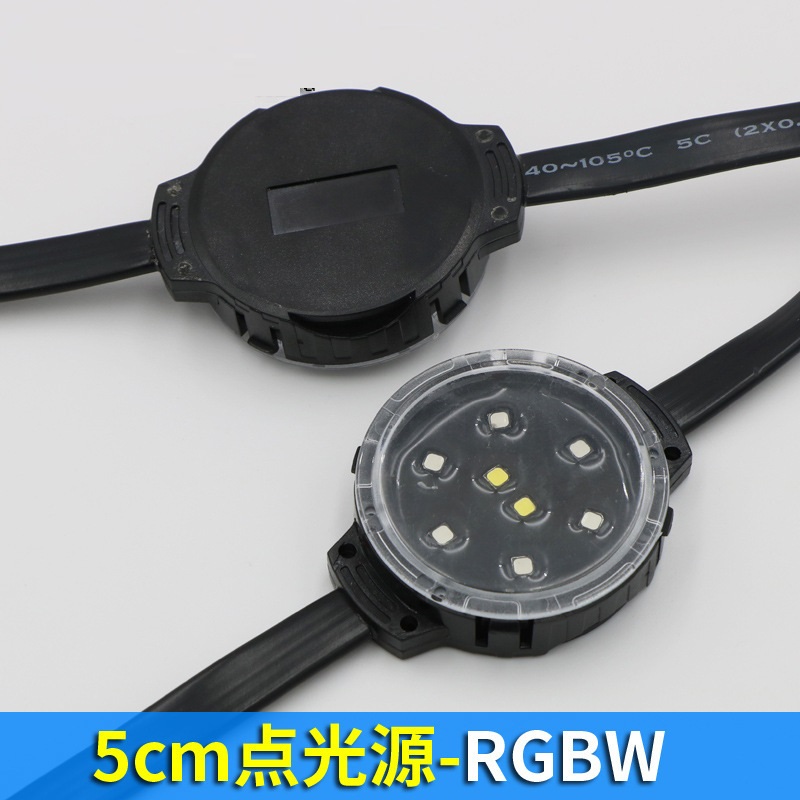

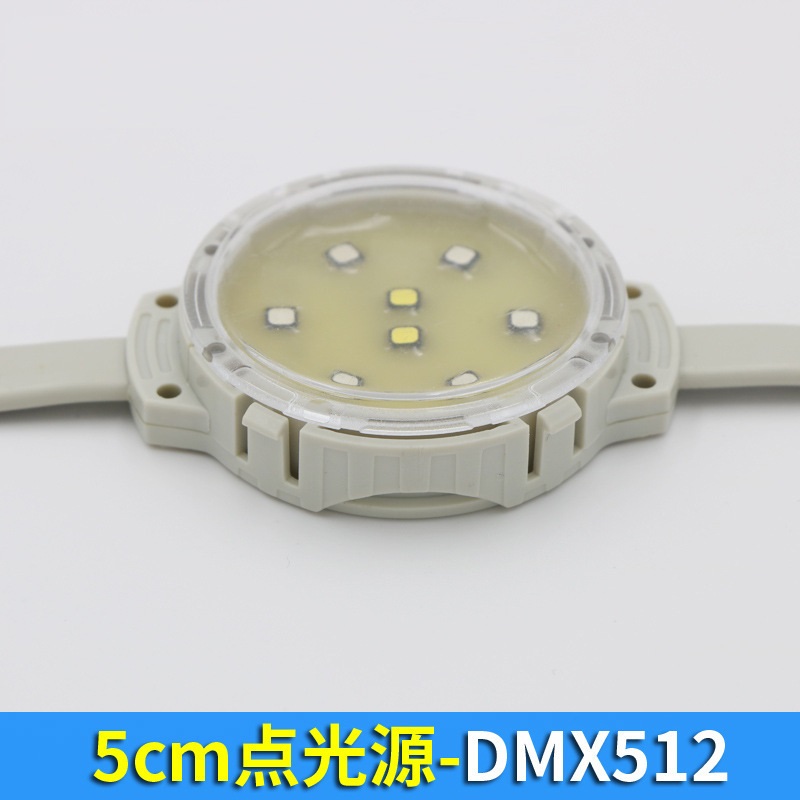

waterproof Ip67 DC24V 50MM DMX512 3535 RGBW led pixel light
RGB color optional (7led)
Specification
Item: RL-dmx512-508-3535RGBW
Voltage:24V 1.6w/pcs
Diamater:50mm
Led color:RGBW addressable
Luminous Angle: 160
Control: dmx512
LED quantity/pcs : 6 pcs RGB smd 5050 leds+2pcs white 3535 led
Protect grade:IP67
300pcs per string with 20cm center distance
packaging: 840pcs per cartoon cartoon size :48X48X28cm weight :17kg

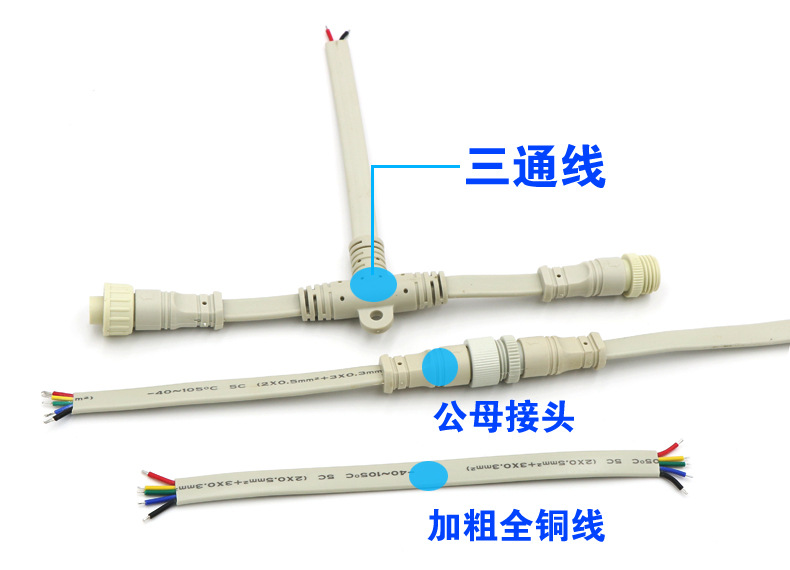

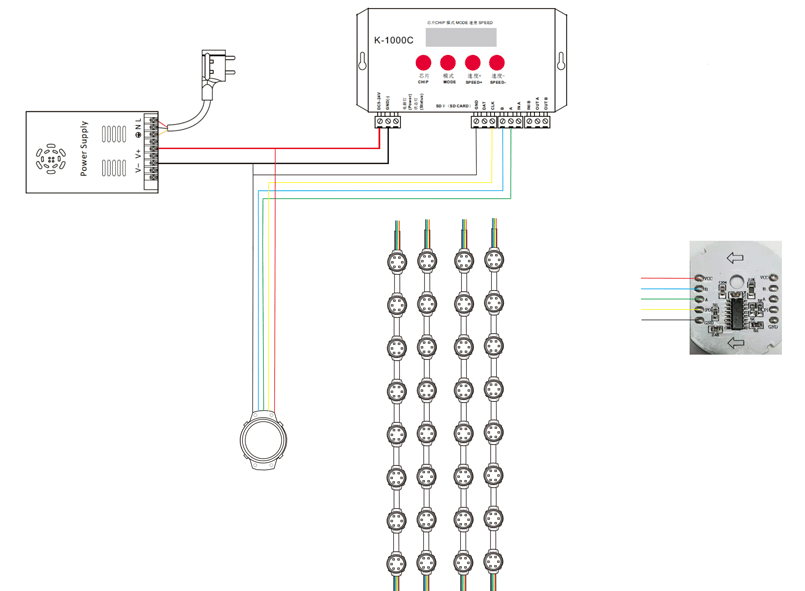

wiring
Download the detailed datasheet here please

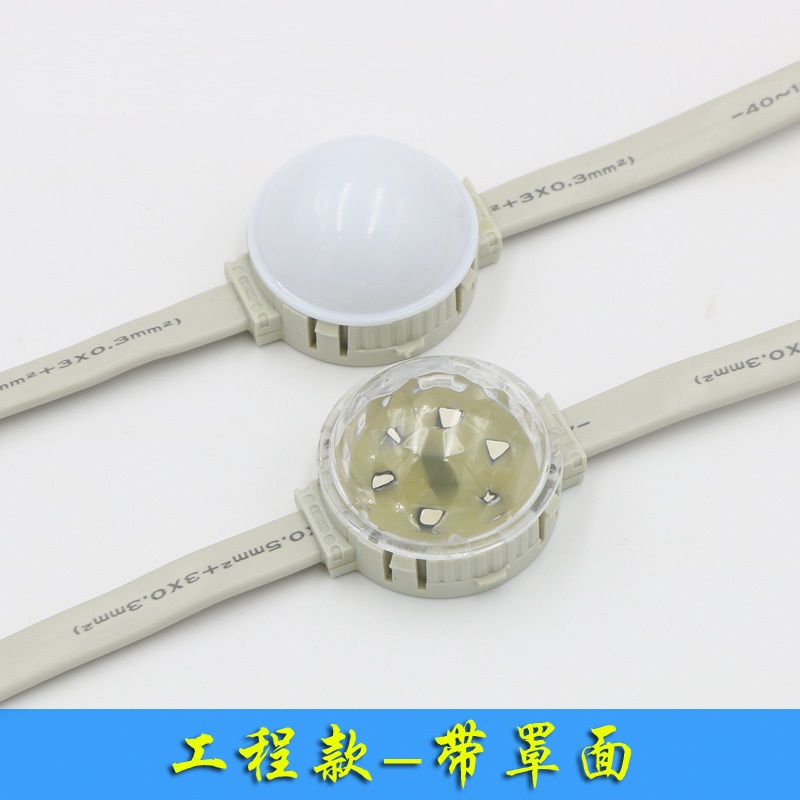

PS: There are many color and shell optional
can make full color with IC chip addressable

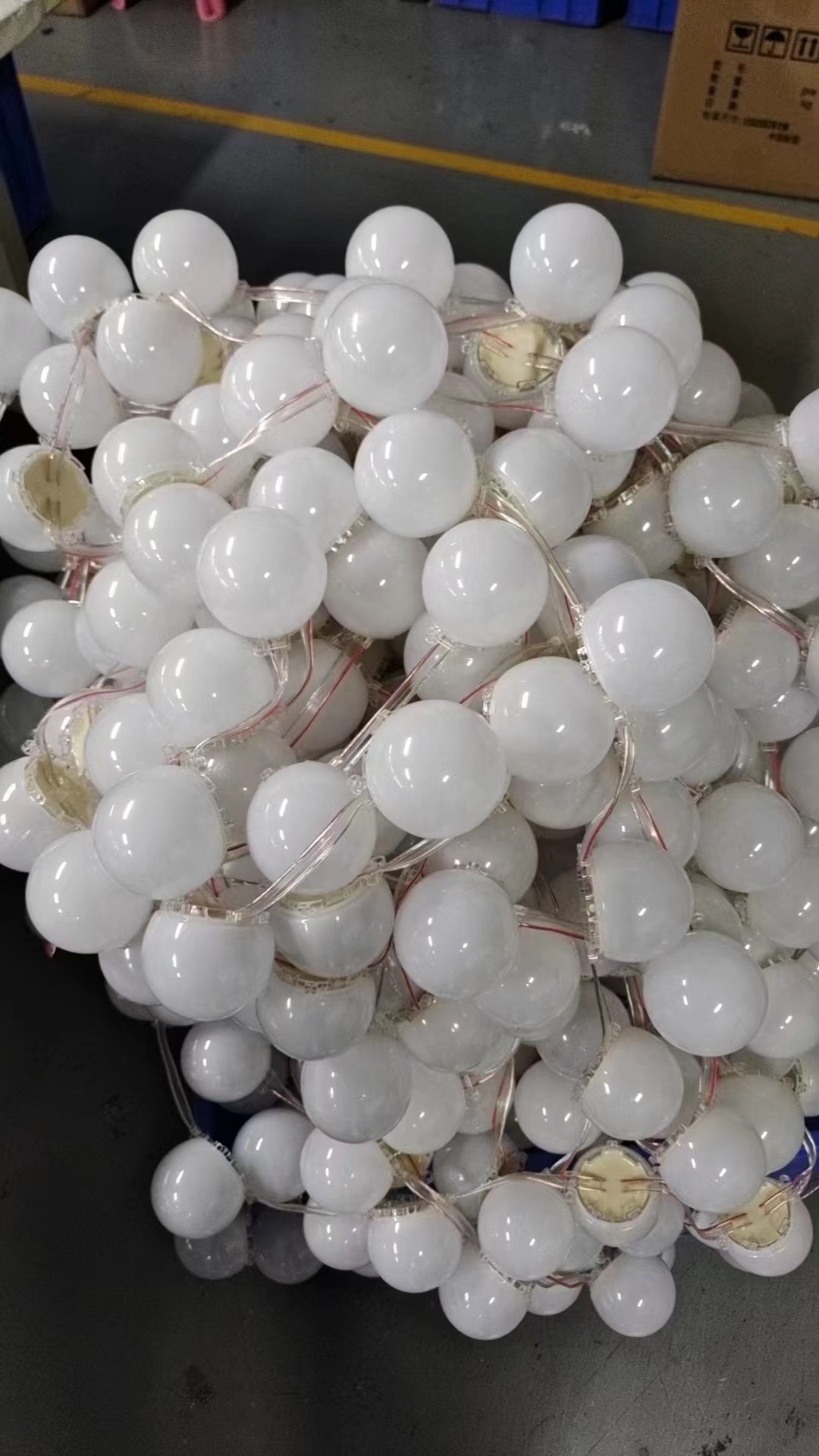

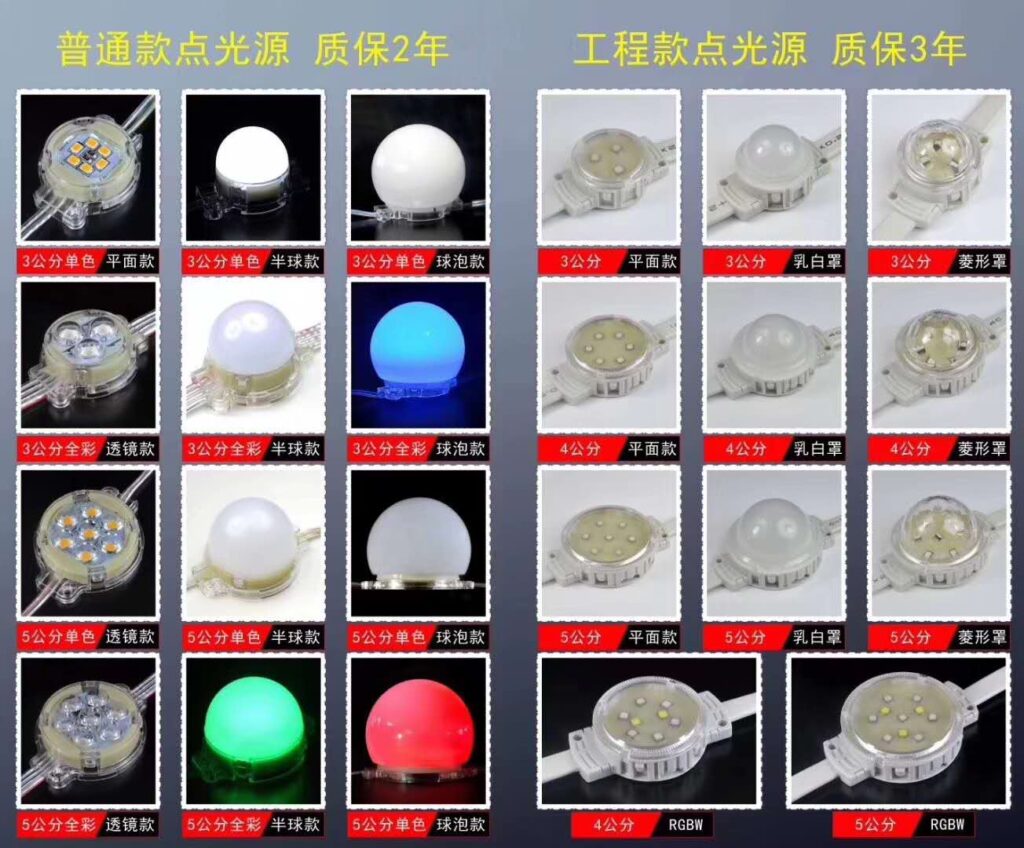

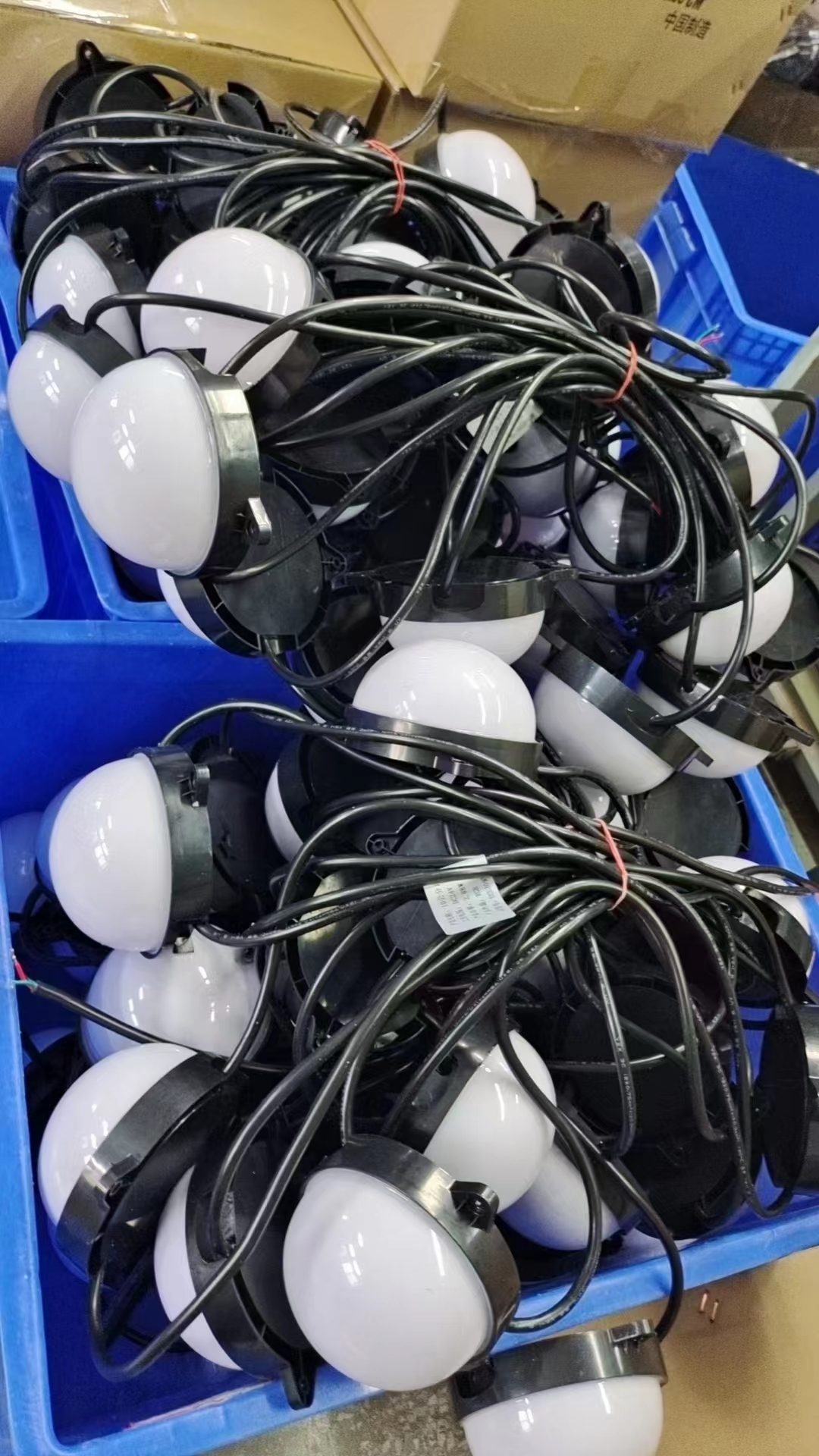

Other pixel led
50MM led Light Source installation method:
1, can be installed by by glue on the bottom of 30mm led pixel lights ;
2,Can used Aluminum profiles 30mm diameter of hole ,then fixed into the position of Profiles for 30mm led point light source ;

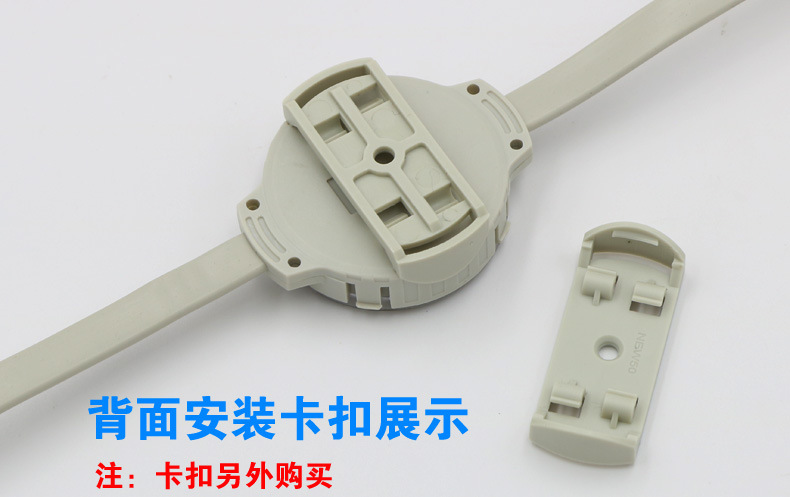

3, can be fixed with screws and snap ,Then fixed into the wall ;

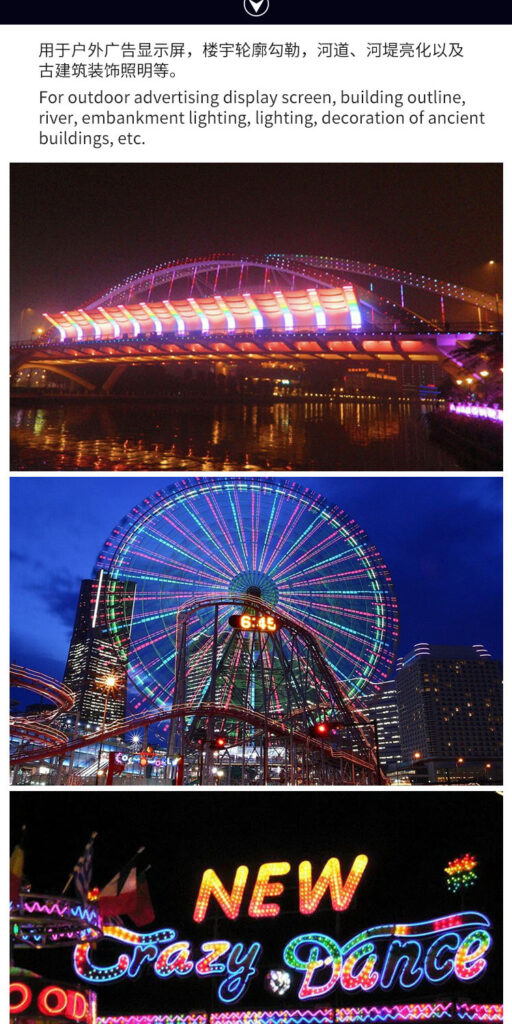

Application:
DMX High qualiy led pixel module light string 50mm waterproof IP68 RGB LED Point light source Application :
1. Ferris Wheel, Merry-Go-Round, Pirate Ship, Pendulum, Bumper Car, Rotor etc amusement rides, castles, carnival, funfair ground, attractions lighting.
2. Logo, signage, exposed luminous characters, channel letters, advertisement billboard.
3.Stage, nightclub, pub, KTV entertainment, Bars, Discos, building decorative lighting, bridge edge decoration Building contour,large shopping malls outside wall, Hotel, square street, outdoor AD signs, Logo and other places.
4. Display screen, painted screen, led light project, light engineer etc.
