| Item | RL-ws2811-5050RGB-3-12V |
| Voltage | DC12V |
| LED Type | ws2811 | UCS1903 optional |
| LED Qty/Module | 3leds/module |
| Size | L 75mm* W 75 mm |
| LED Modules/String | 20 modules/string |
| Housing Body | PVC injection coating |
| Power | 0.72 W/PCS |
| IP | IP 65 |
| Lumen Per Module | R15/G30/B12 lm |
| connector | 3pin JST female and male connector |
Description
These module extremly for backlighting like Channel letters application.

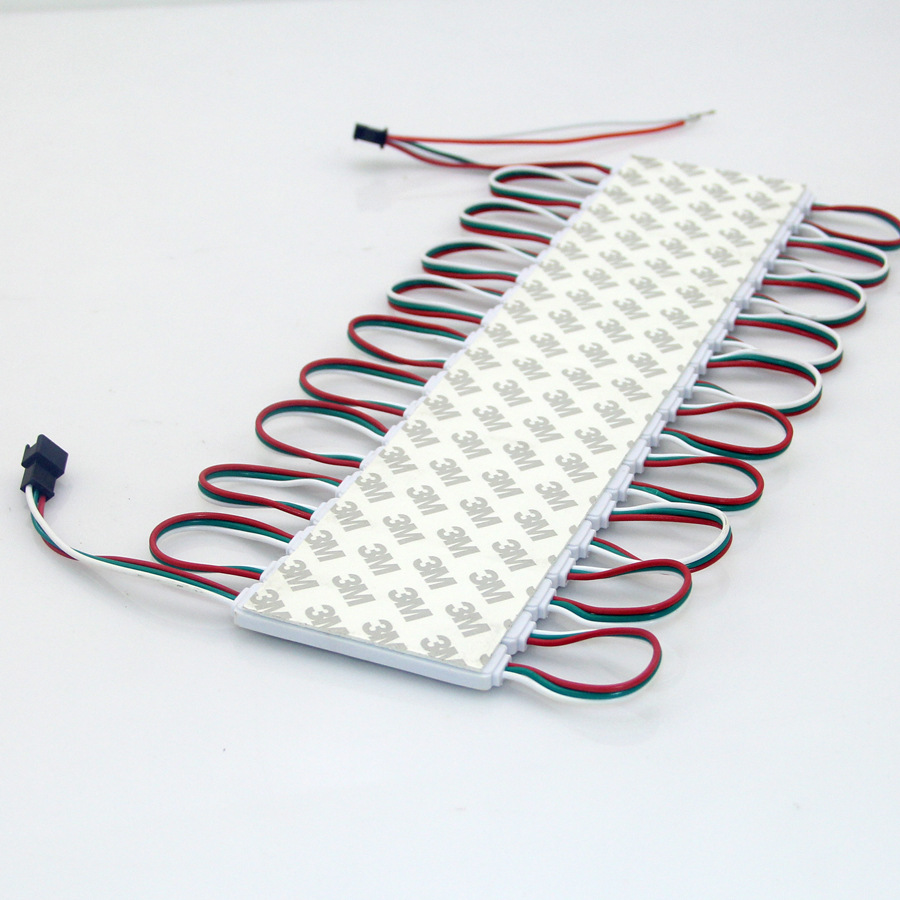

Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by PVC injection coating and it's IP65 rated ,but the JST.
Connectors on start and end of string it's IP20 (support customization).
Control IC included, supporting numerous color-change effects.
Controlled by SD controller,Arduino,DMX512,Artnet.
Rigid white PCB, 12V low voltage input.
Every 1 Leds linear separable, custom-length available.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power

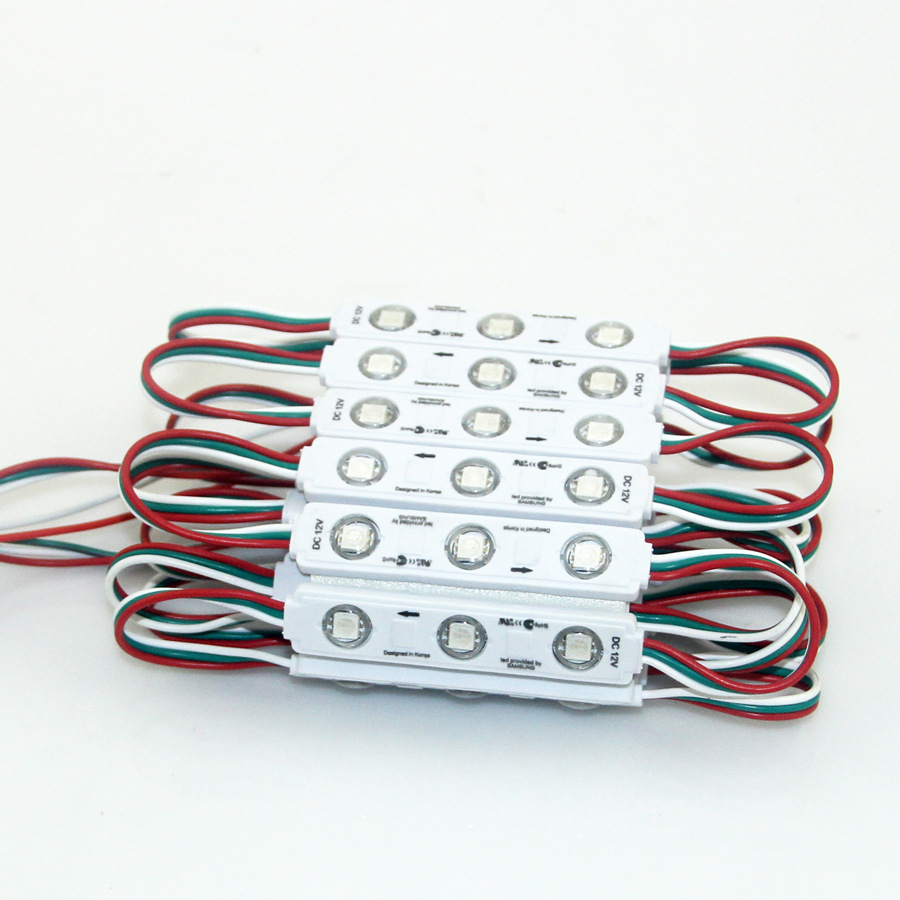

Picture details
WS 2811 1903full color digital Ultrasonic pixel led Module optional
| Item | RL-ws2811-5050RGB-3-12V |
| Voltage | DC12V |
| LED Type | ws2811 | UCS1903 optional |
| LED Qty/Module | 3leds/module |
| Size | L 75mm* W 75 mm |
| LED Modules/String | 100 modules/string |
| advantages | Ultrasonic process |
| Power | 0.72 W/PCS |
| IP | IP 65 |
| Lumen Per Module | R15/G30/B12 lm |
| connector | 3pin JST female and male connector |
Description
These module extremly for backlighting like Channel letters application.
Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by PVC injection coating and it's IP65 rated ,but the JST.
Connectors on start and end of string it's IP20 (support customization).
Control IC included, supporting numerous color-change effects.
Controlled by SD controller,Arduino,DMX512,Artnet.
Rigid white PCB, 12V low voltage input.
Every 1 Leds linear separable, custom-length available.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power
Picture details
WS 2801 ws2811 LED Pixel Epoxy Rectangle Module optional also
| PN | WS 2801ws2811 Epoxy LED Pixel Rectangle Module |
| Voltage | DC12V |
| LED Type | ws2801 | lpd6803 optional |
| LED Qty/Module | 3leds/module |
| Size | L 95* W 18*H 9 MM |
| LED Modules/String | 20 modules/string |
| Housing Body | PVC plastic |
| Power | 0.72 W/PCS |
| IP | IP 65 (Resin) |
| Lumen Per Module | R15/G30/B12 lm |
| O.T | -30℃ ~ 45℃ |
Description
These module extremly for backlighting like Channel letters application.
Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by PU Glue and it's IP65 rated ,but the JST.
Connectors on start and end of string it's IP20 (support customization).
Control IC included, supporting numerous color-change effects.
Controlled by SD controller,Arduino,DMX512,Artnet.
Rigid white PCB, 12V low voltage input.
Every 1 Leds linear separable, custom-length available.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power

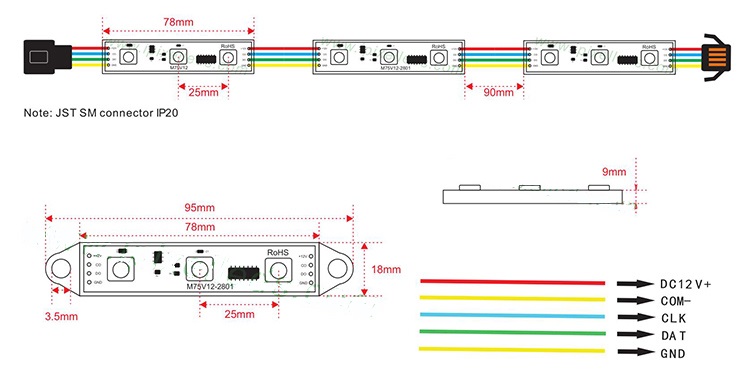

Dimension (unit:mm)
normal RGB led module optional also
