Side view 1023black silicone neon flex rgb led tube sk6813 ic 12v 60pixels per meter
Specification
| Catalog | Side view 1023black silicone neon flex rgb led tube sk6813 ic 12v 60pixels per meter |
|---|---|
| Model | RL-STR-sk6813-5050RGB- 60P-24v-10X23 |
| LED Type | 5050 rgb |
| Warranty | 3 years |
| Working Voltage | DC12V |
| Power | 12W/M(max) |
| FPCB Width | 10mm |
| Lamp Chip Brand | sanan |
| LED Quantity | 60leds/M |
| Cutting Unit | every 1LED can be cut as a individual part |
| Brightness for each 3535 led | 2100MCD |
| Lamp Quality | Pure copper base and gold wire |
| IC Type | sk6813 ( 60Pixels per meter) |
| beam viewing | 120 degree |
| Color | RGB addressable |
| waterproof Grade | IP20 Nonwaterproof |
| silicone tube | 10mmX23mm |

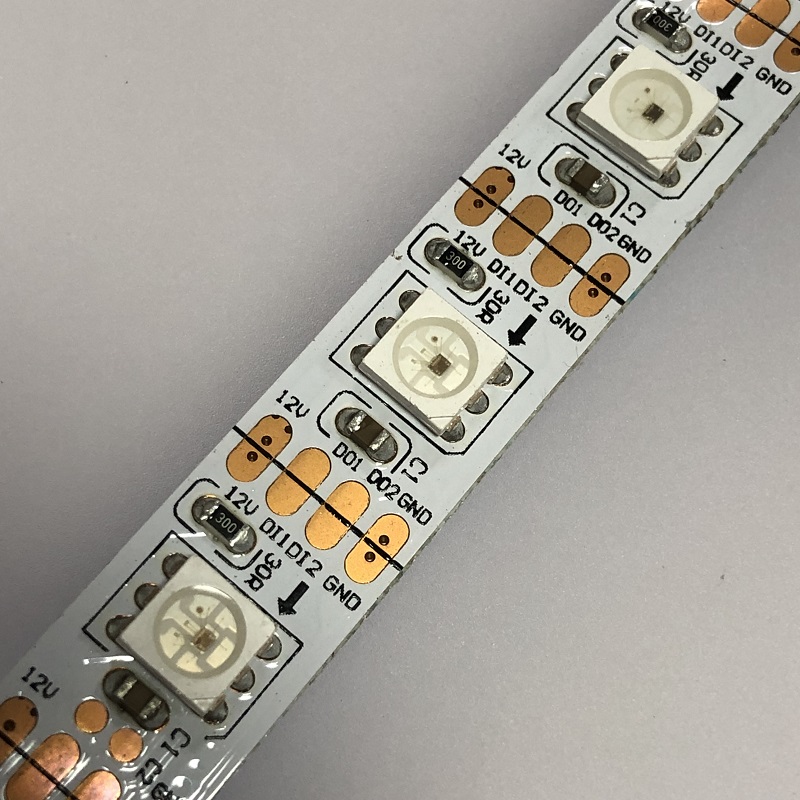

There is 10mm width pixel led strip inside.

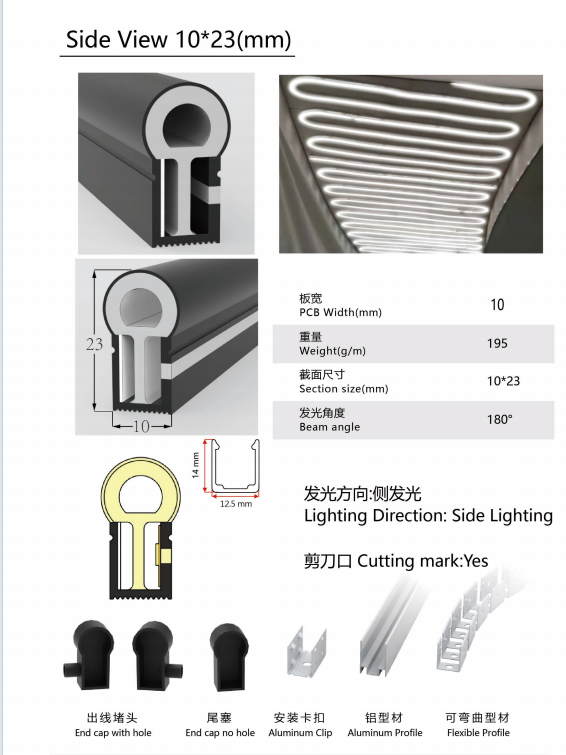

There is black silicone tube with 10mm 23mm size
we can make black tube with other dmx512 ic .
Below is the black silicone tube covering VS white silicone tube
Advantage of silicone flex led tube
1. there is real flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,
it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,
no color change outside within 3 years warranty
6. all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，
can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
