Dc24V 360viewing 22mm dimater flex silicone neon 2835 rgb pixel led tube with 2pcs 8mm width 1934 led strip with 16pixels 96led/m (black silicone tube optional )

Dc24V 360viewing  22mm dimater flex silicone neon 2835 rgb pixel led tube  with 2pcs 8mm width 1934  led strip with 16pixels 96led/m (black silicone tube optional  )

( two pcs led stirp inside the silicone tube to make 360 viewing,below is the specification for the 8mm width pixel led strip )

customized 22mm led tube

Specification

Catalog	Dc24V 360viewing  22mm dimater flex silicone neon 2835 rgb pixel led tube  with 2pcs 8mm width 1934  led strip with 16pixels 96led/m (black silicone tube optional  )
Model	RL-STR-ws2811/1934-2835RGB-16P-96--24v-D22
LED Type	2835 rgb
Warranty	3 years
Working Voltage	DC24V
Power	15W/M(max)
FPCB Width	8mm
Lamp Chip Brand	sanan
LED Quantity	96leds/M
Cutting Unit	every  6LED can be cut as a individual part
Brightness for each 3535 led	2100MCD
Lamp Quality	Pure copper base and gold wire
IC Type	tm1934 ( 16Pixels per meter)
360 beam  viewing	two led strip inside the 22mm dimater silicone tube ( back to back)
Color	RGB addressable
waterproof Grade	IP65 waterproof
Diamater	22mm

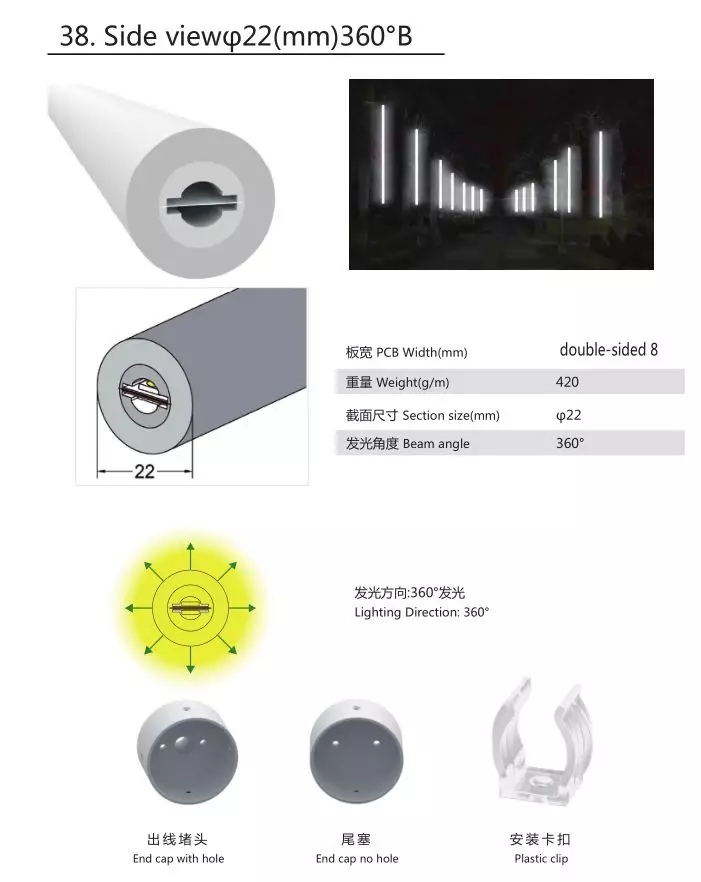

Below is our  360viewing 22mm silicone neon tube

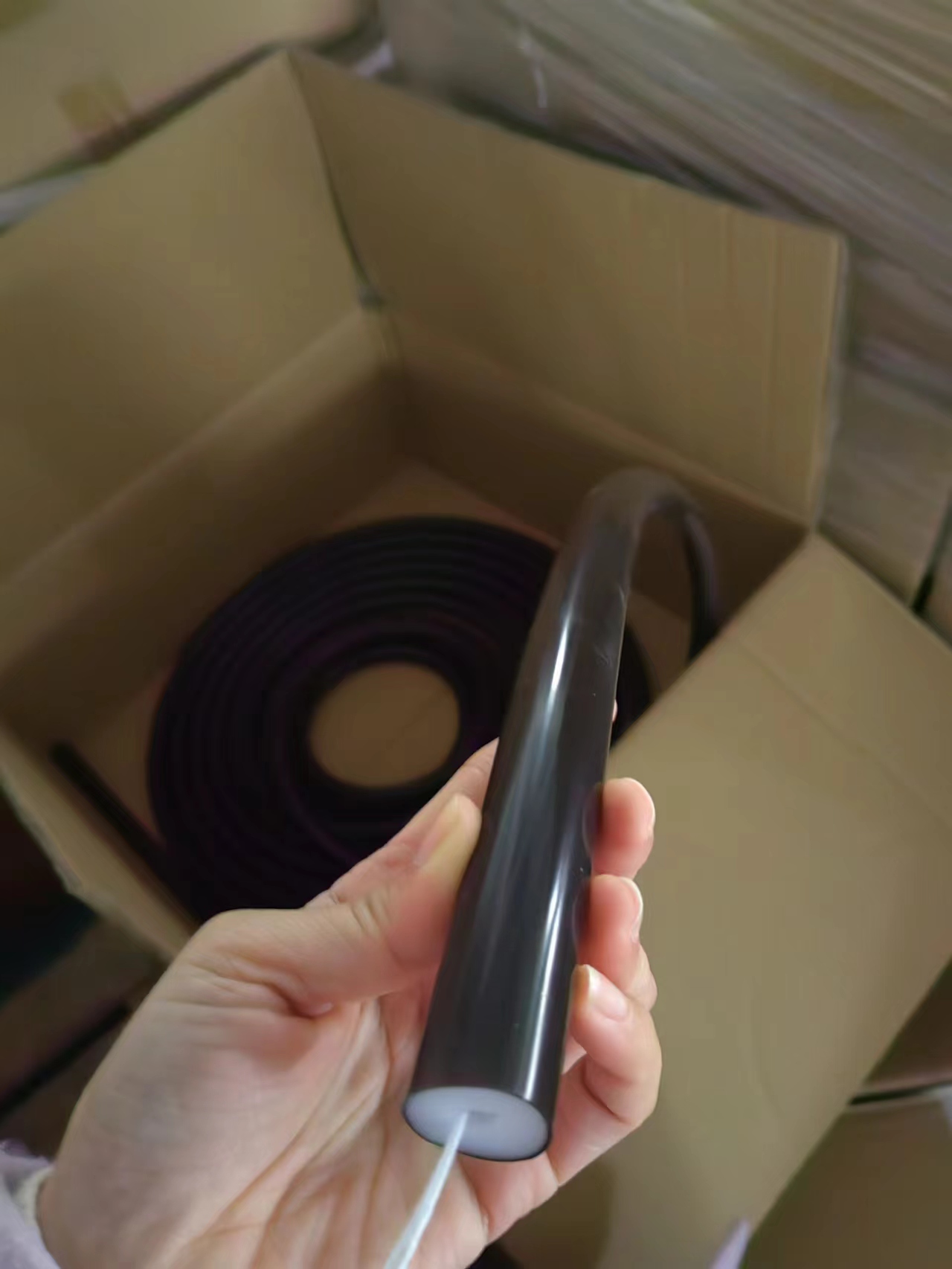

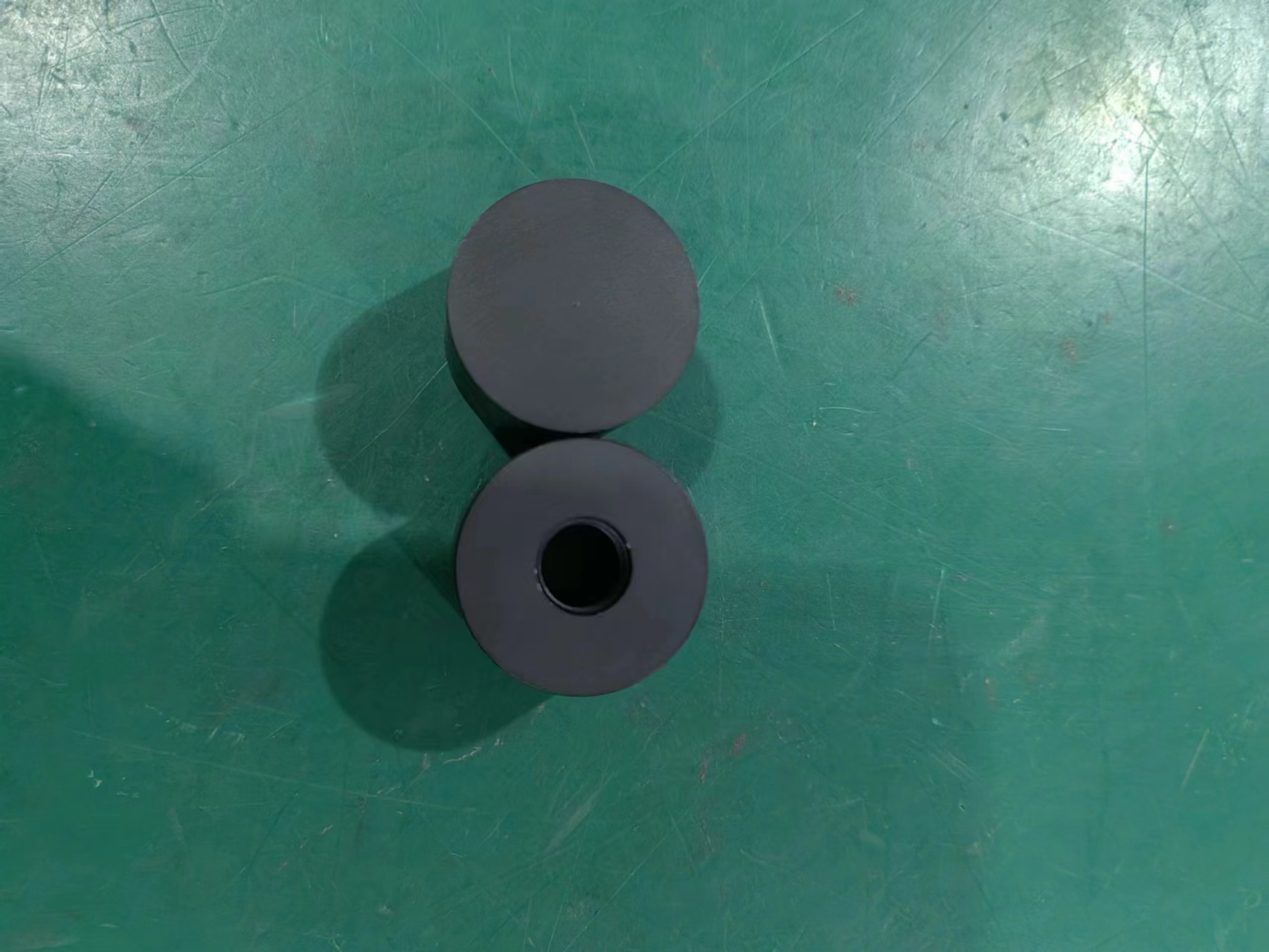

Black color and black end cap (metal material optional)

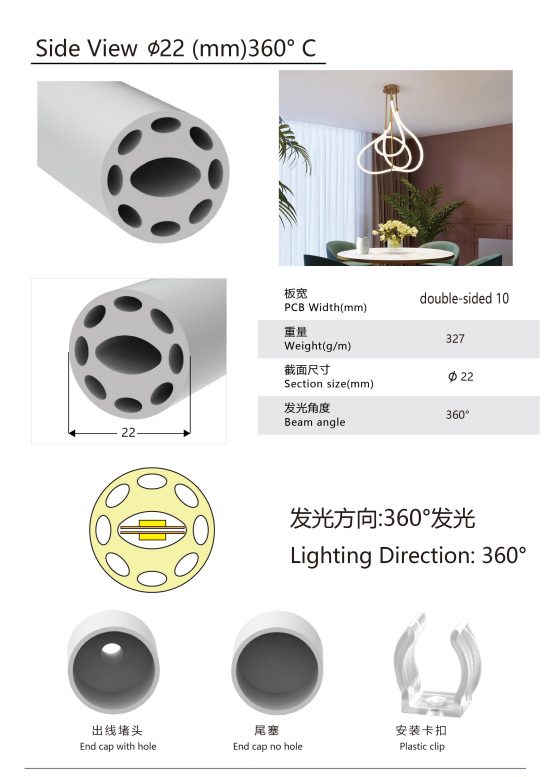

Below is the other D22--which allow 10mm width led strip inside the silicone tube please.

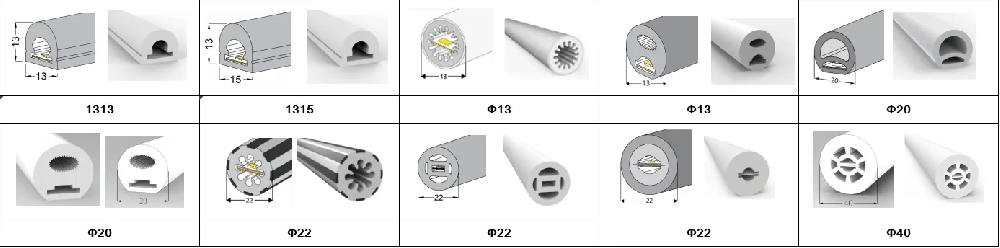

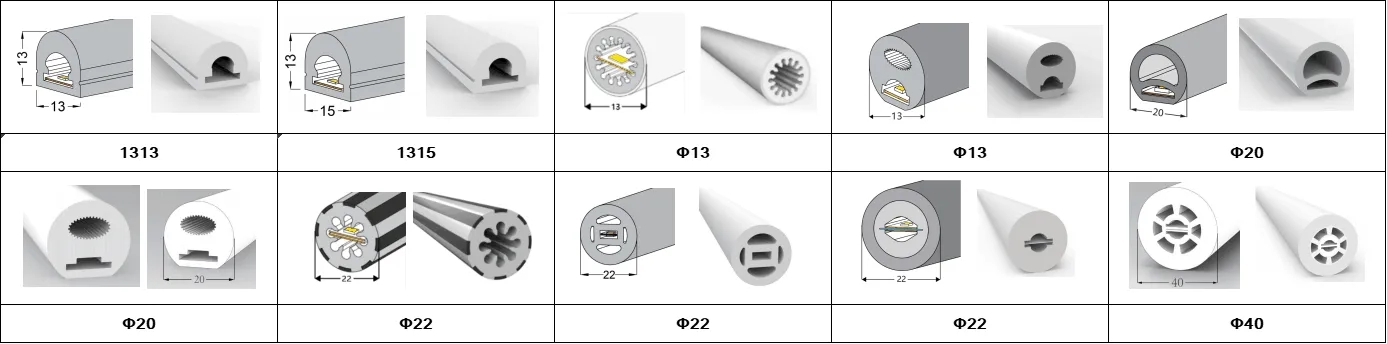

below are some size--which with 360 degree illuminated please.

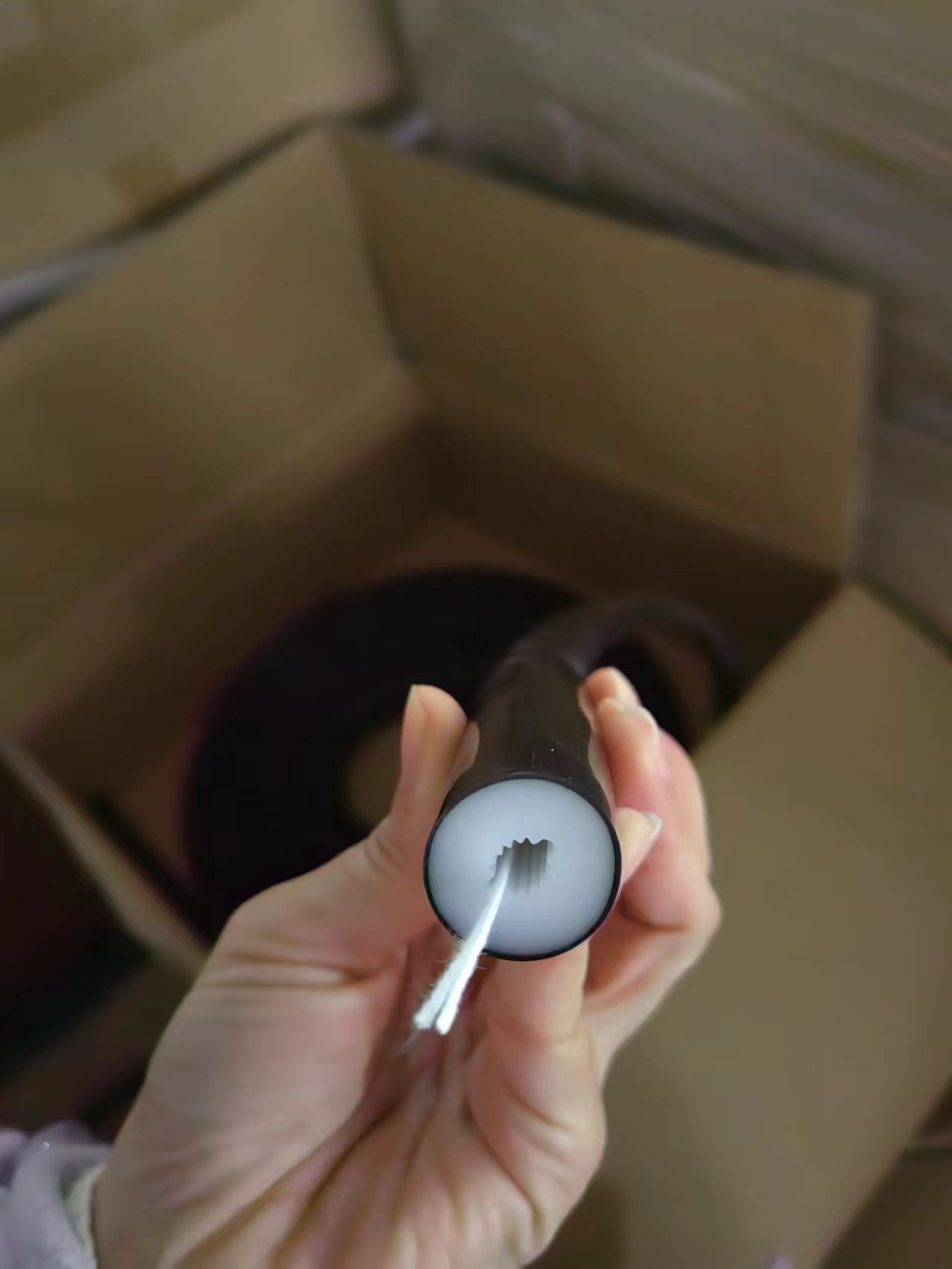

( two pcs led stirp inside the silicone tube to make 360 viewing,

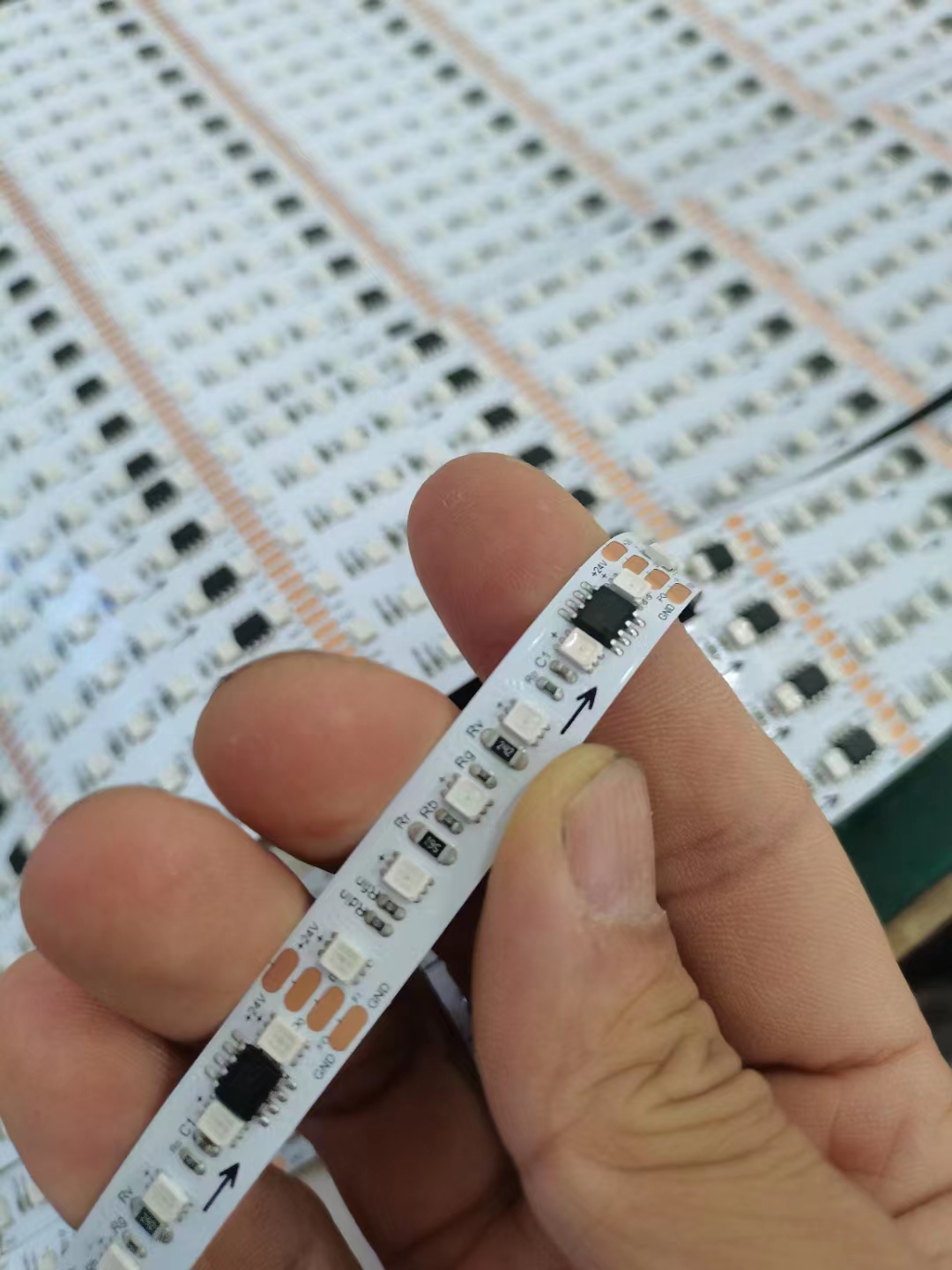

There is 8mm width pixel led strip inside

click details for the 24v 8mm width 16pixels  96led 1934 pixel rgb led strip here please.

https://www.rose-light.com/list_3/8mm-1934-pixel-led-strip.html

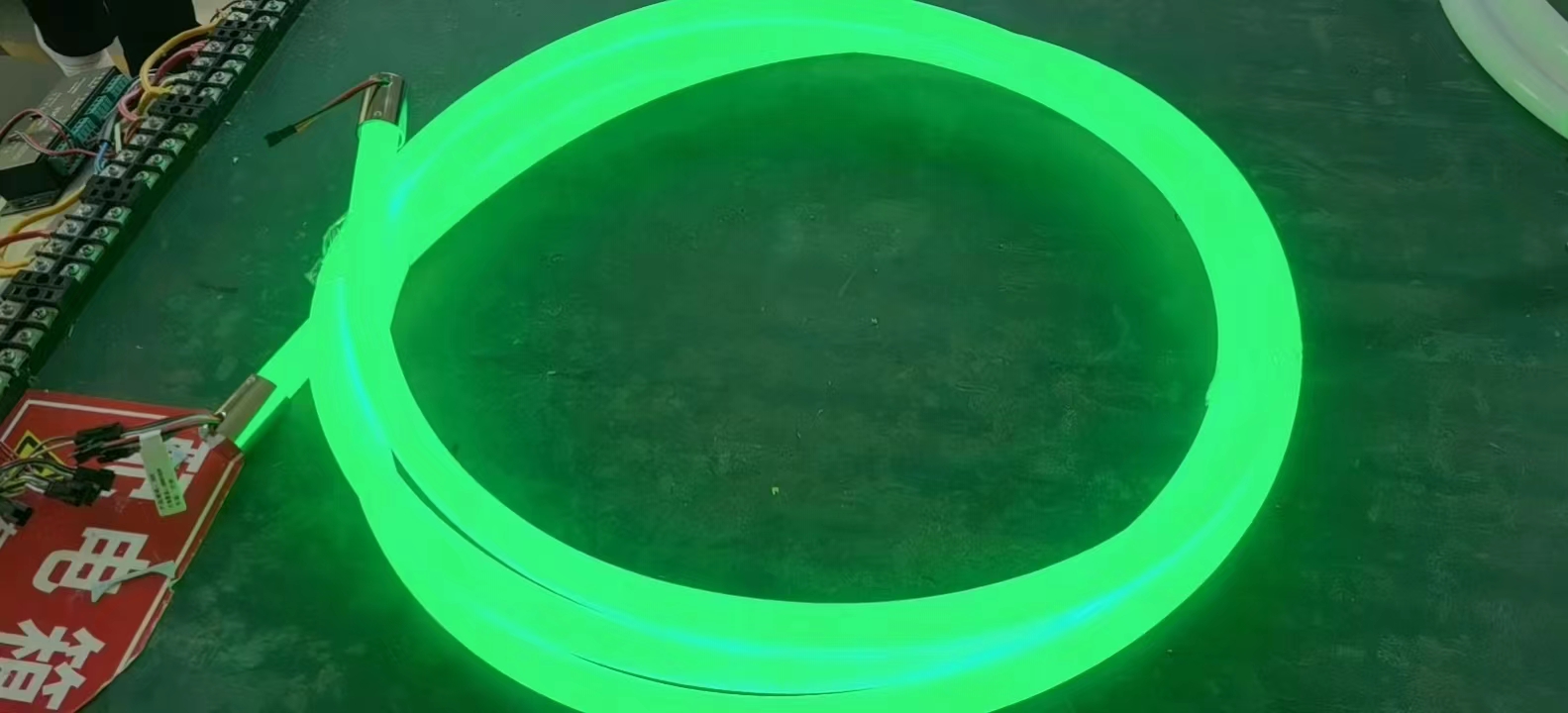

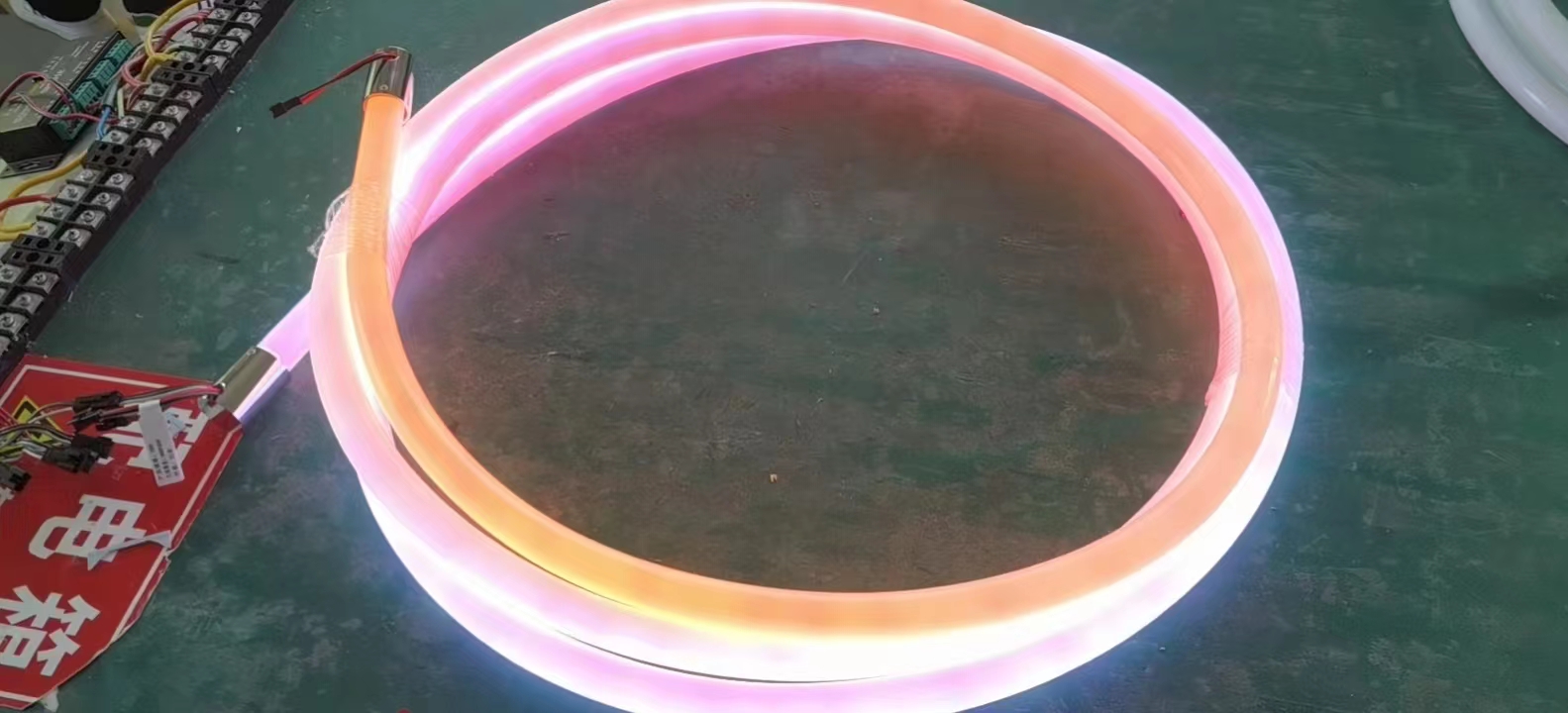

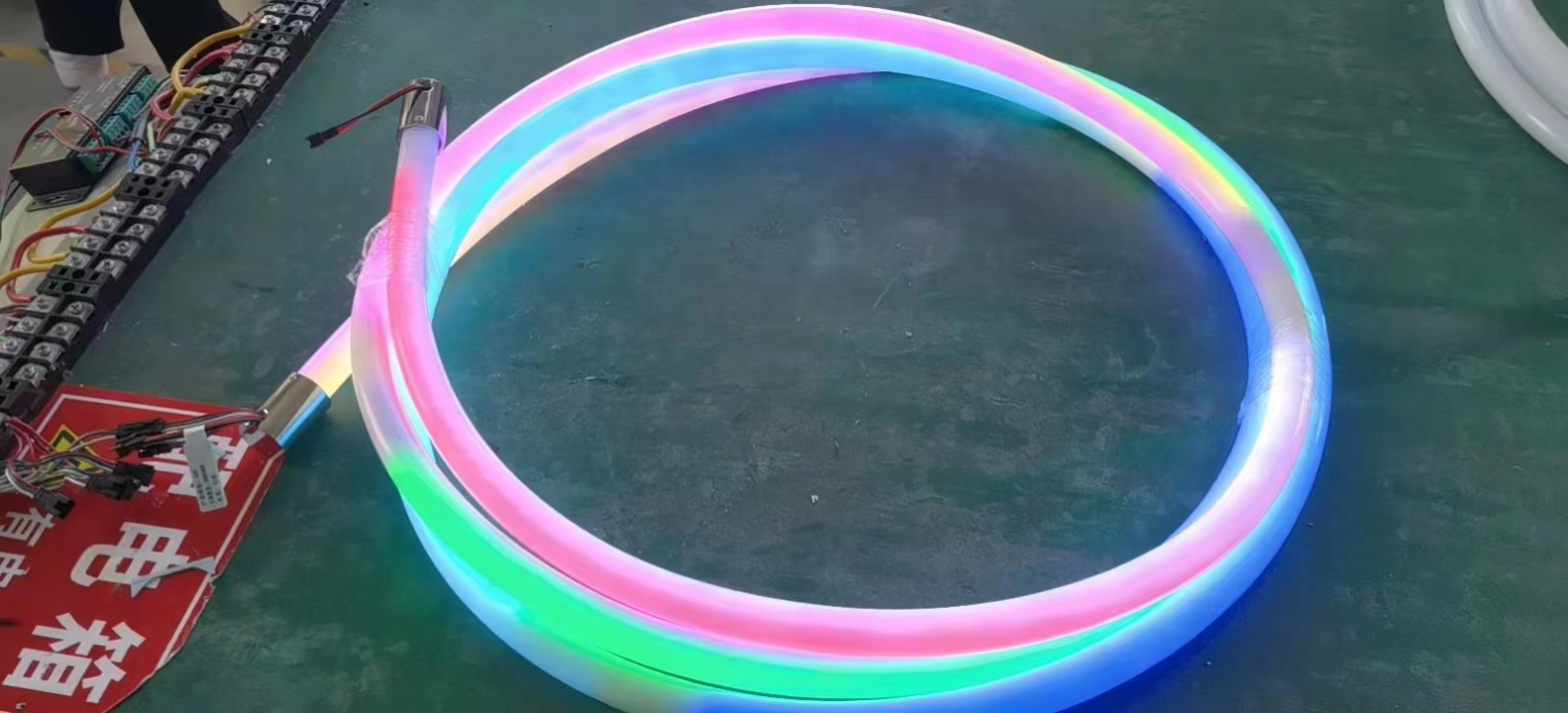

 Finised product

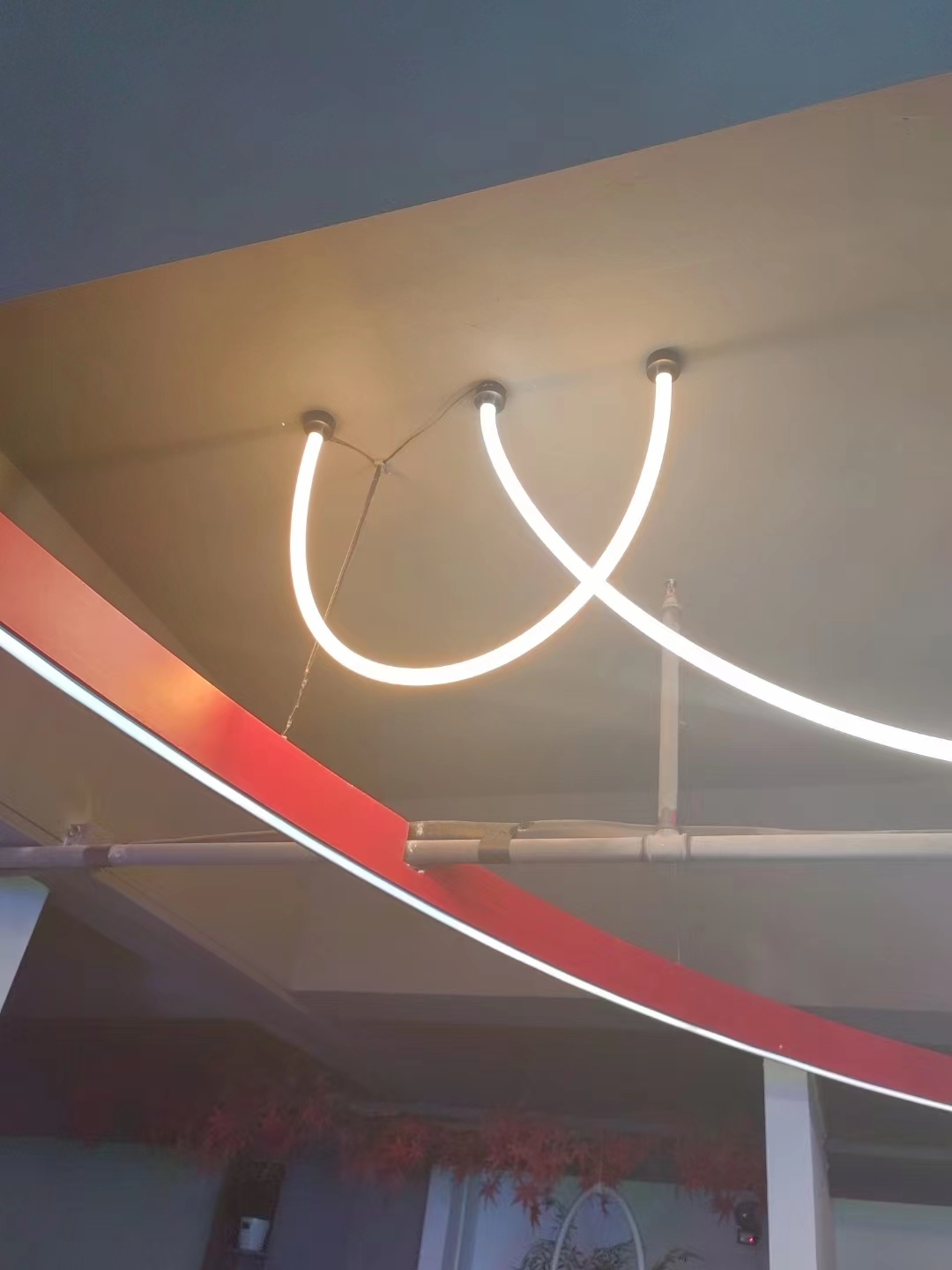

Application

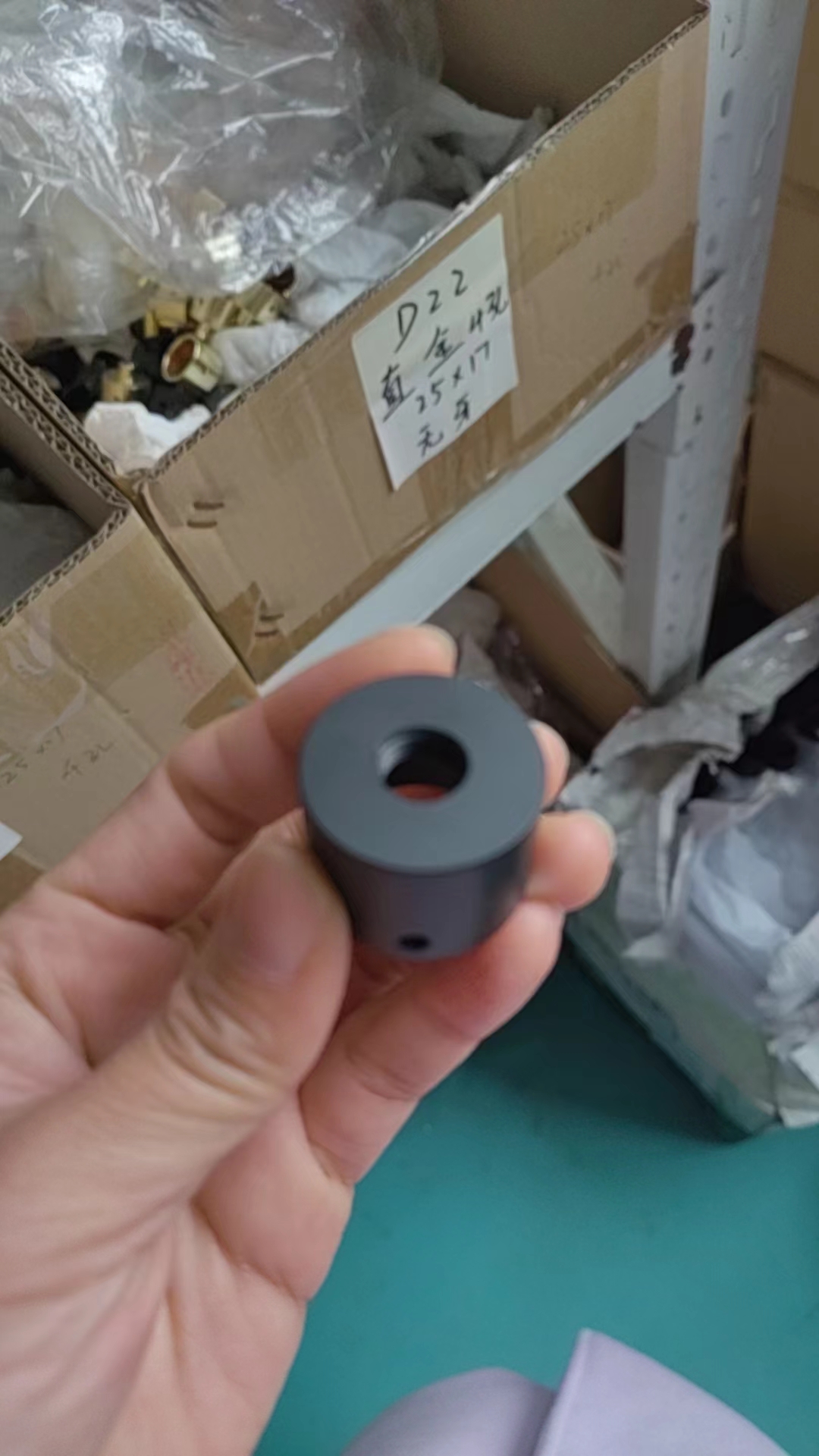

led accessores of the 22mm led tube --can make monochrome color or RGB color or others if you have order

22mm neon flex led tube accessories price list.xlsx

Download the Round silicone tube catalog for led strip-click as follow please .

https://www.rose-light.com/static/upload/file/20230420/1681977790473650.pdf



Advantage of silicone flex led tube

1. there is no dark area and No light spot  for all type of  flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,

it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,

no color change outside within 3 years warranty
6. all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，

can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
