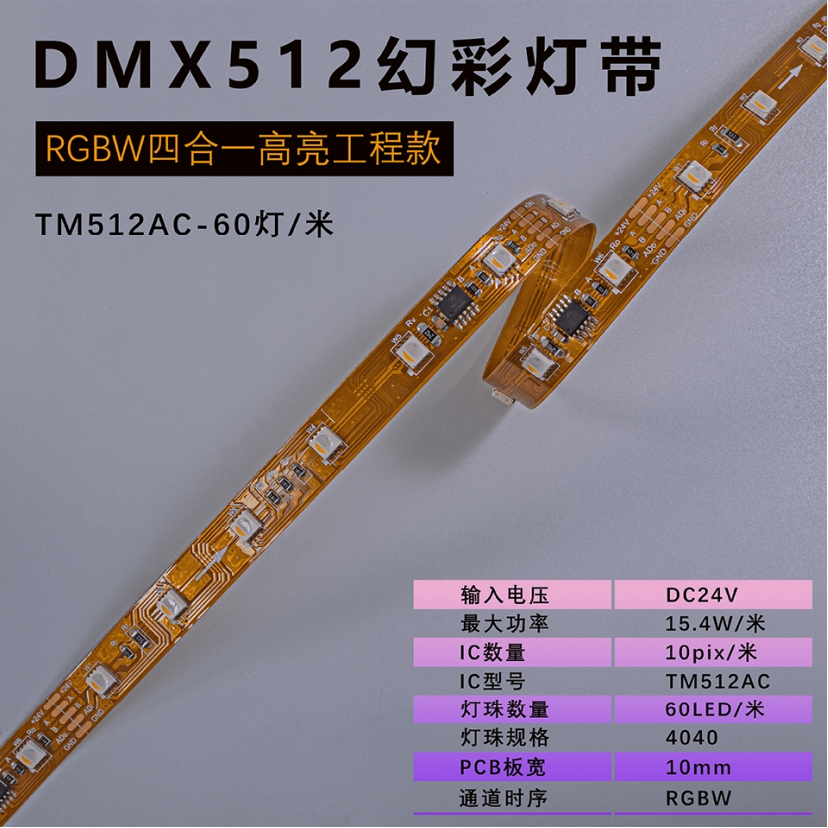

Dc24V 10mmwidth Flexible TM512AC 4040 RGBW digital Pixel led strip 60led 10pixels per meter

Our DMX flexible led strip is super strong dmx signal strip with A,B signal parallel signal transfer. 5 cables ( PI/PO address writing wire, A(Dmx+),B(Dmx-),GND),

and DC24V,the MAX485 is inside the DMX512 IC ,It can be cut ,can be parallel and series connection .

Product details

Product Name	RL-STR-TM512-4040RGBW-10P-60-24V
LED Qty	60leds/m
DMX512 Qty	10pcs with 24V
DMX channel	40 channels with 24V
PCB Width	10mm wide
Voltage	DC24V
Watt	14.4W
PCB Color	White PCB Black PCB
IP Rating	IP20/IP65/IP67/IP68
Controller	DMX512 Art-Net/DVI/DMX Controller
IC chipset	TM512AC

key specification

1. This Dc24V flex dmx digital led strip 60leds/M ,that different with normal SPI led pixel strips. DMX512 led strips protocl is DMX512 that signal is parallel not series.

2. Its advantage is parallel DMX512 signal could avoid LEDs color influenced by the failure of one light in serial connection.

2. Entire DMX RGB digital led strip has 12 pixels with 24V ; 60 RGB leds in a meter with 12mm width pcb board.

3. Communication between DMX512 RGB led digital tapes are synchronized perfectly under support of Artnet / DMX512 led controllers.

4. 24V 60 leds DMX RGB LED Pixel Digital strip need to write DMX address code via DMX address coder / controller.

5. Vivid lighting performance operated by Madrix software, Artnet / DMX512 led controllers.

6. 24V 60 leds DMX RGB LED Pixel Digital ribbon is flexible , bright, durable and easy for installation.

For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip,

there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.

Advantages:

2unce PCB board with double cooper layer(hongqi brand 35um copper )
doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board
It comes in 1 meters per reel with 5Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .
Flexible PCB material .every 6LED cab be cut with 24V;
60LEDs/M with 24V . don’t over 25V , otherwise you will destroy the entire strip ..
warranty: 3years
Original TM512 AC with standard dmx512 signal ,,

Installing : screw+silicon clipand 3M adhesive on back side for sticky
