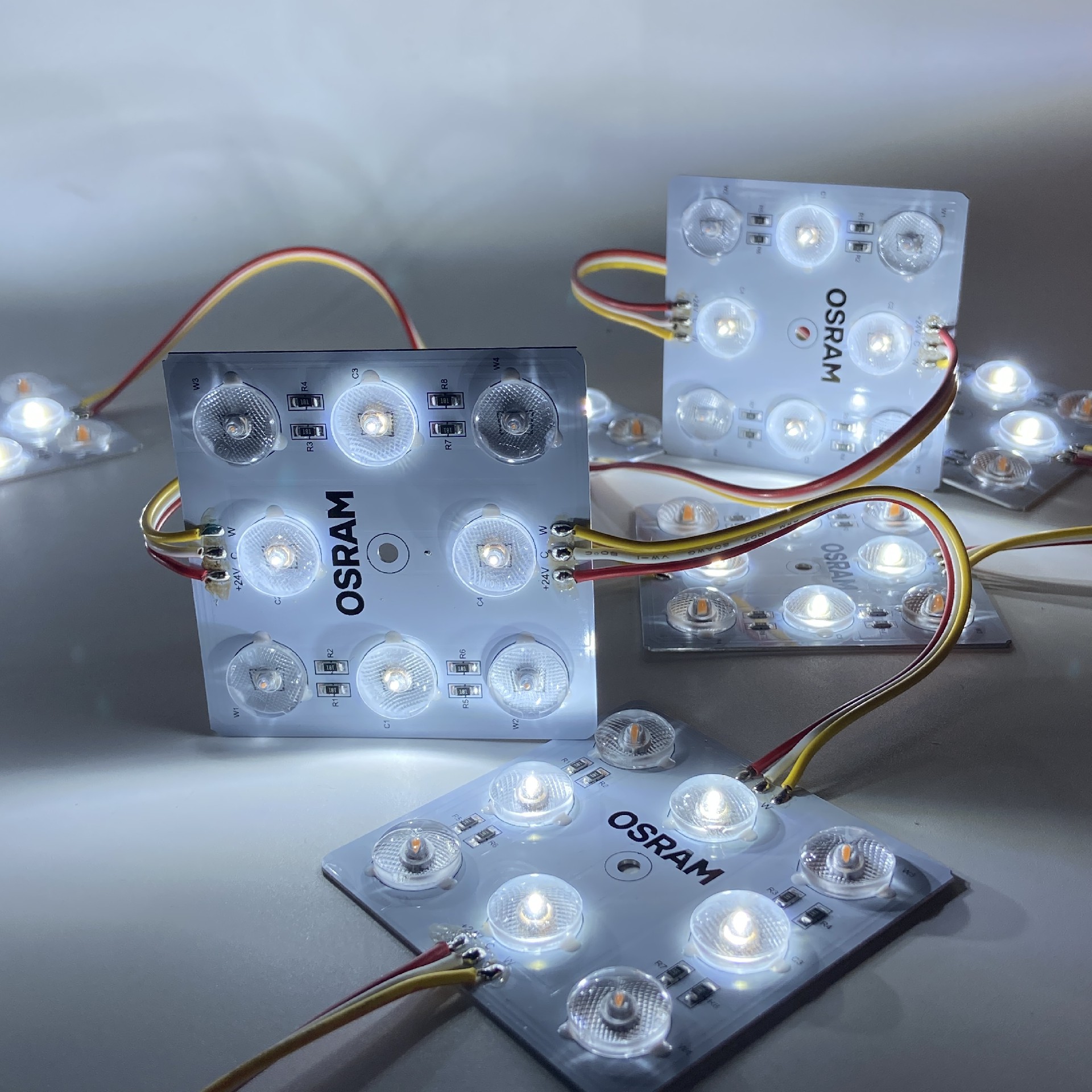

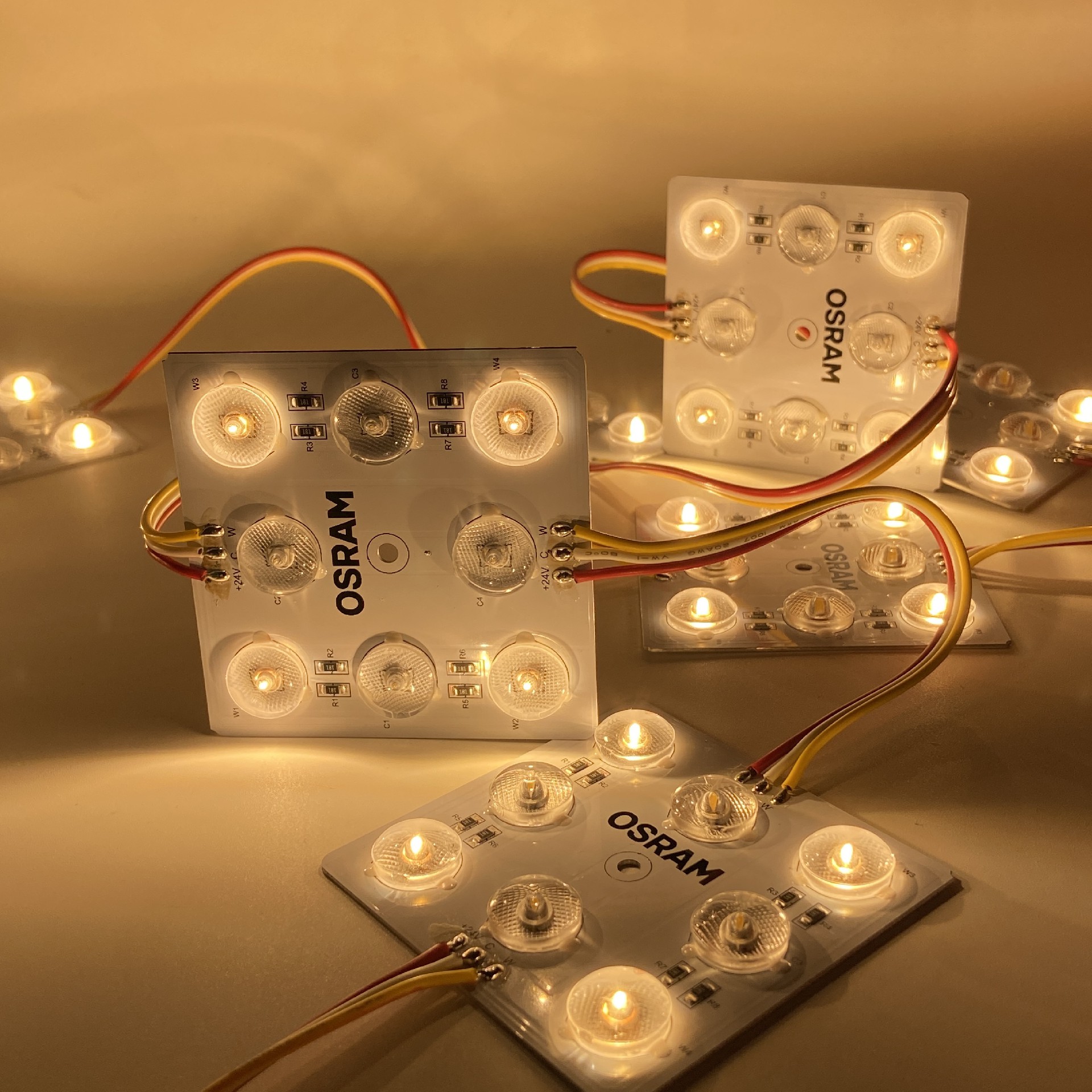

CCT 8 led OsramLED module illumination block light
used for the soft film ceiling
Product Parameter
| Item | Osram CCT led block chain module for the soft film ceiling |
| Voltage | 24V |
| LED Type | 3030 RGB |
| LED Qty/Module | 8leds/module |
| Size | L 70mm* W 70 mm |
| LED Modules/String | 20 modules/string |
| Housing Body | aluminium |
| Power | 6W/PCS |
| IP | IP 20 |
| color | RGB/RGBW/RGB addressable optional |
| connector | 3/4pin JST female and male connector |
Description
These module extremly for backlighting like Channel letters application.
Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by PVC injection coating and it's IP65 rated ,but the JST.
Connectors on start and end of string it's IP20 (support customization).
Control IC included, supporting numerous color-change effects.
Controlled by PWM control
Rigid white PCB, 24V 12V low voltage input.
Every 1 Leds linear separable, custom-length available.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power
below type optional
