Dc24v 60led/m 10mm width epistar 5050 RGBW 4in 1 led flex LED Strip

10mmrgbw24ledstrip
Products Inquiry

Product Details

Dc24v 60led/m 10mm width epistar 5050 RGBW 4in 1 led flex LED Strip

which we have 10000meter in stock ,CCT  3000k  4000k  5000k  6000k  for white ,

DC24V ,2100MCD high brightness for RGB , 7lm for white

specification

RGBW led chip is the new chip,which have R,G,B,W four color chips inside one 5050 SMD LED.

The white color is much puerer and higher brightness.Can be controlled by wifi remote and cell phone(Android ,IOS).

Change any color and dimmable as you want at any time.Can be DC12V,DC24V,

120 LEDs per meter.

RGBW(White coloe insde could be warm white:2800-3200K,nature white:4000-4500K,white:6000-6500K. )

LED Type: SMD 5050 RGBW

Color: warm white, white, nature white

LED Quantity: 60leds/Meter

View angle:120°

PCB width: 10mm

Working Input Voltage: 24V 19.2W/meter

Drive Mode: Contant Voltage

Description

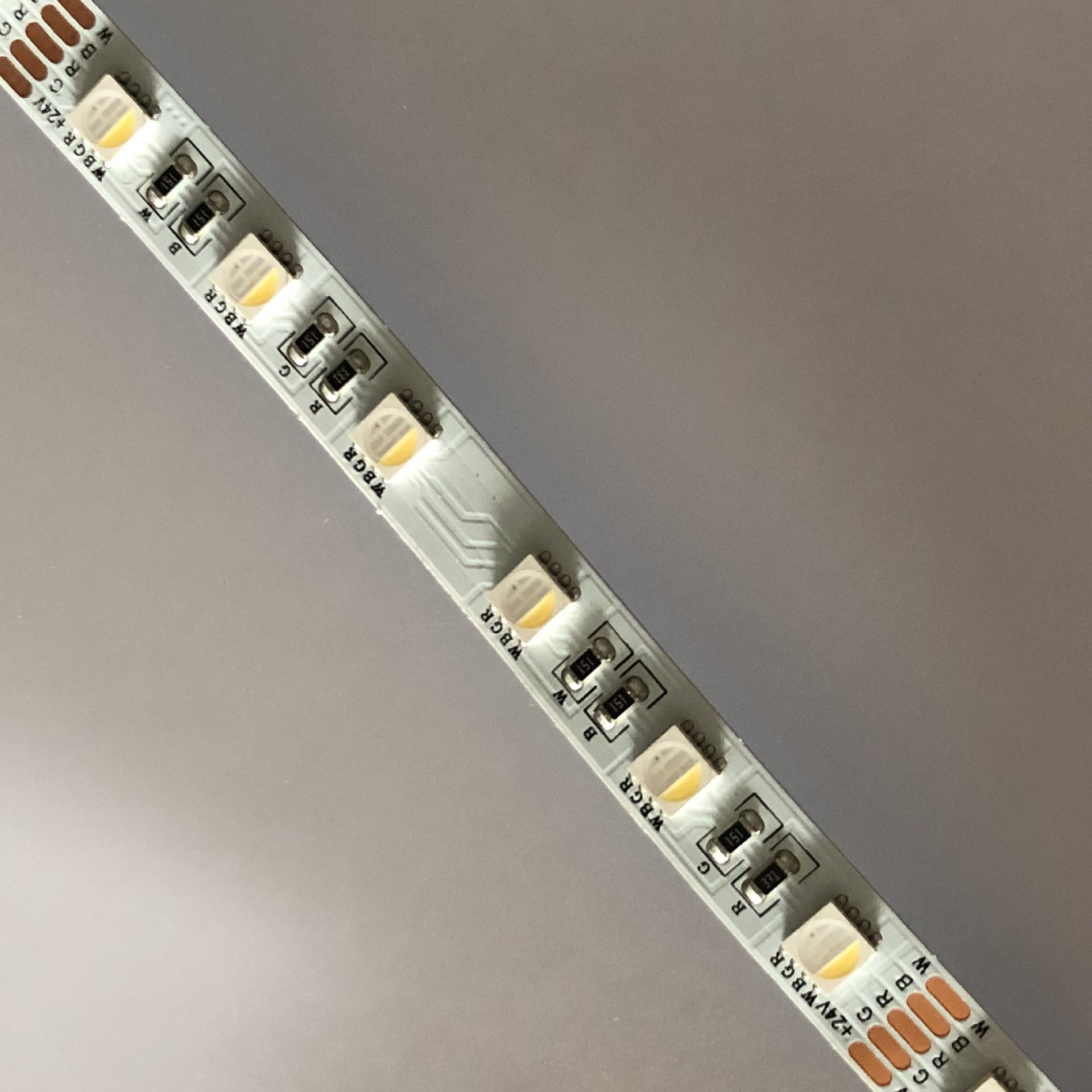

This is a PWM control RGB color LED strip without Pixel
SMD RGBW 5050 LEDs ,

5meters/reel, 10mm PCB width
The cutting unit length is  100mm(24V) per section
The PCB is made by 2 Ounce 35um  thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12/24V constant voltage operation

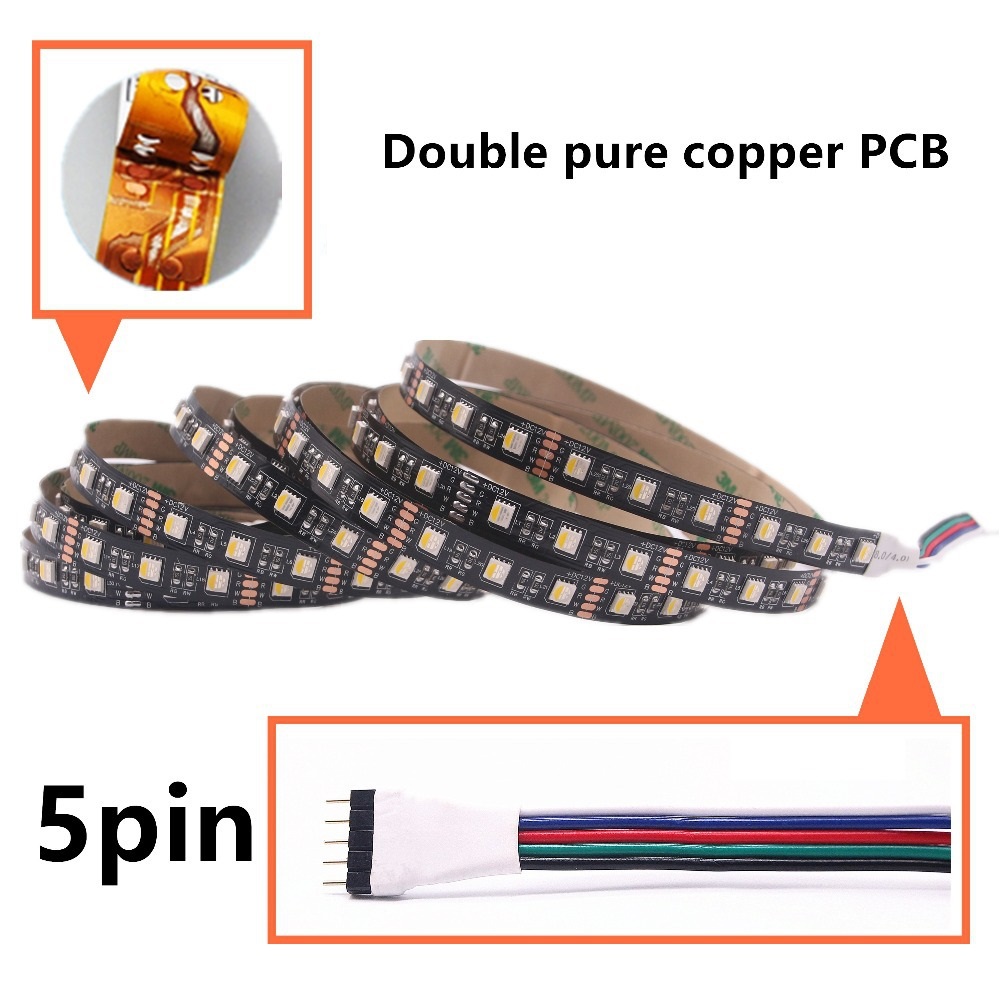

Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC

Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.

Product details

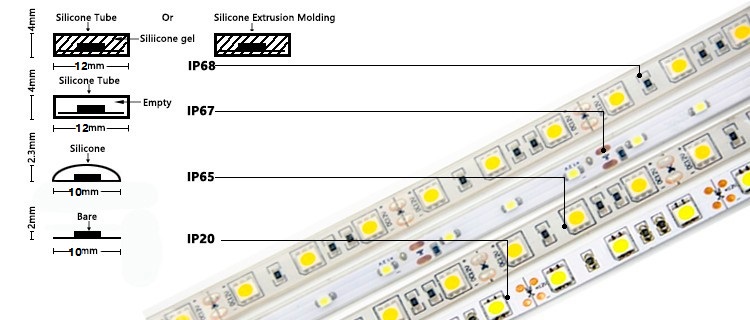

Waterproof Rate:

IP20: Non-waterproof with 3M sticker on the back,

IP65: waterproof is silicone gel or epoxy on the surfacewith 3M sticker on the back,

I67: silicone tube

I68: silicone glue inside the silicone tube

10mm Ip rate.jpg

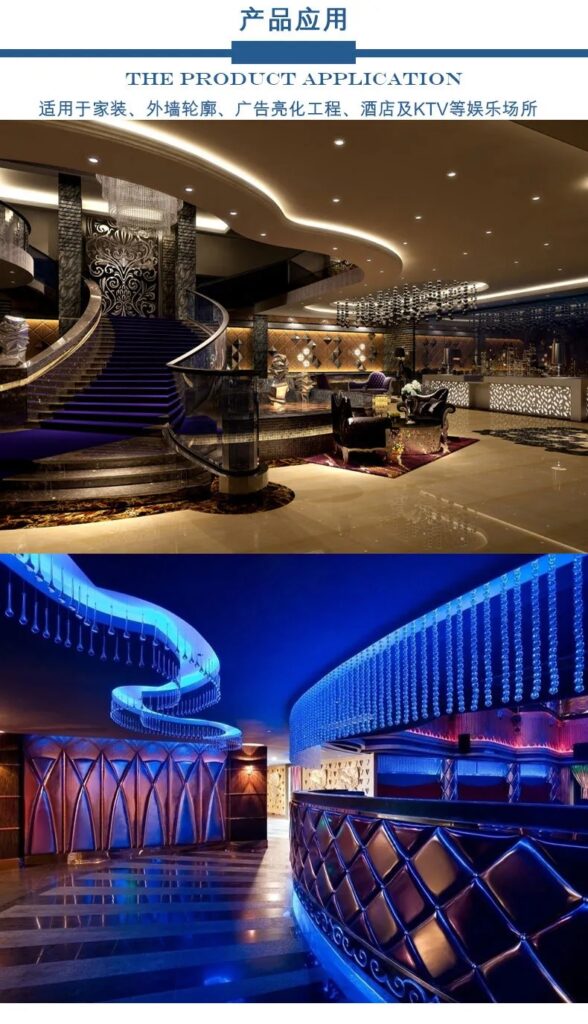

Application:

•Widely used for home decoration use, hotels, clubs, shopping malls

•Architectural decorative lighting, boutique atmosphere lighting

•Extensively applied in background lighting, concealed lighting, channel letter lighting

•Emergency & security lighting, advertisement sign lighting

•Decorative lights for holiday, event, show exhibition

•Applicable for automobile and bicycle decoration, border or contour lighting

Remark

Do not use any acidic, alkaline adhesive fixing Product

It is prohibited to make products with a hard object collision,
friction
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly
