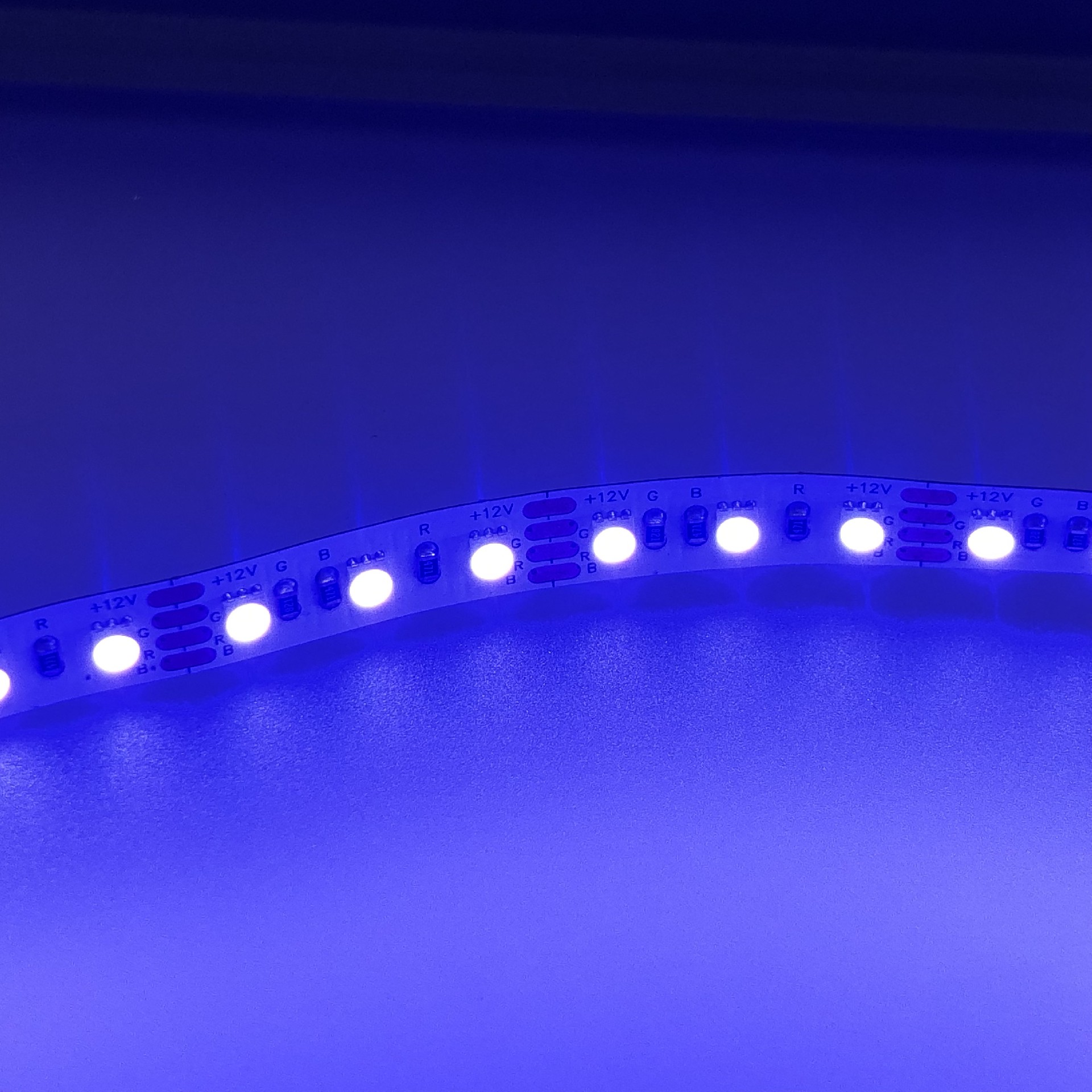

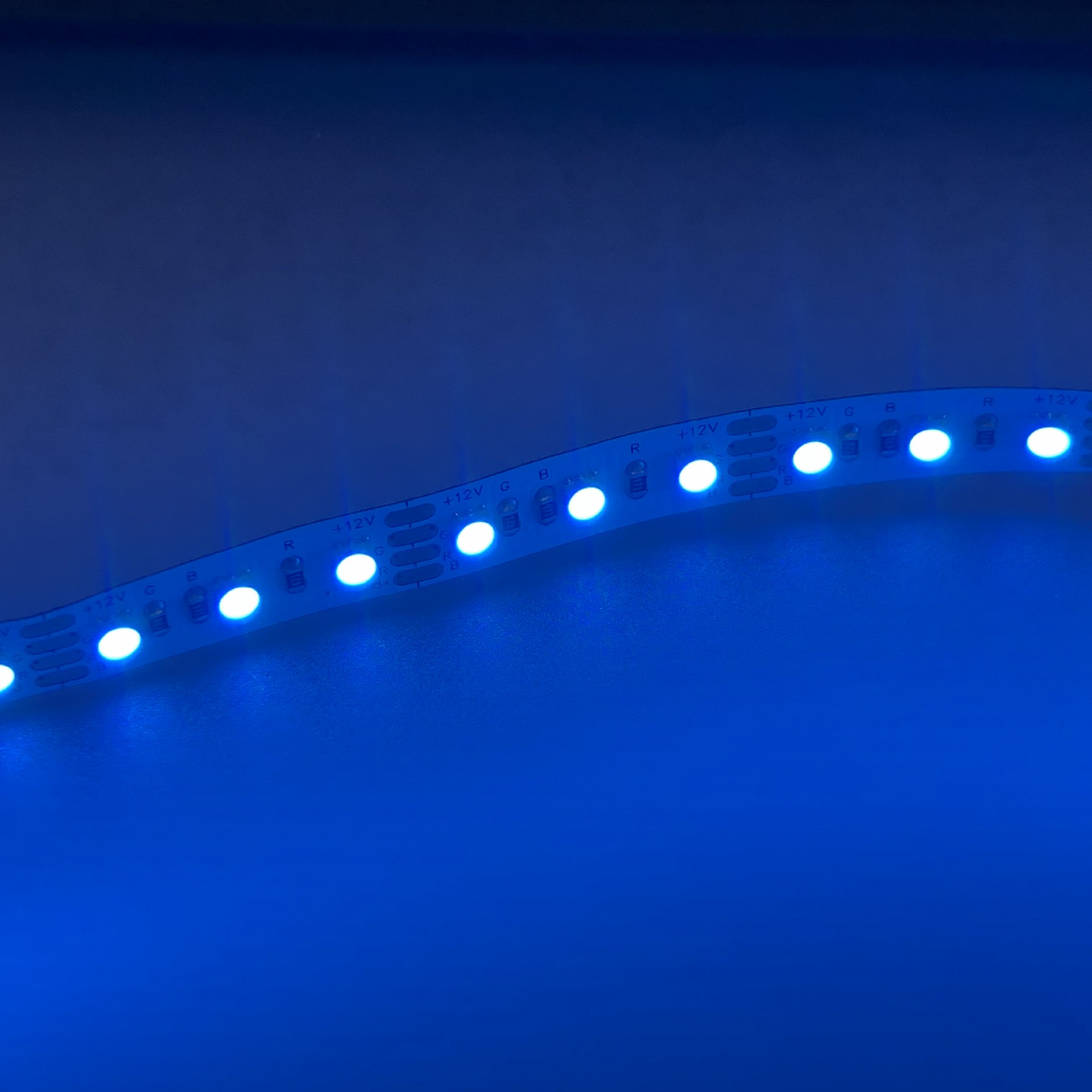

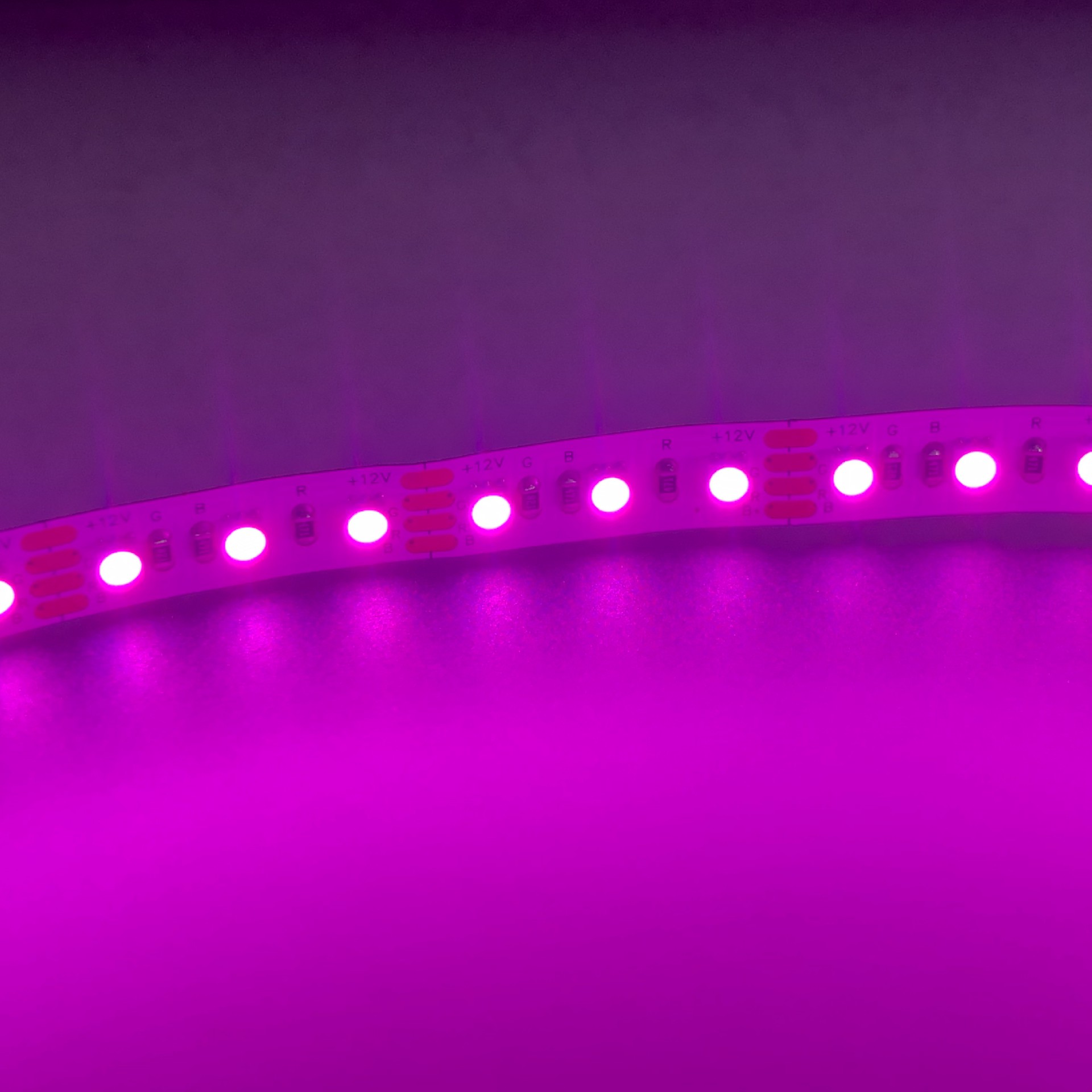

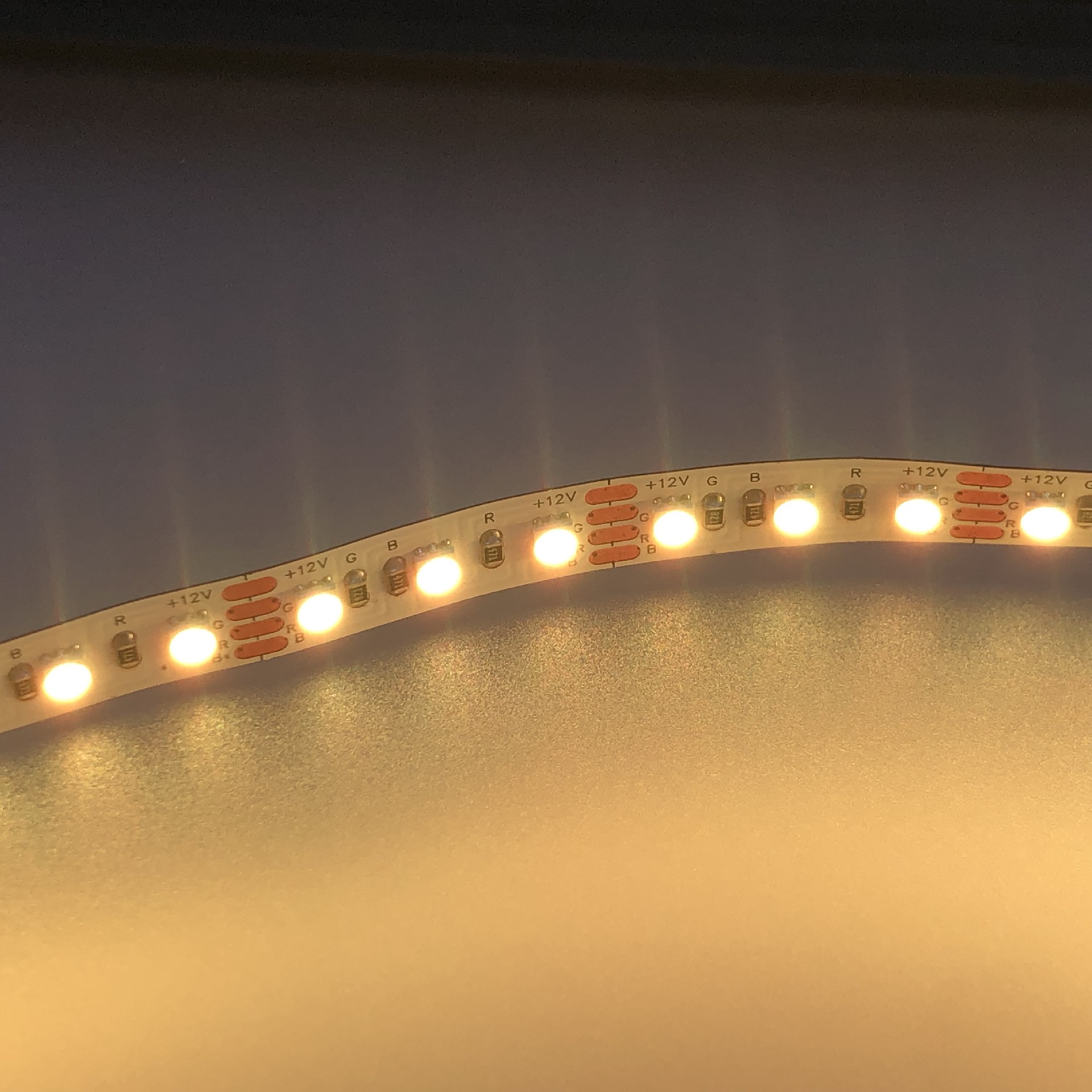

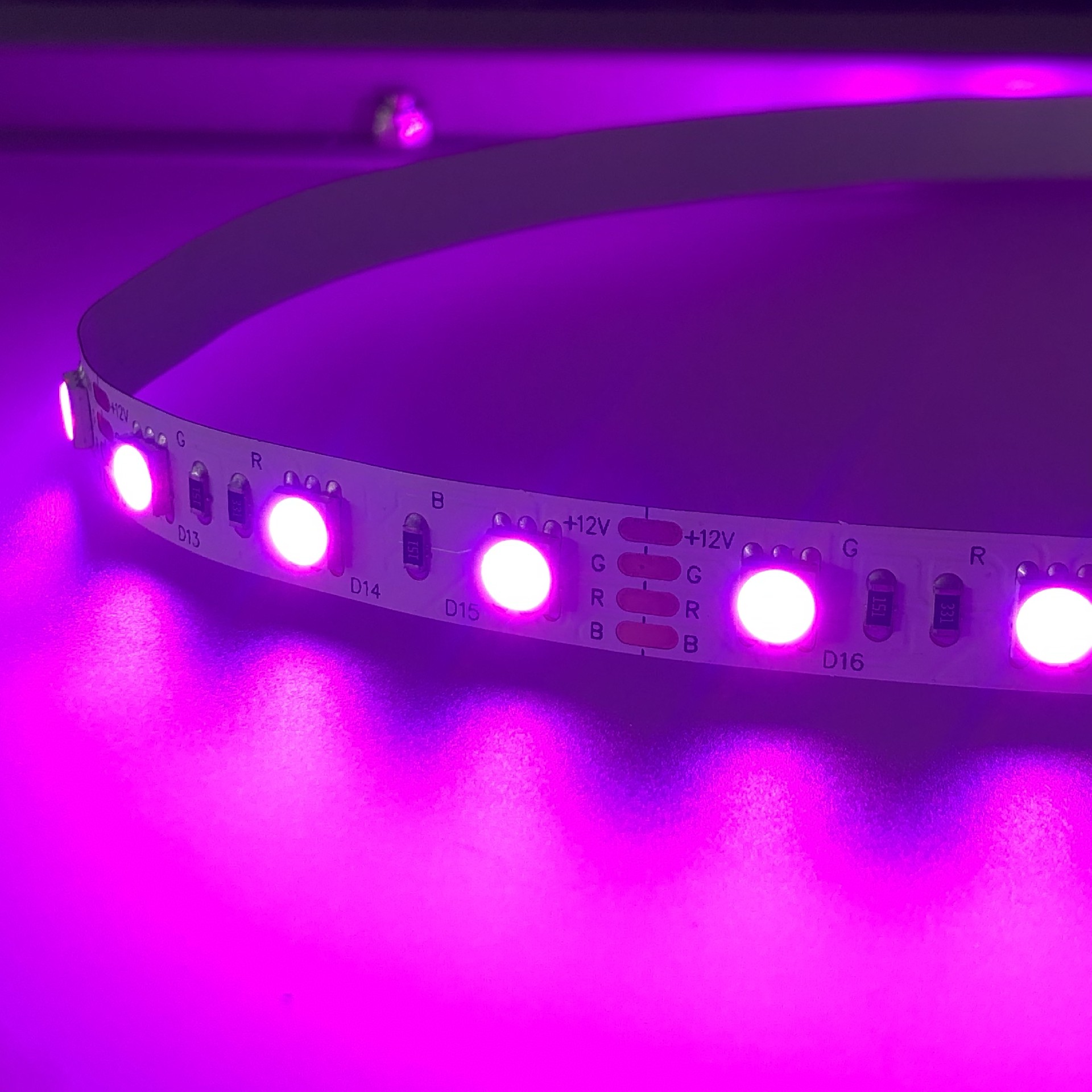

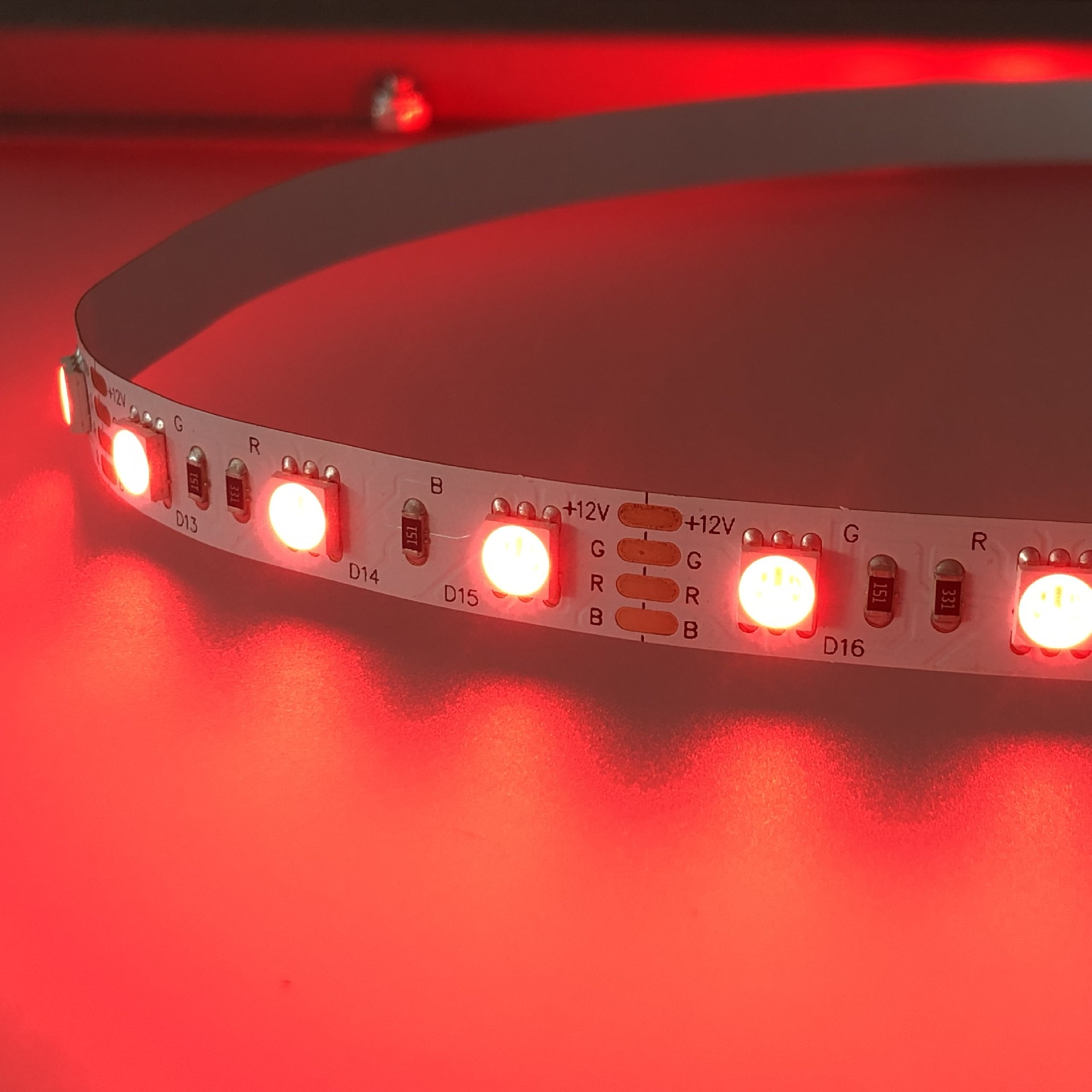

Dc12V 10mm width 5050 RGB flex led strip 60led/m

Dc12V 10mm width 5050 RGB flex led strip 60led/m

Description

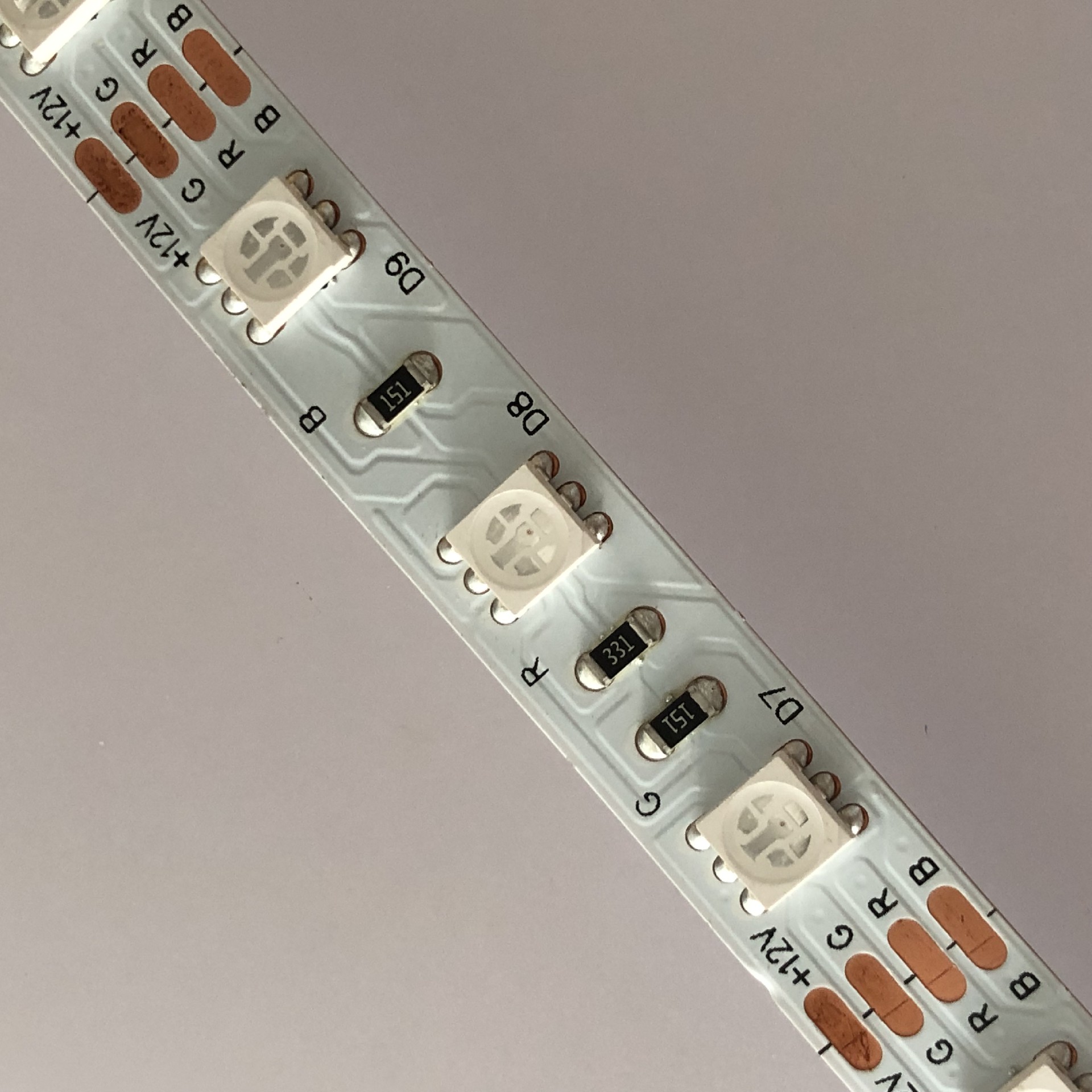

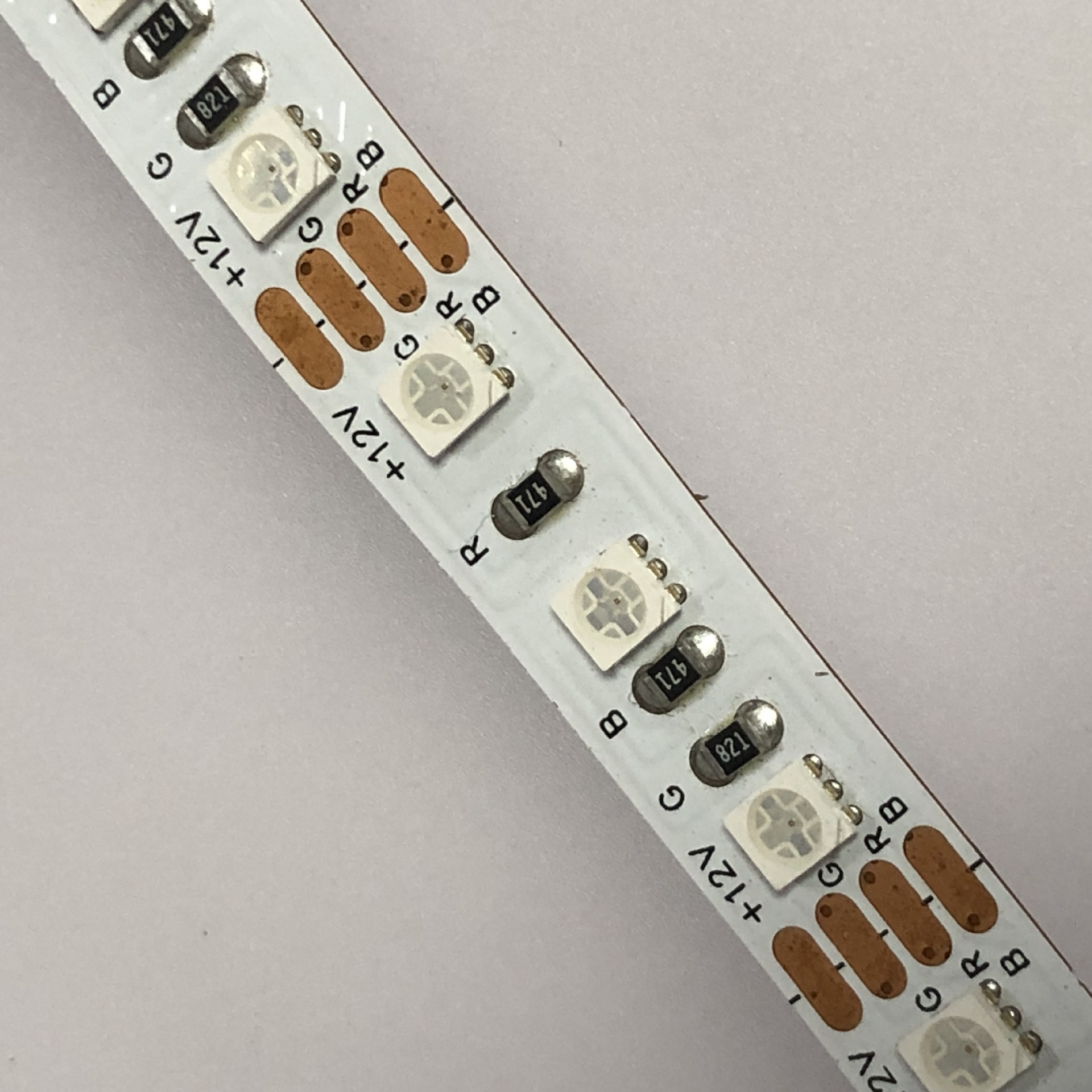

This is a PWM control RGB color LED strip without Pixel
SMD RGB 5050 LEDs ,

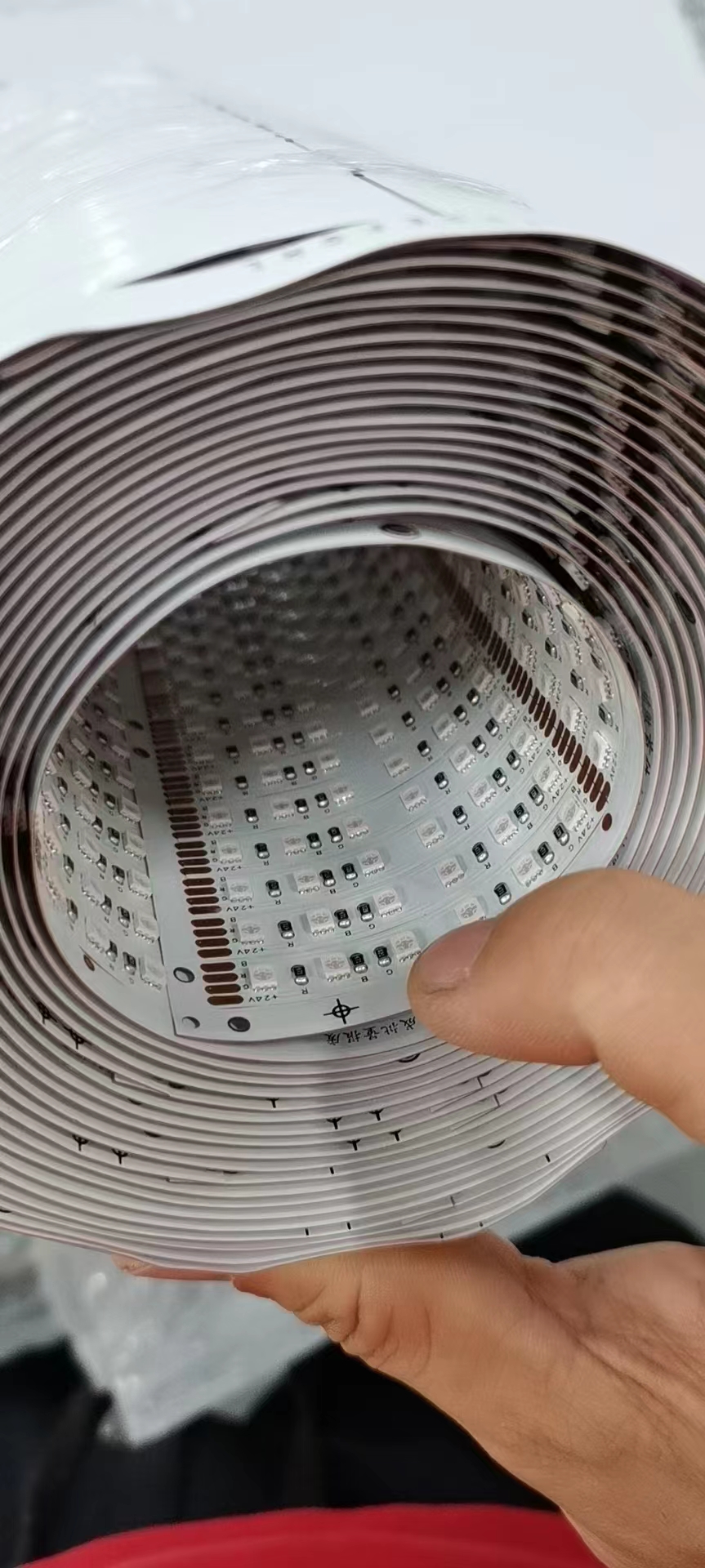

5meters/reel, 10mm PCB width
The cutting unit length is  50mm(12V) per section
The PCB is made by 2 Ounce thick copper 35um
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12V constant voltage operation
Both ends have 4pin bare wires for powering
3M 9080 tape attached on backside of FPC
4 different waterproof types IP22, IP65, IP67，Ip68

Application:

•Widely used for home decoration use, hotels, clubs, shopping malls

•Architectural decorative lighting, boutique atmosphere lighting

•Extensively applied in background lighting, concealed lighting, channel letter lighting

•Emergency & security lighting, advertisement sign lighting

•Decorative lights for holiday, event, show exhibition

•Applicable for automobile and bicycle decoration, border or contour lighting

Features:

•Superbright 5050 SMD top LED, high intensity and reliability.

•Long life span 50,000+ hours

•Cuttable every 6 LEDs along the cutting marks, according to pratical requirement.

•Flexible ribbon for curving around bends

•Low power consumption

.Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.

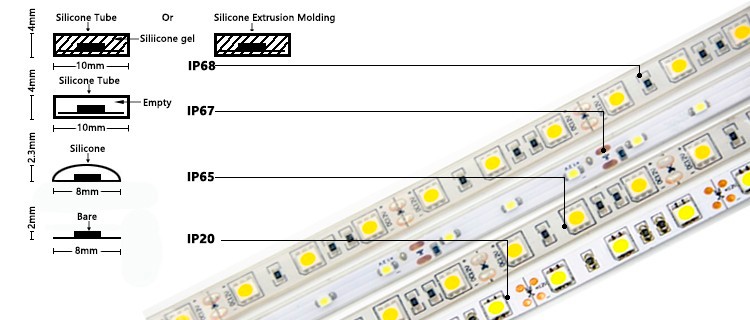

waterproof Type

Ip22 with nonwaterproof for indoor use

IP65 with silcome glue add 0.5USD per meter .
IP67 with silcone tube add usd 0.5 per meter .
IP68 with injectioned silcione gel add 1.0 USD per meter


There is 24V working voltage optional!

Remark

Do not use any acidic, alkaline adhesive fixing Product

It is prohibited to make products with a hard object collision,
friction
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly

size

Connection diagram

Download the detailed specification here please

RL-STR--5050-RGB-60-12V24V -10MM.pdf
