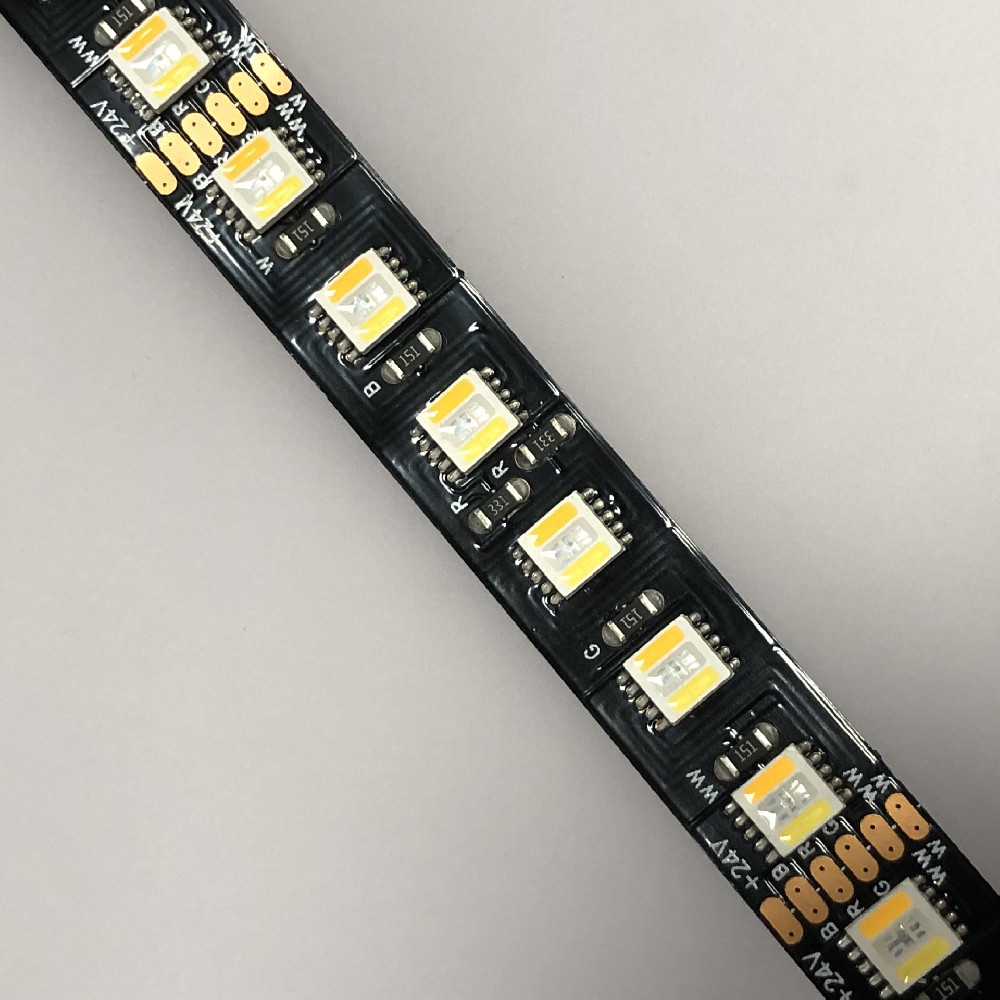

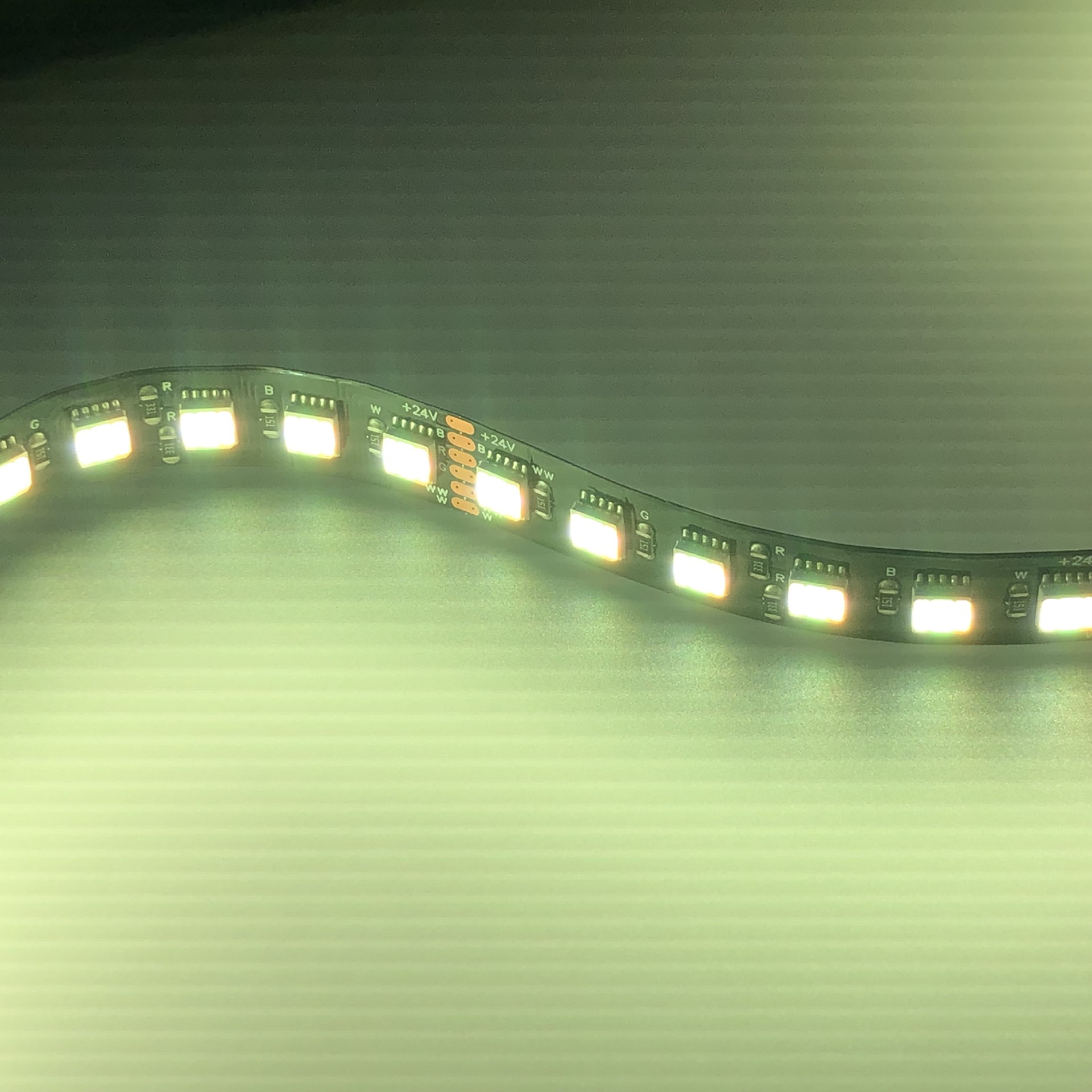

Dc24V 96led RGBWW 5 in one 5050 LED Strip
-This led strip uses White +RGB+Warm white 5 in 1 SMD5050 LED chips.
-It's 24V and every 6 LED per unit with cutting mark，and it is packed 5 meters in a reel.
-Compared to the RGB or RGBW, this 5 channels strip requests the controller has 5 Ch output.
-It is not suggested turning on 5 color at the same time cause it can reach 26W per meter that will make the copper PCB very hot.
-The Black wire is DC24V
RGBWW led chip is the new chip,which have R,G,B,WW,W five colors inside one 5050 SMD LED. It can be controlled by wifi remote and cell phone(Android ,IOS).
You can change any color and dimmable leds as you want at any time. Now we already sucessfully made this 5 in 1 led with led strips 24v 60led/m 12mm width pcb.
LED Type: SMD 5050
LED Color: RGB+WW 2700K+ W 6500K
LED Quantity: 60leds/Meter
PCB width: 12MM White PCB
Working Input Voltage: 24V
Drive Mode: Contant Voltage
10meter long no voltage drop when light up white with 2oz thickness/3oz thickness optional!
IP20: Non-waterproof with 3M sticker on the back,
IP65: waterproof is silicone gel or epoxy on the surfacewith 3M sticker on the back,
I67: silicone tube
I68: silicone glue inside the silicone tube
There is 72led per meter optional (2oz pcb thickness board)
There is 60led per meter optional (3oz pcb thickness board)
The wiring chart
