PN | RL-STR-2835RGB-120-12V-5mm |
Voltage | Dc24V |
LED Type | RGB 2835 SMD |
LED Quantity | 120 leds/m |
Color | RGB |
Dimension | 5000*5 MM |
Cutting unit | 6led with24V 丨 |
PCB Color | White/ |
Power | 15w/m |
Protocol | PWM |
warranty | 2years |
test report
Other Narrow led strip Type optional
Description

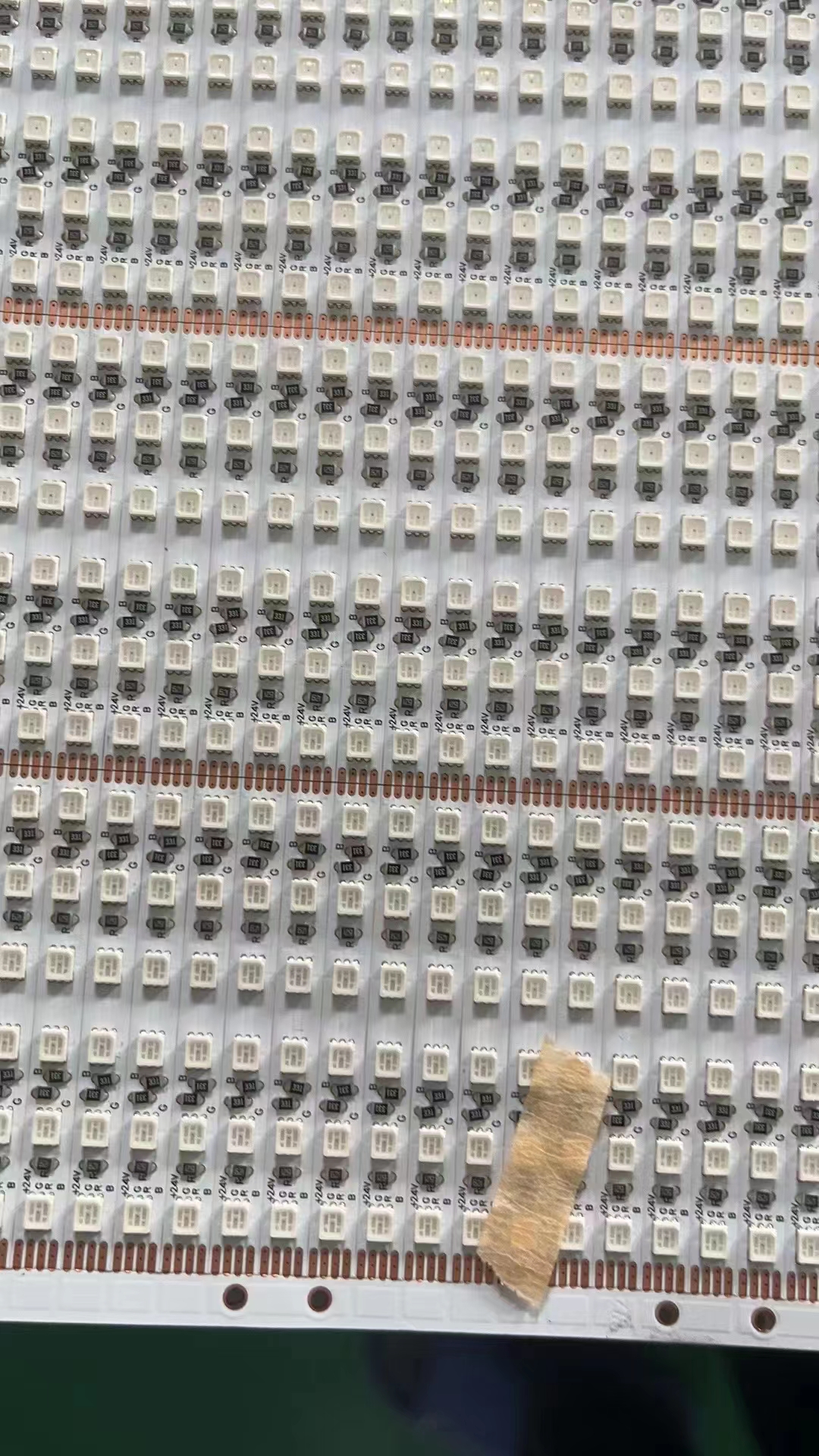

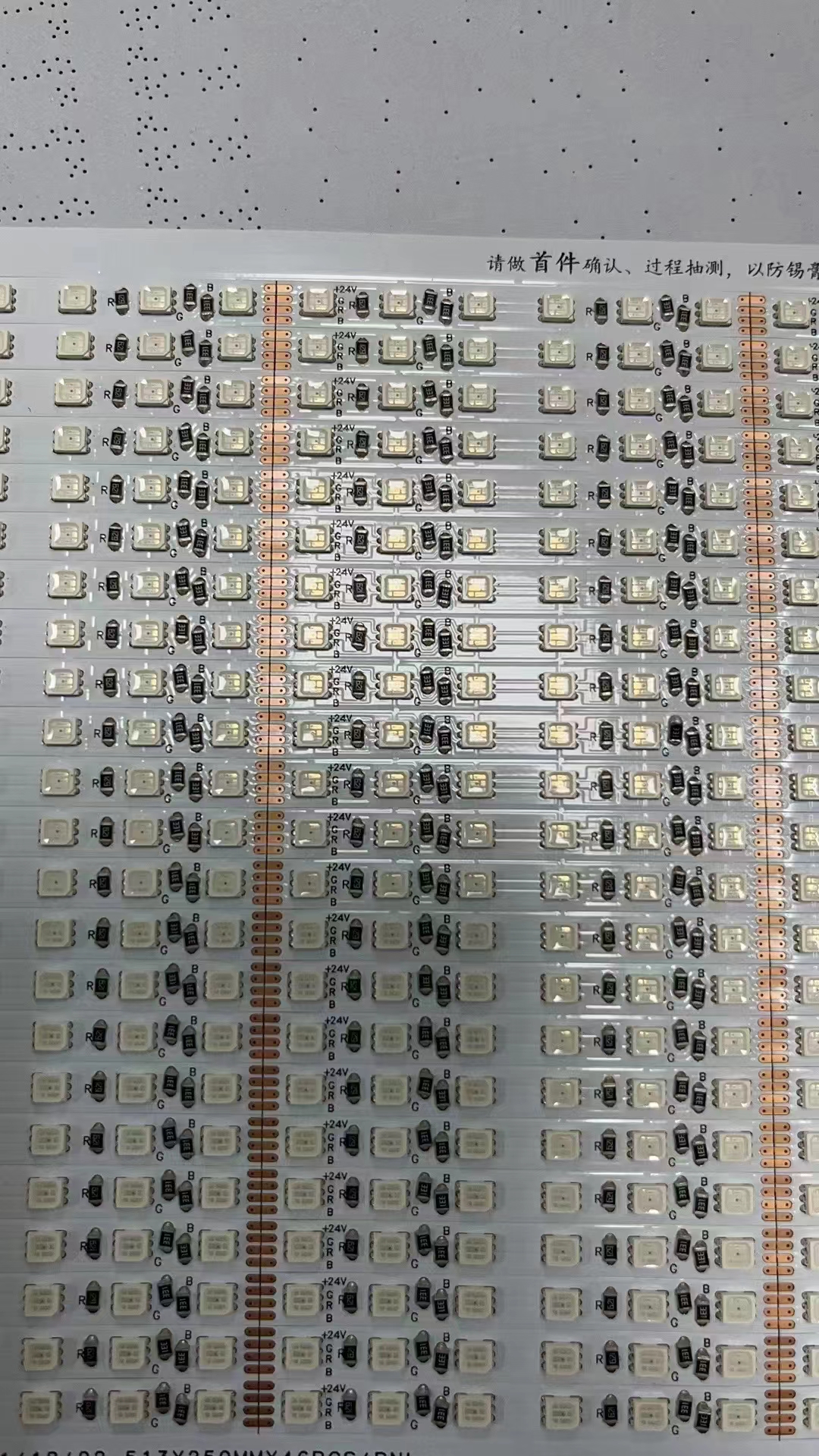

This is a PWM control RGB color LED strip without Pixel
SMD RGB 2835 RGB LEDs ,
5meters/reel, 5mm PCB width
The cutting unit length is every 6 led (24V),
The PCB is made by 2 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC24V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
4 different waterproof types IP22, IP65, IP67,Ip68
Application:
•Widely used for home decoration use, hotels, clubs, shopping malls
•Architectural decorative lighting, boutique atmosphere lighting
•Extensively applied in background lighting, concealed lighting, channel letter lighting
•Emergency & security lighting, advertisement sign lighting
•Decorative lights for holiday, event, show exhibition
•Applicable for automobile and bicycle decoration, border or contour lighting
Features:
•Superbright 4040 SMD top LED, high intensity and reliability.
•Long life span 50,000+ hours
•Cuttable every 3/6 LEDs along the cutting marks, according to pratical requirement.
•Flexible ribbon for curving around bends
•Low power consumption
.Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.
waterproof Type
IP65 with silcome glue add 0.5USD per meter .
IP67 with silcone tube add usd 0.5 per meter .
IP68 with injectioned silcione gel add 1.0 USD per meter
Remark
Do not use any acidic, alkaline adhesive fixing Product
It is prohibited to make products with a hard object collision,
friction
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly
details
Ip65 with silicone gel coating
below IP rate optional
Connection diagram
Other 4040 RGB led size optional
