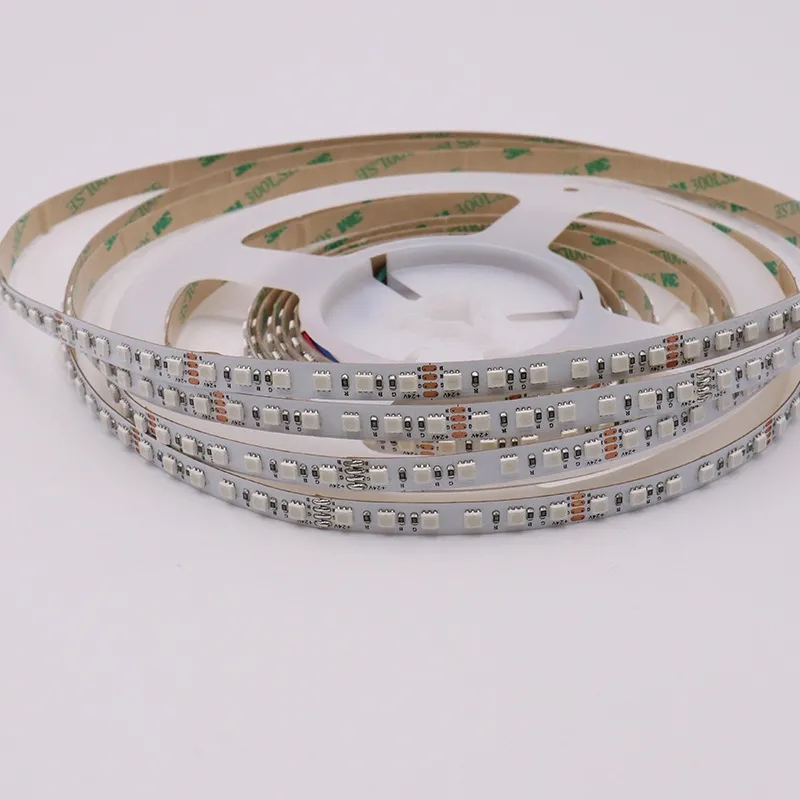

DC24V 12V New flexible 2835 /3838 RGB flex led strip 120led per meter with 8mm width

DC24V 12V New flexible 2835 /3838 RGB flex led strip 120led per meter with 8mm width

Description

This is a PWM control RGB color LED strip without Pixel
SMD RGB 3838/2835 LEDs ,

120 per meter optional

5meters/reel, 8mm PCB width
The PCB is made by 2 Ounce thick copper 35um
All soldering Pads are very large, allowing you to easily cut and reconnect
DC24V 12V  constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
4 different waterproof types IP22, IP65, IP67，Ip68

Application:

•Widely used for home decoration use, hotels, clubs, shopping malls

•Architectural decorative lighting, boutique atmosphere lighting

•Extensively applied in background lighting, concealed lighting, channel letter lighting

•Emergency & security lighting, advertisement sign lighting

•Decorative lights for holiday, event, show exhibition

•Applicable for automobile and bicycle decoration, border or contour lighting

Features:

•Superbright 5050 SMD top LED, high intensity and reliability.

•Long life span 50,000+ hours

•Cuttable every 6 LEDs along the cutting marks, according to pratical requirement.

•Flexible ribbon for curving around bends

•Low power consumption

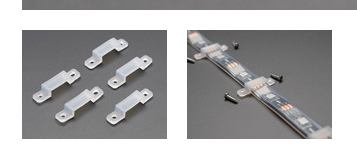

.Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.

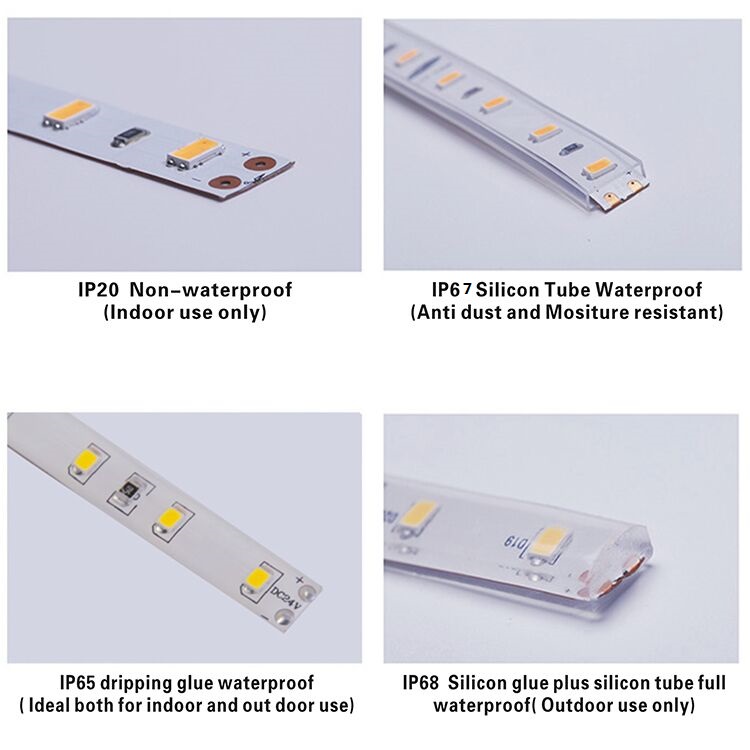

waterproof Type

Ip22 with nonwaterproof for indoor use

IP65 with silcome glue add 0.5USD per meter .
IP67 with silcone tube add usd 0.5 per meter .
IP68 with injectioned silcione gel add 1.0 USD per meter

Remark

Do not use any acidic, alkaline adhesive fixing Product

It is prohibited to make products with a hard object collision,
friction
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly

Picture details

12v version

24v version

size for 60leds/m with 24V with 10mm width
