Dual CCT 156pcs 2835 2 color in one SMD RGB flexible led strip 156leds/m

Products Inquiry

Product Details

Dual CCT 2835 2 color in one  SMD RGB flexible led strip 156leds/m

Product Parameter


Other CCT led strip optional

    Name Dual CCT 2835 SMD RGB flexible led strip 156leds/m
    Voltage    DC12V                   丨    DC24V
    LED Type    SMD 2835 2color in one led
    LED Quantity    156 leds per meter
    Color    warm  white(2700k) and Pure white(6500K)
    Dimension    5000*10 MM
    Cutting unit    38mm per cut section
    PCB Color    White
    Power    12w/M
    Protocol    PWM
    warranty    2years

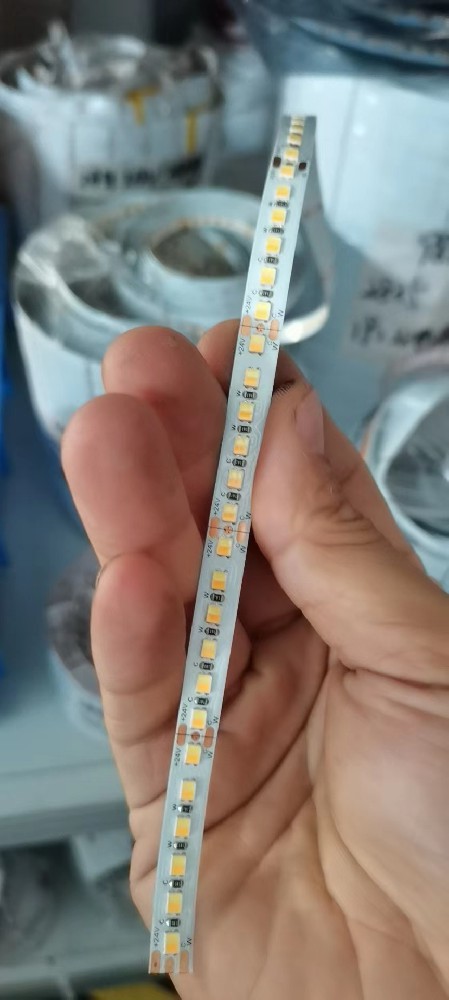

CCT color Adjustable LED strip with 156pcs of 2835  2 in 1 LED chips
FPC in white color with 10mm Width, 2 Ounce copper
Cut-able every 6LEDs
All soldering Pads are very large, allowing you to easily cut and
reconnect DC24  DC12V constant voltage operation
Both ends have 3pin bare wires for powering
3M tape attached on backside of FPC
5 meters per reel, 3 different waterproof types IP20, IP65, IP68
Only standard color temperatures are available
The PCB is made by 2 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
3M tape attached on backside of FPC
4 different waterproof types IP22, IP65, IP67,Ip68


•Widely used for home decoration use, hotels, clubs, shopping malls

•Architectural decorative lighting, boutique atmosphere lighting

•Extensively applied in background lighting, concealed lighting, channel letter lighting

•Emergency & security lighting, advertisement sign lighting

•Decorative lights for holiday, event, show exhibition

•Applicable for automobile and bicycle decoration, border or contour lighting


•Superbright 2835 SMD top LED, high intensity and reliability.

•Long life span 50,000+ hours

•Cuttable every 6 LEDs along the cutting marks, according to pratical requirement.

•Flexible ribbon for curving around bends

•Low power consumption

.Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.

waterproof Type

IP65 with silcome glue add 0.5USD per meter .
IP67 with silcone tube add usd 0.5 per meter .
IP68 with injectioned silcione gel add 1.0 USD per meter



Do not use any acidic, alkaline adhesive fixing Product

It is prohibited to make products with a hard object collision,
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly

Other dual white 2835 led strip optional !

180pcs 2835 led ( 2 color in one led ) with 6mm and 10mm width  optional
