High Brightness High CRI Dc24v flex 144led 192 led 2835 led strip

High Brightness High CRI Dc24v flex 144led 192 led 2835 led strip This is our new flex led strip 24V 20meter per strip long ,no voltage drop issue , whole strip very bright ,pure white ,no color mixed,bec we used 2OZ pure copper FPCB ,with CRI>90 and high lumen DC24V !Fir
Products Inquiry

Product Details

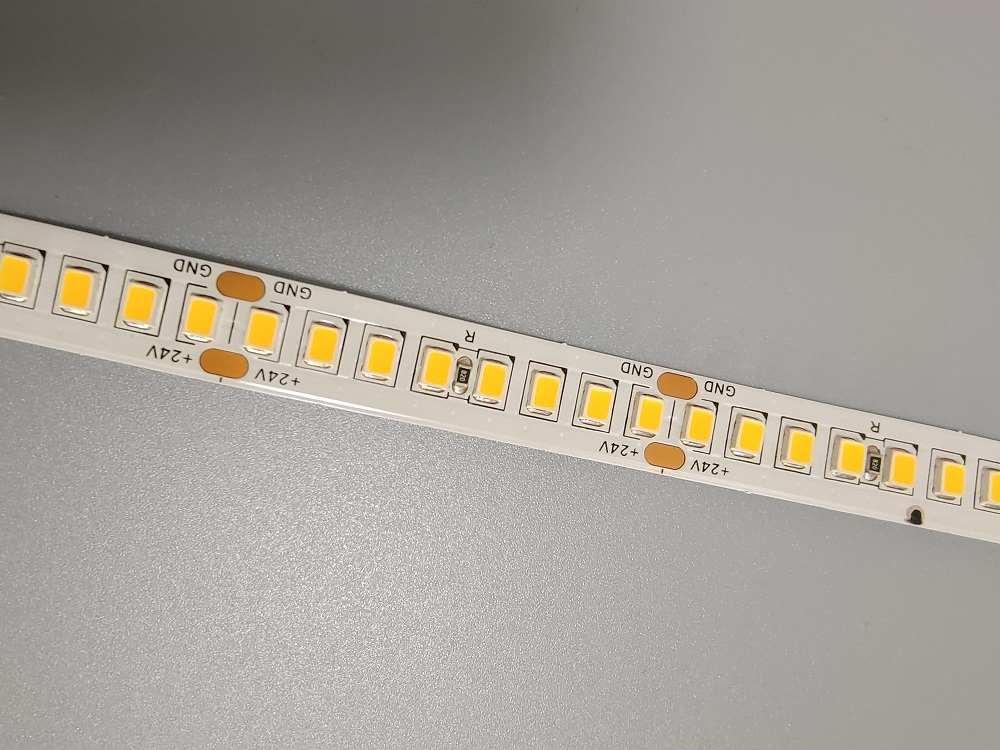

High Brightness High CRI Dc24v flex 144led 192 led 2835 led strip

This is our new  flex led strip 24V  20meter per strip long ,no voltage drop issue , whole strip very bright ,pure white ,no color mixed,

bec we used 2OZ pure copper  FPCB ,

with  CRI>90 and high lumen DC24V !

First leader among this markt, bec of save labor and save effort and save time in production and installing ,
it is very competitive in price market , welcome your inquiry!

Specification

DC 24 low-voltage power supply, security and energy efficiency

CRI:>90

lumen:  30lm per led

High brightness low power consumption
Led type: 2835 SMD led
PCB Width:10mm
Led lighting angle: 120°
Led quantity: 144leds/m/192led /m optional
Dimmable by using dimmer controller

advtanages:

  • Red copper bracket and pure gold wire for refond smd  2835 LED chip

  • good lifespan  LED lamp with 28lm per led  with big chipset

  • hongqi brand (one side 35um one side  70um cooper)with double cooper layer

  • 2 sides membrane cover the PFCB. make sure the copper no drop from the pcb board .

  • wire:UL approved 1007#20(26X0.16mm)

Product details

There is detailed datasheet here

http://www.rose-lighting.com/wp-content/uploads/sites/53/2023/04/RL-STR-2835-144-192-24v-10mm.pdf

RL-STR-2835-144-192-24v-10mm

There is test report here

http://www.rose-lighting.com/wp-content/uploads/sites/53/2023/04/lumen-test-report144led.pdf

lumen-test-report144led

below CCT  and color optional!
