High Brightness High CRI Dc24v flex 140 led 180led one led one cut 2835 led strip

High Brightness High CRI Dc24v flex 140 led 180led one led one cut  2835 led strip

This is our new  flex led strip 24V 1led one cut high brightness led strip, whole strip very bright ,pure white ,no color mixed，

bec we used 2OZ pure copper  FPCB ,with  CRI>90 and high lumen !

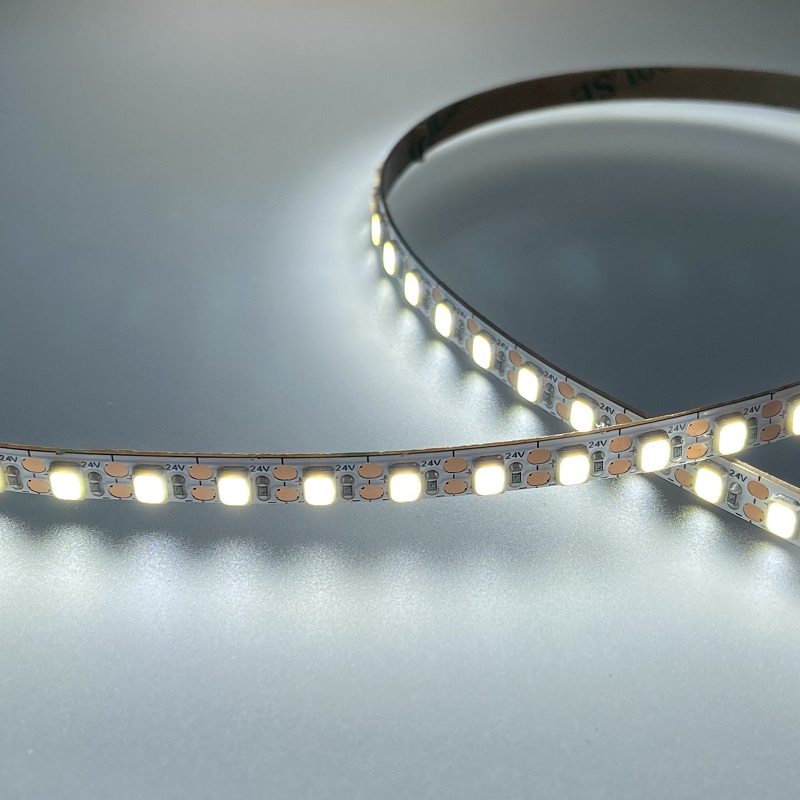

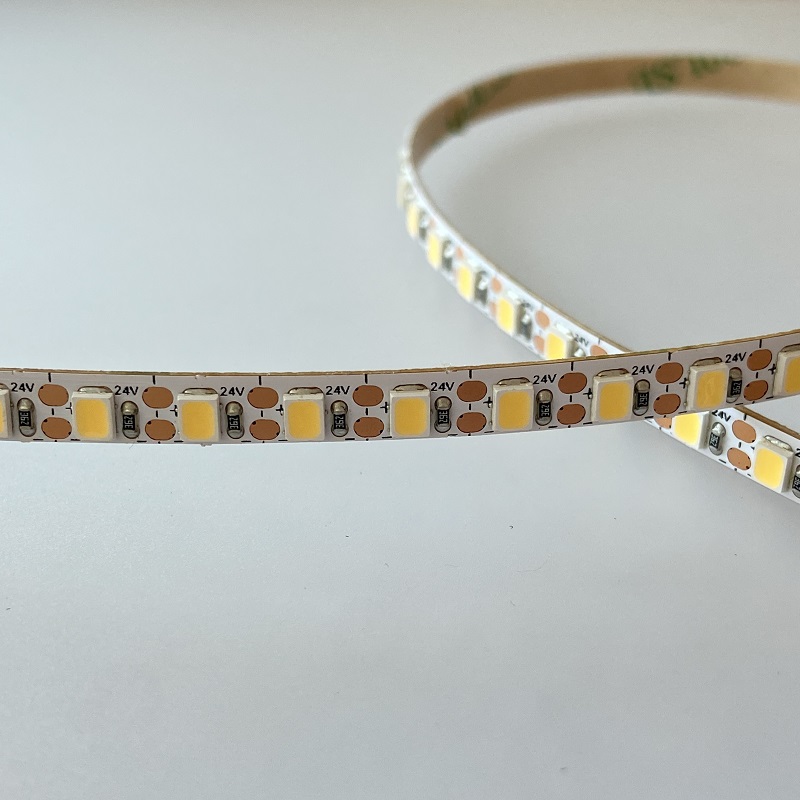

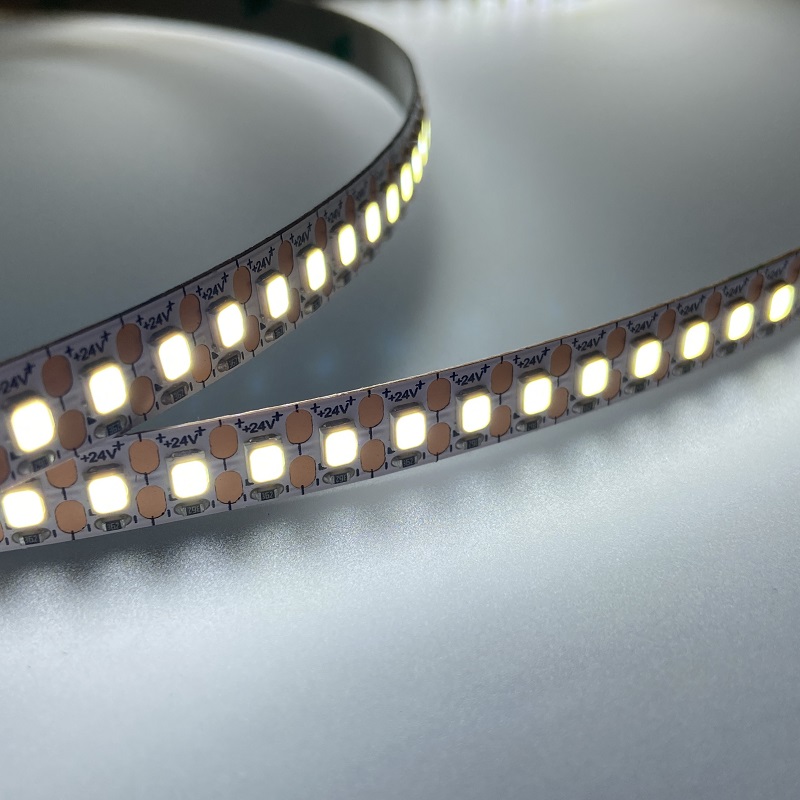

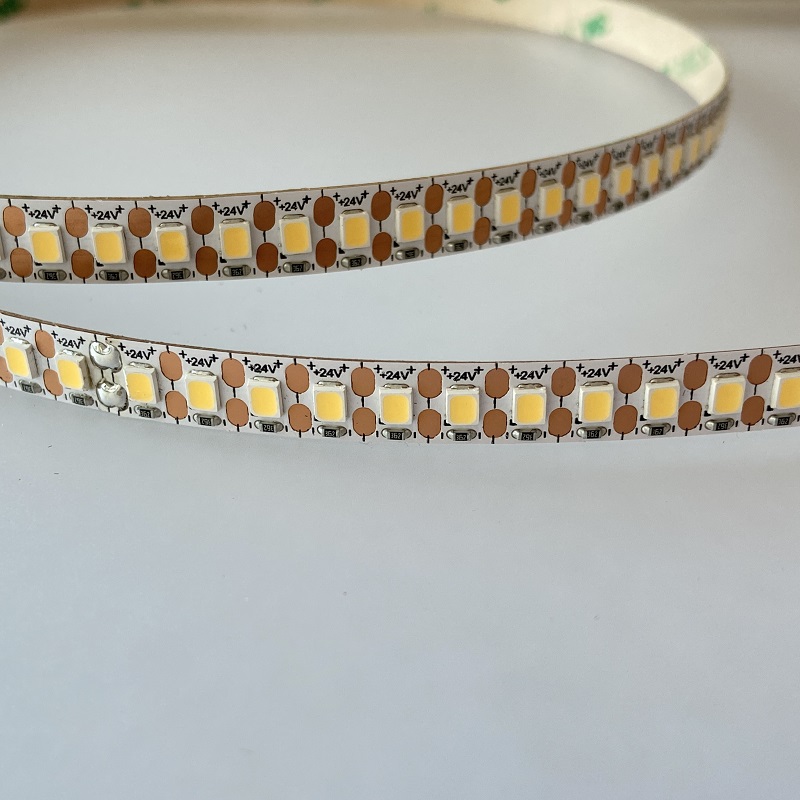

Below is 180led per meter with 8mm width

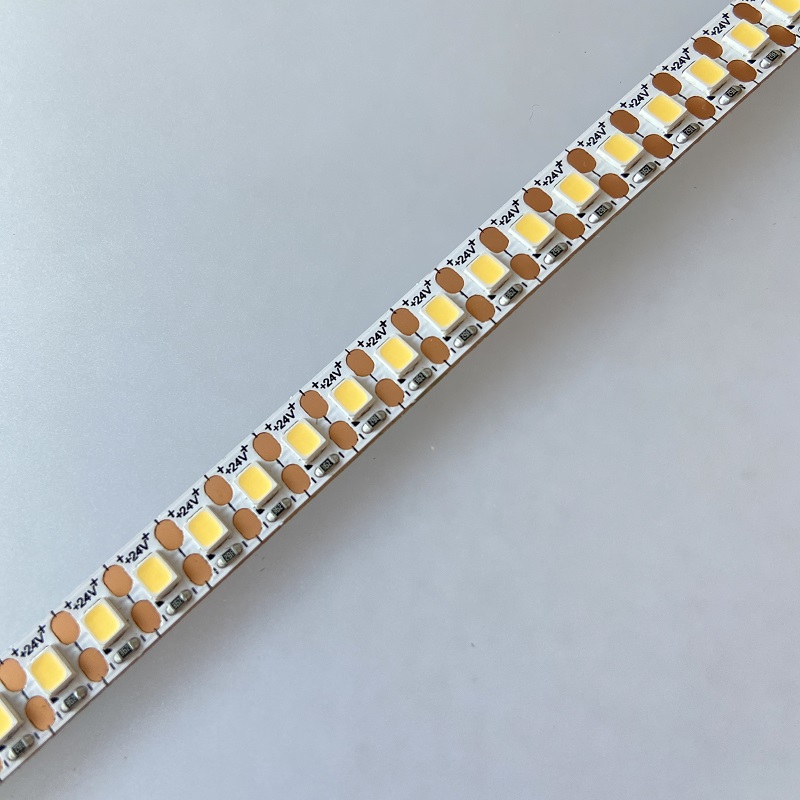

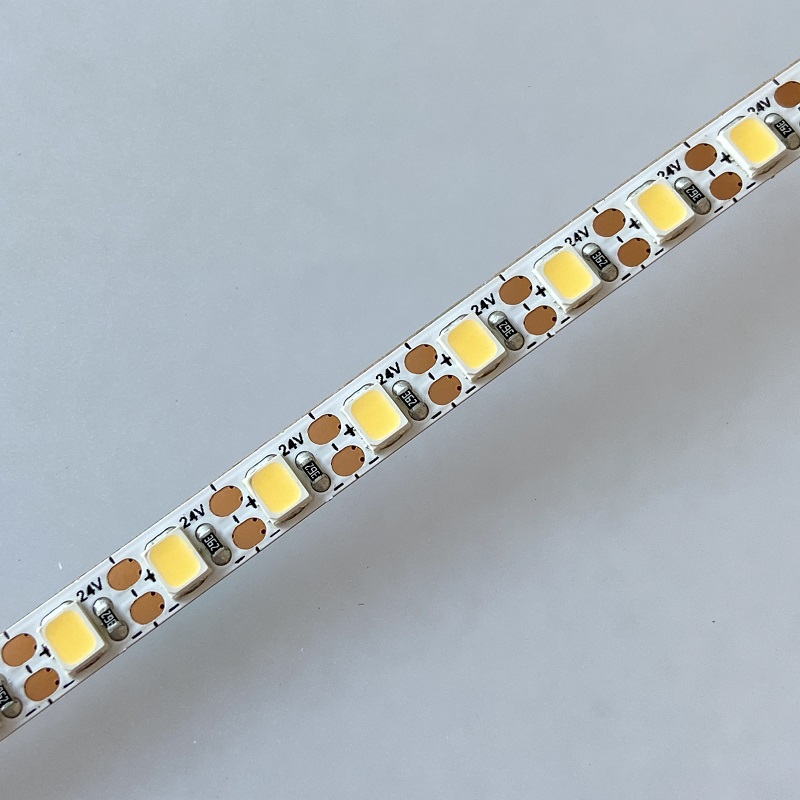

Below is the 140led per meter with 8mm width

Specification

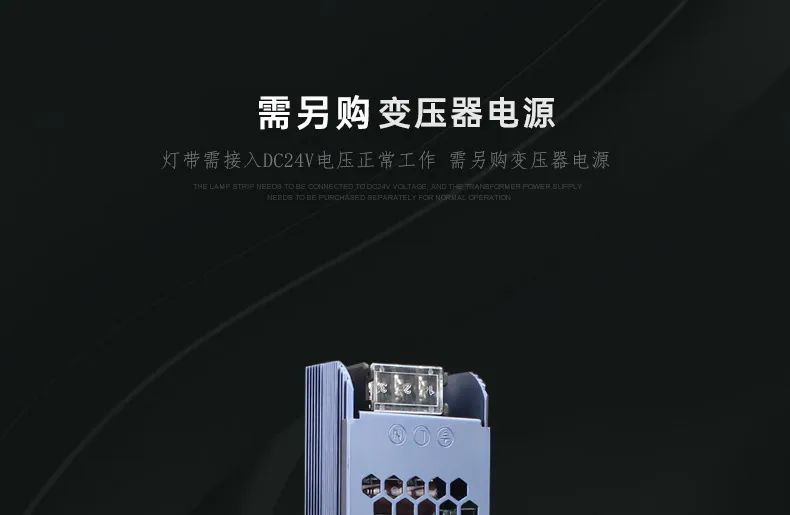

DC 24 low-voltage power supply, security and energy efficiency

CRI:>90

lumen:  30lm per led

High brightness low power consumption
Led type: 2835 SMD led

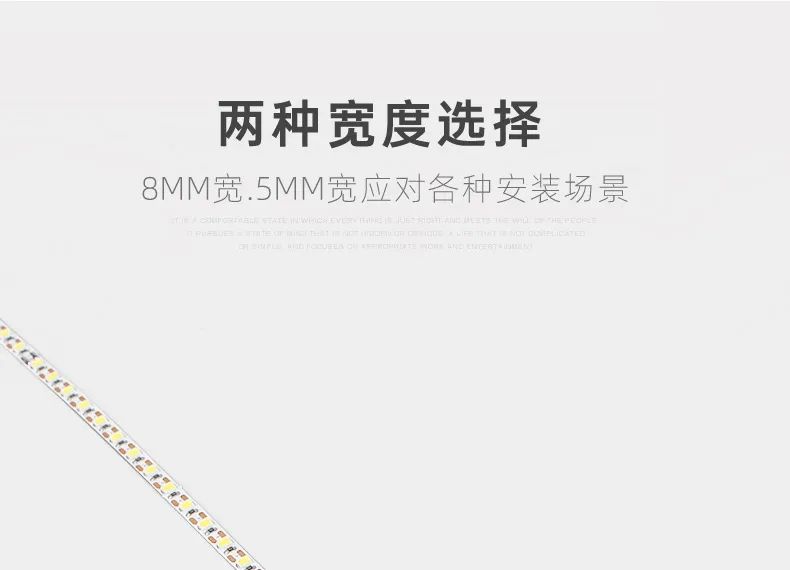

PCB Width:5mm/8mm (140led with 5mm width , 180led with 8mm width)
Led lighting angle: 120°
Led quantity: 140leds/m/180led /m optional
Dimmable by using dimmer controller

advtanages:

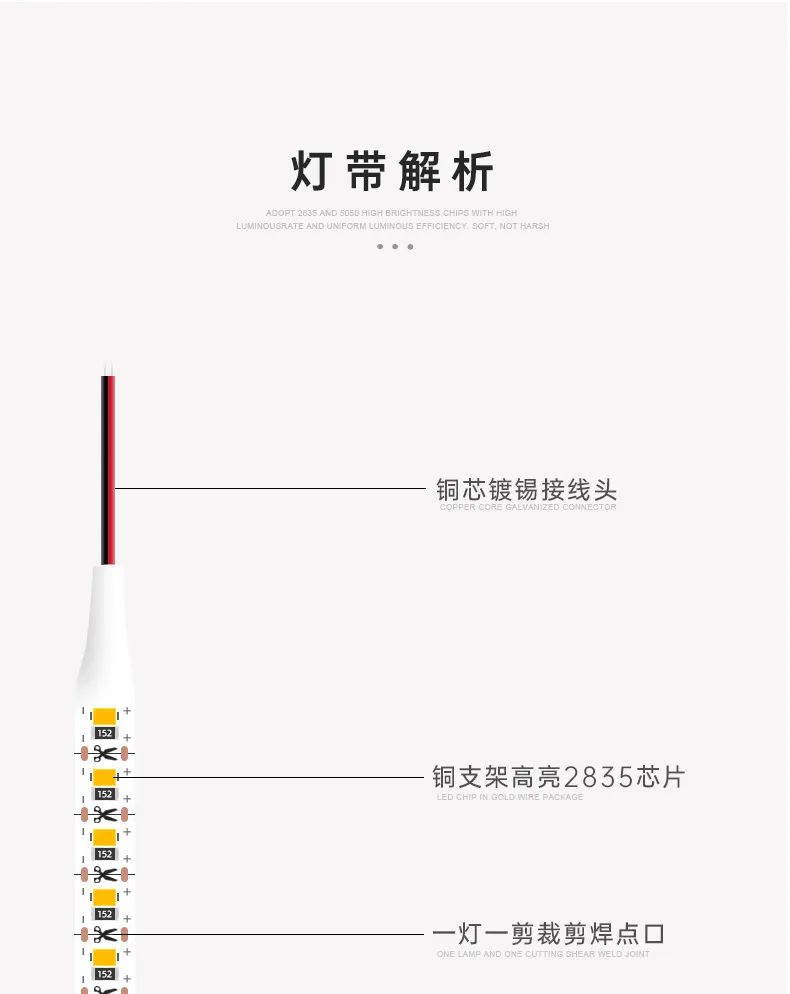

• Red copper bracket and pure gold wire for refond smd  2835 LED chip.

• good lifespan  LED lamp with 28lm per led  with big chipset .

• Pure copper 2ounce thickness  PCB board with double cooper layer.

• 2 sides membrane cover the PFCB. make sure the copper no drop from the pcb board .

• wire:UL approved 1007#20(26X0.16mm)

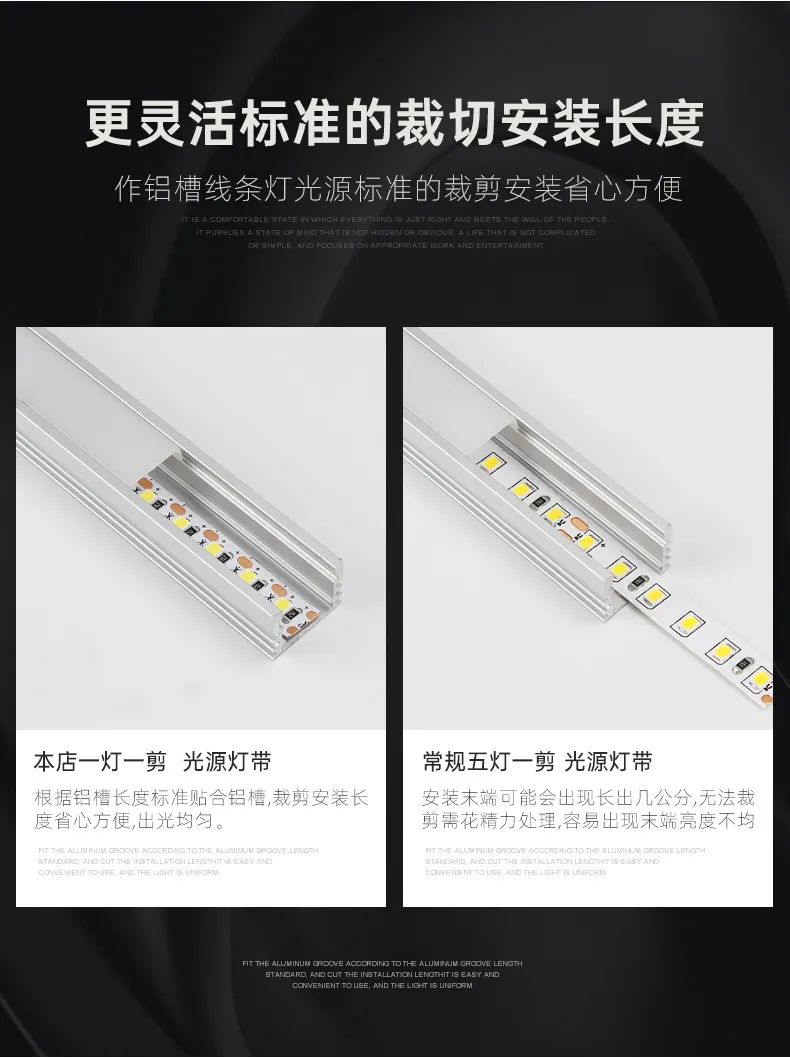

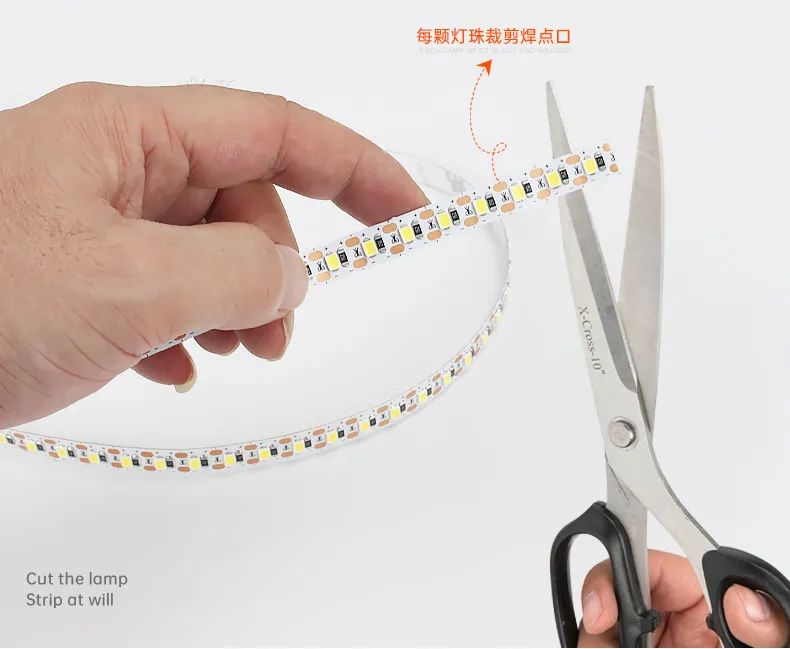

• one led one cut

Product details

There is detailed datasheet here

http://www.rose-lighting.com/wp-content/uploads/sites/53/2023/04/RL-STR-2835-144-192-24v-10mm.pdf

RL-STR-2835-144-192-24v-10mm

There is test report here

http://www.rose-lighting.com/wp-content/uploads/sites/53/2023/04/lumen-test-report144led.pdf

lumen-test-report144led

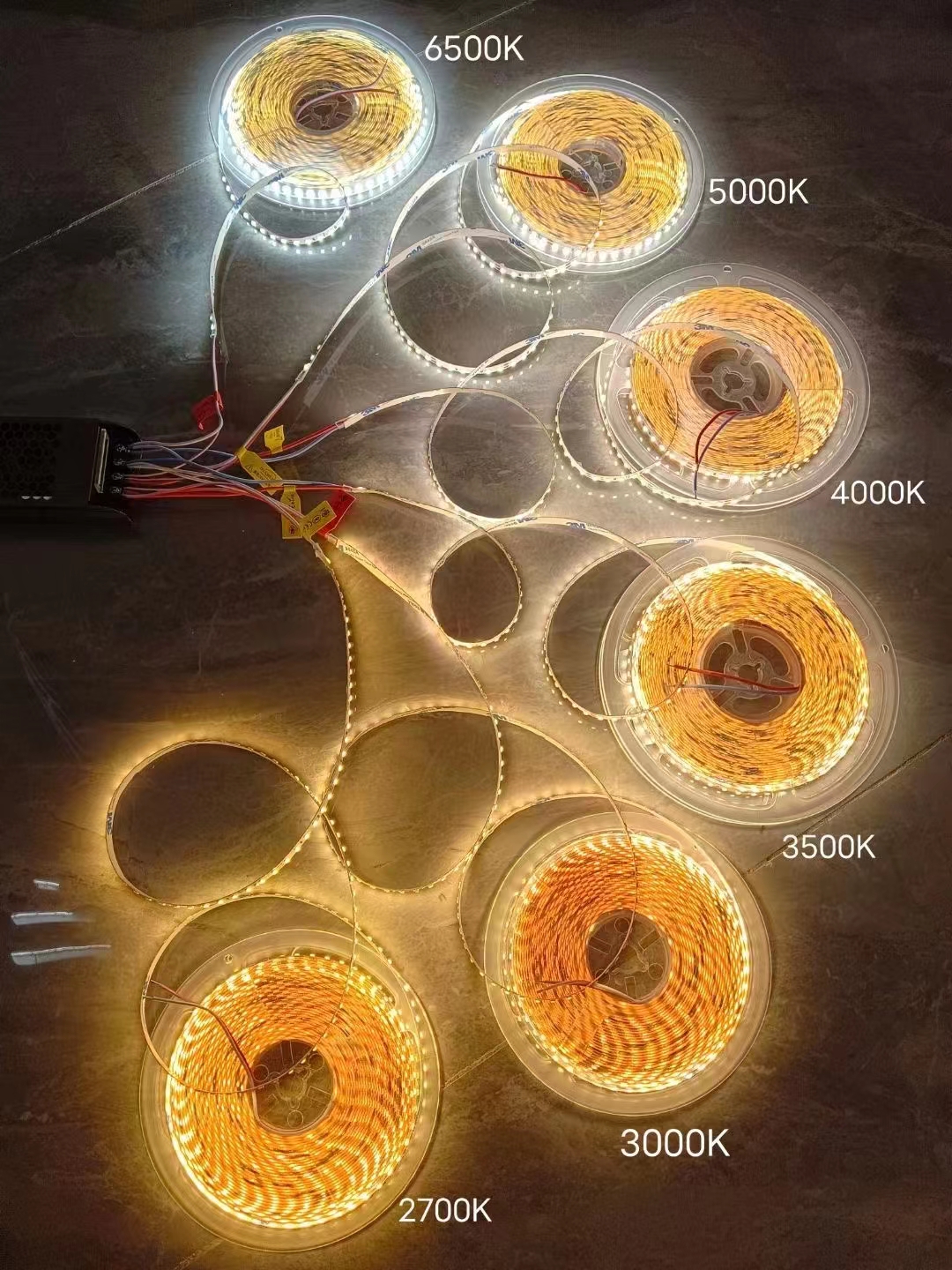

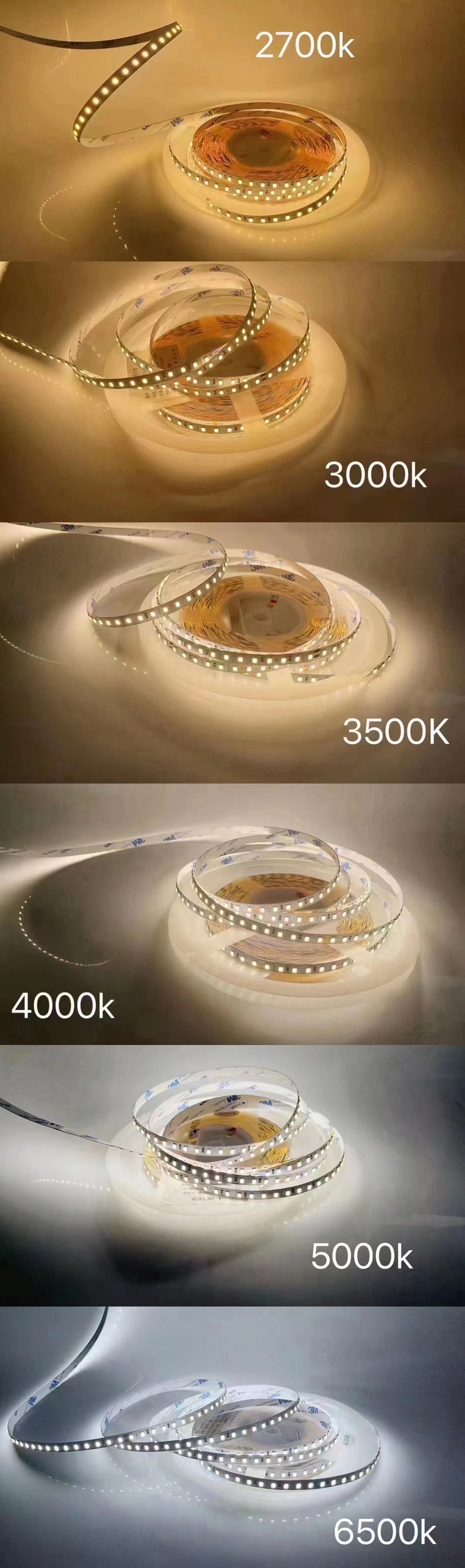

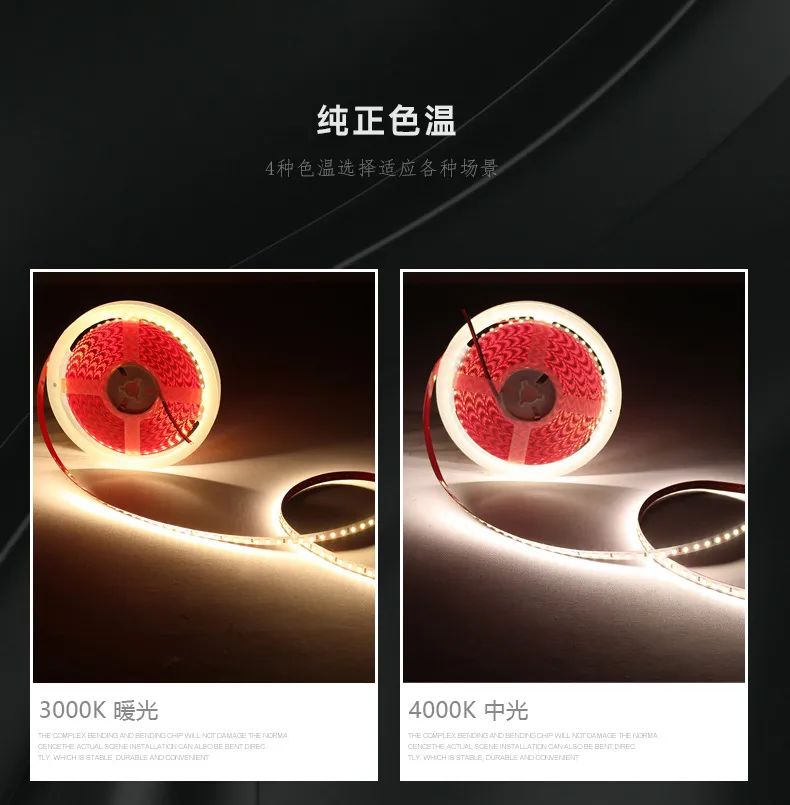

below CCT  and color optional!
