Dc12V Individually addressable sk6812 ws2812B RGBW 5050   pixel LED Strip 120pixels per meter

12vindividuallyaddressablergbwledstrip
Products Inquiry

Product Details

Dc12V Individually addressable  sk6812 ws2812B RGBW 5050   pixel LED Strip 120pixels per meter

Advantages:

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.Red copper bracket and pure gold wire  RGBW led lamp,

4.High brightness LED lamp with luminous intensity(mcd)

R:700-1000 G:1500-2200 B:700-1000,

CCT for white optional from 2500K-12000K

5 hongqi brand 2OZ PFCB(35um cooper)with double cooper layer,

6. 2 sides membrane cover the PFCB. make sure the copper no drop from the pcb board ,

7. 120led/M . 12V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20



Basis specification

 Item namesk6812 digital RGB flex led strip
LED sourceRGBW smd 5050 LED
PCB width10mm/12mm 2OZ copper thickness
Working voltageDC12V
Watts/M

9.6W/M(30LEDs/M)  19.2W/M(60LEDs/M)

40W/M(144LEDs/M)

Brightness(MCD) R:700 G:1500 B:500
warranty2years
IP rateIP20, IP65, IP67, IP68.
Led lighting angl120°
 PWM Rate 800HZ

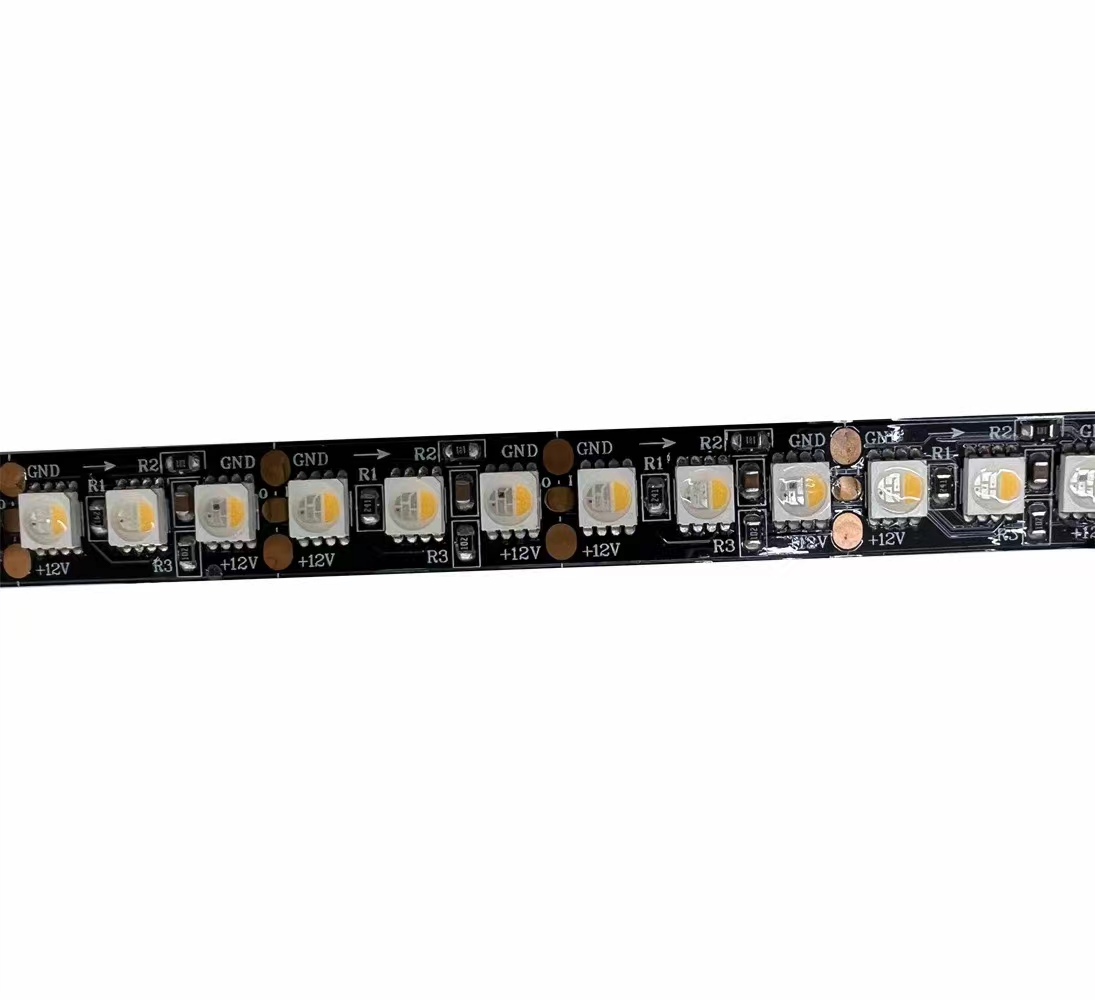

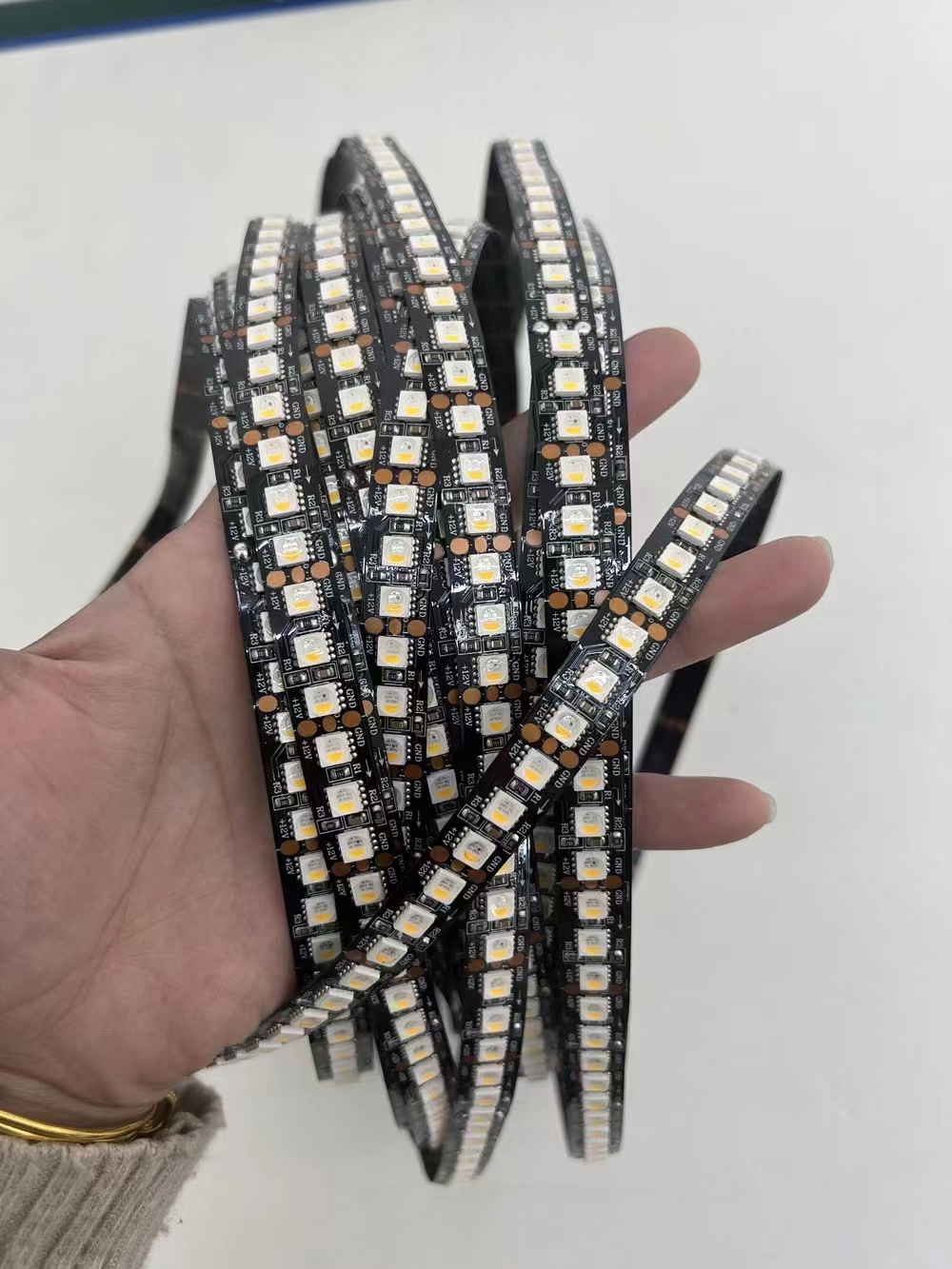

Picture details




Below 5V optional







we can achieve any color as follow with led controller
