​ DC24V 20pixels 60leds 10mm width 4oz thickness 20meter long no voltage drop 1934Ic Digital Pixel LED Strips with dual signal

Products Inquiry

Product Details

DC24V 20pixels  60leds 10mm width  4oz thickness 20meter long no voltage drop 1934Ic  Digital Pixel LED Strips with dual signal

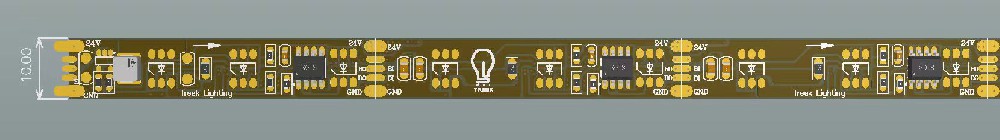

4oz 1934ledstrip(1).jpg

1934 LED strip wiring


  • Digital  DC24V  LED Strip

  • Item: RL-STR-LB1934-5050RGB-60-20p-24V

  • IC Type:LB1934

  • Color:Digital RGB

  • LED Quantity: 60 leds per meter

  • Size: 5000*10*2.5(mm)/ 8mm optional

  • View angle:120°

  • Working Input Voltage:  Dc24v

  • Drive Mode:Constant Voltage

  • Pixels/M :20pixels with 24V(3led per pixel )

  • Pcb quality :4oz thickness ( 20meter long-no voltage drop issue )


1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. Pure copper bracket and pure gold wire for 5050 RGB led chip

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. 60leds and 20pixels per meter  with 24V ,One IC control 3 leds ,

7. 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10: dual signal ,one pixel no work ,no affect next one work.


5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

waterproof Type

IP20 :Non-waterproof with 3M sticker on the back, Size:5000*10*1.5mm

IP65: waterproof is silicone gel on the surface,Size:5000*10*1.5mm

IP67: silicone tube,Size:5000*12*3mm

IP68: silcone gel inside silicone tube.Size:5000*12*3mm

Ip rate.jpg

Product details

4oz 1934ledstrip(1).jpg

Normal 12V with 3led per pixel optional

12V 1934a pixel led strip  (13).jpg

Normal 24V 6led 1 pixel 1934A pixel led strip
