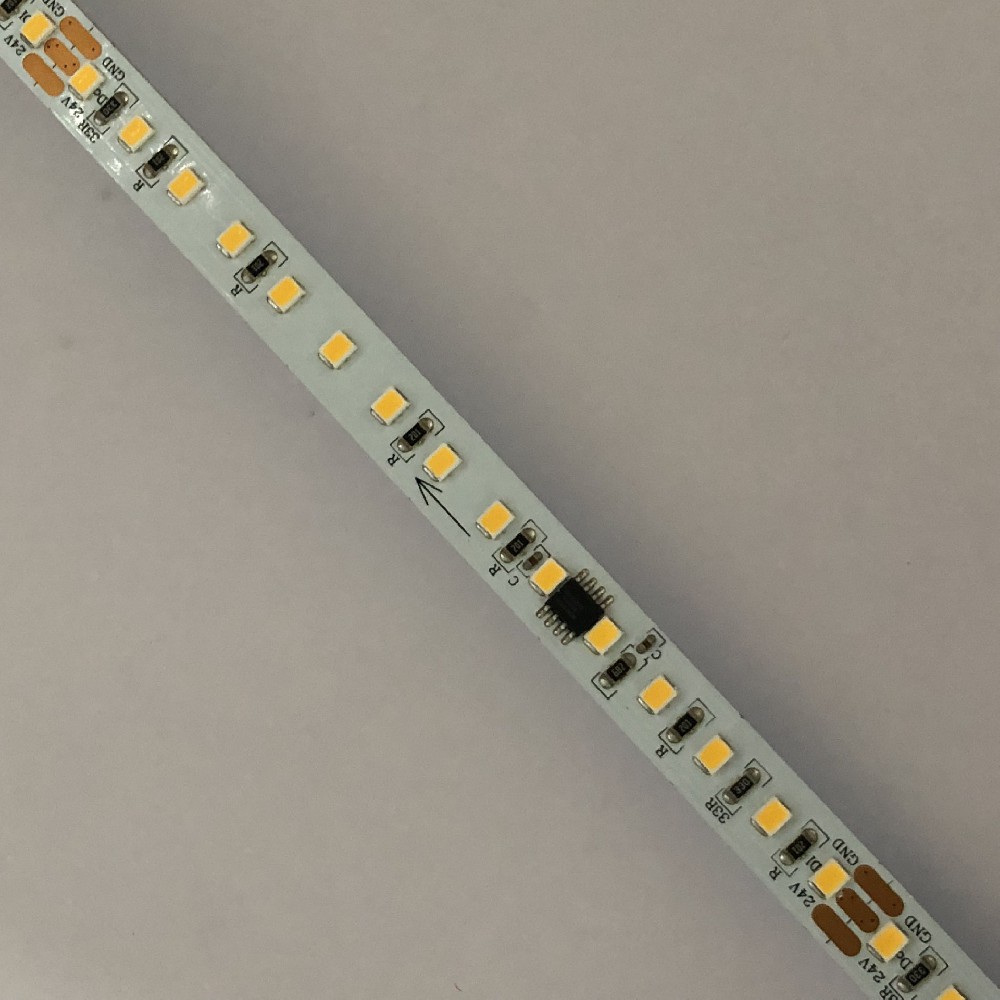

Dc24V digital flowing running water 2835 Pixel LED Strip ws2811 8pixels/m 120leds/m 10mm and 8mm optional

Dc24V digital flowing running water  2835 Pixel LED Strip ws2811 8pixels/m 120leds/m

( with PIR sensor and mini led controller with flow water effect inside)

There is 20 pixels 120led per meter optional

Describe:

• Item: RL-STR-ws2811-2835-8P-120-24V

• IC Type:ws2811

• Color:white (2000k--6500K optionl)

• LED  Type: smd 2835 led

• LED Quantity: 120 leds per meter

• Size: 5000*10*1.5(mm)

• View angle:120°

• Working Input Voltage: 24V 9.6W/meter

• Drive Mode:Constant Voltage

• Pixels/M :8pixels/M

• waterproof Type

  IP20 Non-waterproof with 3M sticker on the back, Size:5000*10*1.5mm

  IP65 waterproof is silicone gel on the surface,Size:5000*10*3mm

  IP67: silicone tube,Size:5000*12*2.5mm

  IP68: silcone gel inside silicone tube.Size:5000*12*2.5mm




 Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps,

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable ,

3. Pure copper bracket and pure gold wire for 2835 smd led ,

4.2unce PCB board with double cooper layer(hongqi brand 25um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6.120 pcs smd 2835 leds ,

7. 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Product details

Download the detailed datasheet here please

RL-STR-ws2811-2835-120-24V-10mm.pdf

flow water   color led controller

Flow water dual white pixel panel led controller kit optional20pixels  120led per meter  optional

Running water led controller

CCT chart for white
