Dc12V WS2811 sm16703 ucs1903 Digital LED Strip 96leds 32 pixels per meter with 12mm width

Products Inquiry

Product Details

Dc12V WS2811 sm16703 ucs1903 Digital LED Strip  96leds 32 pixels  per meter with 12mm width


Led type: 5050 SMD RGB LED

Brightnesss for 5050 RGB led :2100MCD per led
IC type: ws2811
PCB Width:12mm

Coppper material: 2 ounce 3535 um copper

Led lighting angle: 120°
LED Q'ty:  96leds/m  32pixels/m
IP Rating IP20, IP65, IP67, IP68.

  • IP20 Non-waterproof with 3M sticker on the back,

  • IP65 waterproof is silicone gel or epoxy on the surface,

  • IP67: silicone tube,(silicone sheathing ),

  • IP68: silcone gel(or epoxy) inside silicone tube.

Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;

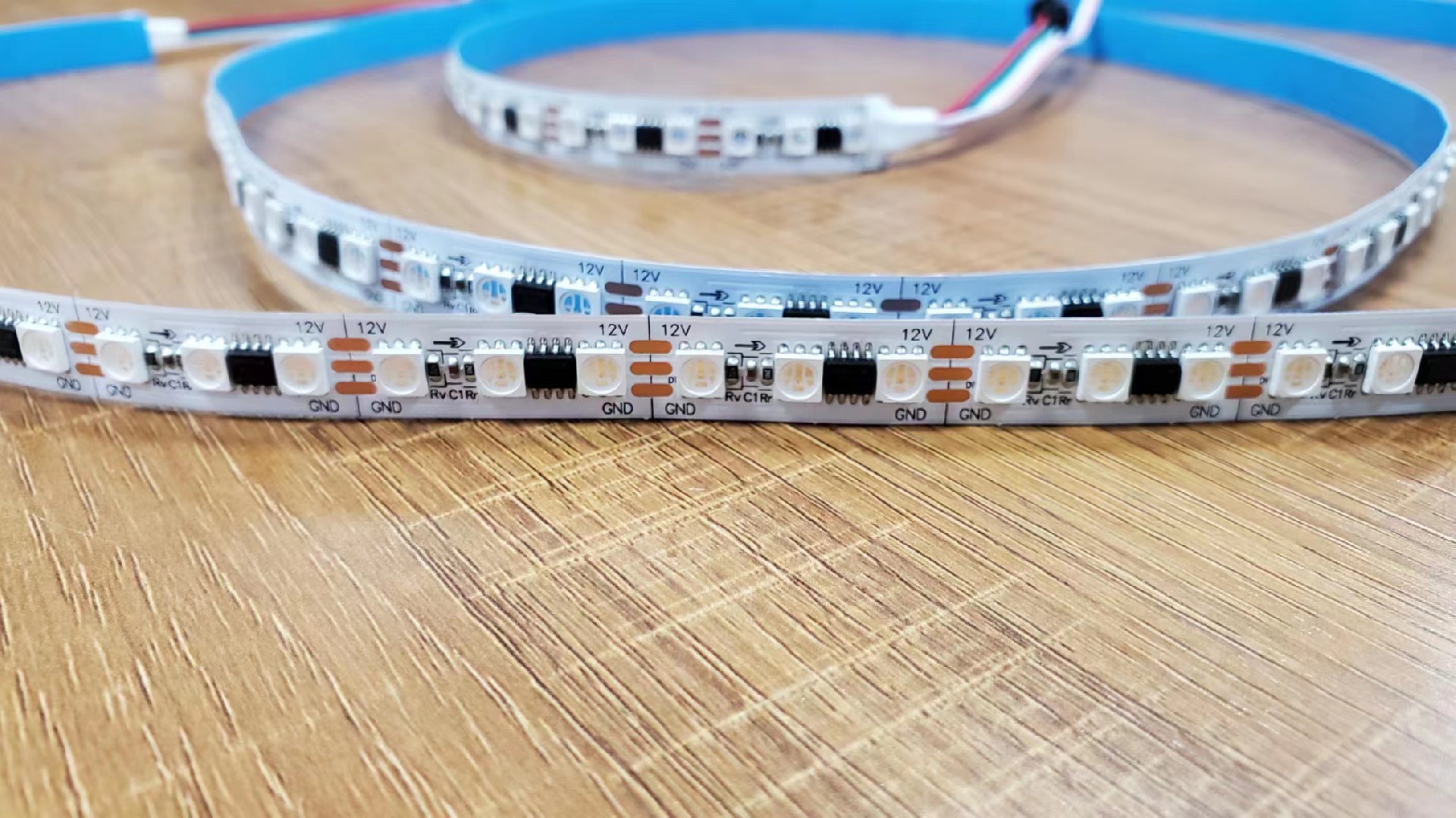

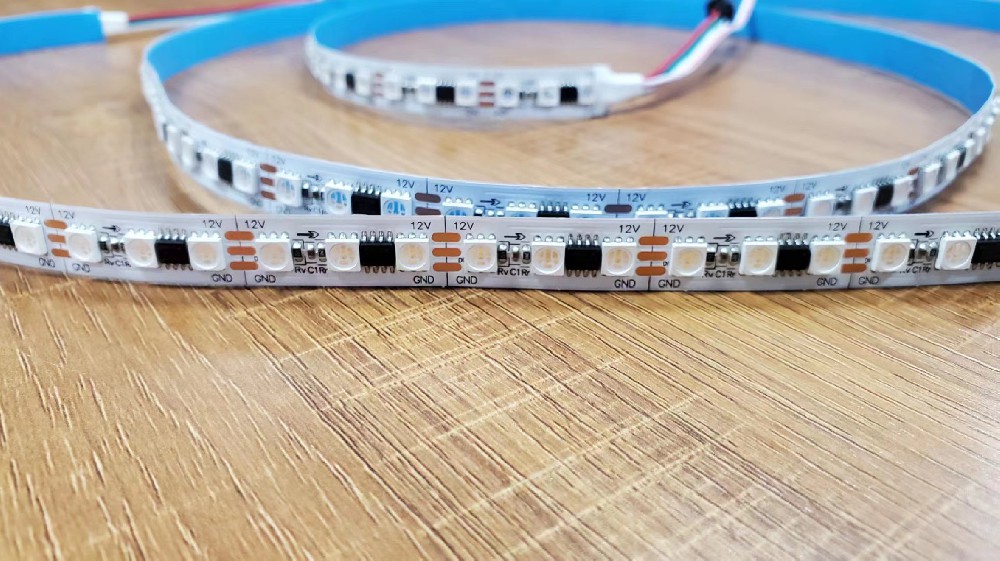

3 LED 1 IC with 12V ,, every 3 led  individual controlled, can be made into high-density high-definition display;


1.PWM refresh rate: 1.2kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.12V  ( 3leds one IC with 12V)

4. 3unce PCB board with double cooper layer(hongqi brand 3535 copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . ever 3 LEDcan be cut with 12V,

7. 96 leds per  meter . 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

30leds per meter optional

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky


5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Product product

 Nonwaterproof Ip20

waterproof Ip67

waterproof Ip68

 the wiring of ws2811 led strip with led controller and led power supply
