Dc5V 8mmwidth side viewing Individually digital full color 4020 led strip 144pixels/M

144pixel4020pixelledstrip
Products Inquiry

Product Details

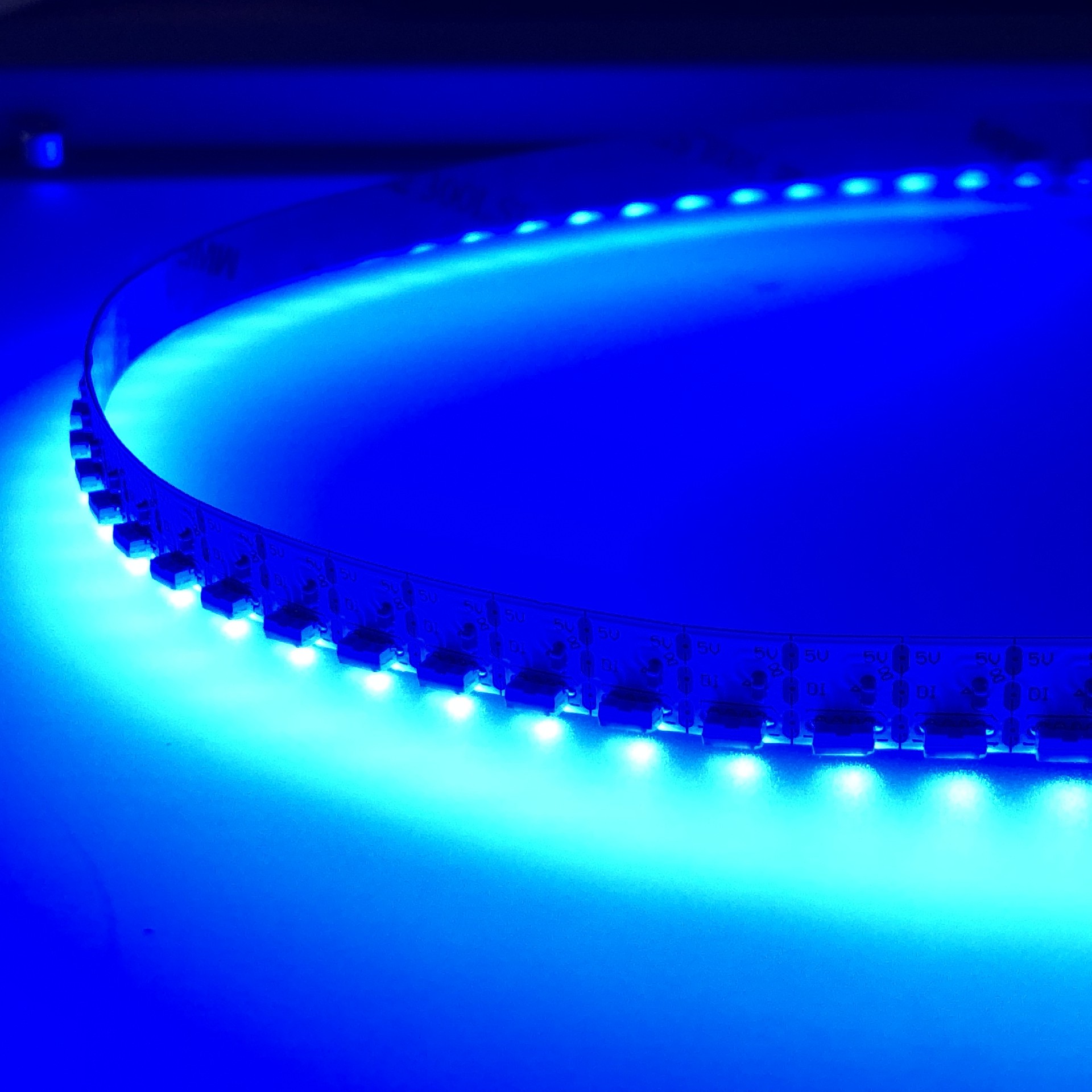

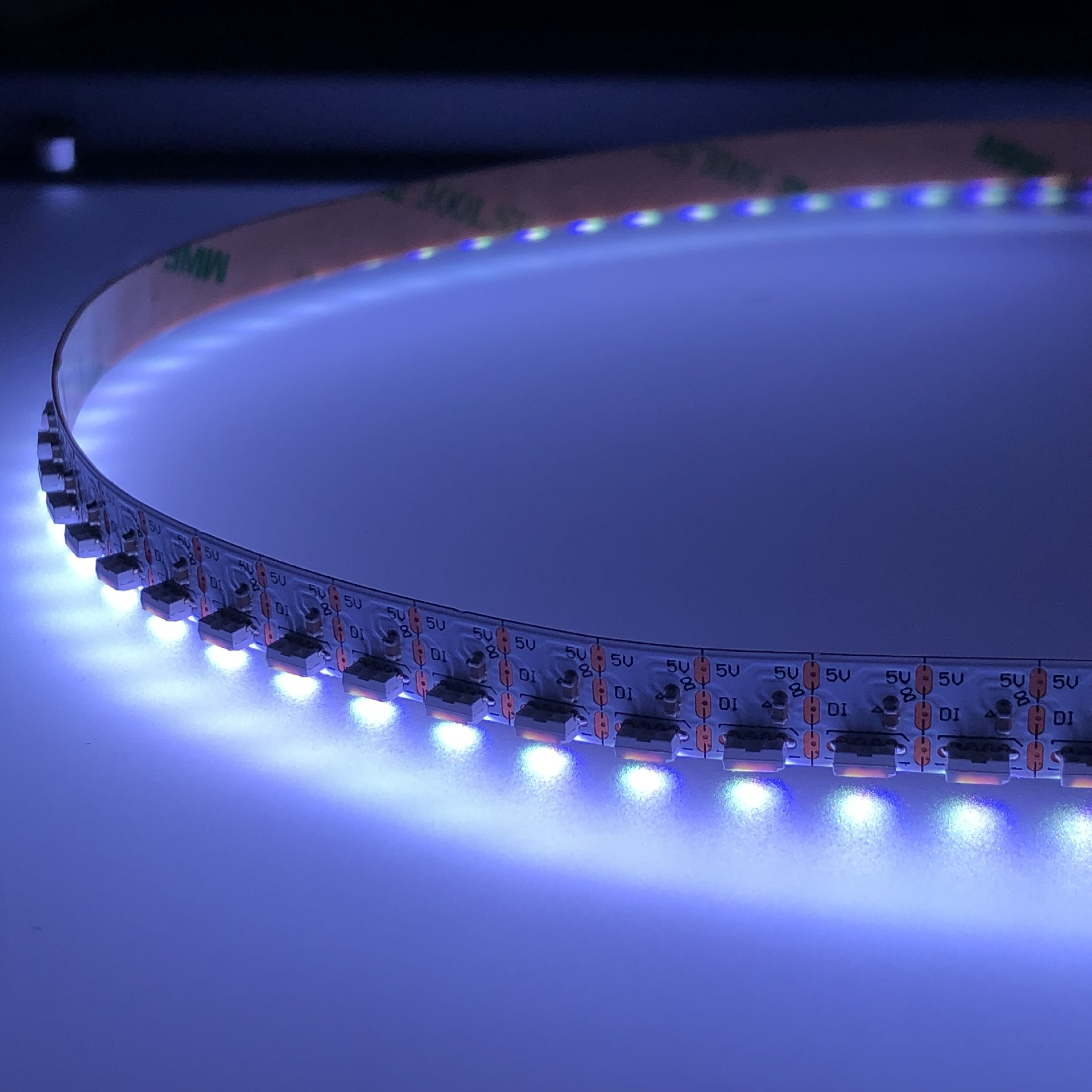

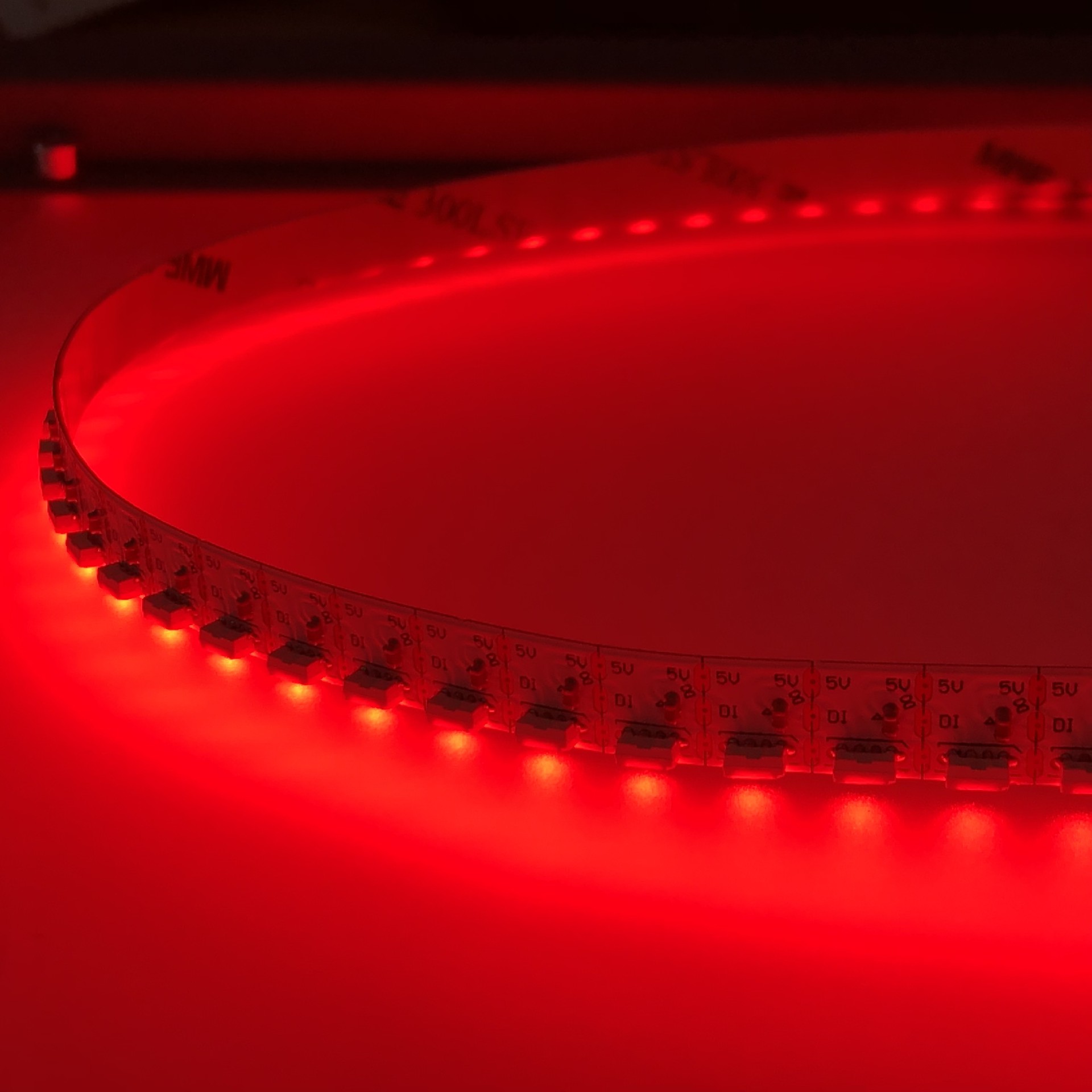

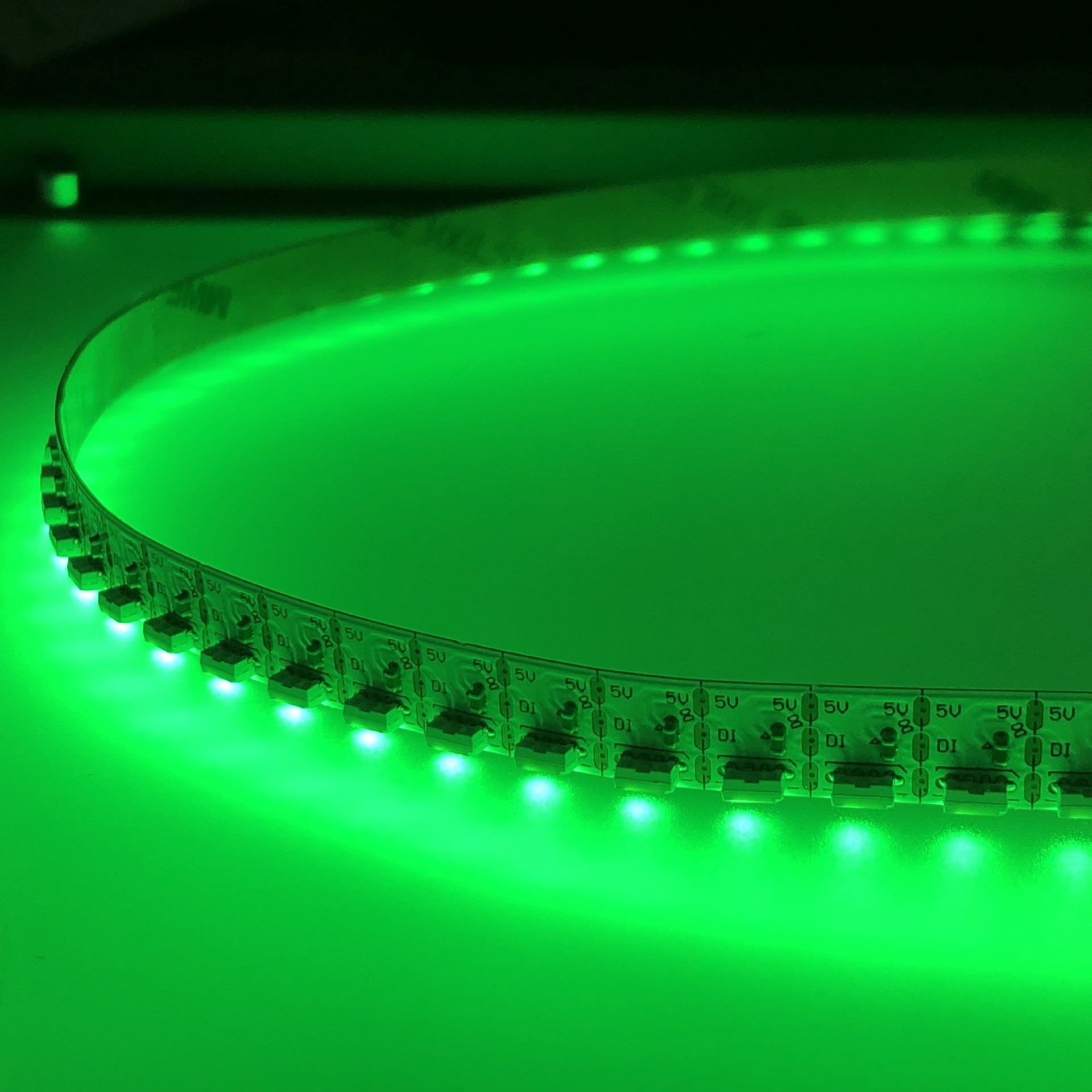

Dc5V 8mmwidth side viewing Individually digital full color  4020 led strip  144pixels/M


Key specification

Led type:side viwing 4020  SMD LED
IC type: sk6812
PCB Width:8mm ( 144 leds  and 120leds and 90leds with 8mm width ; 72leds with 5mm width)

Led lighting angle: 120°
LED Qty:  144leds/m,  (72leds/m ,90leds/m, 120leds/m,60leds/m optional)
IP Rating IP20, IP67,Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;

Advantages

  • SK6812 IC inside the 4020 LED chip.What is better than 020 or 335 side view LEDs, Smart Digital SK6812 side 4020 LED !

  • These Digital sk6812 Side view 4020 RGB pixel led strip 60leds/m is pixel version .

  • These LED strips are fun and glowy, and you can control each sk6812 side 4020 view LED individually.

  • This is Digital sk6812 Side view RGB pixel led strip 144leds/m with bare board or clearing case and white / black flex pcb,

  • we also have digital sk6812 side 4020 RGB led strips with 90 eds/m and 60 leds/m.

  • Pure copper bracket and 99.99% gold wire for WS2815  LED

  • 2OZ FPCB(35um cooper)with double cooper layer2 sides membrane cover the PFCB.Make sure the copper no drop from the pcb board ,

  • White PCB and black PCB optiona

  • It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

  • Flexible PCB material . ever 1LEDcan be cut , there is cut lines every 16.6mm for 60leds/M

  • 256 Gray scale(8bits)

Controller system:

1.Offline controllers, online controller work with computer,Such as LEDedit,
2.DMX console ,
3.Madrix software & map and any other artnet software.
4.Also the singlechip,such as the Arduino.

Waterproof  Type

IP20 non waterproof:3M sticker on the back, easy installation.
IP67 waterproof: Silicone tube, equipped with card buckle and screw.

Applications:

Widely used for decoration use, hotels, clubs, shopping malls,night bar, disco
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting

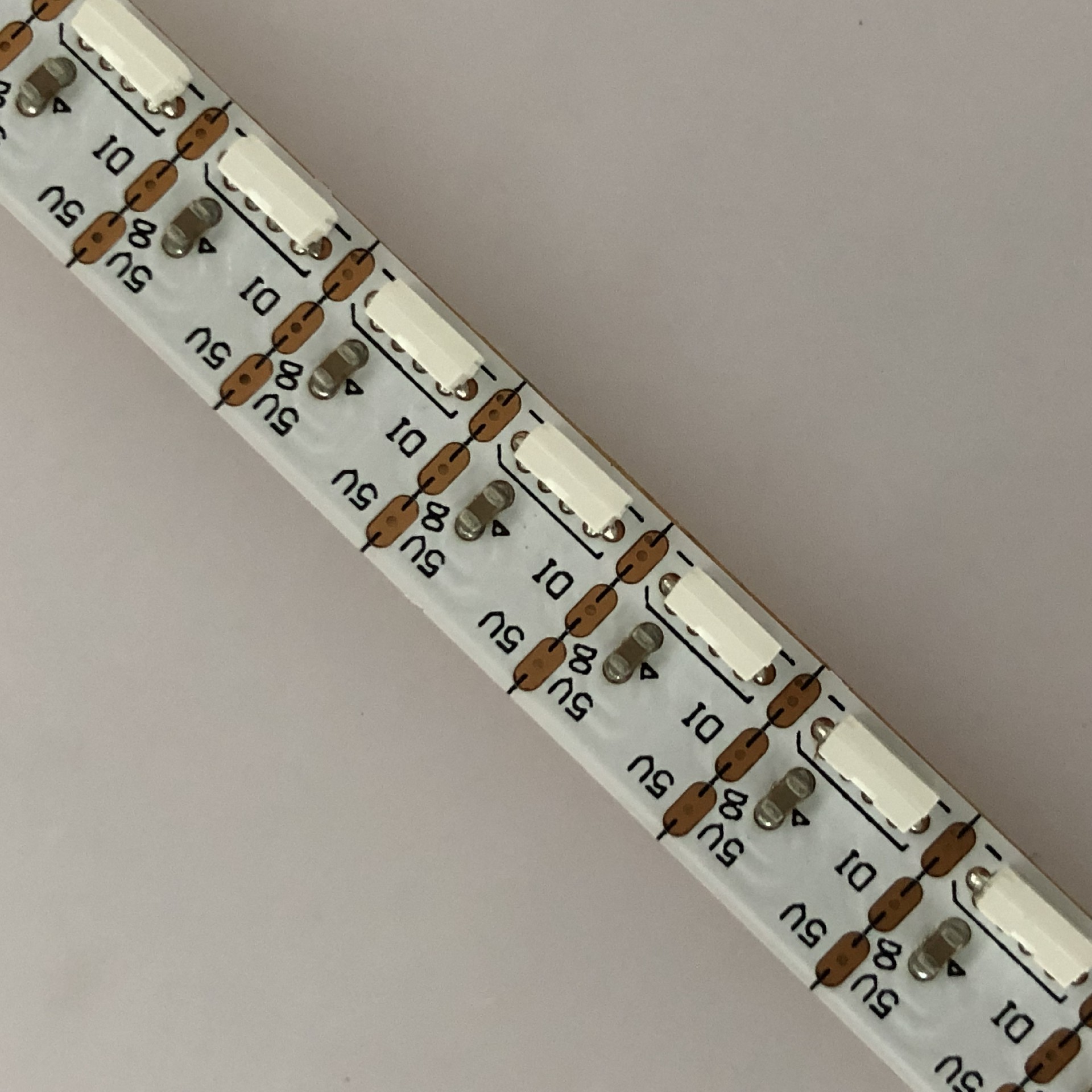

Product details













Diemension





Connection chart with controller
