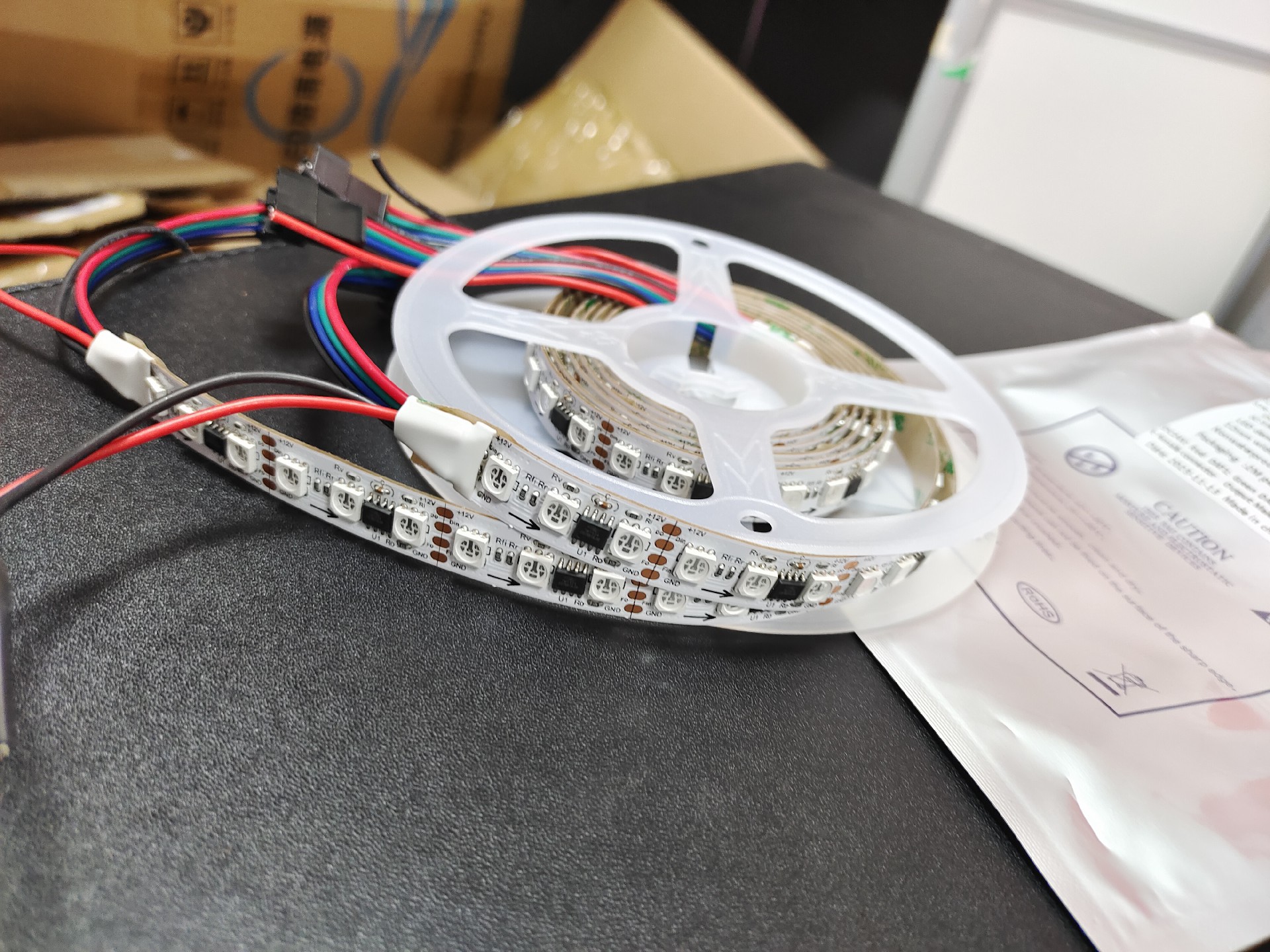

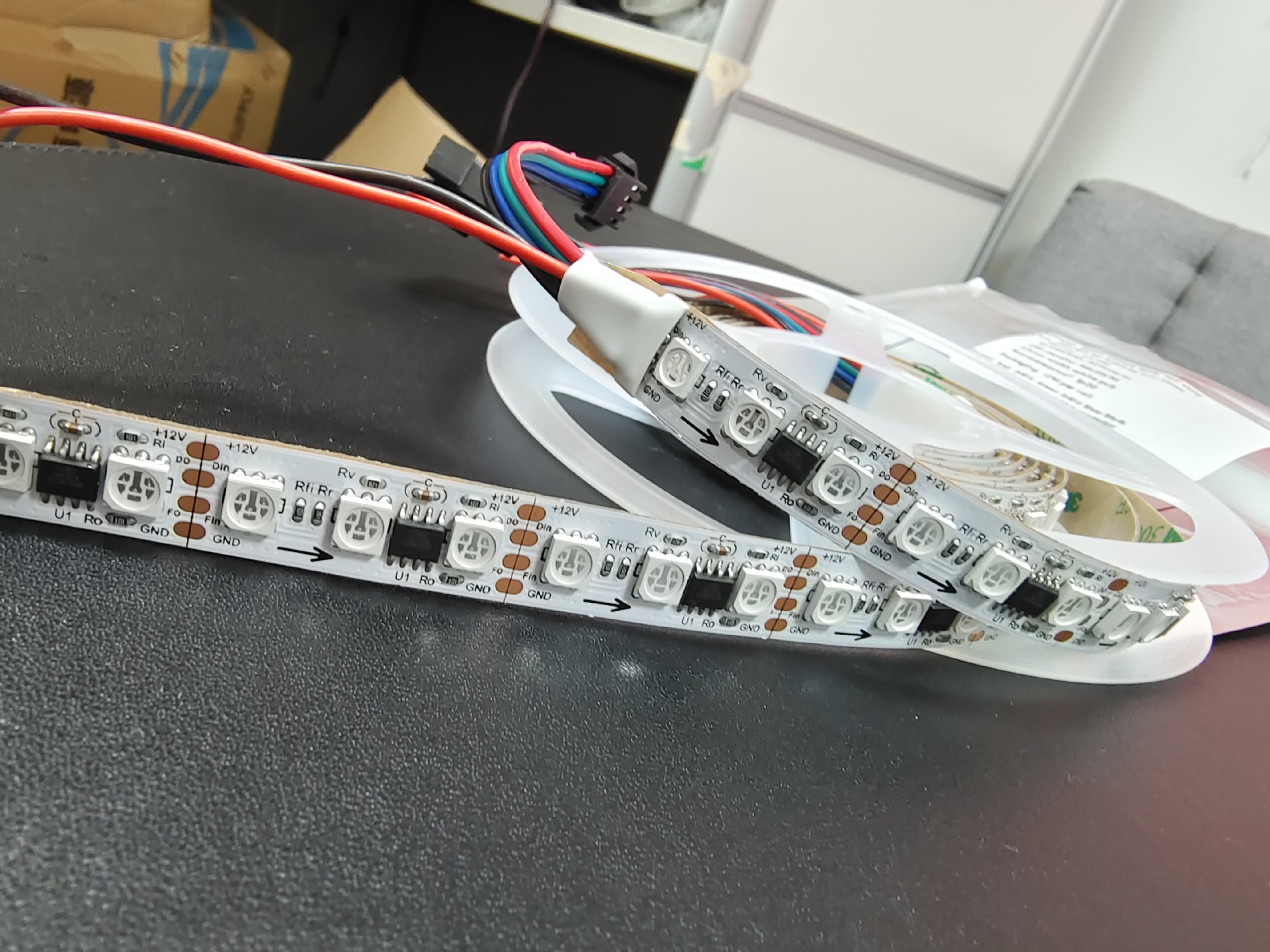

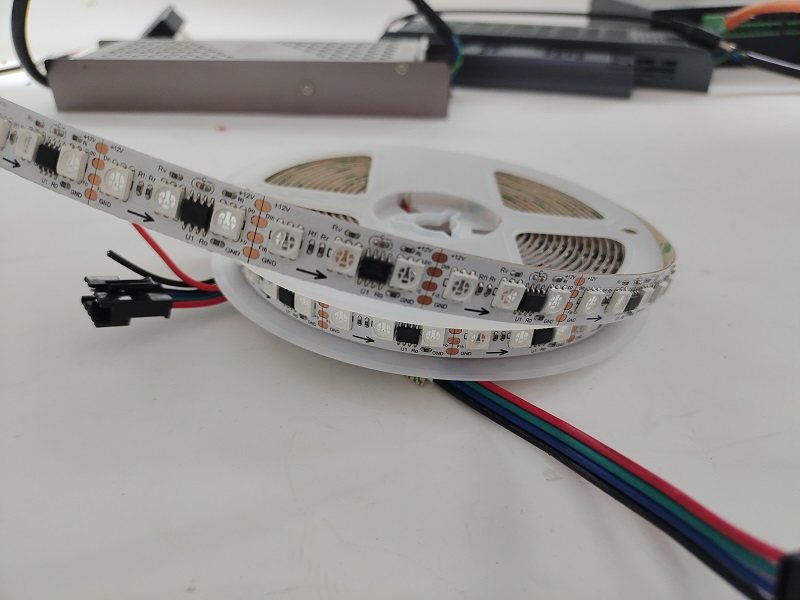

New tm1934 DC 12V 12mm 32pixels 96leds 5050 rgb Digital Pixel LED Strips with dual signal

tm1934 DC 12V 12mm 32pixels  96leds 5050 rgb  Digital Pixel LED Strips with dual signal

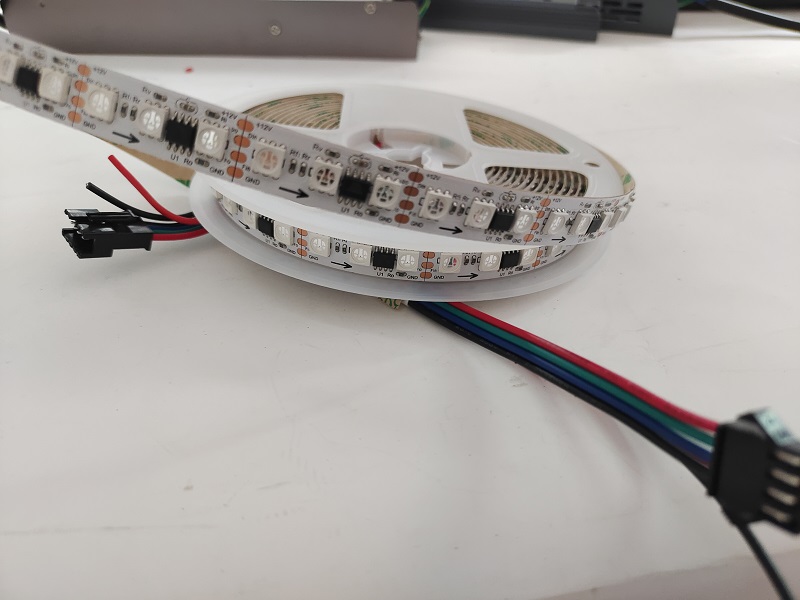

1934 LED strip wiring

1934led strip with silicon gel coating Ip65

1934led strip with silicone tube with ip67

Describe:

• Digital 12V 1934 rgb  LED Strip

• Item: RL-STR-LB1934-5050RGB-32P-96-12V

• IC Type:tm1934/lb1934 (same ic )

• Color:Digital RGB

• LED Quantity: 96 leds per meter

• Size: 5000*12*2.5(mm)/

• View angle:120°

• Working Input Voltage: 12V

• Drive Mode:Constant Voltage

• Pixels/M :32pixels per meter

Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. Pure copper bracket and pure gold wire for 5050 RGB led chip

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

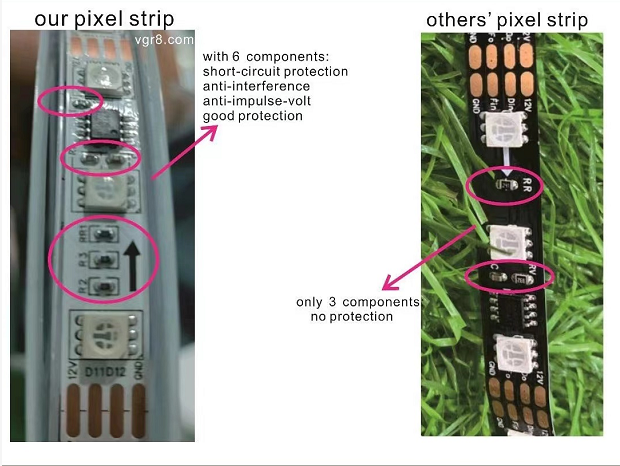

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

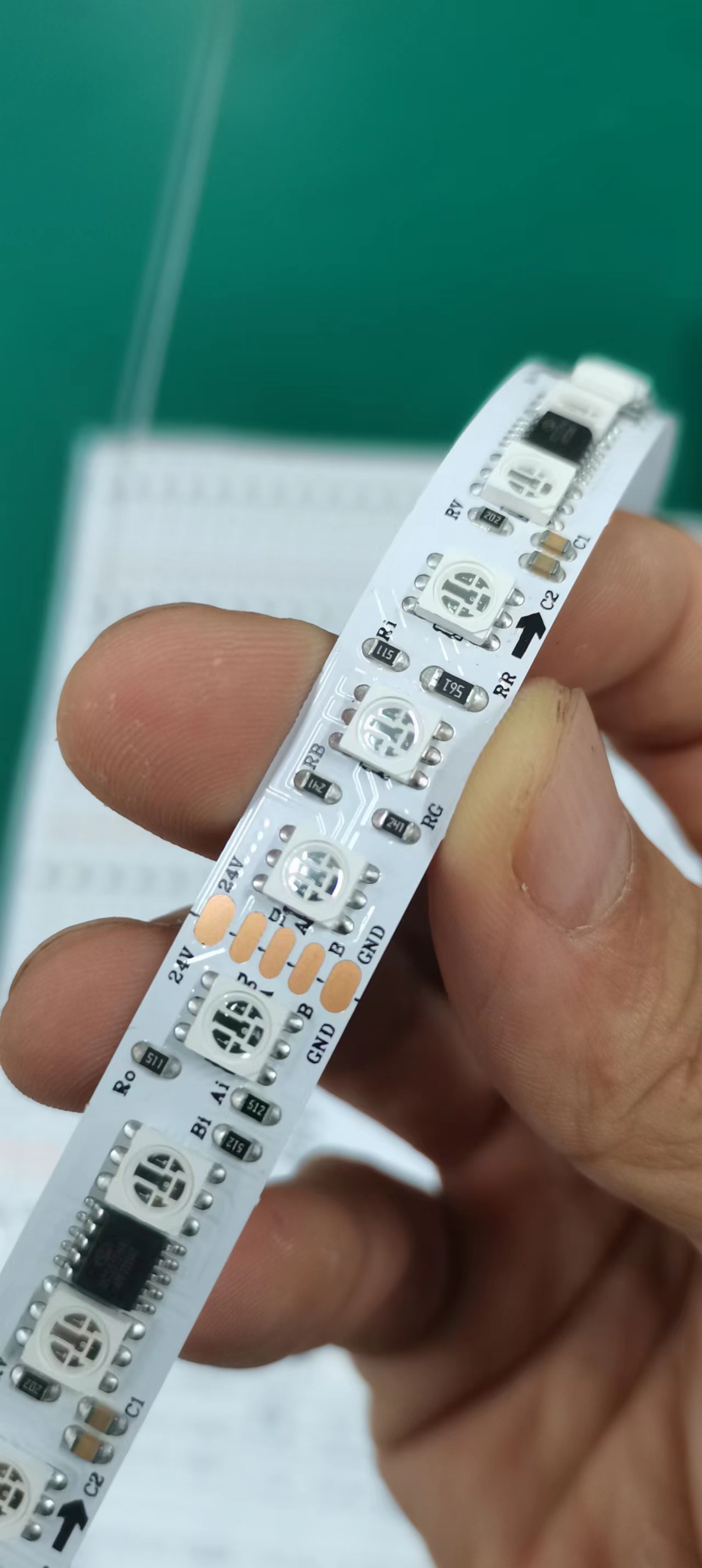

6. 60leds and 10pixels per meter  with 24V ,One IC control six leds ,

60leds and 20pixels per meter  with 12V ,One IC control three leds ,

7. 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10: dual signal ,one pixel no work ,no affect next one work.

11:Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

waterproof Type

IP20 :Non-waterproof with 3M sticker on the back, Size:5000*10*1.5mm

IP65: waterproof is silicone gel on the surface,Size:5000*10*1.5mm

IP67: silicone tube,Size:5000*12*3mm

IP68: silcone gel inside silicone tube.Size:5000*12*3mm

Contact with us for  Datasheet and test report here

Product details

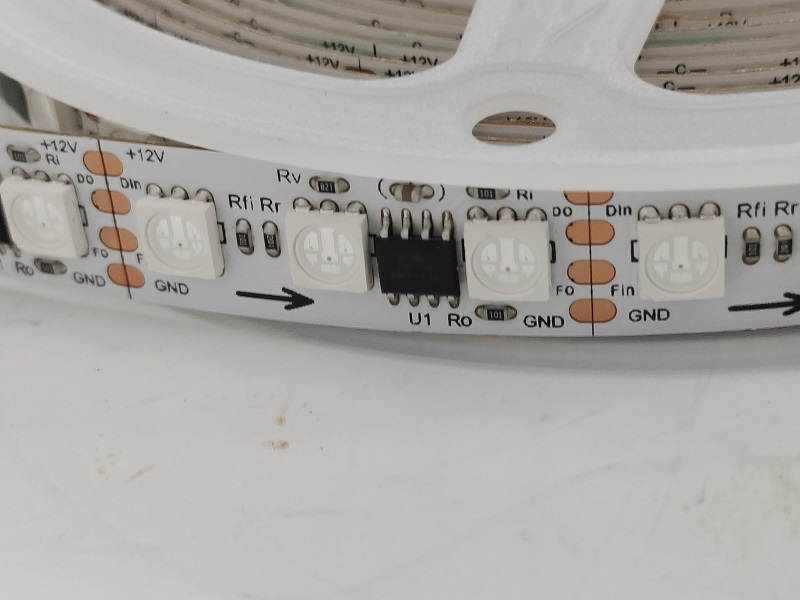

1934 white IC chipset ,white silicone tube ,white color rgb led chip ,all in white color
