DC24V tm1934 two row 15mm width 96X2 2835 rgb leds Digital Pixel LED Strips with dual signal

DC24V   tm1934 two row 15mm width  96X2 2835 rgb   leds  Digital Pixel LED Strips with dual signal

the wring of 1934 led strip with led controller

24V with Ip68 with red tape at the back

Describe:

• Digital DC24V  LED Strip

• Item: RL-STR-LB1934-2835RGB-192--24V-15mm

• IC Type:LB1934/tm1934( same ic )

• Color:Digital RGB

• LED Quantity: 192 leds per meter

• Size: 5000*15*2.5(mm)/ 8mm optional

• View angle:120°

• Working Input Voltage: Dc24v

• Drive Mode:Constant Voltage

• Pixels/M :32pixels  with 24V  ;

Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. Pure copper bracket and pure gold wire for 5050 RGB led chip

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. 60leds and 10pixels per meter  with 24V ,One IC control six leds ,

7. 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10: dual signal ,one pixel no work ,no affect next one work.

11:Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

waterproof Type

IP20 :Non-waterproof with 3M sticker on the back, Size:5000*15*1.5mm

IP65: waterproof is silicone gel on the surface,Size:5000*10*1.5mm

IP67: silicone tube,Size:5000*17*3mm

IP68: silcone gel inside silicone tube.Size:5000*17*3mm

12V 20 pixels  60led with 1934 optional !

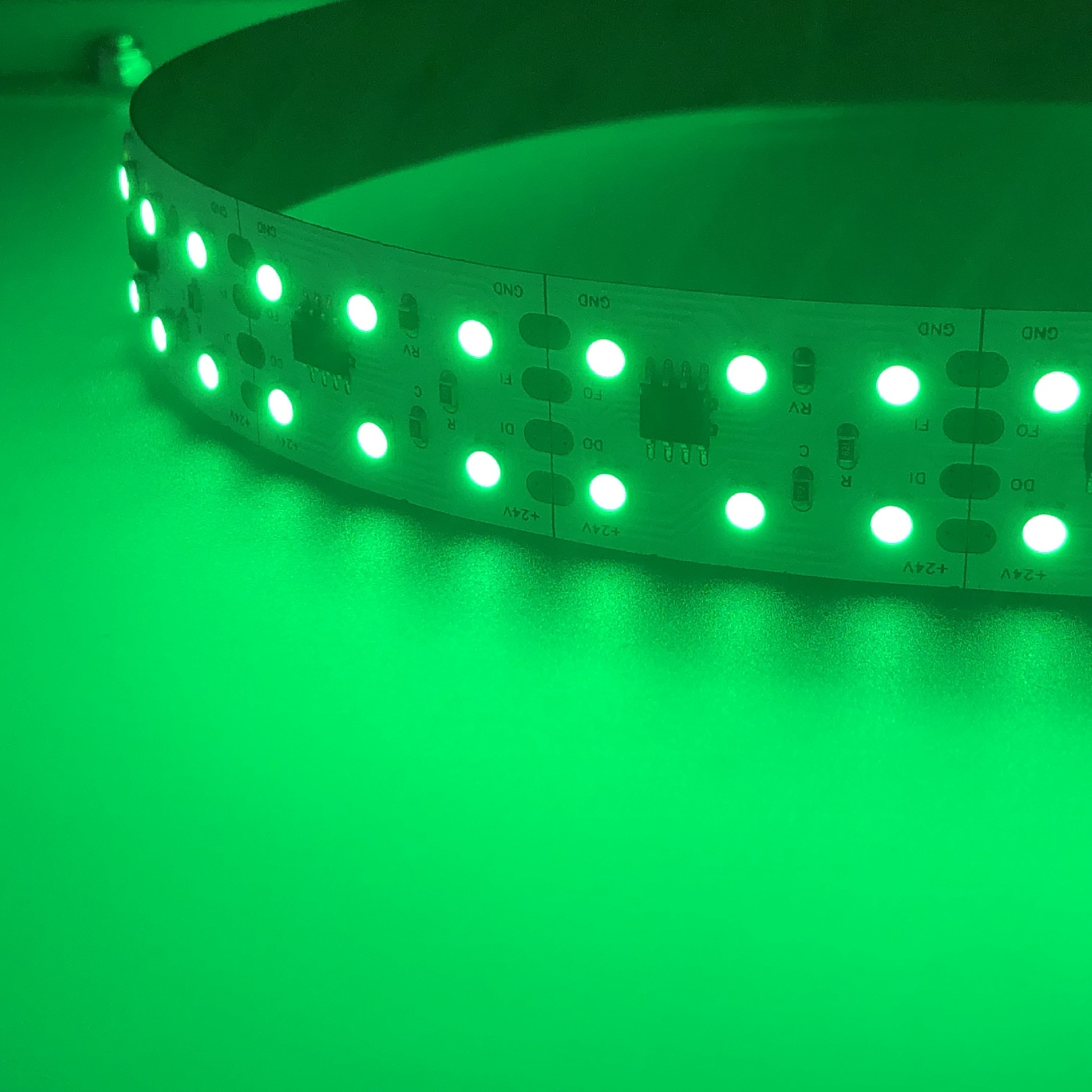

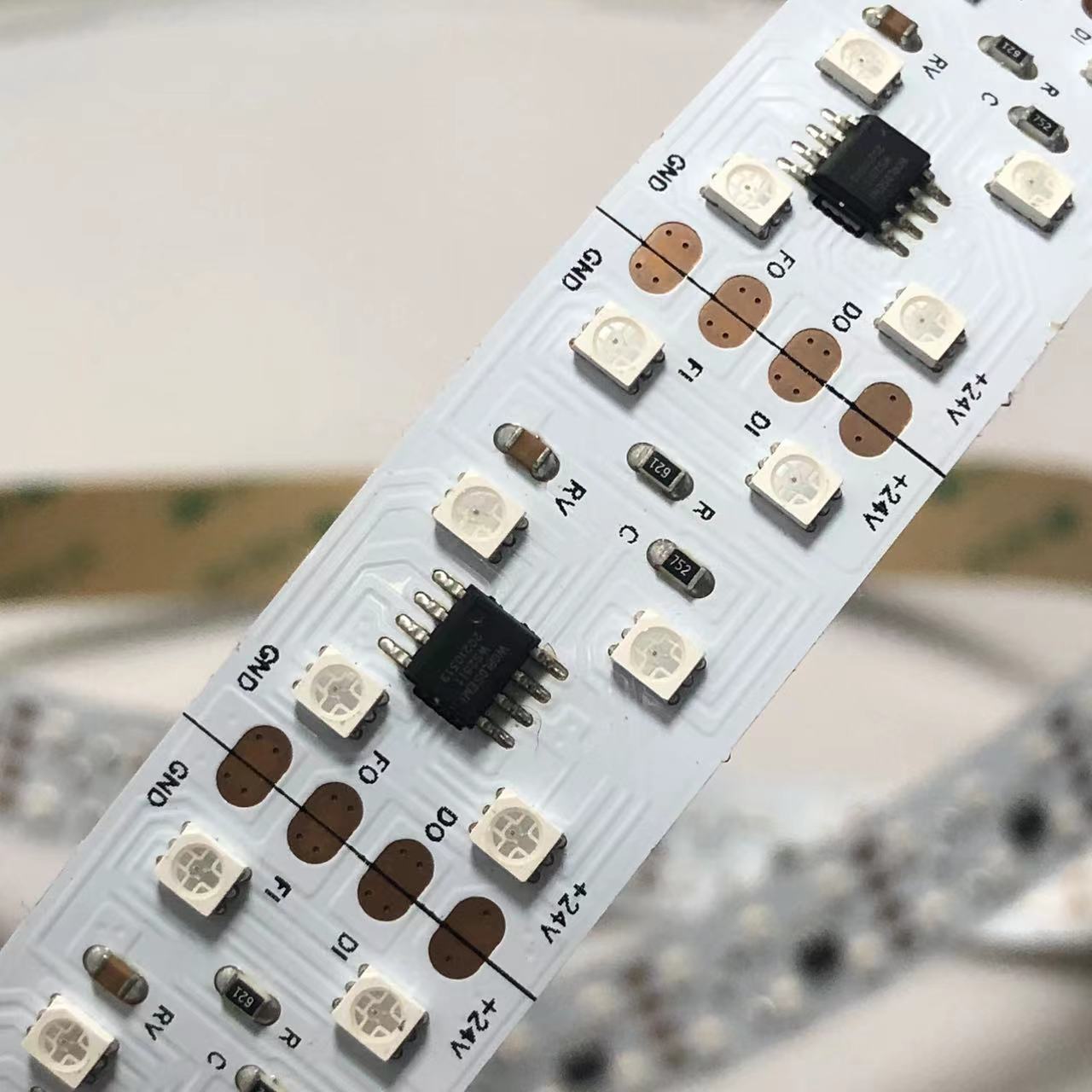

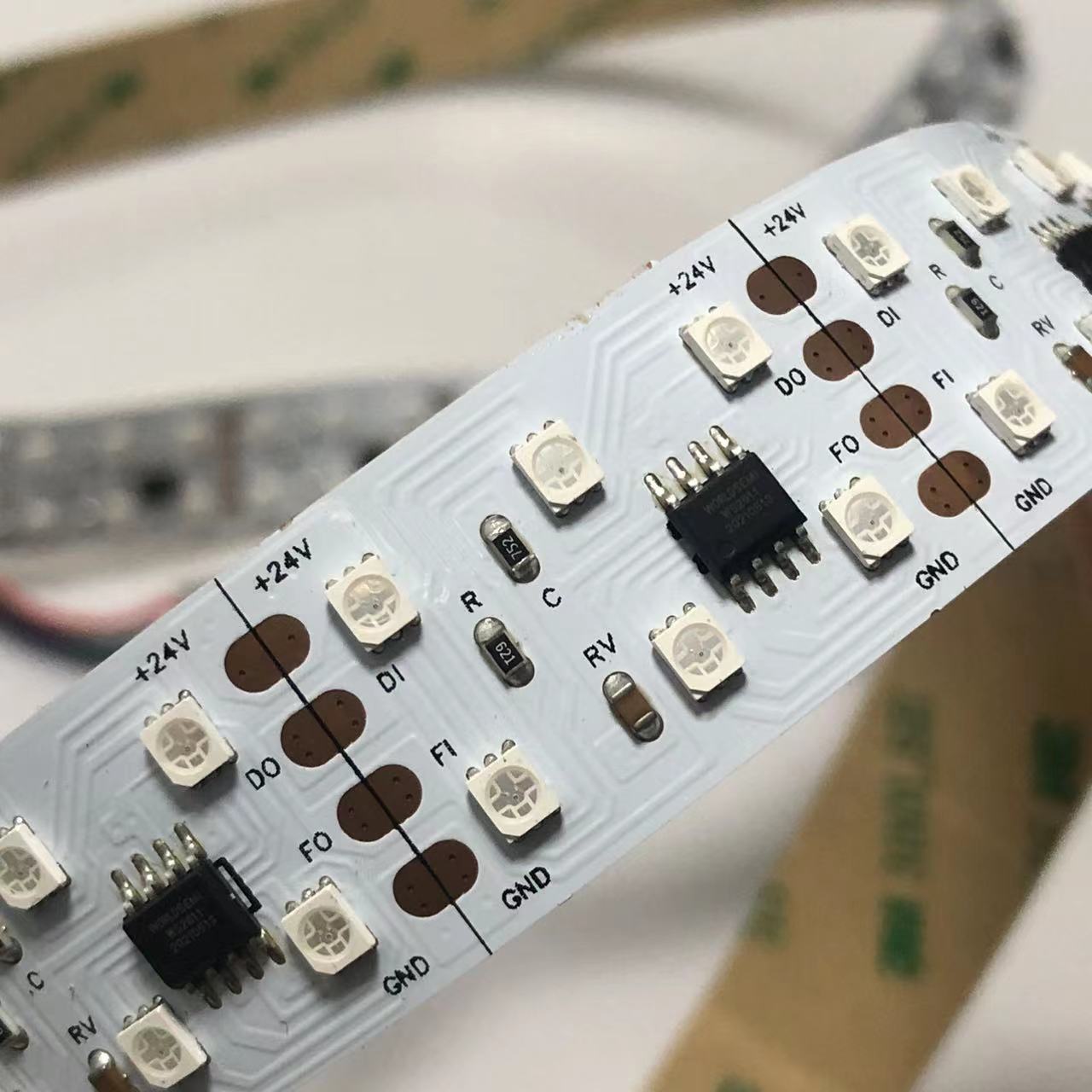

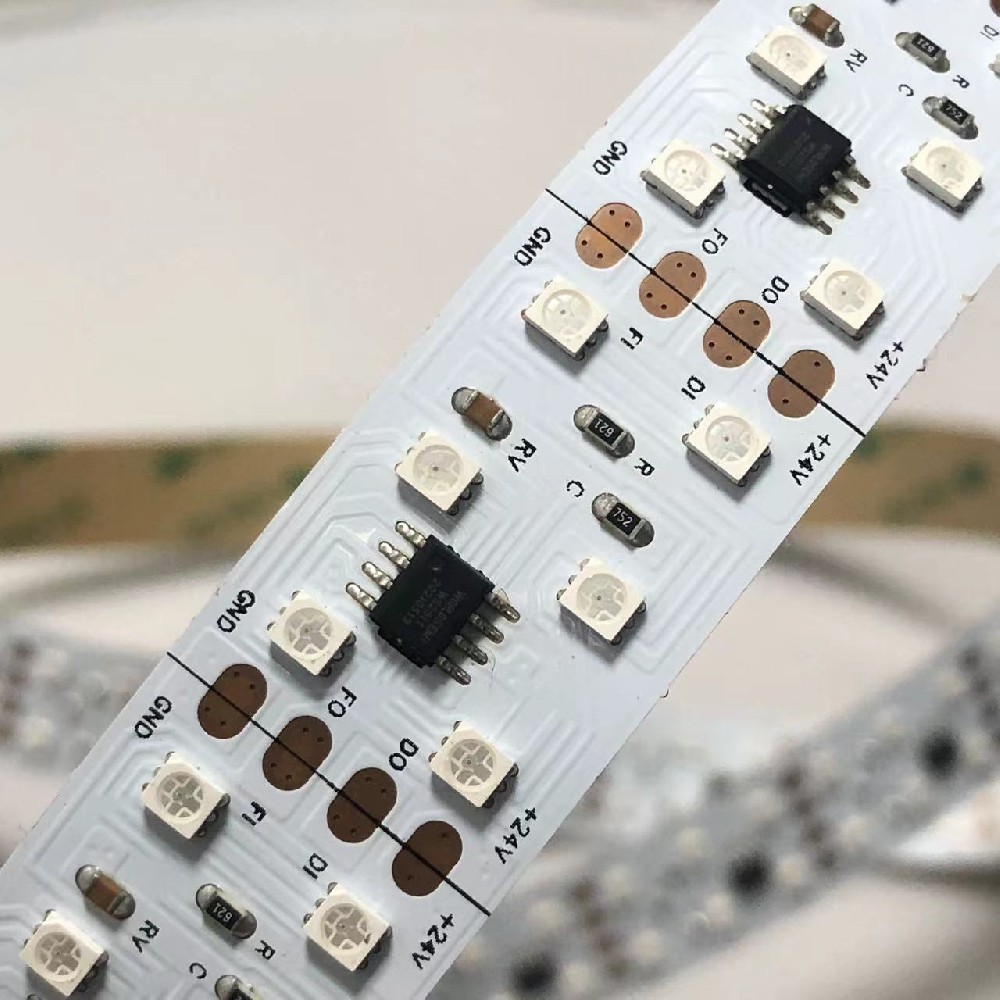

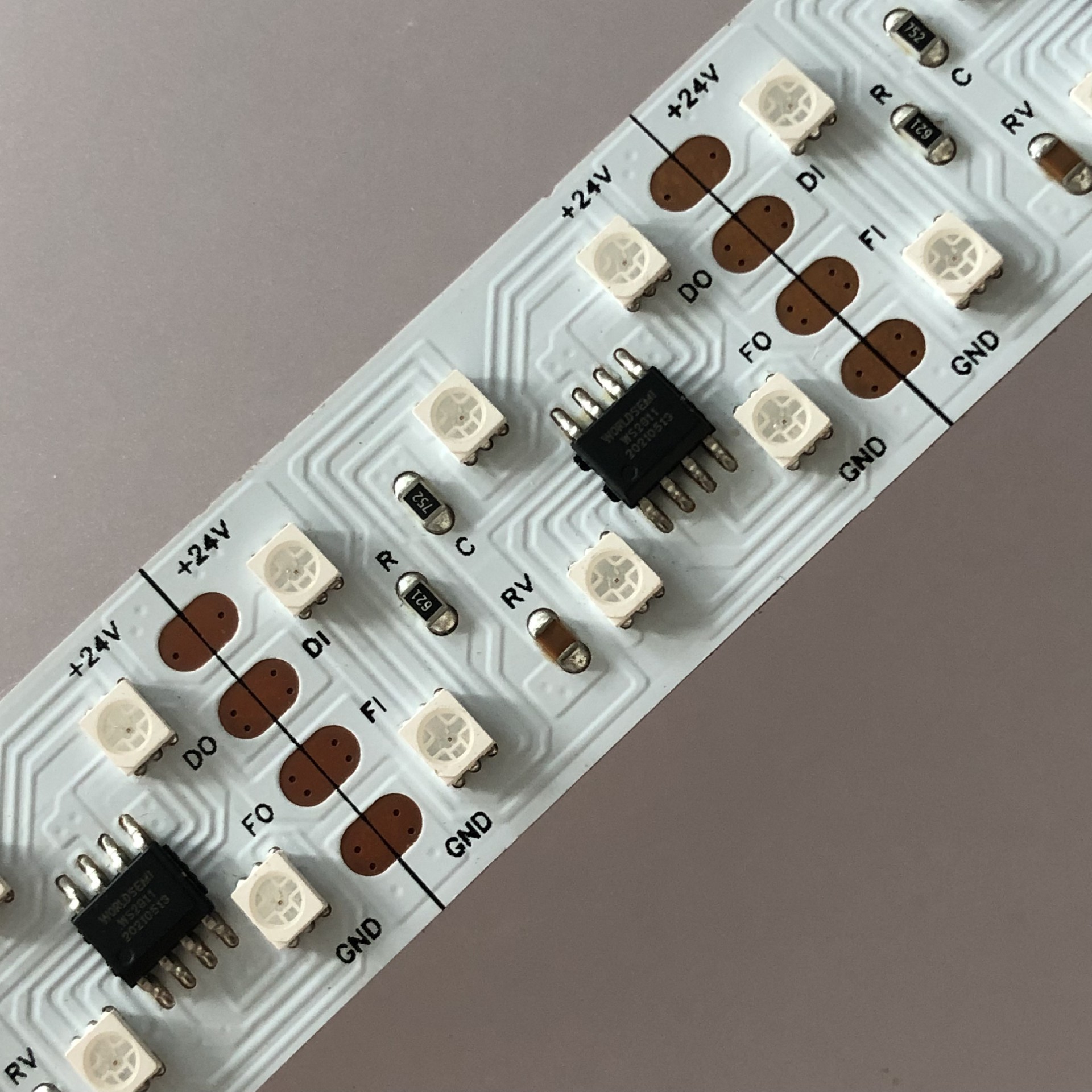

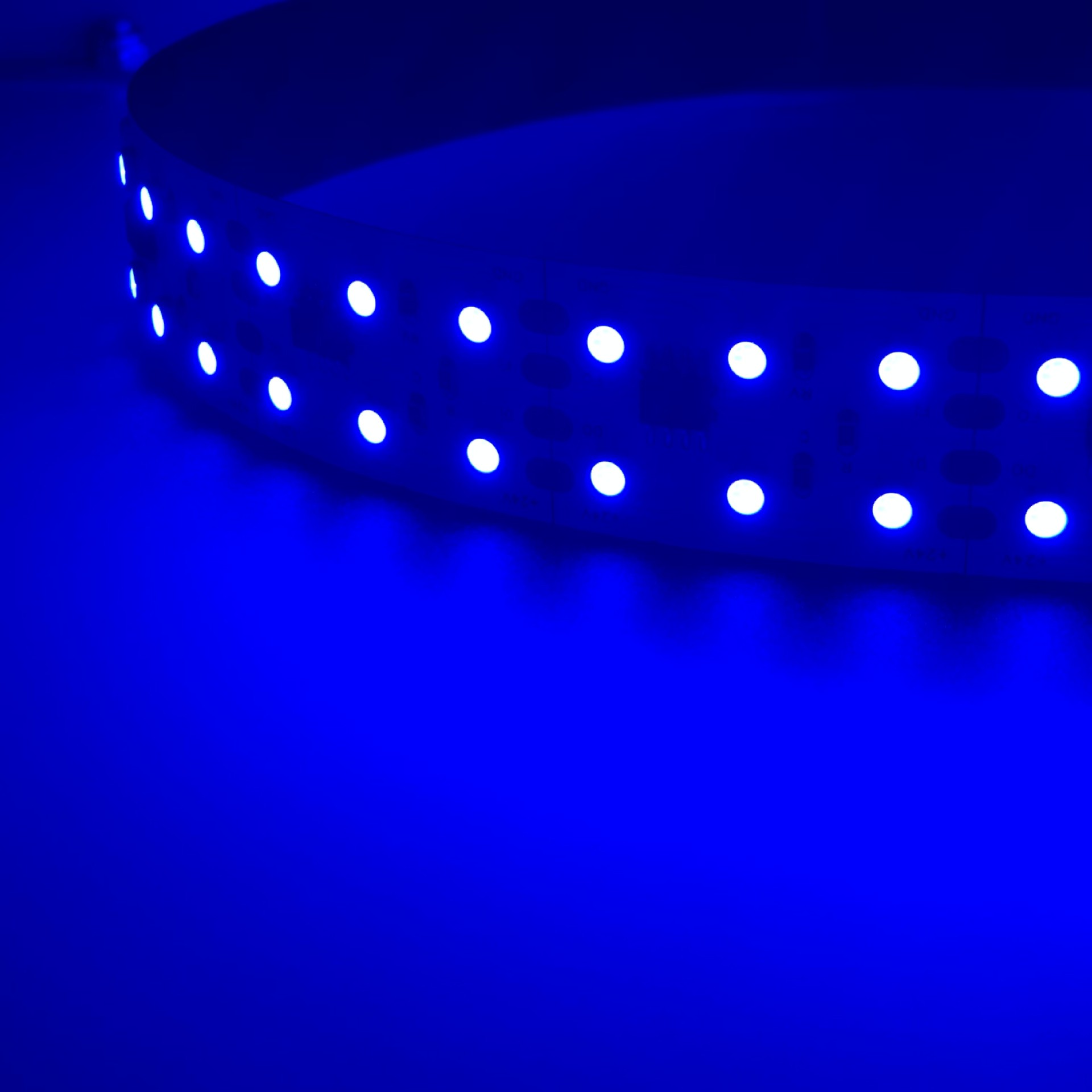

Real Picture

120led per meter optional!

white color optional! (below is 4000k)

LB1934 white IC chipset ,white silicone tube ,white color rgb led chip ,all in white color optional
