Dc24V Full color addressable 8mm width 1903 2811 Pixel RGB 2835 LED Strip 20pixels/m 120leds/m

Dc24V Full color addressable 8mm width 1934 Pixel RGB 2835 LED Strip 20pixels/m 120leds/mRL-STR-LB1934A-2835RGB-120-20P-24V-8mm.pdf
Products Inquiry

Product Details

Dc24V Full color addressable 8mm width 1903 2811 Pixel RGB 2835  LED Strip 20pixels/m 120leds/m


1)Brihtness >2100mcd 2835 RGB led lamp with copper bracket and gold wire
2) 2OZ pure copper PCB board with 8mm width -10meter long no voltage drop
3)Double membrance covering the FPCB board ,good protection,
4) Standard SPI protcel: 1903Ic chipset -dual signal .
5)cutting unit:every 6led (50mm),
7) Dc24V 14.4.W/meter (max),
8) LED density: 120pcs RGB 2835 LED per meter ,
9) controller system: artnet or offline or online led controller


- Control IC included, supporting numerous Color-change effects;
- Pcontrol by SD controller,Arduino,DMX512,Artnet;
- Flexible PCB 24V low voltage input;
- 120pcs RGB smd 2835 leds and 20 Pixels   per meter;
- Absolutely addressable ,each IC control 18 leds
- 5M per roll,also Customer’s length available;

-1934A  support 3channels, support 2835RGB led

-there is three line , Date  and GND and DC24V+


LED Quantity120leds/m
PCB thickness8mm width,2 ounce copper( 35um thinkness)
PCB ColorWhite PCB ,Black PCB
IC typeTM1903 or ws2811 or sm16703 (SPI protocel ,same work as ws2811,ws2812)
cutting unit 5cm
IP RatingIP20/IP65/IP67/Ip68
Connector3PIN JST-SM connector
Control ModelSPI control
Product Keywords1934A pixel led stirp ,2835 RGB led strip



1.  This is   24V pixel led strip , very narrow and suit for neon flex led tube .

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.24V  working voltage  ( 6leds with one IC with 24V)

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . every 18 LEDcan be cut with 24V,

7.  120leds per meter  . 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky


5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Waterproof Rate:

  • IP20 Non-waterproof with 3M sticker on the back

  • IP65 waterproof is silicone gel on the surface

  • IP67: silicone tube/coating

  • IP68: silcone gel(or epoxy) inside silicone tube.

Connection guide

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino.

(offline / PC online)

LED power suppply: power supply, T- series, A- series power supply...(waterproof / non-waterproof)

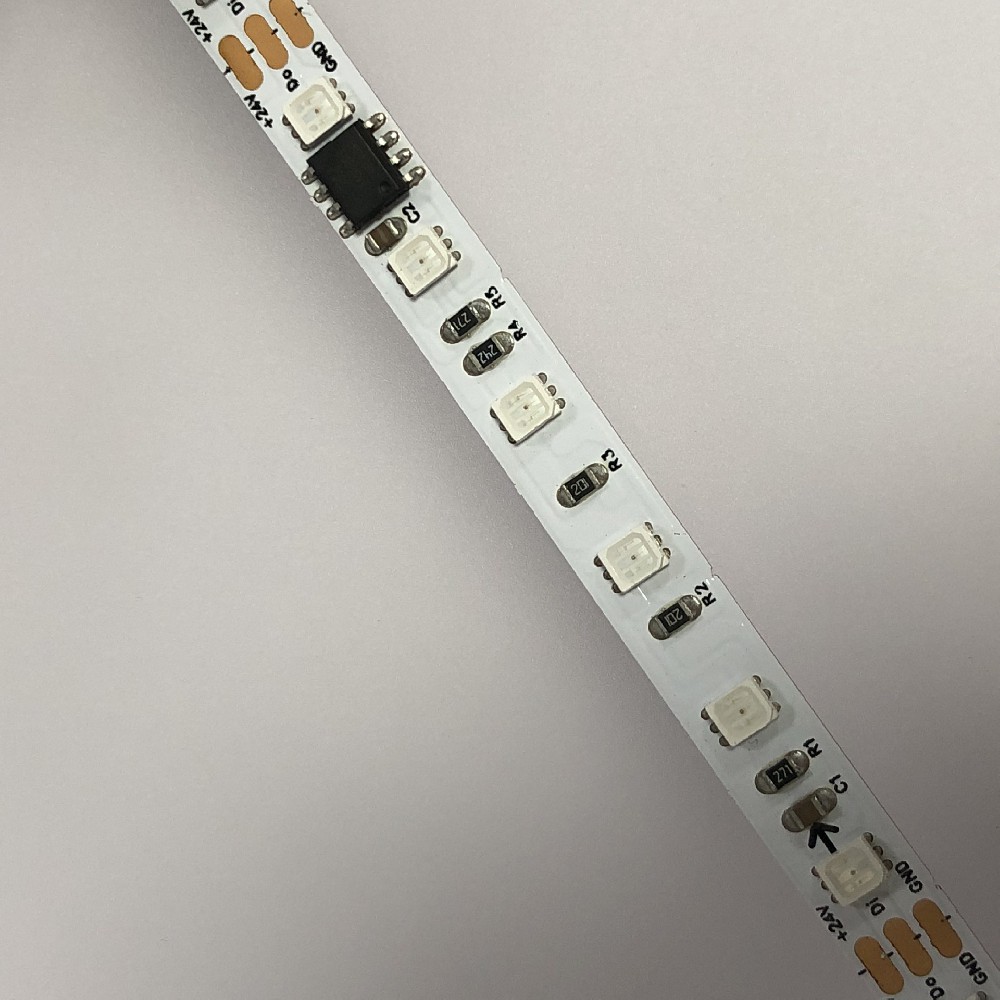

Real Picture


There is 96led per meter optional!

spi 2835 ws2811 led strip.jpg
