Dc24V high refresh rate 60Led 10pixels ws2801 pixel led strip

Dc24V high refresh  rate 60Led 10pixels ws2801 pixel led strip

Introduction

Led type: 5050 SMD RGB LED
IC type: ws2801
PCB Width:10mm
Led lighting angle: 120°
LED Q'ty:  60led/m.
IP Rating IP20, IP65, IP67, IP68.

• IP20 Non-waterproof with 3M sticker on the back,

• IP65 waterproof is silicone gel or epoxy on the surface,

• IP67: silicone tube,(silicone sheathing ),

• IP68: silcone gel(or epoxy) inside silicone tube.

Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
6 LED 1 IC, individual controlled, can be made into high-density high-definition display;

Advantages:

1.clock r rate: 25MHZ, transfer speed very fast.

2. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. working voltage : Dc 24V .

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material ,every 6 LEDcan be cut with 24V,

7. 60 leds per  meter . 24V low voltage inputted , don’t over 24V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

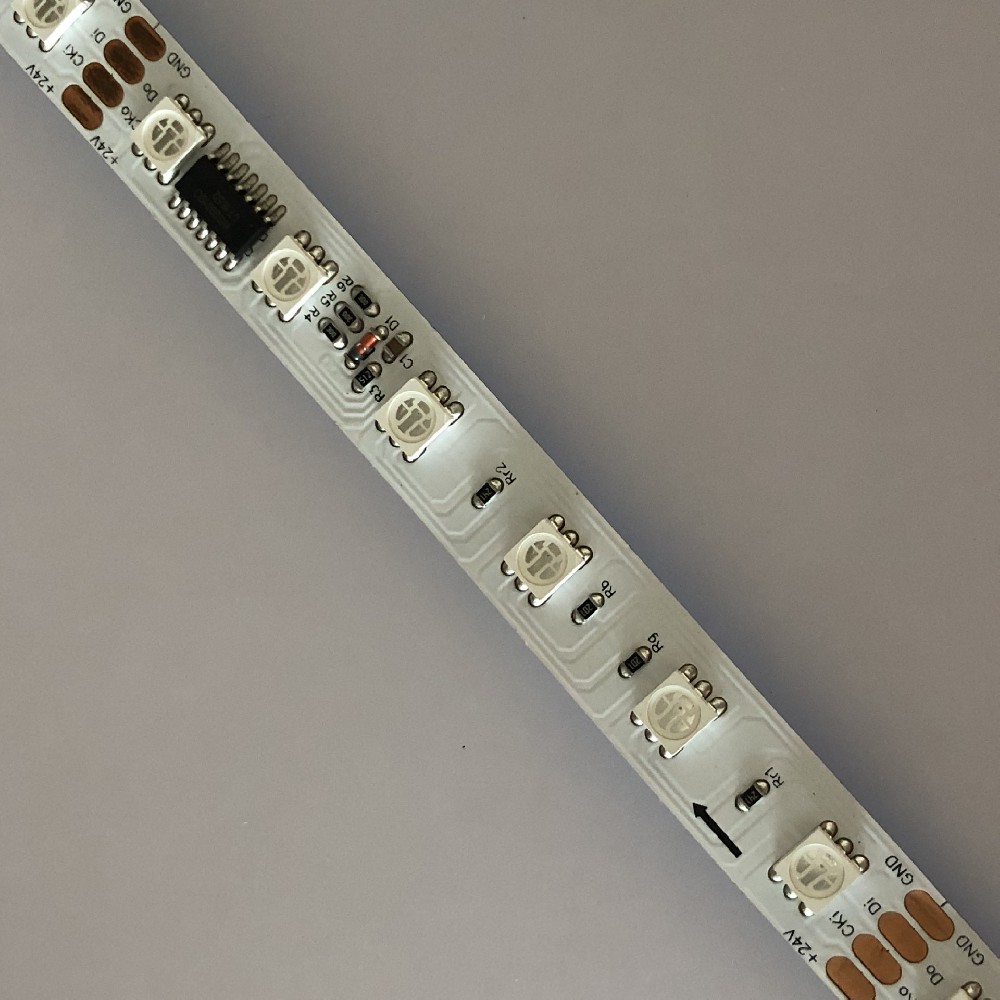

Product details

Connection chart
