12V 120leds four rows 30pixels 24mm width Digital Pixel LED Strip ws2811/ucs2903


  • Digital 12V  LED Strip

  • Item: RL-STR-ws2811-5050RGB-120--30P-12V-24mm

  • IC Type:ws2811

  • Color:Digital RGB

  • LED Quantity: 120 leds per meter

  • Size: 5000*24*2.5(mm)

  • View angle:120°

  • Working Input Voltage: 12V

  • Drive Mode:Constant Voltage

  • Pixels/M :30pixels


1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. Pure copper bracket and pure gold wire for 5050 RGB led chip

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. 120leds and 20pixels per meter ,One IC control six leds ,

7. 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky


5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

waterproof Type

IP20 Non-waterproof with 3M sticker on the back, Size:5000*20*2.5mm

IP65 waterproof is silicone gel on the surface,Size:5000*20*3mm

IP67: silicone tube,Size:5000*22*4mm

IP68: silcone gel inside silicone tube.Size:5000*22*4mm


Product details

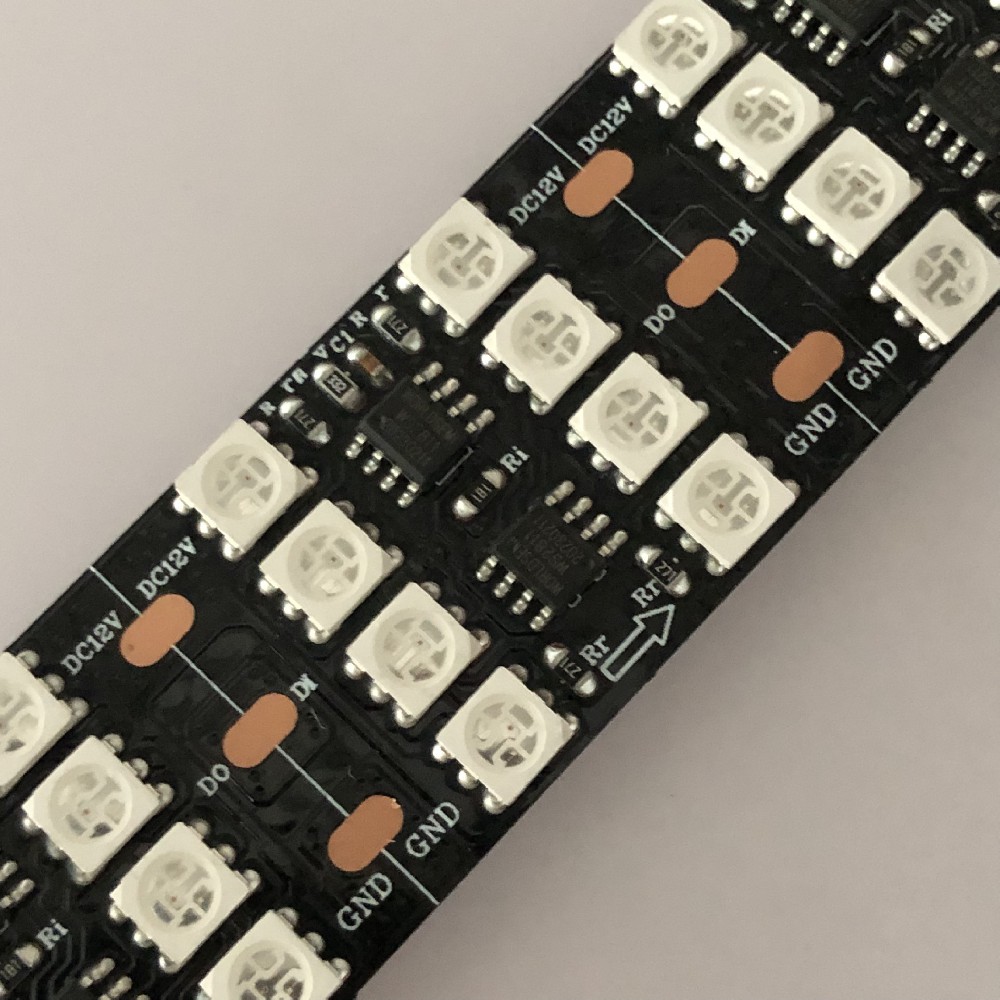

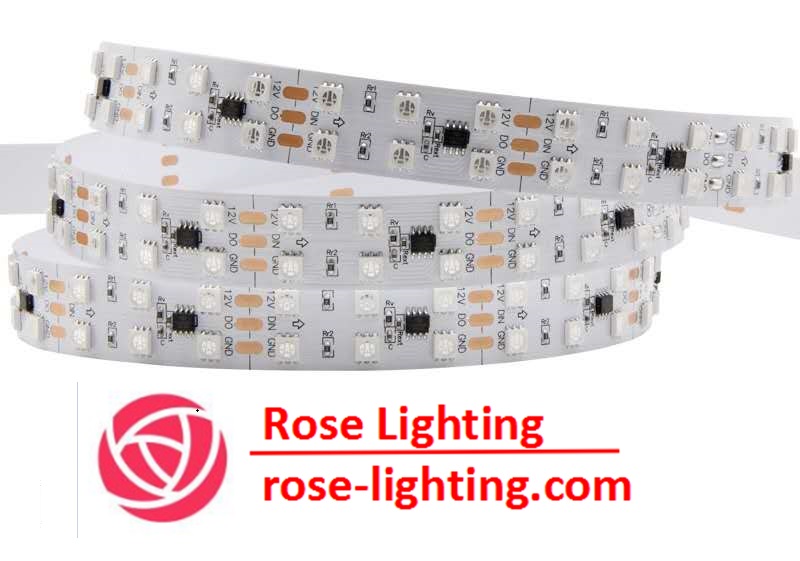

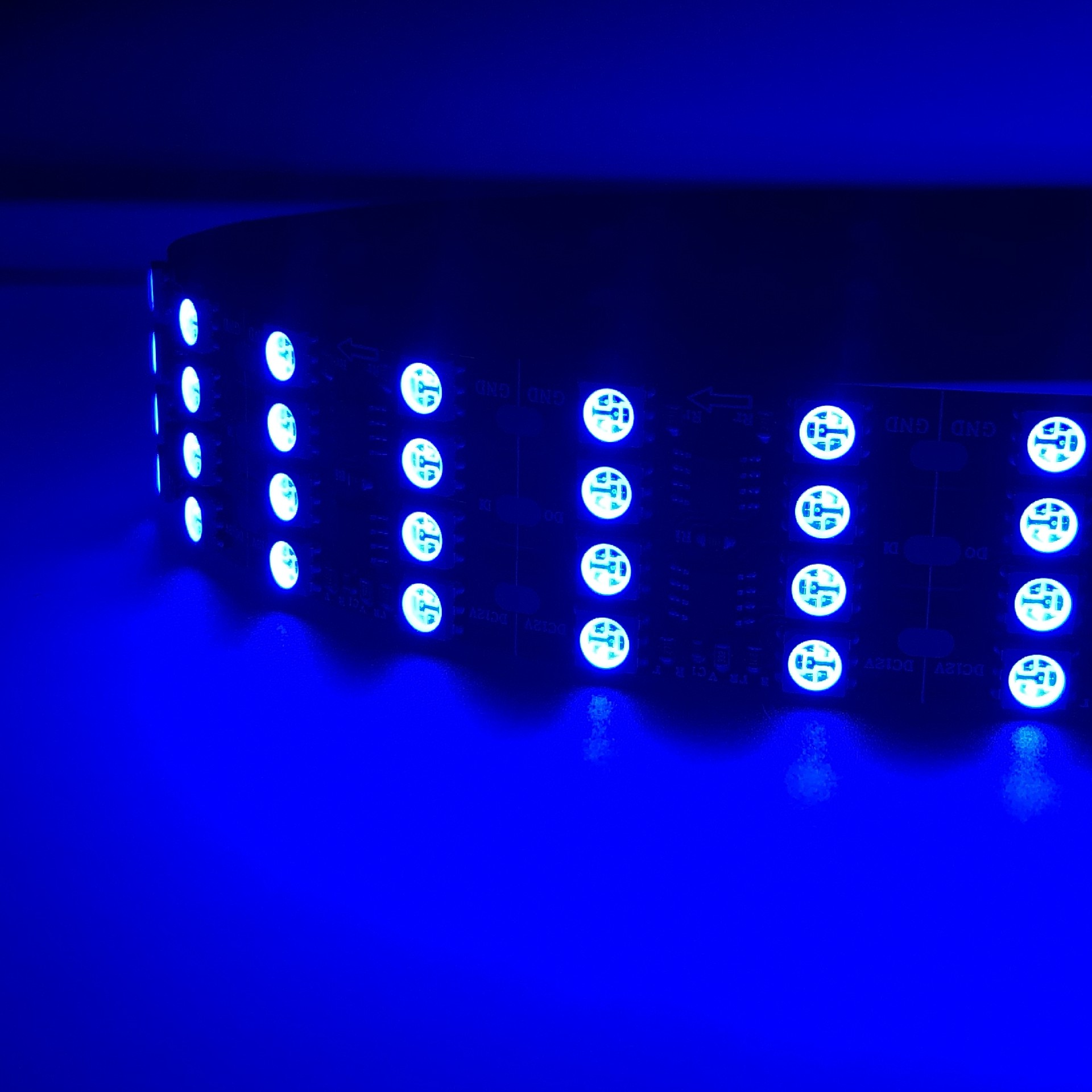

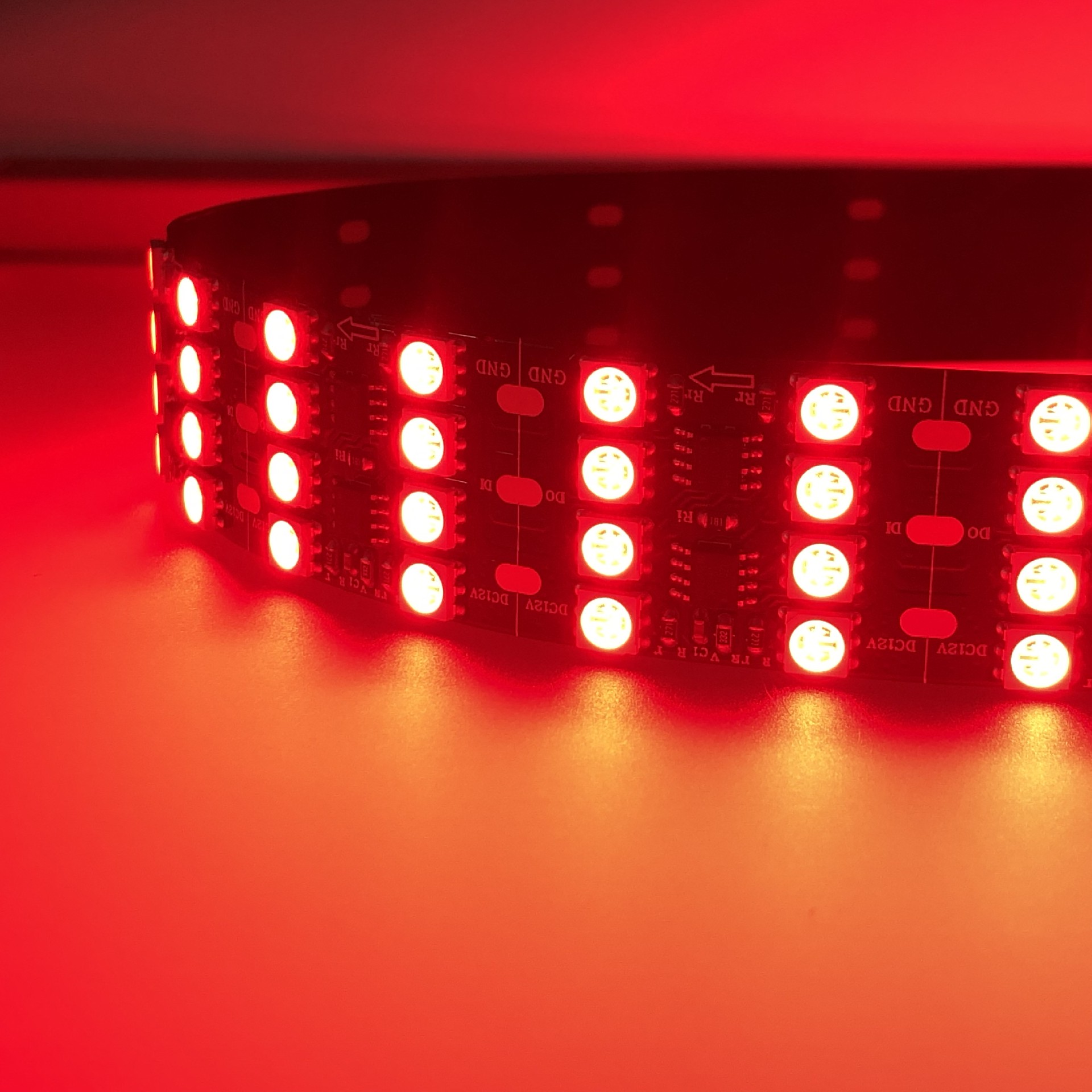

ws2811 240ledpixel strip (1).jpg
