DC 24V TM1814  RGBW  Pixel  addressable  Digital  RGBW led strip 60leds/M 10pixel with 10mm width

DC  24V TM1814  RGBW  Pixel  addressable  Digital  RGBW led strip  60leds/M 10pixel with 10mm width

Introduction

Led type: 5050 RGB+W led ( 4 chip built in one LED lamp)
IC type: TM1814
PCB Width:10mm/12mm optional
Led lighting angle: 120°
LED Q’ty:  60led/m.
IP Rating IP20, IP65, IP67, IP68.
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
6 LED 1 IC with D24V ,3 LED with 1IC with DC12V, can be made into high-density high-definition display;

Advantages:

1：we improved the  SMT  Process work and overcomed the  Problem with connecting Tin ,and make perfect digital led strip,

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.24V,12V  optional ( 3leds one IC with 12V, 6leds with one IC with 24V)

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . ever 3 LEDcan be cut with 12V, ever 6 LEDcan be cut with 24V,

7. 60M . 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9:PWM refresh rate: 400kHz, transfer speed 800k bps

10. Installing : screw+silicon clipand 3M adhesive on back side for sticky

11.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

12. nonwaterproof ip22  (naked PCB )  waterproof  Ip54( silicone gel coating ) waterproof Ip67( silicone  Tube coating) waterproof Ip68 ( silicone gel inside the silicone tube)

RL-STR-TM1814-5050RGBW-60-12V-10mm.pdf

Picture Details

24V 10pixels60led RGB+3000K (35um35um copper ) 4000k 6000k optional

There is 12v 20 pixels 60led per meter optional!

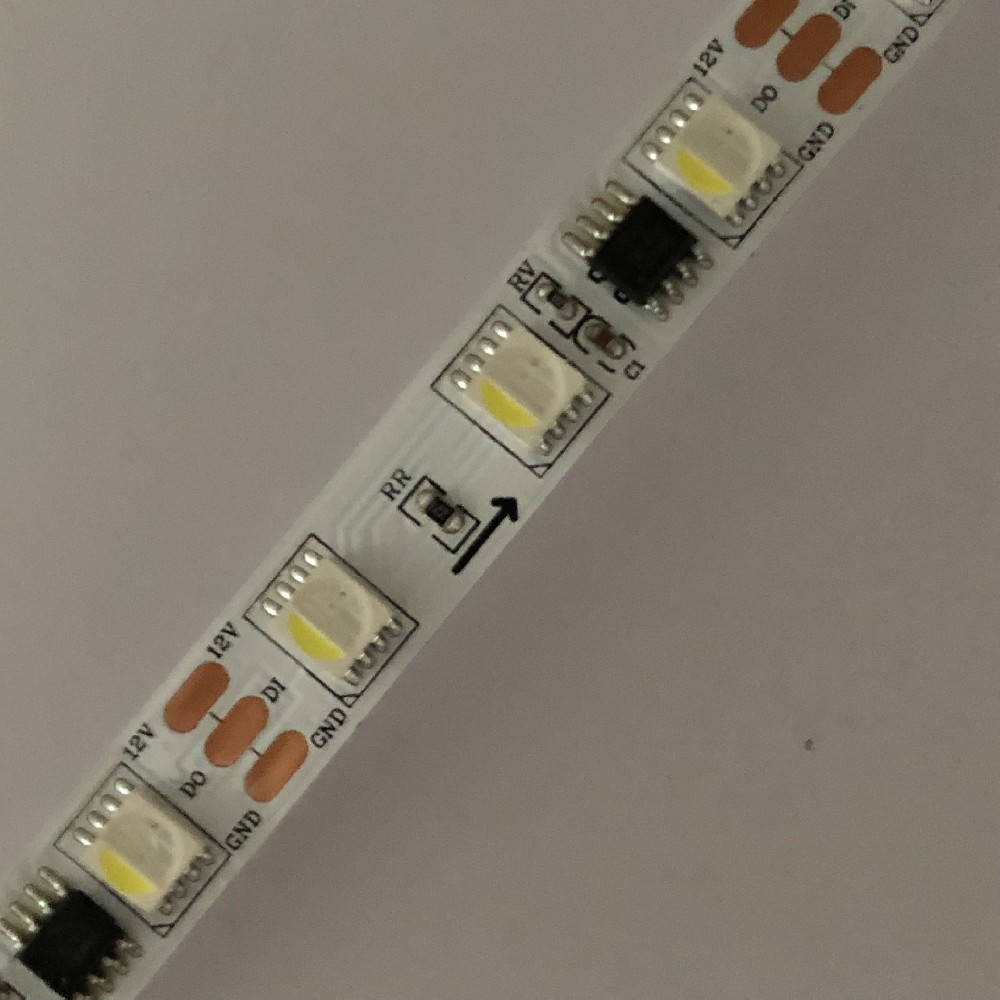

There is 24V TM1814 5050 RGBW led strip pcb with 10mm width base on 35um 35um copper

wire define

red: Dc24V +

Green: Data

white: GND ( Dc24V -)

we did  4 hour aging test before delivery always
