Dc5V 10mm width WS2813B dual signal 60pixels 5050 rgbw pixel LED Strip

5v rgbw 2813b pixel led strip
Products Inquiry

Product Details

Dc5V 10mm width WS2813B dual signal 60pixels 5050 rgbw  pixel  LED Strip


2813 rgbw led strip.jpg


Led type: 5050 SMD RGBW LED(CCT for white  3000k 4000k 6000k optional)
IC type: WS2813B
PCB Width:10mm
Led lighting angle: 120°
LED Q'ty:  60led/sm,
IP Rating IP20, IP65, IP67, IP68.
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;


1.Each pixel can be controlled individually( One LED in one pixel)

Can show any color and Can be used as flexible led display screen to show image and video

2.White PCB and black PCB optional

3.2unce PCB board with double cooper layer(h

4.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

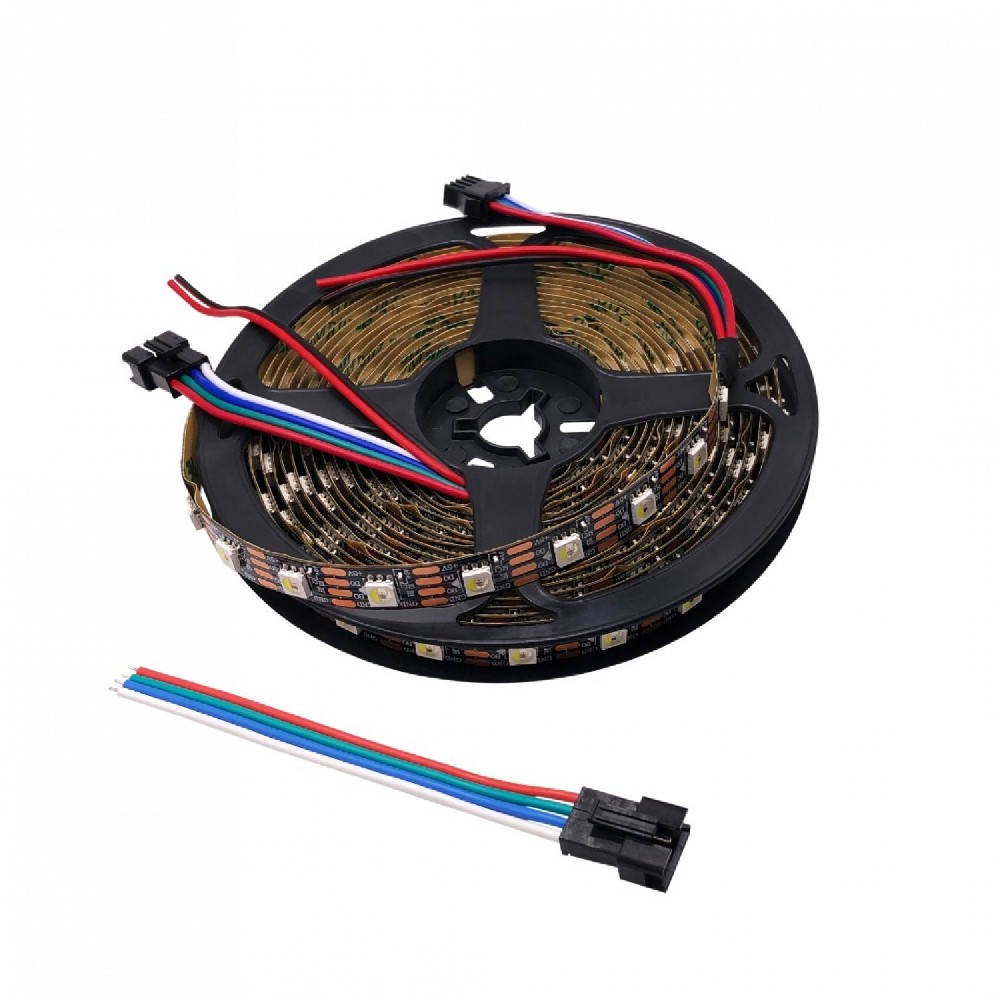

5. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

6. Flexible PCB material . ever 1LEDcan be cut , there is cut lines every 1led ,

7. 30/60/72/144LEDs/M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .

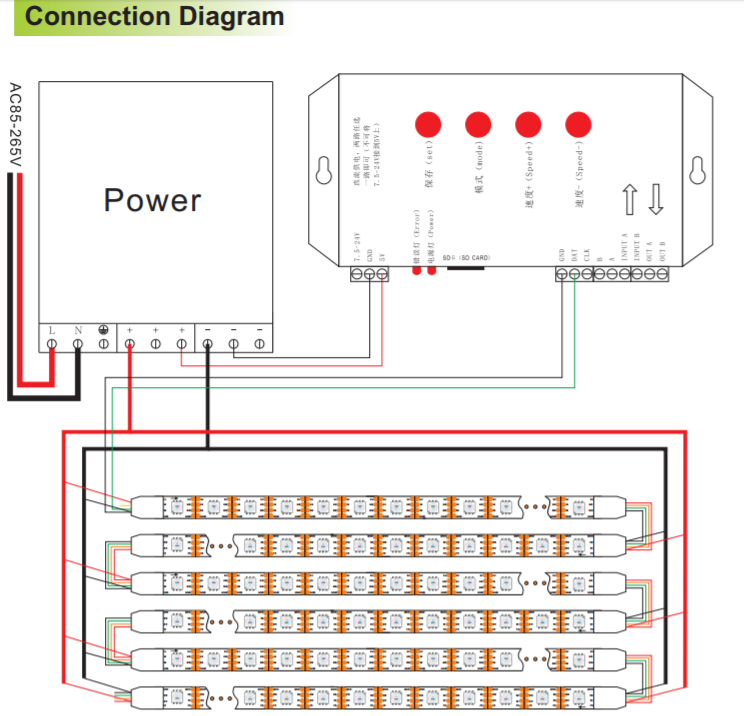

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Waterproof LED Strip Ip68 --silicone gel inside silicone  tube ( for full outdoor)

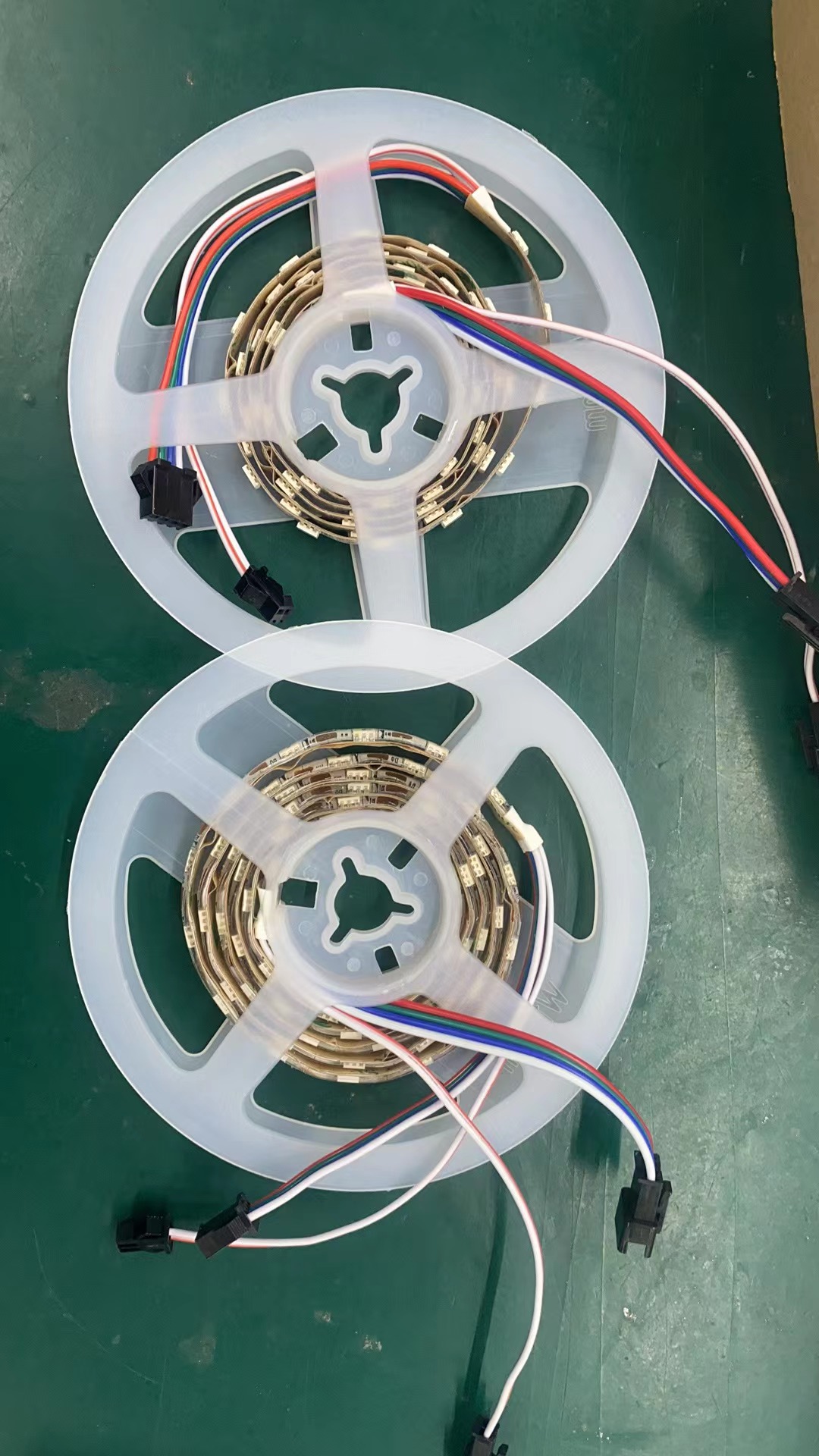

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 15.5kg with nonwaterproof Ip20

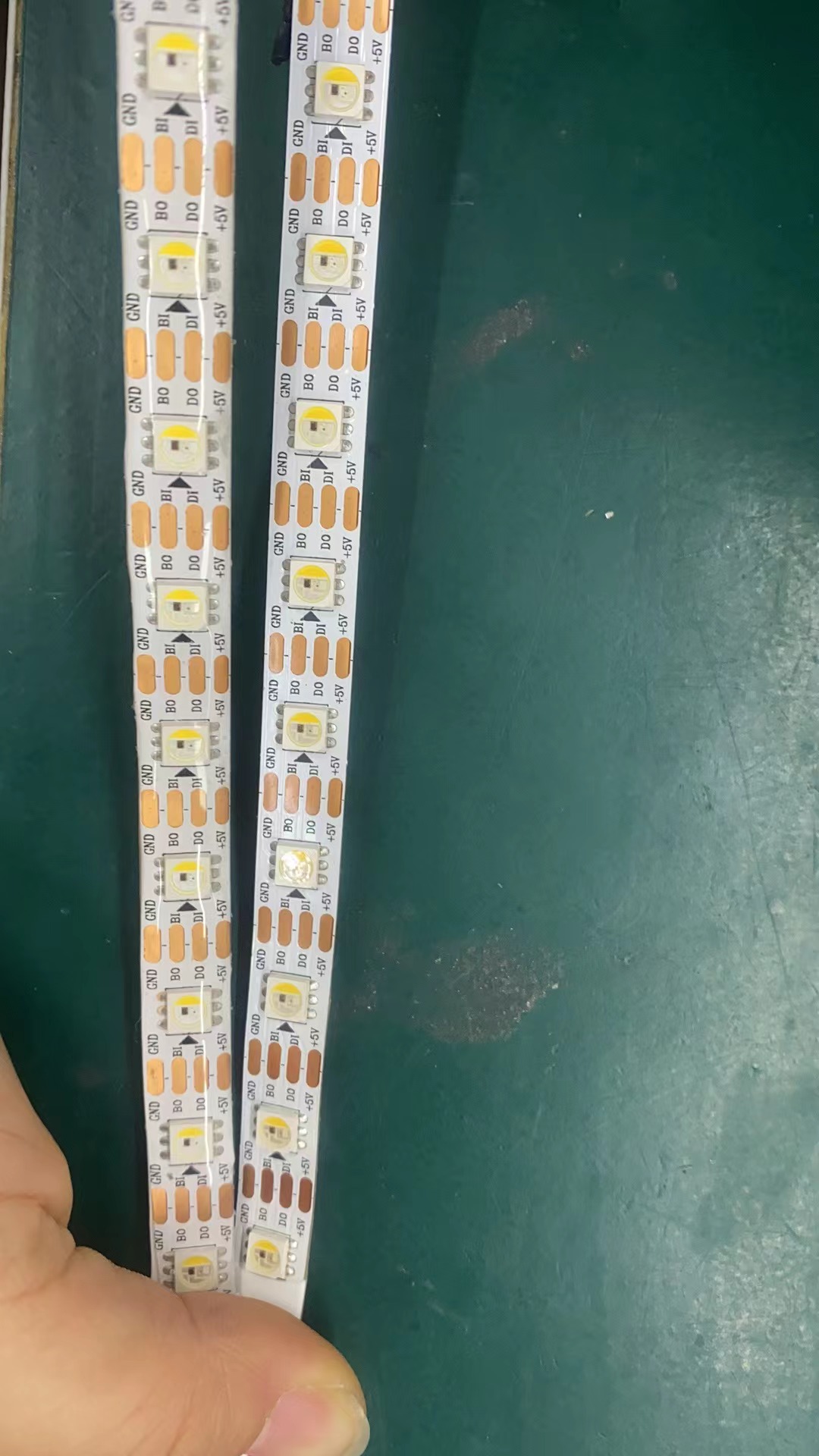

the ws2813B 5050 RGBW pixel led lamp



2813 rgbw led strip.jpg

there is 10mm with RGB color also (30led and 60led and 144led per meter optional)

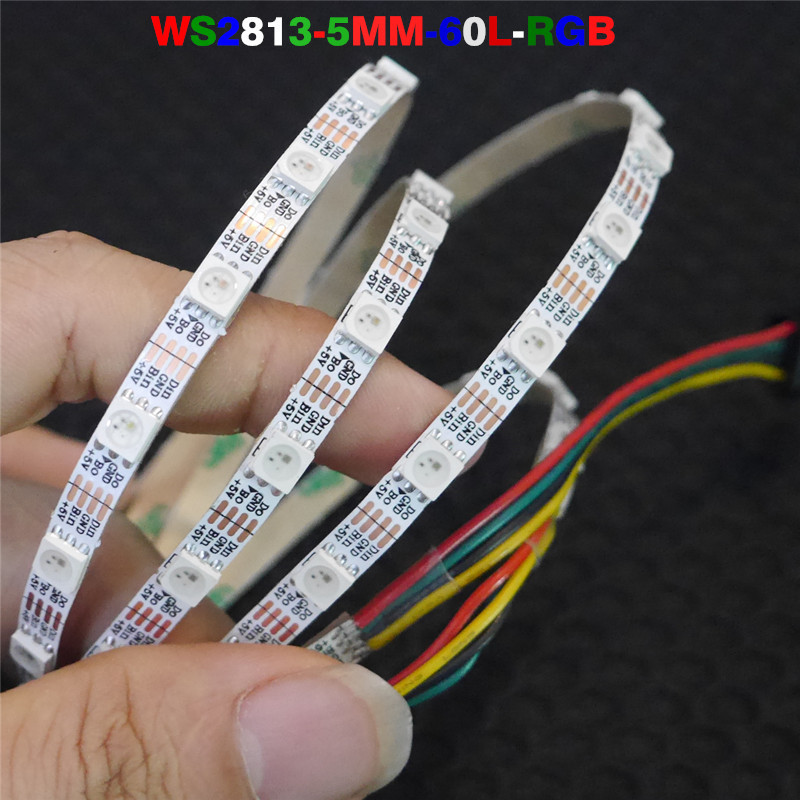

5mm optional(but RGB color)
