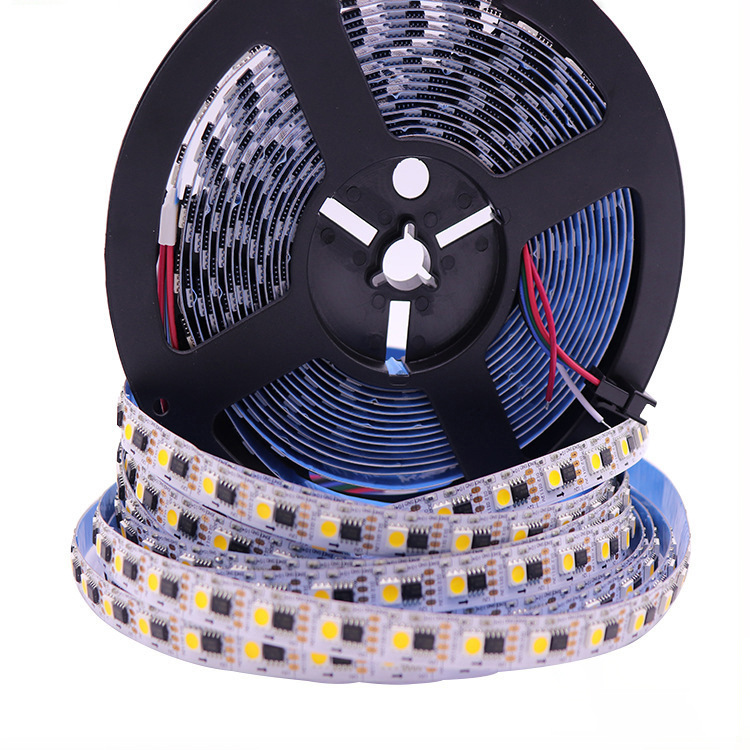

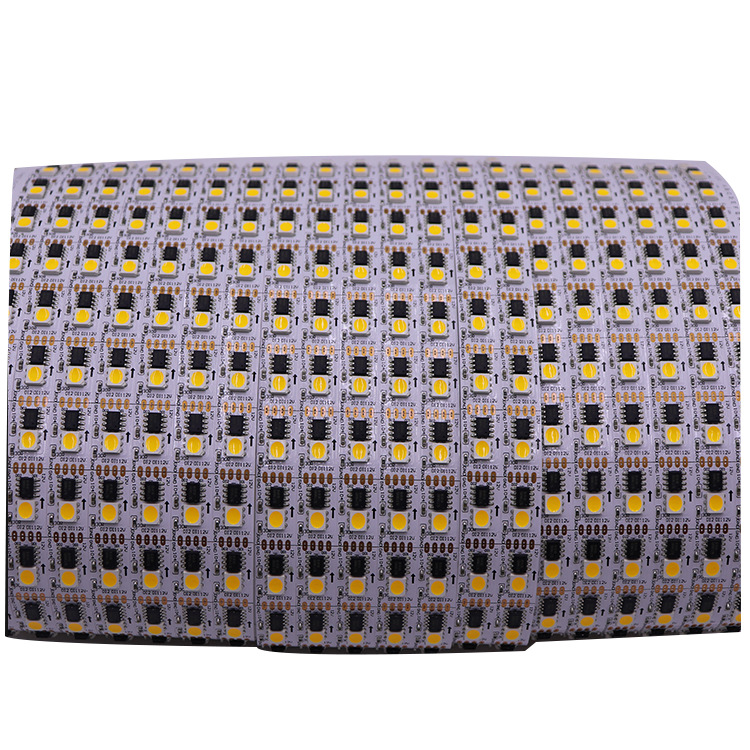

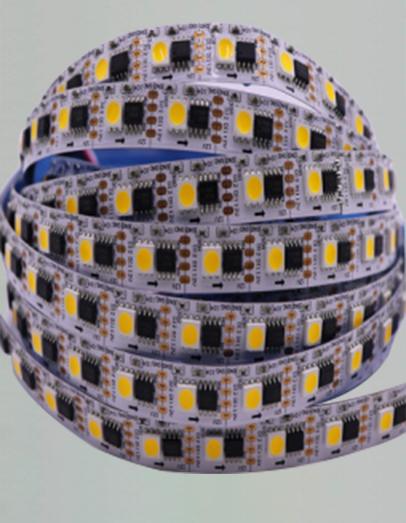

Addressable 12V Double Data GS8208 5050 white pixel LED Strip 60leds 60pixels/m

Addressable 12V Double Data GS8208 5050 white pixel  LED Strip 60leds 60pixels/m with 12bits gray scales

RGB color optional

Specification

• IC Type: GS8208 Double data non built-in IC

• Item: RL-STR-GS8208-5050-white-12V

• LED Type:High Brightness 5050SMD LED,

• LED Qty :20/48/60LEDs/m available

• White PCB

• 16.4 ft / 5m Reel,

• High Quality white 5050 smd  LED,

• Viewing angle:120 degree,

• Gray Scale:12bits

• PWM refresh Rate: 6K HZ

 Advantages

GS8208 is a type of double data led strips, with the advantage that when one led broken down, the signal continue transfer, and the other leds still work without any influences.

It is the same function one further to the ws2815/ws2813 led strip, but non built-in IC, quality good for project.

Even our GS8208 LED Strip is 12v, but still each pixel addressable, each led with one GS8208 IC programmable.

Besides, for installation, the 12v voltage is much convenient for clients and to some extent better solved 5v led strip voltage drop issue.

• IC Type: GS8208 Double data non built-in IC

• LED Type:High Brightness 5050SMD LED,

• LED Qty :60LEDs/m （30led 144led per meter optional）

• White PCB

• 16.4 ft / 5m Reel,

• High Quality RGB LED,

• Viewing angle:120 degree,

• Gray Scale:12bits  4096

Waterproof  & Dimension:

• Waterproof IP grade :IP20 Non-waterproof with 3M sticker on the back, Size:5000*12*2.5mm

• IP65 waterproof is silicone gel or epoxy on the surface,Size:5000*12*3mm

• IP67: silicone tube,Size:5000*14*4mm

• IP68: silcone gel(or epoxy) inside silicone tube.Size:5000*14*4mm

 Applications:

Widely used for decoration use, hotels, clubs, shopping malls,night bar, disco
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting

Dimension

Connection chart

All kinds of Pixel LED chip difference as follow

click here to download the datasheet of GS8208 LED chip please ( IC  built-in or IC outside optional)

There is 11mA for IC built-in  only(which support one ic one led with 12V)

there is 15mA for GS8208 IC outside  (which support one ic one led with 12V)

4_GS8208.pdf

if you donot need program inside the ic chipset --try GS8208B Ic chipset .

08是RGB串联驱动，上面只有一个vdd的电阻。

08 is an RGB series drive, and there is only one vdd resistor on it.

There is GS8206 ic chip --which  support wide voltage (Dc5V -24V) also with programs inside .
