Introduction

Led type: 5050 RGB+W led ( 4 chip built in one LED lamp)
IC type: TM1814
PCB Width:10mm/12mm optional
Led lighting angle: 120°
LED Q’ty:  60led/m.
IP Rating IP20, IP65, IP67, IP68.
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
6 LED 1 IC with D24V ,3 LED with 1IC with DC12V, can be made into high-density high-definition display;

Advantages:

1：we improved the  SMT  Process work and overcomed the  Problem with connecting Tin ,and make perfect digital led strip,

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.24V,12V  optional ( 3leds one IC with 12V, 6leds with one IC with 24V)

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . ever 3 LEDcan be cut with 12V, ever 6 LEDcan be cut with 24V,

7. 60M . 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9:PWM refresh rate: 400kHz, transfer speed 800k bps

10. Installing : screw+silicon clipand 3M adhesive on back side for sticky

11.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

12. nonwaterproof ip22  (naked PCB )  waterproof  Ip54( silicone gel coating ) waterproof Ip67( silicone  Tube coating) waterproof Ip68 ( silicone gel inside the silicone tube)

RL-STR-TM1814-5050RGBW-60-12V-10mm.pdf

Picture Details

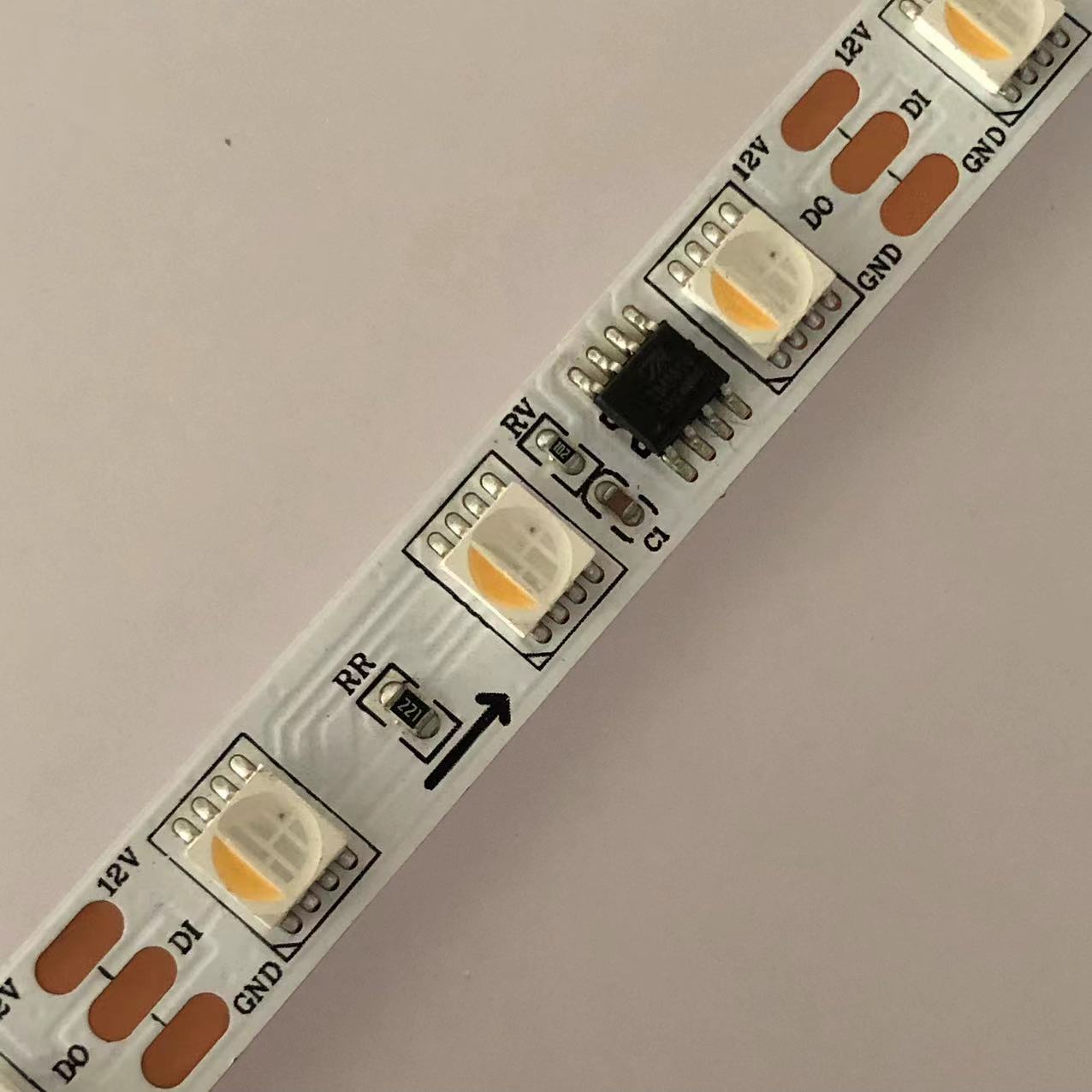

12V 20pixels60led RGB+3000K (35um35um copper ) 4000k 6000k optional-

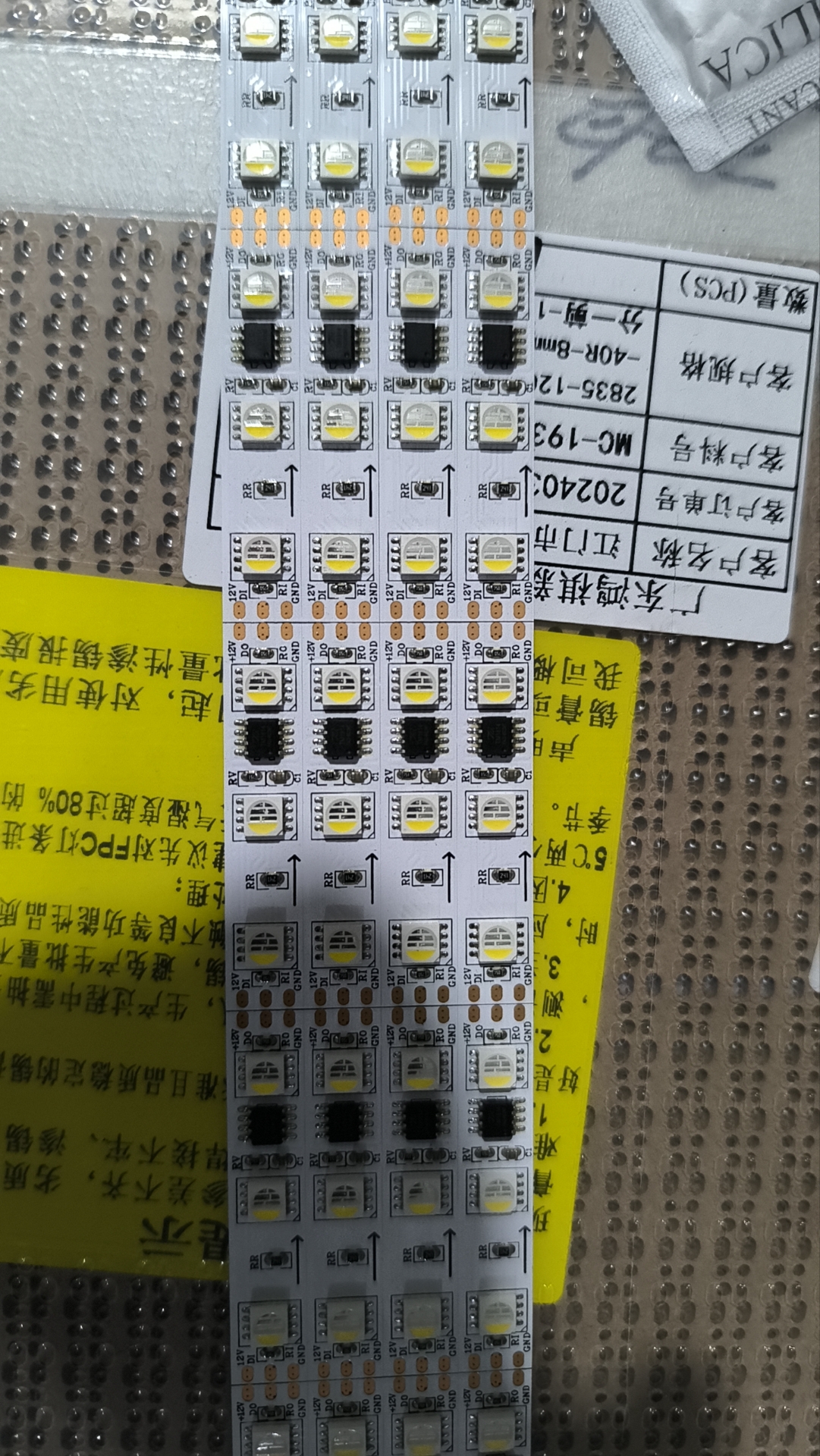

A protection resistor is added. Yours should be the previous version.

The previous version did not add resistors at the beginning and end, only two resistors.

We added short-circuit resistors later. The four-channel  rgbw protection resistor.

There is 24V TM1814 5050 RGBW led strip pcb with 10mm width base on 35um 35um copper

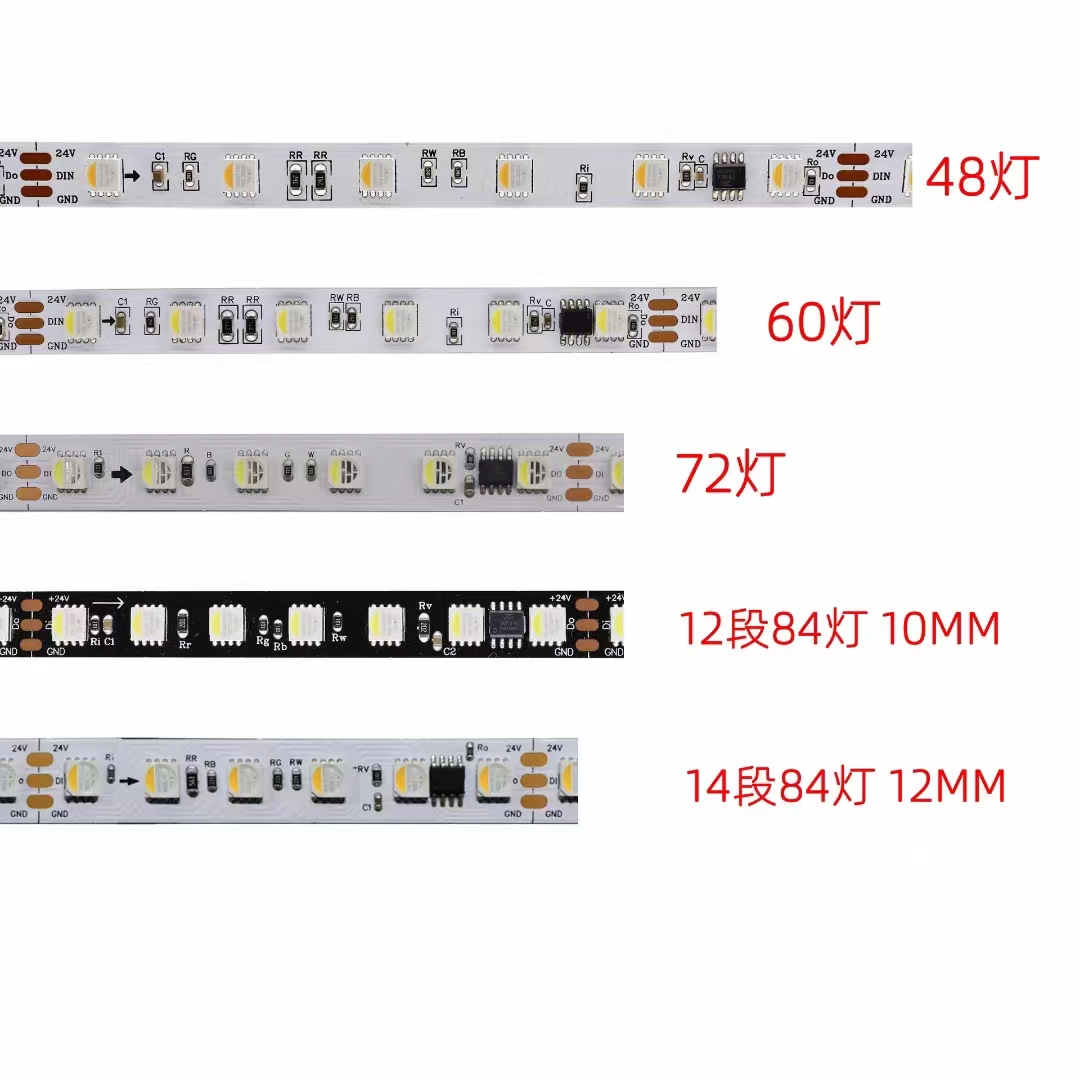

below led quantity optional per meter

wire define

red: Dc24V +

Green: Data

white: GND ( Dc24V -)

we did  4 hour aging test before delivery always
