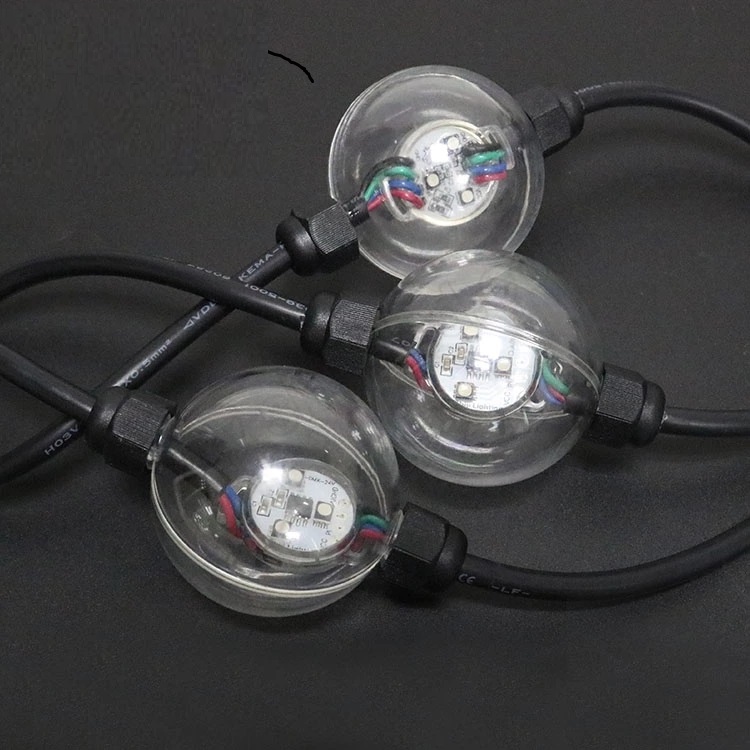

| Part No | RL-50mmB-ICRGB | ||

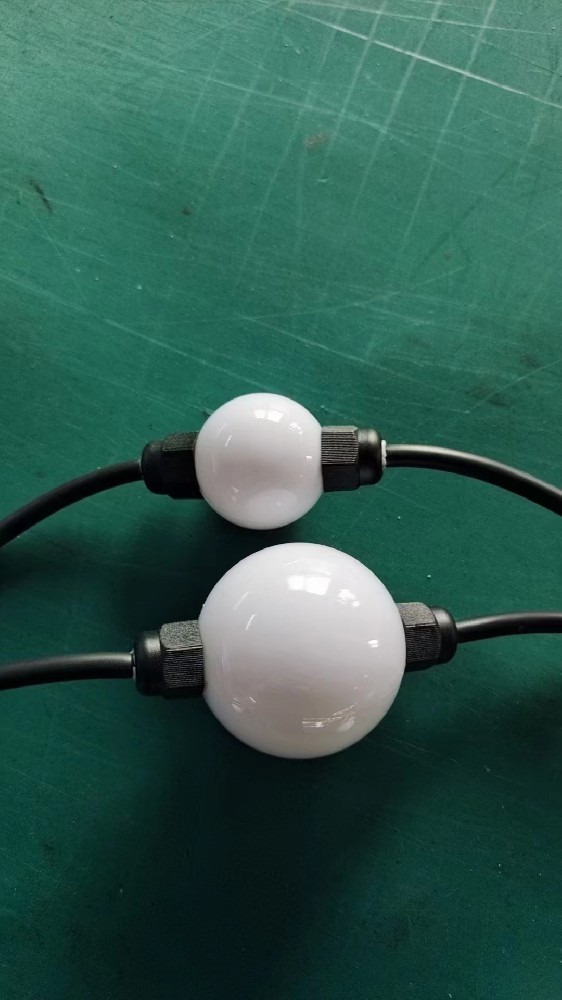

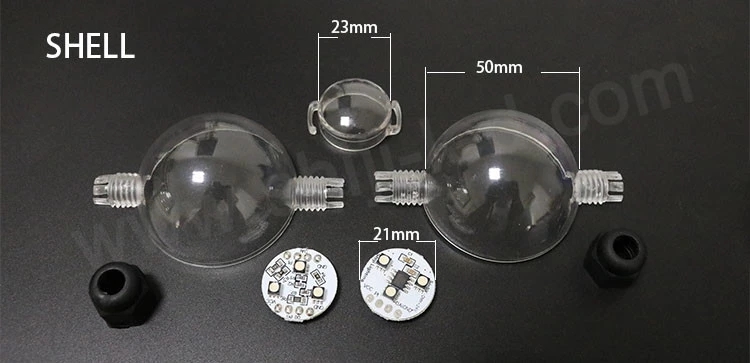

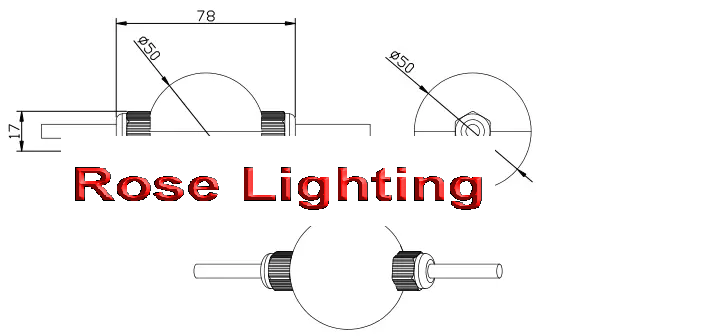

| Diameter | 50mm/35mm size optional | ||
| Color | full rgb color,8bit,256 gray scale | ||
| LED Qty | 6pcs 3535 SMD RGB LED | ||
| Input Volt | DC24V | ||
| control | ucs1903(TTL/SPI control) dmx512 optional | ||
| Power | 1.44W/pc | ||
| Driver method | Constant current circuit | ||
| Viewing angle | 360degree | ||
| Protection Level | IP67 | ||
| Certification | CE and RoHS | ||
| Standard connection | max 40pcs module per string | ||

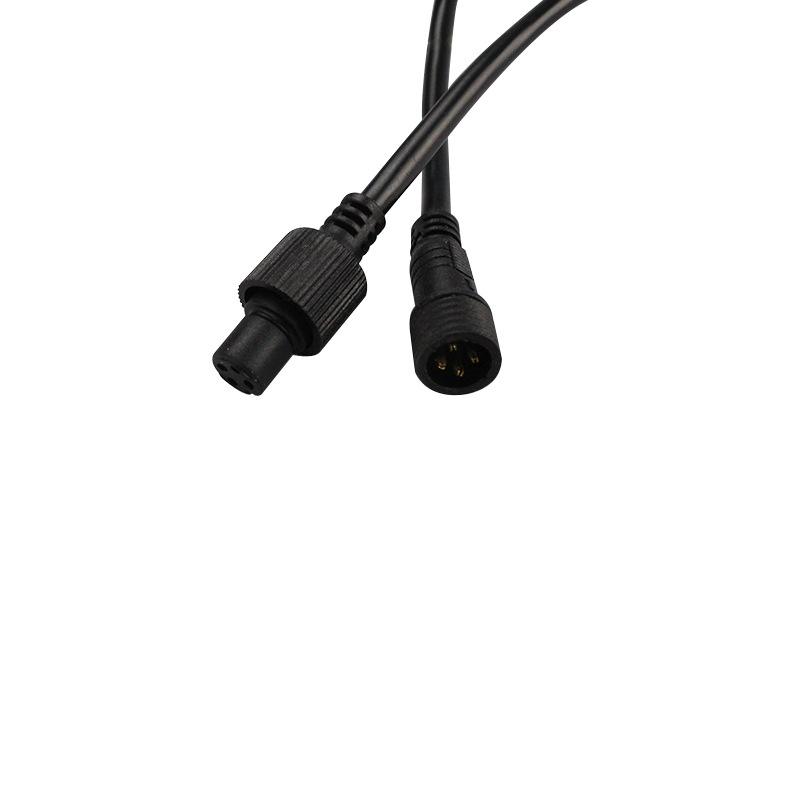

| Standard wire length | 150mm or customized length as you required | ||
| Housing | transparent /milky white PVC | ||
| Lifespan | <35000 hours | ||
| Operation temperature | -40- +50 | ||
| Store temperature | -50- +60 | ||
UCS2903 IC chipset ( SPI control) Dmx512 IC control( dmx512 protocel) optional
work with sd controller ,arduino,artnet ,,ect all led controller compatible with UCS2903 IC
1)For our products, glue inject fully into, so strong waterproof; PU glue sealing,not easy to crack,High protection grade.
2)Our chip IC using Taiwan Epistar chip, with high brightness, lighting color consistency, good color saturation, strong stability, so that our lifetime of pixles will over 35000 hours,
3)Our wire cables and case are using antu-cold, anti UV, flameresistant, can be used in outdoor for long time.

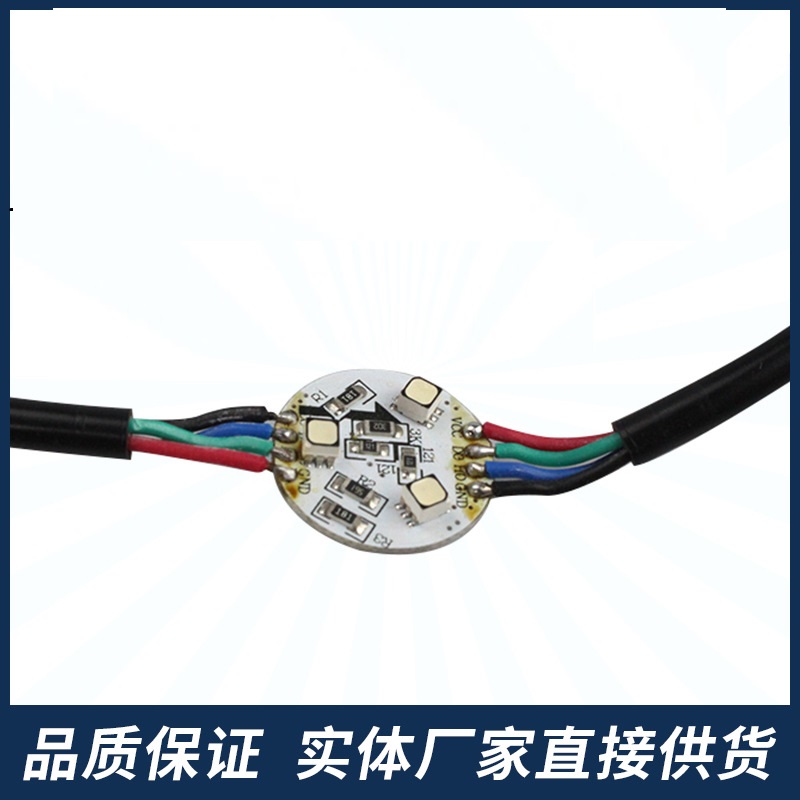

4)These products are made by SMD3535 RGB high brightness LED, with big view angle.
5)With special snap joint construction, suitable for all kind of board. Directly to install after dig the holes,installation is easy and quickly, very convenient.
