Dc12V spi dmx512 26mm diamter 3 LEDs Pixel Point 5050 RGB  LED Pixel Module RL-263-ICRGB

Dc12V spi dmx512 26mm diamter 3 LEDs Pixel Point 5050 RGB LED Pixel Module RL-263-ICRGB1. Individually control: 1PCS LED pixle & 1IC(UCS1903/UCS2903)(dmx512 ic optional)2. Color and effect: addressable lights youcan set to any color, or animate,like runn
Products Inquiry

Product Details

Dc12V spi  dmx512  26mm diamter 3 LEDs Pixel Point 5050 RGB  LED Pixel Module  RL-263-ICRGB


1. Individually control: 1PCS LED pixle & 1IC (UCS1903/UCS2903)(dmx512 ic optional)
2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
3. Combination: Plastic shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables...
4. Waterproof: Yes IP66, with silicon glue injection waterproof protection.
5. Installation: Easy to install, you'd better drill the hole about 27 - 28mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply: You must use a 12V DC power supply to power this pixel, do not use higher than 13V
or you can destroy the entire pixel.
8. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC12V+, GND-,
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
9. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.

Product  PNRL-263-ICRGB
LED ChipEpistar SMD 5050 RGB LED chip
IC ChipUCS1903, UCS2903
Input VoltageDC12V
Watts0.72W/PCS
Cover ColorTransparent/Frost cover
Connectors3PIN JST, also can be waterproof connectors
Dimension26mmx33mmx34mm
LED Qty3LEDs/pcs
Cable Length10cm usually, also can be customized
CertificationCE, RoHS

Connection

HOT sale UCS1903 26mm pixel 3led rgb pont light dc12v

DMX control: LED Pixels+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...
(offline control/ PC online control)
LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)



Detailed Images

HOT sale UCS1903 26mm pixel 3led rgb pont light dc12v

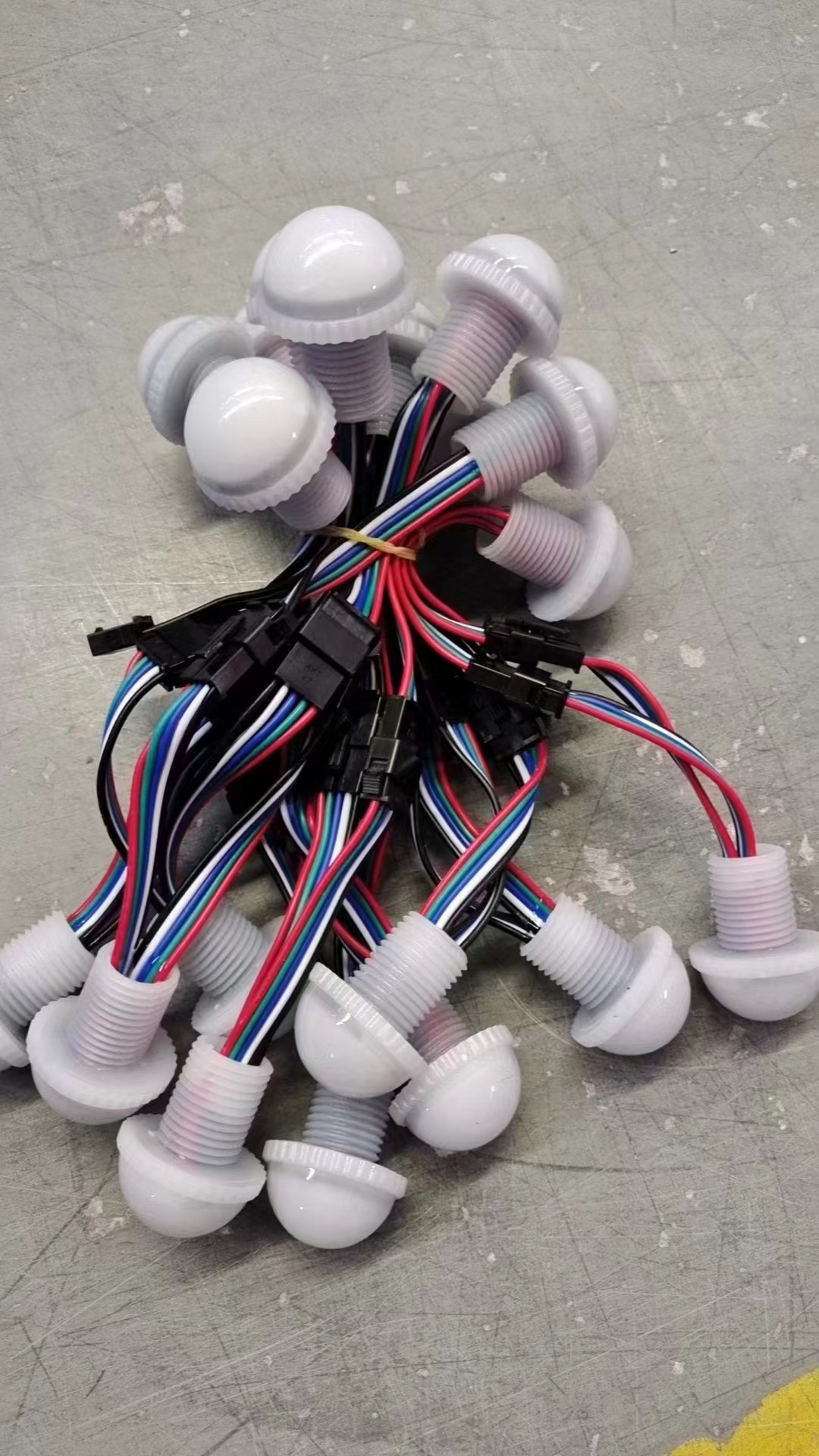

26mm led pixels, with 3LEDs/pcs--Frost(Milky) Cover, 3PIN JST connectors

Installing method: punching 26mm hole  19mm hole and 14mm hole  optional







Packaging & Delivery
  • Packaging Details

  • 20pcs/String, 100pcs/Bag, 900pcs/Carton  16.2KG/Carton
    Carton Size: 48cmx28cmx48cm

  • Port shenzhen

  • Lead Time :

  • Quantity(Pieces)1 - 500501 - 10001001 - 3000>3000
    Est. Time(days)357To be negotiated
