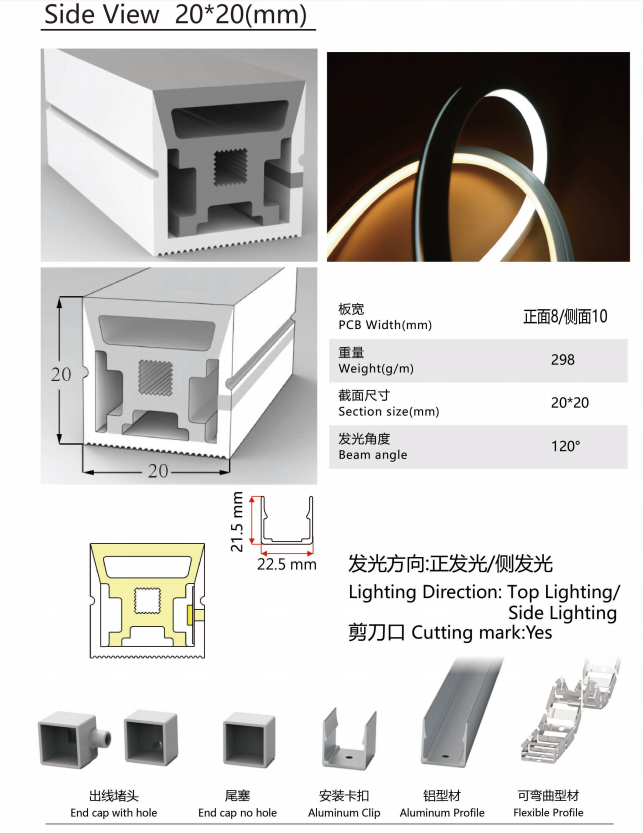

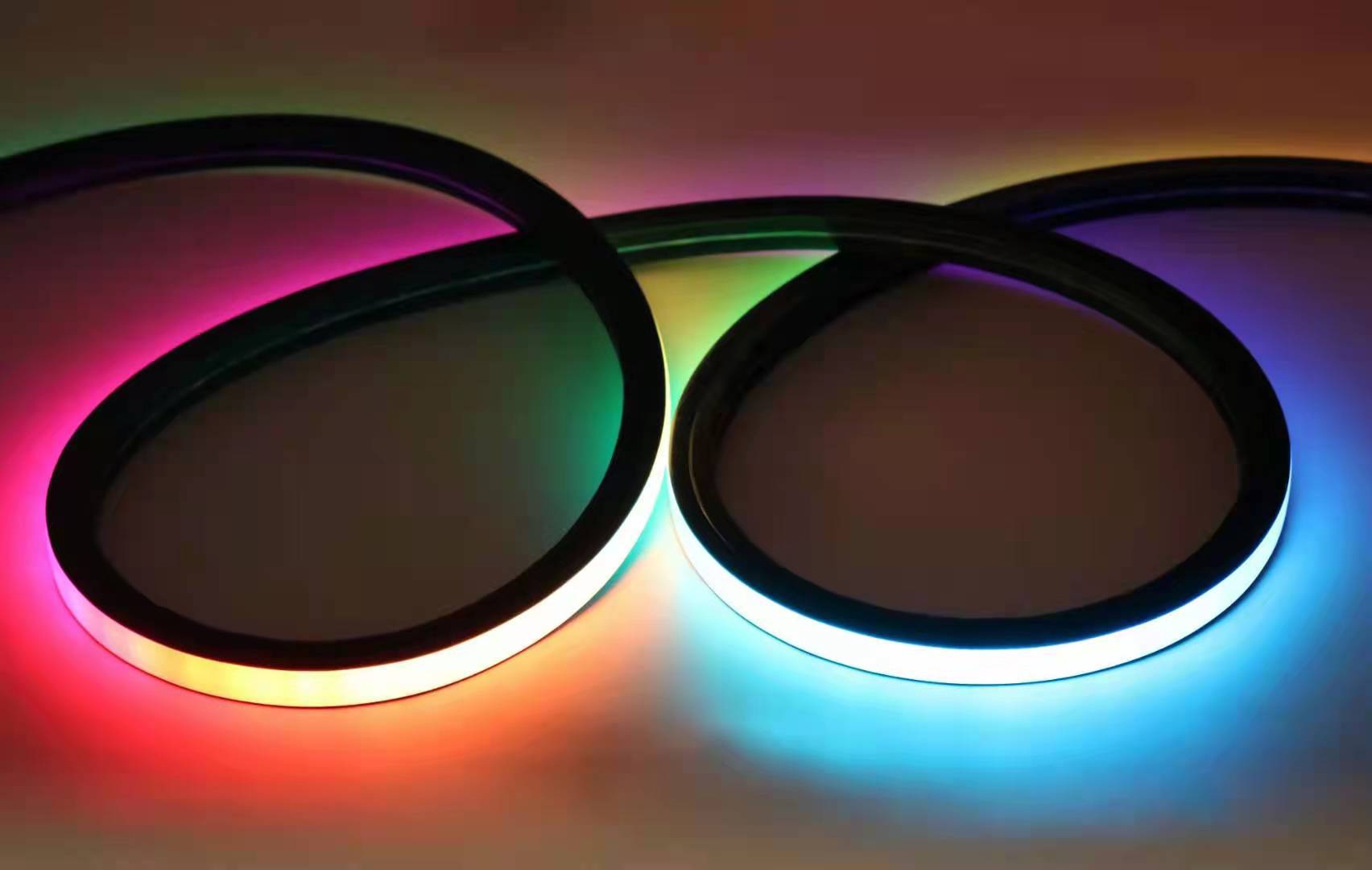

Side viewing 24V 28pixels 84led sm16703 ws2811 digital silicone Neon flex led with size 20mmX20mm(HXW)
Black shell and white shell optional
Specification:
| Catalog | Silicone Neon led tube strip |
|---|---|
| Model | RL-STR-ws2811-5050 RGB-14P-84-24V |
| LED Type | RGB smd 5050 |
| Warranty | 3 years |
| Working Voltage | DC24V |
| Power | 20W/M(max) |
| FPCB Width | 12mm |
| Lamp Chip Brand | sanan |
| LED Quantity | 84leds/M |
| Cutting Unit | one led one cut |
| Color temperature /wavelength | R:620-625NM G:520-525MM B:460-465NM |
| Lifespan | 50000Hours |
| FPC | 2unce PCB board with with double cooper layer |
| Lamp Quality | Pure copper base and gold wire |
| Color | RGB addressable |
| IP Rate | IP65 waterproof |
| Size | 5000mmX20mmX20mm( LXHXW) unit:mm |

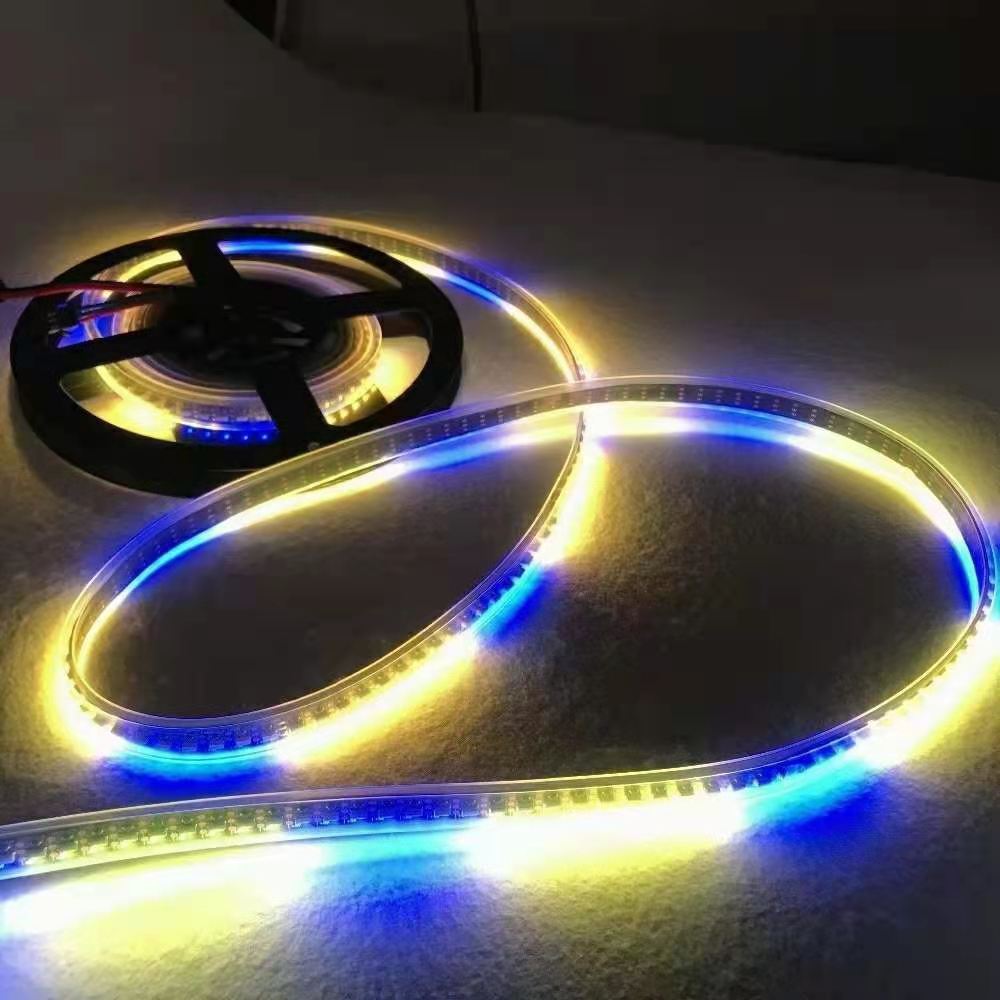

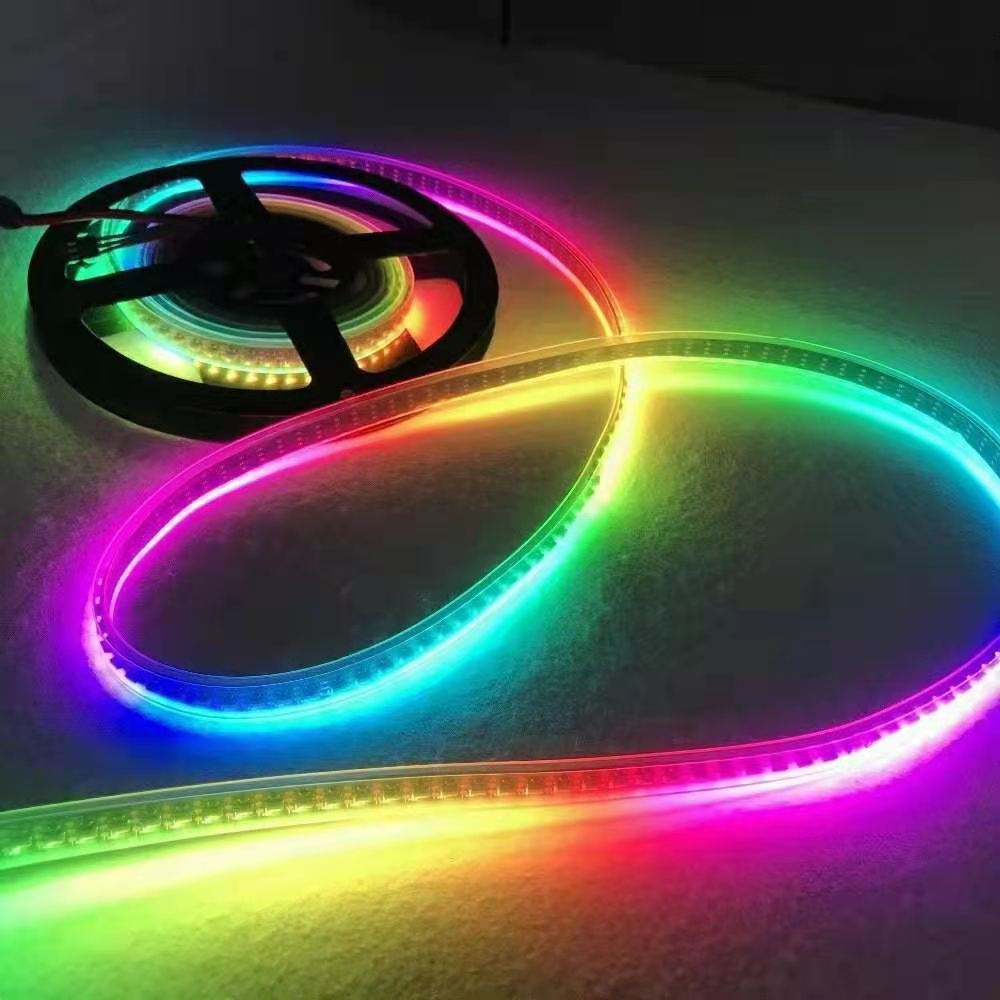

there is 84led strip inside the 20mm 20mm size neon tube

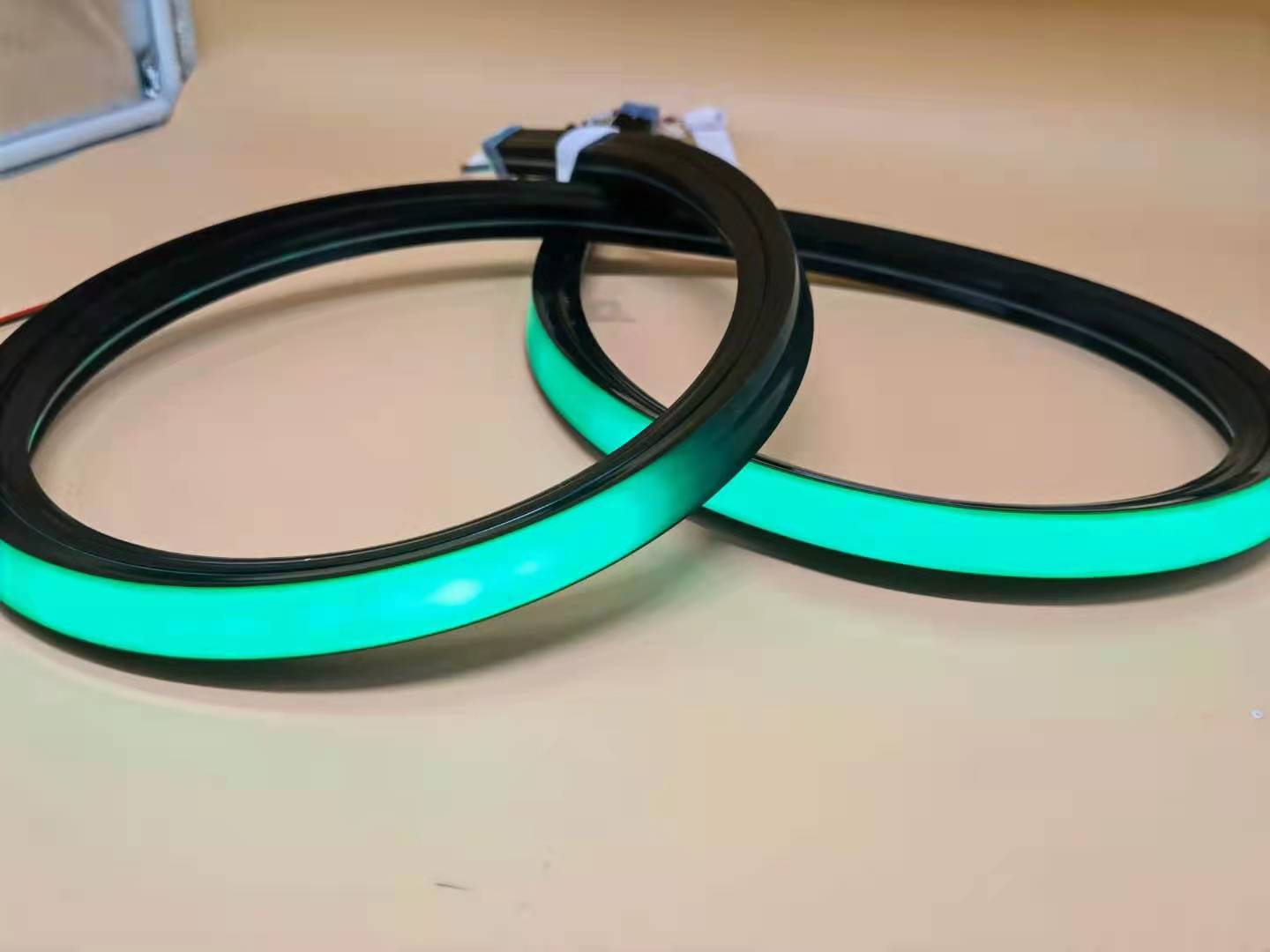

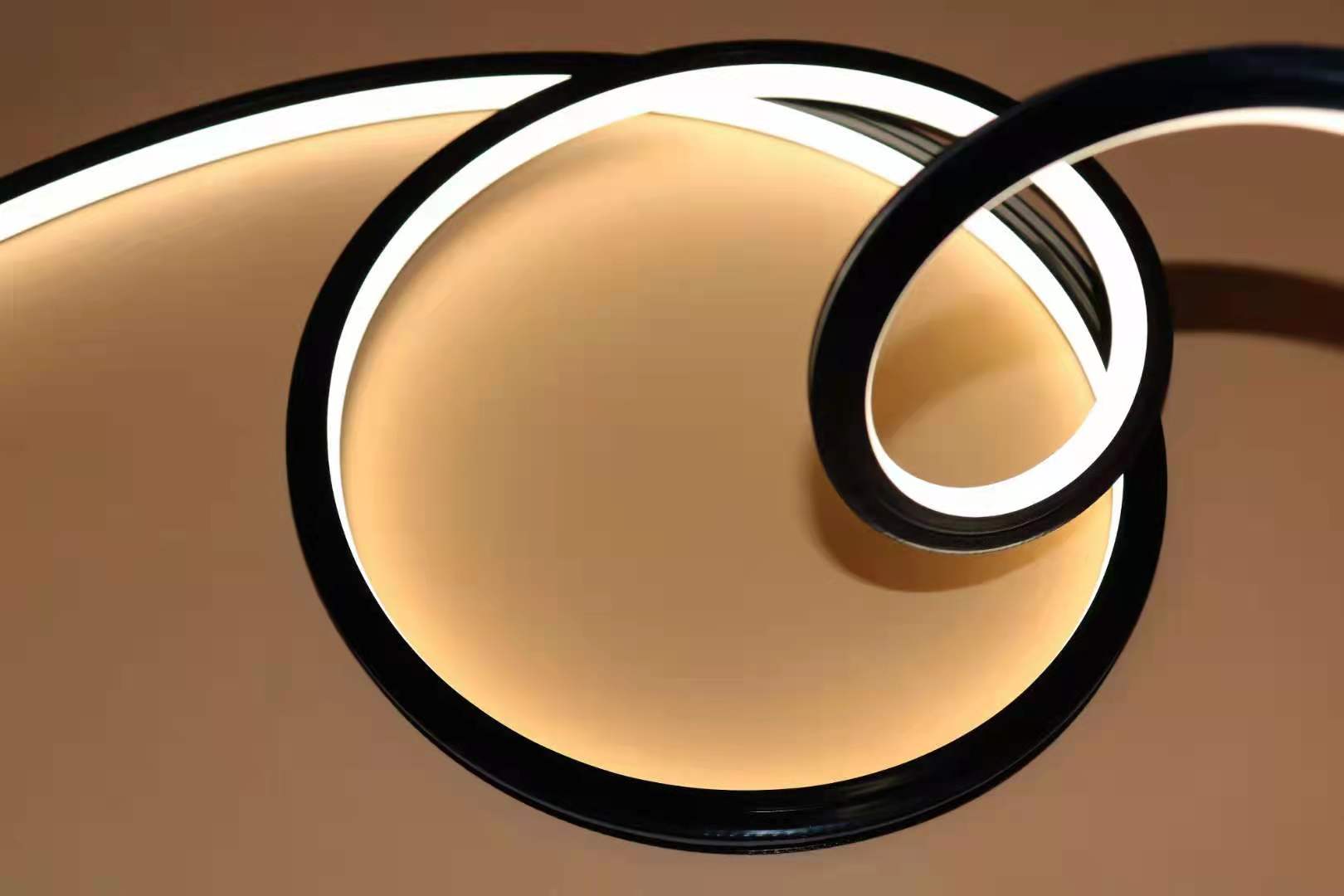

Below is video of silcione led tube in black shell VS silicone tube in white shell

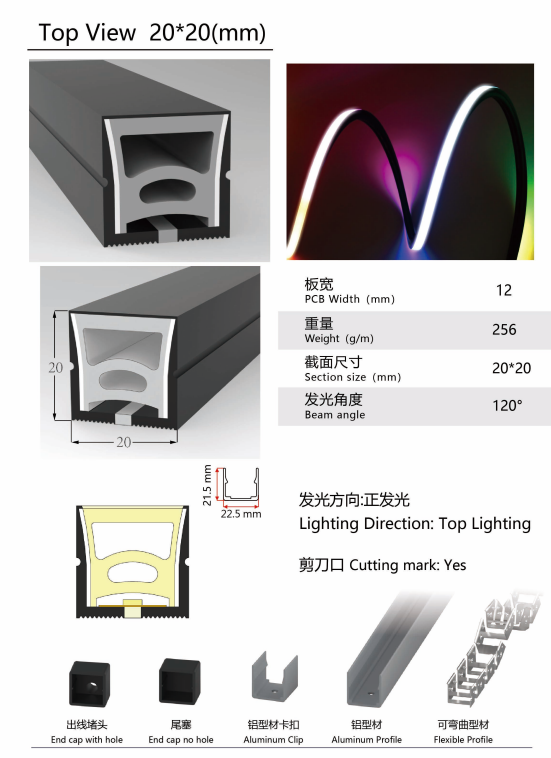

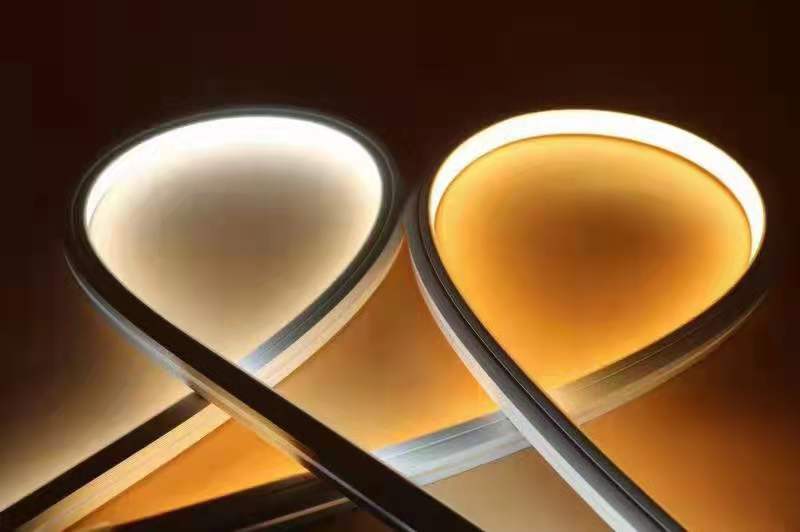

white shell optional as follow
Advantage of silicone Neon Tube for led strip
1. there is no dark area and No light leakage for digital flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .

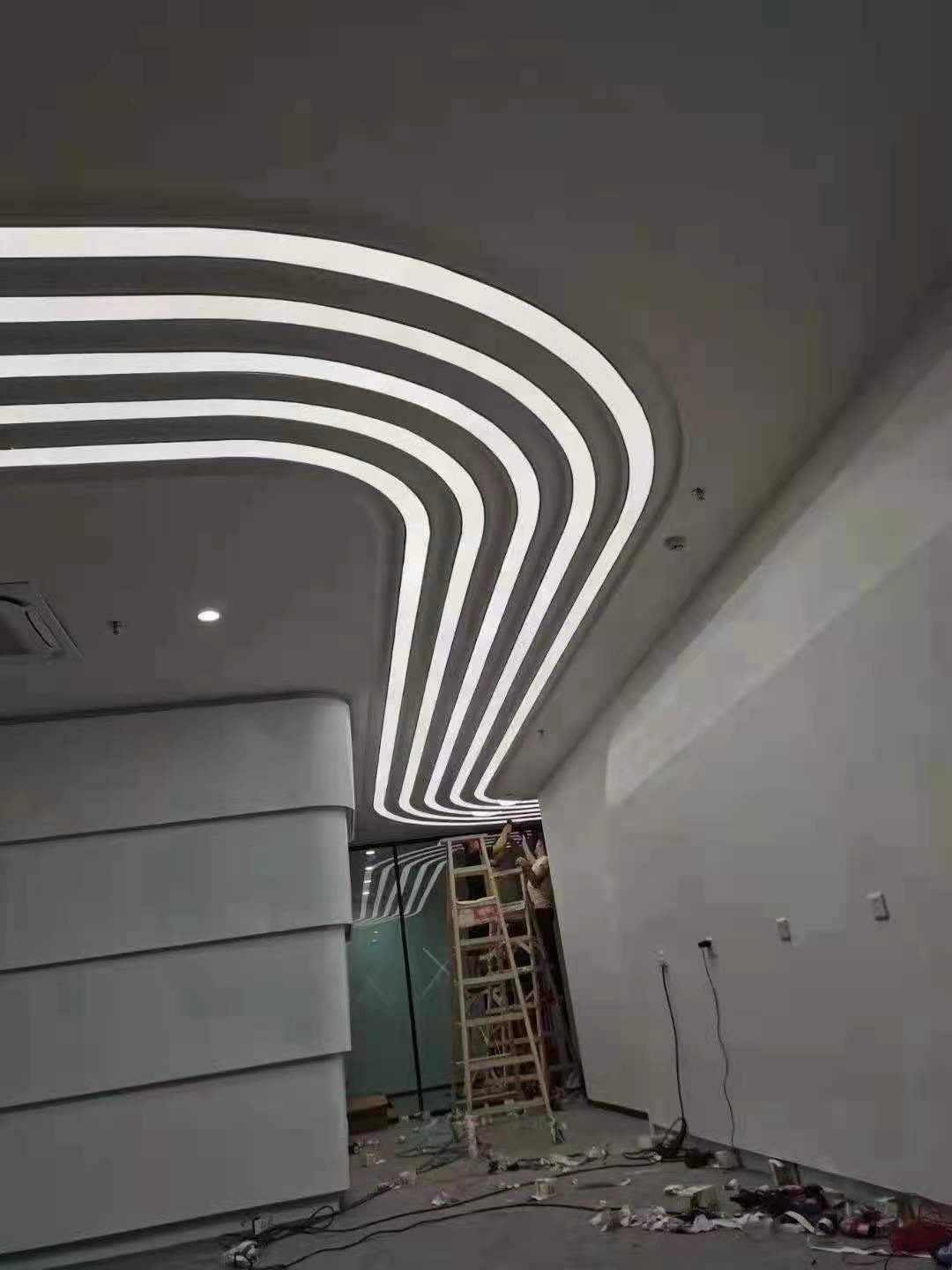

4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,
no color change outside within 3 years warranty
6. all monochrome series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，
can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
Click here to download all tybes of silicone neon tube sizefor led strip please .
