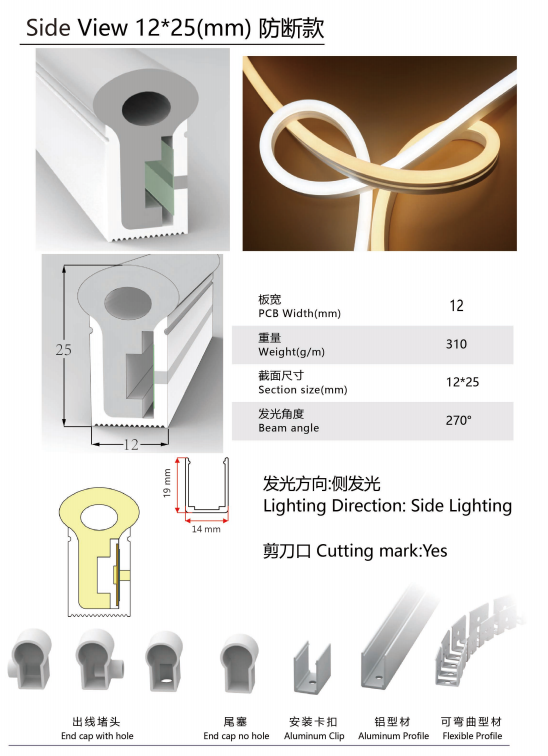

Side view 1023 1225 1020size flex silicone neon 1934 rgb pixel led tube 20pixels 120led/m-no dark light spot
Specification
| Catalog | Side view 1225size flex silicone neon 2835 rgb pixel led tube 20pixels 120led/m |
|---|---|
| Model | RL-STR-1934-5050RGB-120-20P-24v-12X25 |
| LED Type | 5050 rgb |
| Warranty | 3 years |
| Working Voltage | DC24V |
| Power | 12W/M(max) |
| FPCB Width | 10mm |
| Lamp Chip Brand | sanan |
| LED Quantity | 120leds/M |
| Cutting Unit | every 6LED can be cut as a individual part |
| Brightness for each 3535 led | 2100MCD |
| Lamp Quality | Pure copper base and gold wire |
| IC Type | TM1934 ( 20Pixels per meter) |
| beam viewing | 120 degree |
| Color | RGB addressable |
| waterproof Grade | IP65 waterproof |
| silicone tube | 12mmX25mm |
( 1934 led stirp inside the silicone tube to make 120 viewing,below is the specification for the 10/12mm width pixel led strip )
There is 10mm width pixel led strip inside
click below for details for the 24v 20 pixels 120pcs led rgb led strip .
https://www.rose-lighting.cn/list_3/10mm-1934-pixel-led-strip-.html
we can make black tube also
Below is the black silicone tube covering VS white silicone tube
Advantage of silicone flex led tube
1. there is real flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,
it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,
no color change outside within 3 years warranty
6. all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，
can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
