3000k 4000k 6000k Dc24V 15W 48led 16mm16mm size 360 degree bendable flexible white led wall washer
3000k 4000k 6000k Dc24V 16W 48led 360 degree bendable flexible white led wall washer
3000k 4000k 6000k Dc24V 15W 48led 360 degree bendable flexible white led wall washer
LED flexible wall washer, as the name suggests, is a flexible and bendable LED linear light,
because its lighting effect will flow through the wall like running water, washing and lighting the wall, so it is also called LED wall washer.
Flexible wall washer, because of its unique flexible structure, enables the product to be bent in a certain arc in all directions, which solves the difficulty of splicing traditional LEDs at corners, and is often used for wall washing in arc-shaped buildings.
Canming E-commerce's new outdoor 360° flexible wall washer has been upgraded on the basis of the previous product, so that the product has a long-term reliable waterproof design of IP67, and also has a certain outdoor anti-UV ability, which can be directly exposed to the sun Under the irradiation, the following introduces the characteristics of this product.
Using TPU material, anti-yellowing, high temp erature resistance, corrosion resistance,
weak acid and alkali resistance, good flexibility; PU glue potting, strong adhesion, good durability, high reliability;
It can replace the traditional hardware wall washer or LED light bar, with small size, light weight and flexibility; flexible application and easy installation; a variety of beam angles are available,
Suitable for different environments/locations; Dual color, with the led dimmer system,you can get the lighting effect you want .
Feature 2: Flexible structure design, the product can be flexibly bent up, down, left and right, solving the difficulty of bending and splicing traditional LEDs at the arc surface, and has a wide range of applicability;

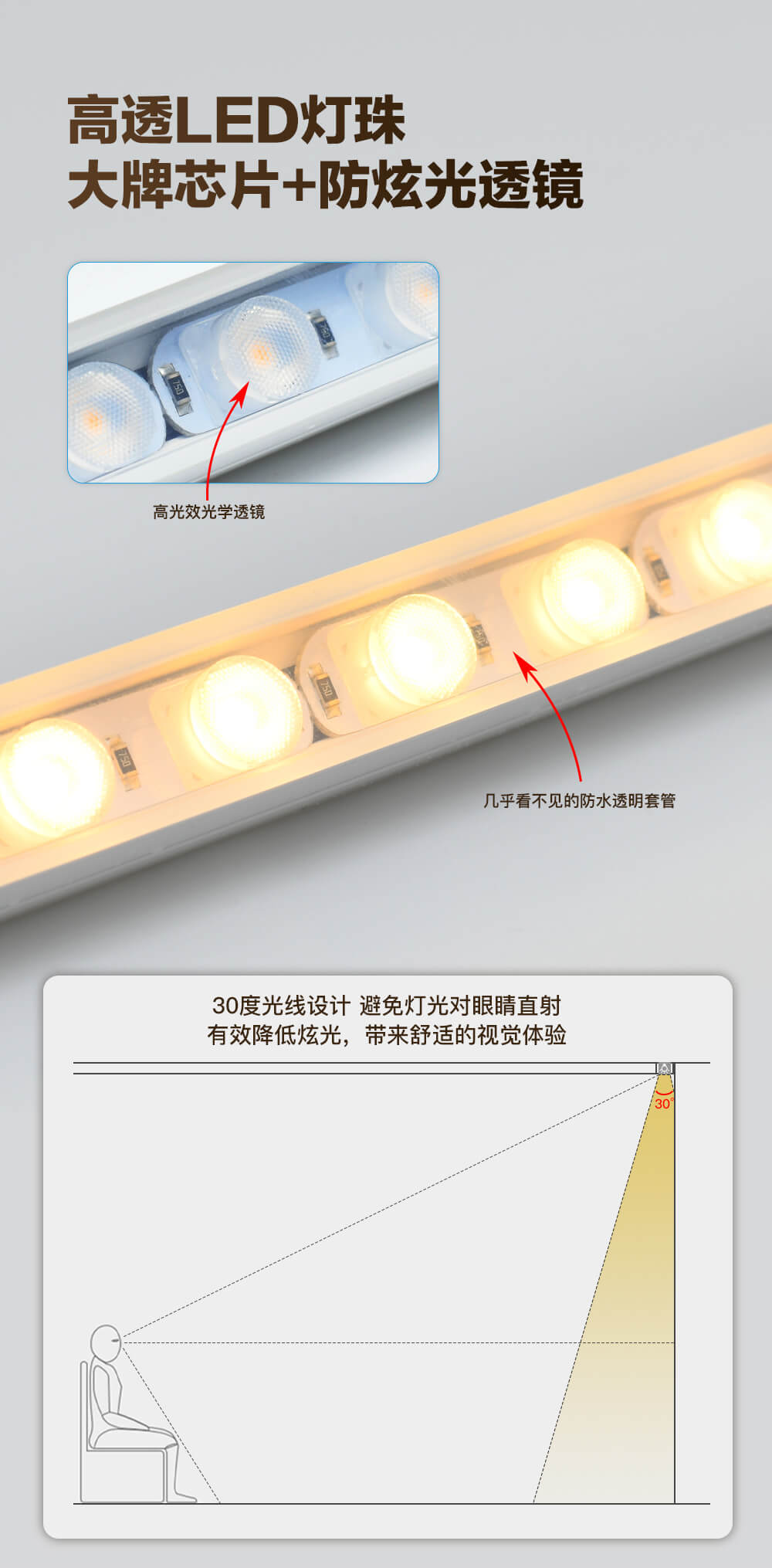

Feature 3: The lens adopts Fresnel optical design, the bead surface emits light, filters the variegated color, color spot, yellow light, and the light is uniform and soft;
Feature 4: The shell silicone tube is extruded in two colors, and the double-end plug is highly sealed, making the product up to IP67 protection level;
Feature 5: Zero distance between splicing and docking, to maximize the splicing without gaps and dark areas;
Feature 6: The light is uniform and soft, the distance from the wall is 5cm+ during installation, and the lighting effect of the light can make the wall washing height up to 3m;
Feature 7: Standard light strip 1m/strip, easy to package, transport and install, single-ended power supply can support 5m connection;
Feature 8: The color rendering index is as high as 90+, and the standard colors are 2700K, 3000K, 3500K, 4000K, 6500K.

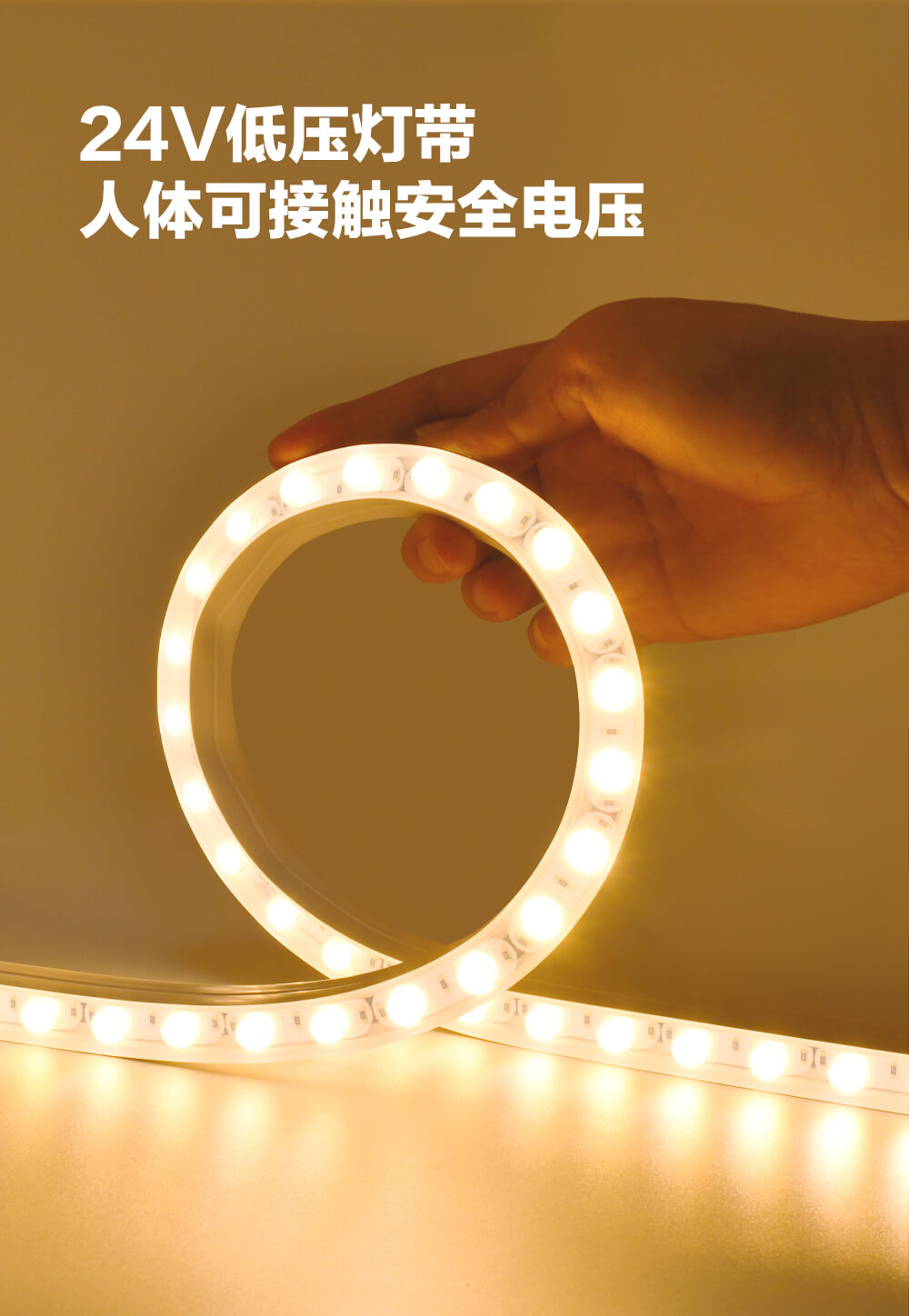

it can be 360 degree bendcable ,but make sure the diamter >30cm
Dc24V 16W/meter 48pcs LED/meter
2led as one cut unit
Color: 2700K 3000K 4000K 6000K other color optional
warranty: 3 years
Installing distance 5cm away from the wall
can light up the wall to 2meter long tall
There are two Type: Side viewing and top viewing for 360 degree bendable
The size of the new product body is 28*25mm, and its length is 1m/bar, which is very convenient for installation and transportation.
The new product redefines the application of the wall washer. The soft silicone allows the product to be bent up and down, left and right, and the safe diameter of the bending arc is not less than 300mm. Within the allowable bending diameter, the LED of this product has not been damaged by repeated bending experiments.
1 It can be bent up and down and sideways. What is the minimum bending radius? Will it be damaged or damaged by bending?
Answer: This product can be bent up and down, left and right, and the minimum safe diameter of the bending arc is 30CM. Within the allowable bending radius, this product has not been damaged after more than 200 times of back-and-forth bending tests.
2. What is the maximum distance of docking, splicing and series connection?
Answer: The maximum splicing cascade of this product is 4 meters for single-end connection,
the power is 30 watts per meter, and the total power of 4 meters is about 120 watts. If the double-ended connection is as shown in the figure below:

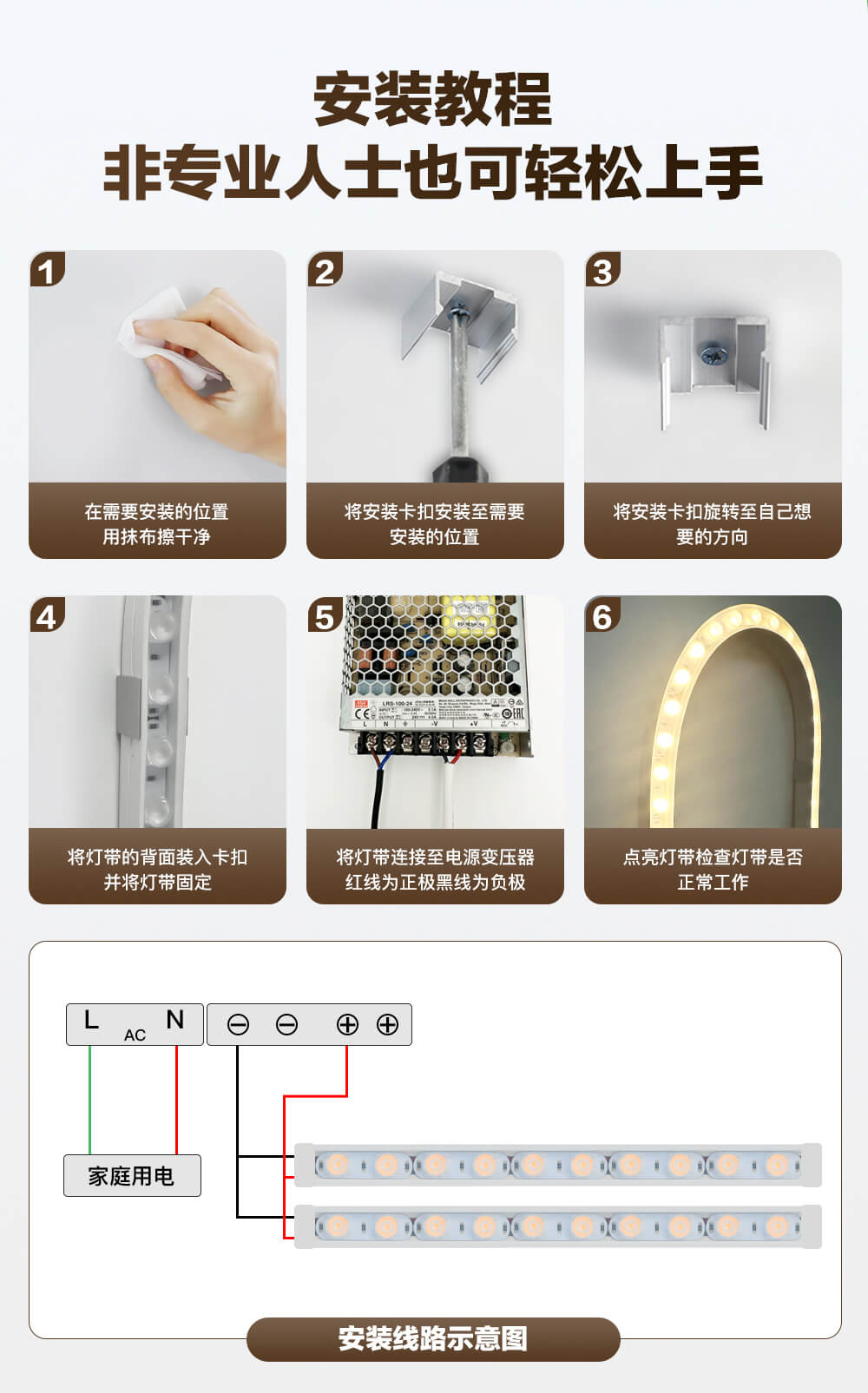

Product Installation Instructions
(1) When installing, it is recommended to install it at a distance of >5cm from the wall. This can not only increase the height of the wall washing, but also reduce the exposure of the bottom light, and enhance the softness and uniformity of the wall washing;
(2) When installing, it is recommended to open a groove with a depth of 5cm+, and place the product in the groove, so as to resist the glare emitted by the light-emitting surface of the product. The effect of light irradiation can brighten the walls of 2-3m.
What are the advantage of flexible led wall washer VS traditional led wall
As the headline suggests, the flexible led wall is a soft, bendable lens with a light-emitting angle product,
allowing the lighting effect to wash through the wall like running water. It is mainly used for commercial buildings, bridges, docks, and architectural quantitative decorative lighting. , And it is also used to outline the outline of large buildings. It has the characteristics of energy saving, high light efficiency, colorful colors, long life, etc., so it is widely used.
The flexible led wall mainly redefines its projection distance and light concentration uniformity by adjusting the two-way light-emitting angle of the LED light source through the secondary light distribution.
The function of the flexible wall washer is more focused on the performance from line to surface,
the three-dimensional display of the building The appearance of the outline belongs to the "surface light" in terms of the light emitting effect.
The difference between flexible led wall and linear led wall: The traditional LED wall washer has the following shortcomings because of its shape is a long strip of hard aluminum profile, called LED linear light/spot light, for short: 1: The fixed strip shape cannot be bent. Conventionally, one meter is not suitable for the installation of some special-shaped wall edges or curved walls. 2: Conventionally, one meter is used as a unit, and it is impossible to achieve 2 meters or longer. The main reason is the high cost of packaging and transportation. 3: The traditional hardware aluminum LED led wall is huge and heavy, and it is not as flexible as the flexible led wall.
The reason why the flexible led wall is so popular is its several important features. It has solved some of the pain points and difficulties of the industry in history at one time!
Feature 1: arbitrary bending Any bending in different directions can be realized on the same product, with a bending radius of 25CM. Easily solve the old and difficult problem of using multiple 0.3-meter traditional led wall to splice when encountering special-shaped buildings on the market in the past! The characteristic of arbitrary bending also makes the light from the special-shaped curved surface round and full. Feature 2: arbitrary cutting The flexible led wall can currently be cut to any length within 10 meters with a unit of 12.5CM, which effectively solves the troublesome problem of customizing many different lengths in the installation process of many special-shaped buildings, and makes the dead corner of the light almost completely disappear! Feature 3: Long power supply The flexible led wall also has the characteristics of super long power supply. A switching power supply can be brought to a length of nearly 20 meters, which brings great convenience to modern buildings that are extremely simplified in space. The long power supply makes light control easier and wiring simpler, and it also effectively improves the safety of electricity use for ground buildings. Feature 4: High-strength waterproof The flexible led wall is a silicone and metal integrated product, and its waterproof level can easily achieve IP68 level. For parks, waterfronts, cultural tourism landscapes and other places that are often flooded, "flying fish" lights are undoubtedly the best choice of lights! Feature 5: Simple and efficient installation The flexible wall washer adopts a split installation design. As long as the installation bracket is synchronously fixed to the building in the early stage of construction, the lamp can be easily buckled into the installation bracket after the building is completed. It is very simple and effectively avoids cross construction with other construction projects. The hidden quality hazards brought by the time to the lamps! Its later maintenance is also more convenient and efficient. The flexible le wall supports various intelligent controls such as monochrome, RGB, RGBW DMX512, DALI, etc.
Applicable places: It is suitable for the panoramic flood lighting of lighting projects, commercial places, subways, elevated overpasses, building exterior walls, architectural landmarks, and other internal and external walls.
Before installation (Precautions for use) 1. Before use, please check whether each part of the product is normal, and whether the power supply is damaged or incorrectly connected. 2. If there is any damage, please contact your authorized dealer or our company as soon as possible. 3. The voltage of the product must match the output power of the power supply. 4. In order to use signal synchronization, the main power input should be connected to the same power switch. 5. Be sure to keep the surrounding heat dissipation space during use to facilitate heat dissipation. 6. When you need to move, cut off the power first and follow the correct placement method. 7. Please turn off the power when you do not use the product for a period of time, vacation or typhoon weather.https://www.youtube.com/watch?v=ENjKtj7haJc
download the price list for flexible led wall washer here please
