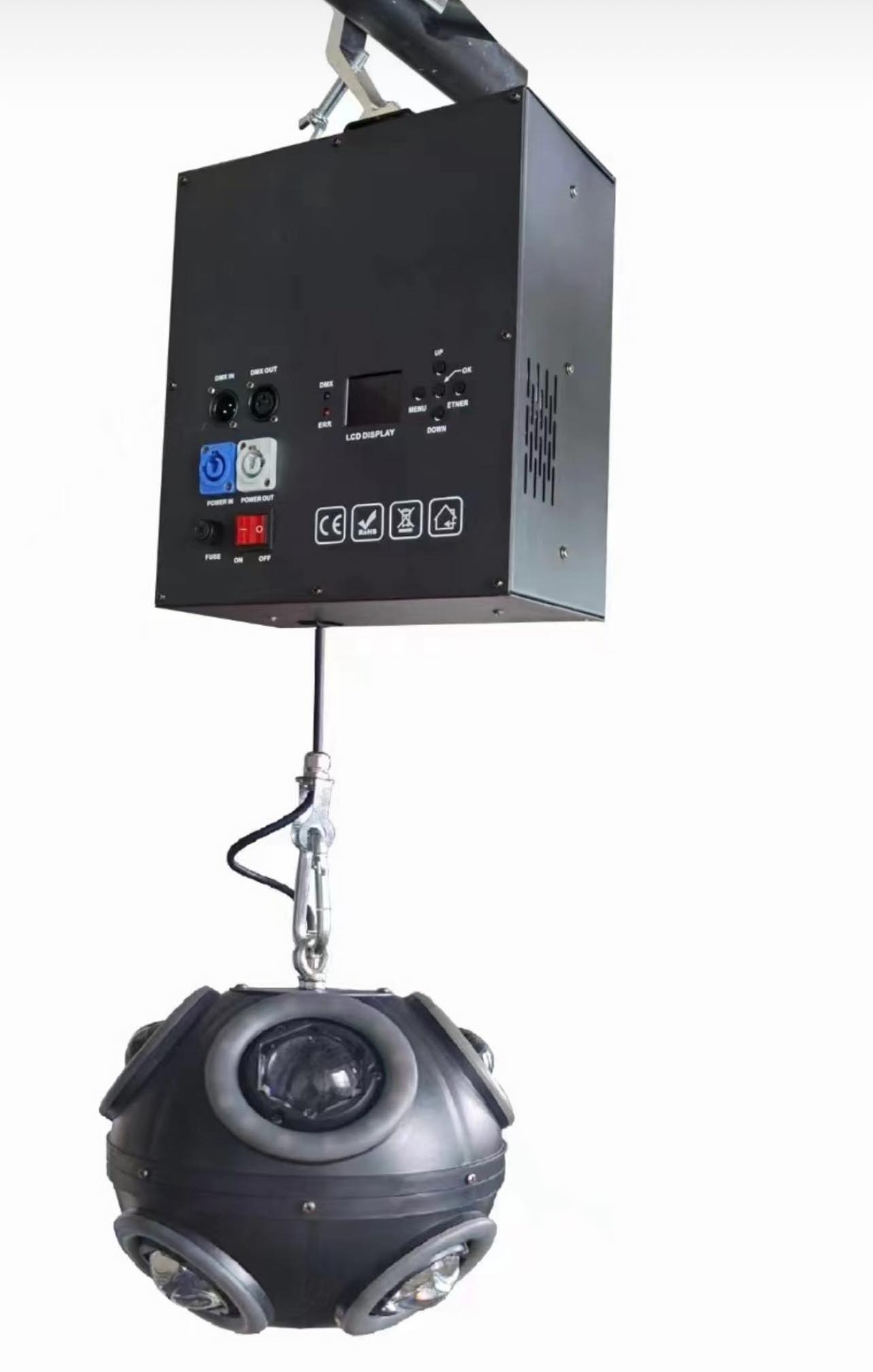

dmx512 LED lifting football lamp

Dmx512 LED lifting football lamp

Technical parameters:

Voltage: AC100~240V 50/60HZ

Power: 150W

Lifting stroke: 6 meters

Maximum load-bearing: ≤2.5KG

Speed: ≤0.6m/s

Anti-fall mode: physical braking, electronic protection.

Lamp beads: 8 *15w four-in-one lamp beads, 8 *15w gold light beads

Control mode: DMX512, self-propelled, master-slave.

CHANNEL: 10CH

Dimming: 0~100% linear dimming

Operating temperature: indoor -20 degrees ~ 50 degrees

Strobe frequency: 1~30HZ

Appearance: Metal, Flame Retardant Plastic Black

Connection method: DMX512 input and output / power input and output.

IP rating: IP20

Lift size: 26*13*29cm

Lift weight: 7.5KG

Ball size: 20CM

BALL WEIGHT: 1.2KG

PACK OF TWO BALL SIZES: 51*27*28 GALL WEIGHT: 3.85KG

Lift one pack of two sizes: 39*33*49 Gross weight: 16KG

Application:

1.Complete control board with DMX in/out.
2.Newest inductor with shielding function,show more smooth dimmer.
3.Electric motor driver has stronger power to moving winch
4.More thichness motor for Kinetic light ,will move more quickly and facile.
5.Lift cable smaller and firm from Japan.
6.Fall protection, Newest and safe design which is add electromagnetic valve.
7.Can be customized

Download the user manual here please

升降足球灯S1【英文】-6米.doc
