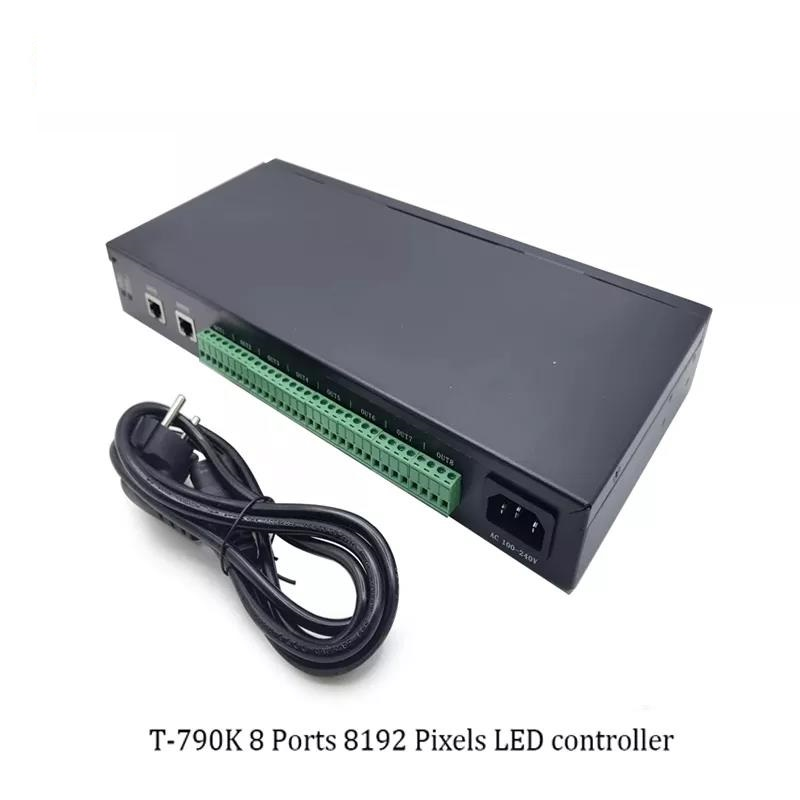

Outstanding features of t-790 1. The t-790 controller has 8 output ports, and each port can carry 170 / 512 / 1024 pixel points at most (the number of carrying points varies according to different chips). 2. T-790 controller port outputs two signal protocols: ① DMX512 / 1990 international standard protocol and DMX512 extension protocol; ② SPI / TTL serial protocol. 3. The t-790 controller carries DMX512 lamps and can output 250K / 500K / 750kbs rate. 4. When the t-790 controller is controlled by Maxus software, each port can carry 1 / 2 / 3 / 4 / 5 / 6 units of lamps (one unit = 170 point light sources).
1. The output port of the controller provides three-way protection, which can ensure that the output port of the controller will not be damaged in case of short circuit and reverse connection of the controlled lamp.
2. The automatic / manual numbering function of controller ID can number multiple controllers together or separately.
3. The controller has built-in effect and can test on load lamps (both RGB / RGBW lamps support).
4. The controller has DMX512 address writing function and address test. Single port or all ports carry DMX512 IC address writing, and conduct address test on lamps.

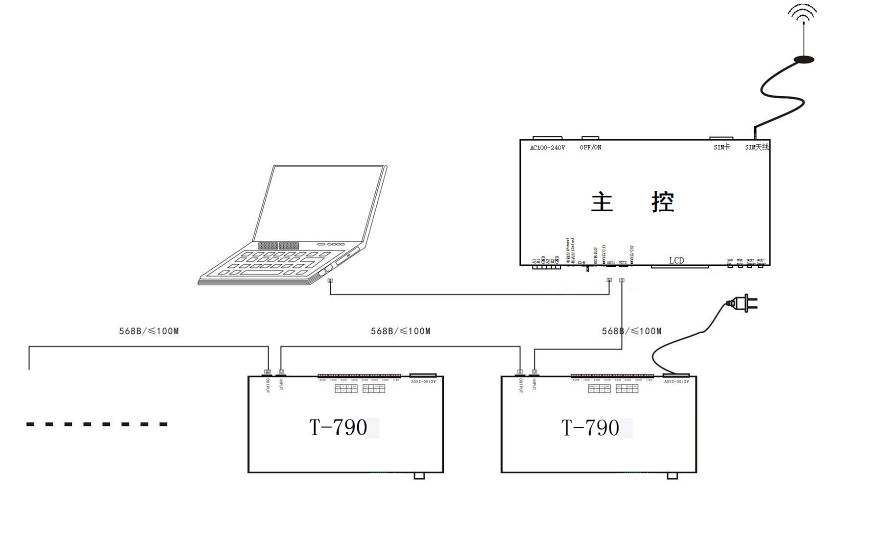

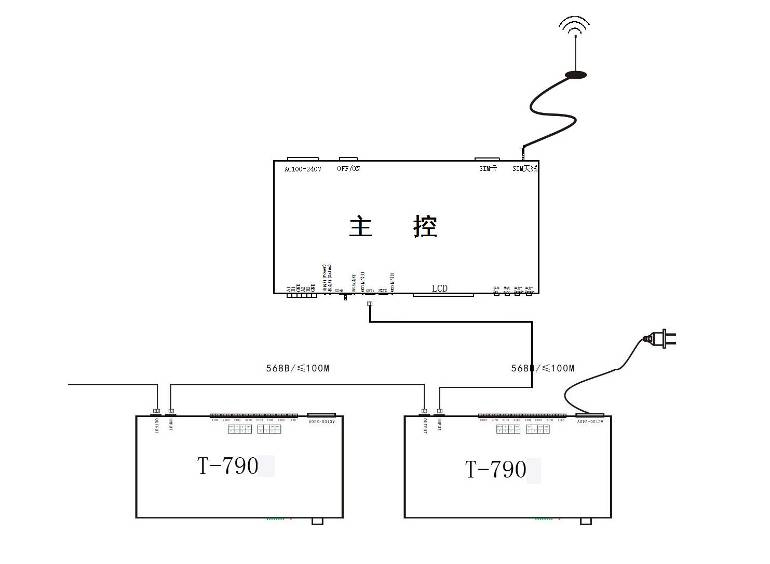

5. The communication between controllers adopts the international standard TCP / IP network protocol. The optional transmission rate supports 100M / Gigabit adaptation, and the transmission speed is more stable and fast. The maximum transmission distance between each two controllers can reach 100m. Beyond this distance, switches can be added or optical fibers can be used for long-distance transmission.
6. The controller provides LCD display, which can display the model, ID and working status of the control.

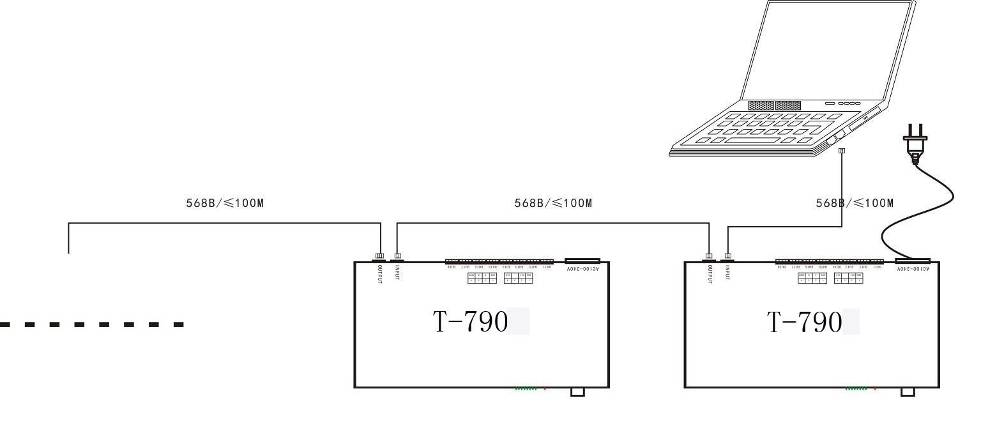

7. When cooperating with our online video software ledplayer for computer control, the connection status of the controller is monitored in real time at the computer end. Using the online video software ledplayer for computer control can realize: program timing playback, program segment selection, effect brightness adjustment, white balance online adjustment, program playback speed adjustment, display text, picture circular playback, etc., which greatly meets the various needs of customers in application and commissioning; Online video software ledplayer comes with gamma correction, which can make the color display more delicate and bright. 8. When the controller is connected to the computer, the IP address is set. The controller supports online and offline integrated control. The online priority is the highest. When there is no online signal, it will automatically switch to the offline effect.
