DMX512 Signal Amplifier (which support 100meter distance max)
2 channels DMX512 signal amplifier
LCD display 2 channels DMX512 signal power repeater
Welcome to use the DMX512 signal amplifier, which is developed for shaping and enlargement the attenuated of the DMX512 signal after the long-distance transmission.
It has two output channels; there is optical isolation between the input and output, each interface has an independent electrical isolation, there is wrong wiring protection at DMX input and output port, to avoid the interference to the DMX512 control system, guarantee the DMX signal can transmit to all the lighting control equipment, and improving the overall reliability of digital lighting control system.
Feature function:
Working voltage from DC12V-DC24V.
Optical isolation between the input and output port.
Input and output standard DMX512 signal.
Amplify the DMX512/1990 signal and extend signal transmission distance.
One input channel, two independent electrical isolation signal output channels.
Isolation voltage 3000VDC.
Wrong wiring protection at DMX input and output port.
Product parameter:
Mode | DMX signal amplifier |
Input voltage | DC12V-24V |
Input signal | DMX512/1990 |
Output signal | DMX512/1990 |
Input/output channel | One input channel,two output channels |
Input/output isolated voltage | 3000VDC |
DMX512 signal socket | Terminal block |
Product Dimension | L176XW46XH30(mm) |
Weight(G.W) | 140g |
other version optional
take noted the dmx512 signal amplifier can be used for TTL signal-- bec 485 signal can be converted into spi signal also
but make sure the led controller with data A and Data B port output

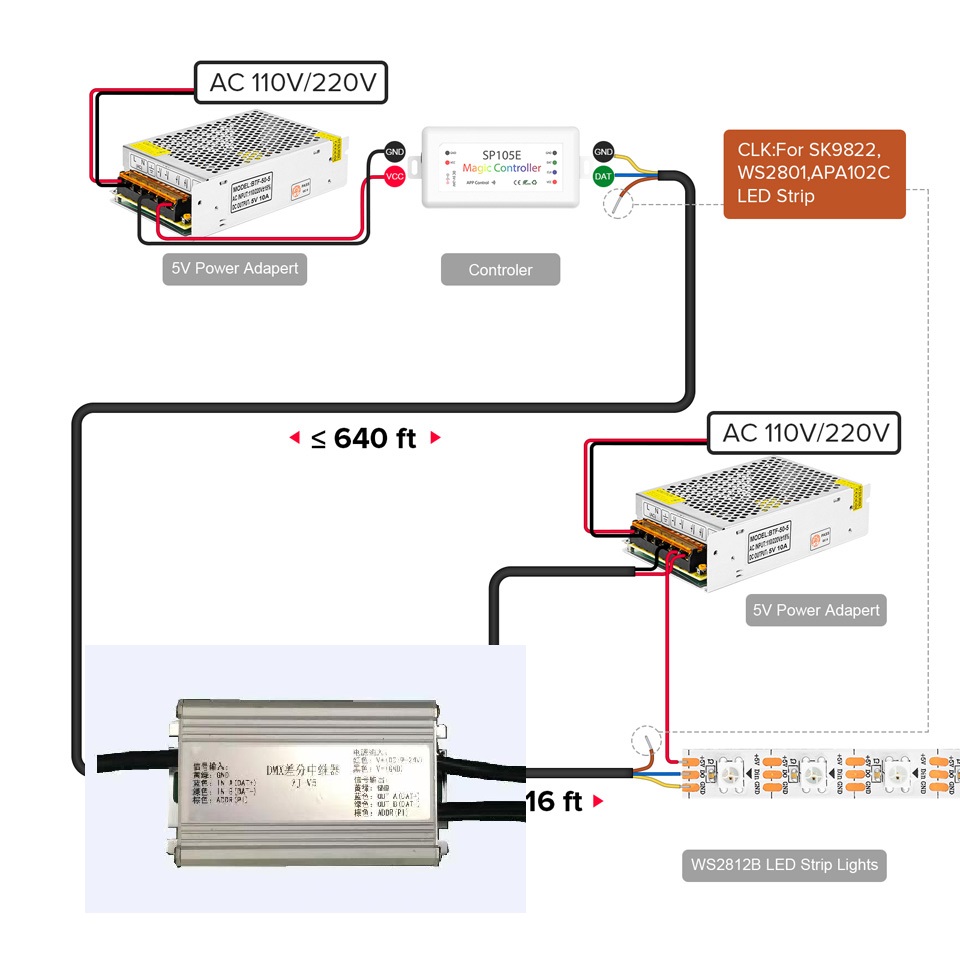

the wiring chart
english version -DMX512/RDM Signal Amplifier (BC-812-RDM)
Welcome to use the DMX512/RDM signal amplifier, which is developed for shaping and enlargement the attenuated of the DMX512/1990/RDM signal after the long-distance transmission.
It has two output channels; there is optical isolation between the input and output, each interface has an independent electrical isolation, there is wrong wiring protection at DMX input and output port,
to avoid the interference to the DMX512/RDM control system, guarantee the DMX/RDM signal can transmit to all the lighting control equipment, and improving the overall reliability of digital lighting control system.
Feature function:
1. Working voltage from DC12V-DC24V.
2. Optical isolation between the input and output port.
3. Input and output standard DMX512/RDM signal.
4. Amplify the DMX512/1990/RDM signal and extend signal transmission distance.
5. One input channel, two independent electrical isolation signal output channels.
6. 3000VDC, Isolation voltage 3000VDC.
7. Wrong wiring protection at DMX/RDM input and output port.
Product parameter:
Mode | BC-812-RDM |
Input voltage | DC12V-24V |
Input signal | DMX512/1990/RDM |
Output signal | DMX512/1990/RDM |
Input/output channel | One input channel,two output channels |
Input/output isolated voltage | 3000VDC |
DMX512/RDM signal socket | Terminal block |
Product Dimension | L176XW46XH30(mm) |
Weight(G.W) | 140g |
Download the detailed specification here please
BC-812-RDMDMX512SignalamplifierEN.pdf
