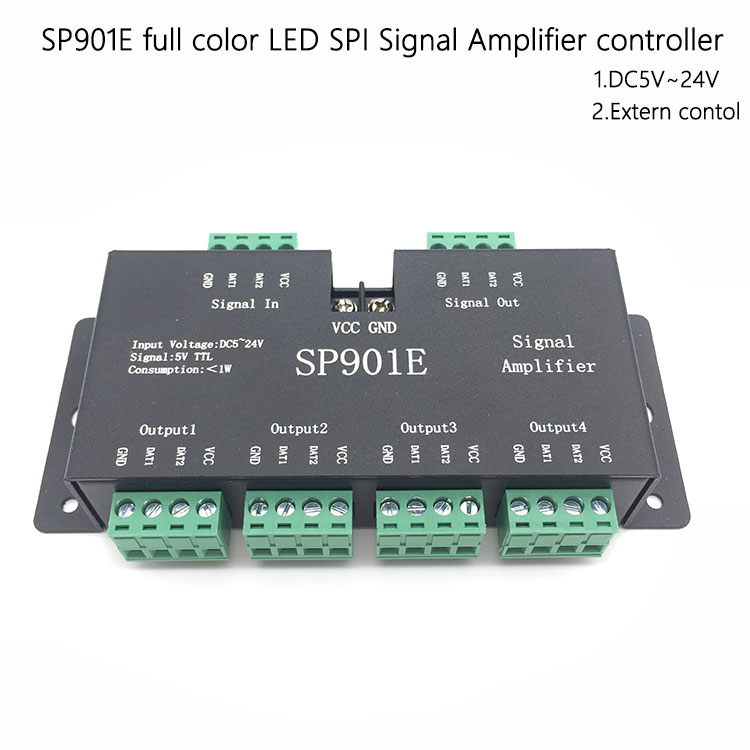

Support WS2812 WS2811 APA102 SK6812 RGB RGBW TTL SIP signal Amplifier controller SP901E sp902E
| Product Specification | |
| Voltage | DC5V-24V |
| Working current | 3mA-6mA |
| Control capacity | With the main control |
| Output signal | SPI TTL |
| Built-in pattern | With the main control |
| Control mode | With the main control |
| RGB sequence | With the main control |
| Working temperature | -25 ° C -85 ° C |
| Net weight | 30g |
| Support IC | With the main control |
1. DC5V~24V wide range of working voltage;
2. Compatible with all kinds of 5V-TTL signal;
3. Can be cascaded with multiple amplifiers.
sp902E --new signal amplifier
The cascading between amplifiers uses 485 signals, and if Cat5e cable is used between amplifiers, the distance can exceed 100 meters.
That is to say, there is no problem if the distance between the controller and the light bar is 100 meters. A 902 is connected to the back of the controller, and a 902 is connected to the front of the light bar. The signal strength of the 902 is better than that of the 901.
放大器与放大器之间级联采用的是485信号，放大器与放大器之间如果采用超5类网线，距离可以超过百米。
也就是控制器与灯条100米距离也没有什么问题了，控制器后面接一个902，灯条前面接一个902。902信号出来的强度比901要好
check the detailed datashet here please !
